Simultaneous Observation, High Definition
XZB-5B Biological Comparison Microscope is used to analyze side-by-side specimens simultaneously by cutting and overlapping the field of view. It consists of two microscope connected to an optical bridge, which provides four choices of different observation view field: Full Left, Full Right, Split, Overlapping Image.
XZB-5B which designed for identifying object's structure, comparing similarities and differences between specimens successfully solved the technical problem of the comparison line’s width and consistency of edges.
XZB-5B not only has excellent performance, but also improves its image quality and magnification. Illumination and various accessories make XZB-5B a good-looking, reliable and reasonable instrument.

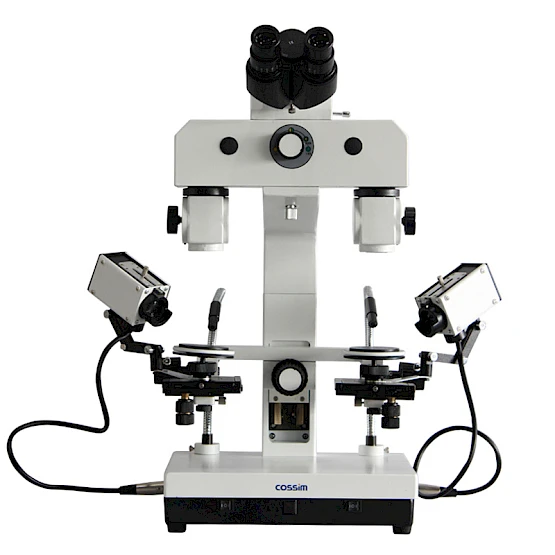

The Front View & Side View of XZB-5B
Head & Interface of XZB-5B
Illumination & Field View Adjustable of XZB-5B

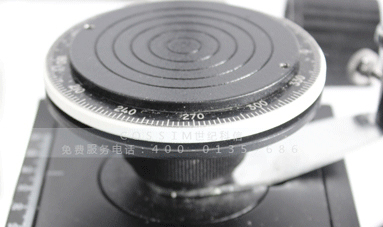

Objective & Stage of XZB-5B
It can be connected with display camera, operating real-time observation, output, save, measure and edit etc.
Specification for XZB-5B
10X, 16X, 25X
0.64X, 1X, 1.6X, 2.5X, 4X, 0.4X(optional)
70mm x 70mm
Transverse: 51mm, Longitudinal: 51mm, Vertical: 54mm
12V 50W halogen lamp, brightness adjustable, air cooled force light source
input : 220V AC; output: 12V DC
