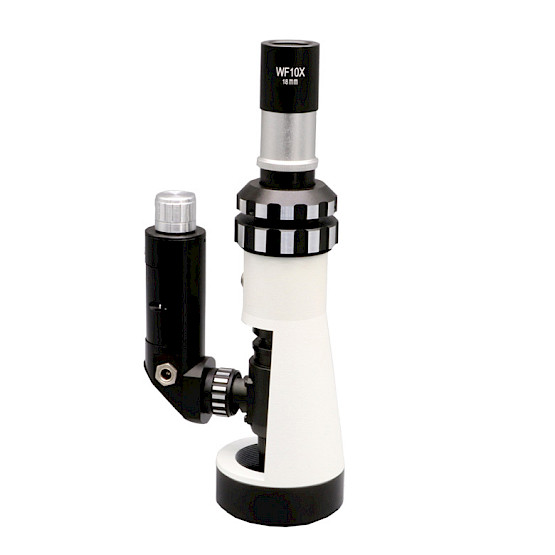

BJ-C Hand Type 100X~500X Portable Metallurgical Microscope

Plan Eyepiece

WF10X(Φ18mm)、WF12.5X(Φ15mm)

Achromatic Objective

10X 40X/0.65(Metallographic Objective)

Total Mag.

100X-500X

Focusing Range

25mm

Mechanical Tube Length

160mm

Voltage

3.6V

Weight

Net: 0.75kg

Gross：0.90kg

Dimension

230×110×70(mm)

A

Achromatic Objective

4X、20X、60X、80X

B

Plan Metallographic Objective (Long Working Distance)

10X、20X、40X、60X、100X

C

CMOS Electronic Eyepiece

0.35MP、1.3MP、 2MP、 3.2MP、 5MP、 8MP、 10MP，many functions: single, timing, continuous image capture, display scale, measurement etc.

D

DSLR Digital Camera

Over 10 megapixel SLR camera(contains photo and video) such as Canon、 Nikon、 Leica etc.

E

Metallographic Analysis Software UV-MA

Contains up to 400 items that are fully in line with GB、 YB、 JB、 ASTM and other standards. Many functions: automatic rating of metallographic images, comparison of atlas, calibration and measurement, printing of constant multiple, viewing atlas, output report and image fusion.

F

Granularity Analysis Software UV-G

Contains all basic measurement function, extracts and calculates the area proportion of different color images, and mreasure the particles in the field of view automatically. Distribution and integral distribution map can be output by linear or non-linear statistical means according to the particle size, shape and other parameters. Common statistical data such as D10, D50 and D90 can also be obtained. Available connect multimedia, print,Email and other ways of output.
