DTE-5 HD Automatic 3D Digital Stereo Zoom Video Microscope Motor Drive Electronic PCB Microscope

1X~5X
ratio: 5:1

Max Mag.
276X

W.D.
45mm

Monocular

Standard C-mount

LED Illuminator

DTE-5 automatic 3D video stereoscopic microscope has long working distance, wide field of view and high definition imaging quality. Based on the two-dimensional observation, rotating three-dimensional observation function is added, real-time image observation and 360° rotation, which makes unilateral specimen easy to be observed in all directions, multi-directionally. It is mainly used in semiconductor, SMT welding joint, QFP, capacitor, connector, medical device, biological chemical industry and other industries. To observe the 3D images that is not easy to observe under 2D microscope, jewelry industry inspection and school teaching as well.

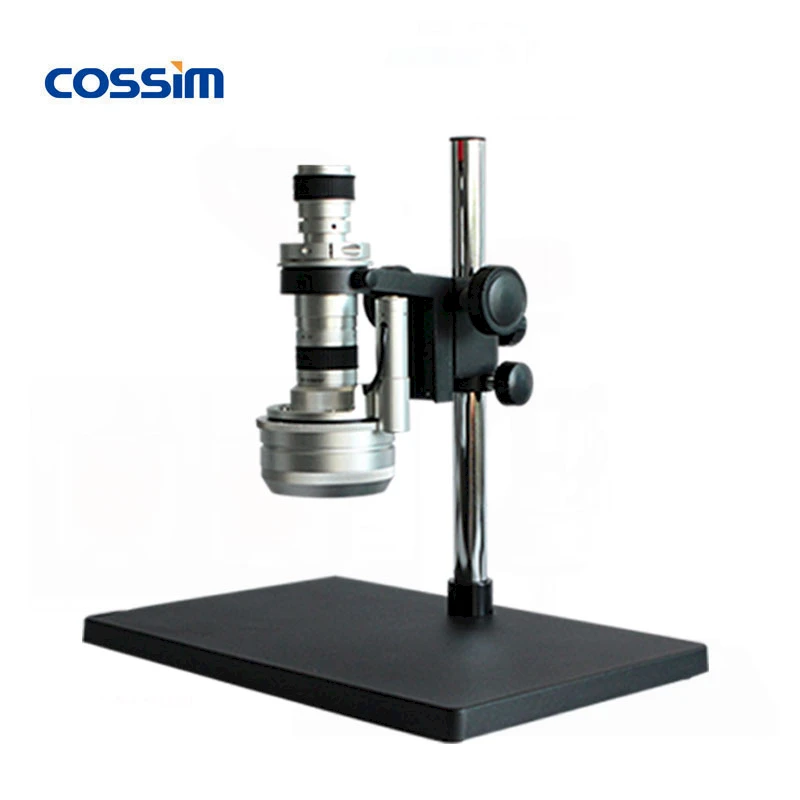

DTE-5 Auto 3D Stereo Microscope

Structure of DTE-5 Auto 3D Stereo Microscope

Dimension of DTE-5 Auto 3D Stereo Microscope

Multi-Function Controller and Base Stand of DTE-5 Auto 3D Stereo Microscope

LED Light Source and Focusing Knob of DTE-5 Auto 3D Stereo Microscope

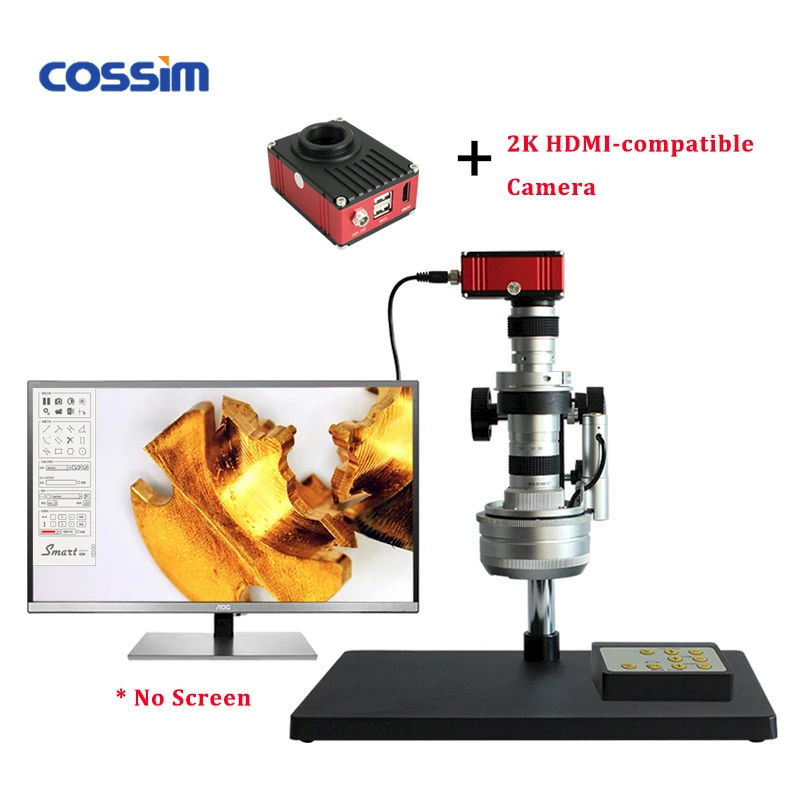

DTE-5 Auto 3D Stereo Microscope with its Connected 2K HDMI Camera

DTE-5 Auto 3D Stereo Microscope with its Connected 4K HDMI Camera

DTE-5 Auto 3D Stereo Microscope with its Connected USB Camera

DTE-5 Auto 3D Stereo Microscope with its Connected 16MP HDMI Camera

Parameters for Microscope DTE-5
Head	Monocular (connected with the digital device)
Objective	1X~5X, ratio: 5:1
Adapter	Standard C-mount
Magnification	Max can reach 276X (Optic Mag. * Digital Mag.) Digital Mag. is based on the Camera & Display Screen
Field of View	30mm Max
Focusing	Column Focusing
Working Distance	45mm Max
Pole Length	330mm
Handwheel Focus Range	60mm
Controller	Imported motor electric controller
Working Base	Size: 380x260x22mm
Input / Output Voltage	100V~240V / 12V10W LED Ring Light
Illumination	LED Light Source
