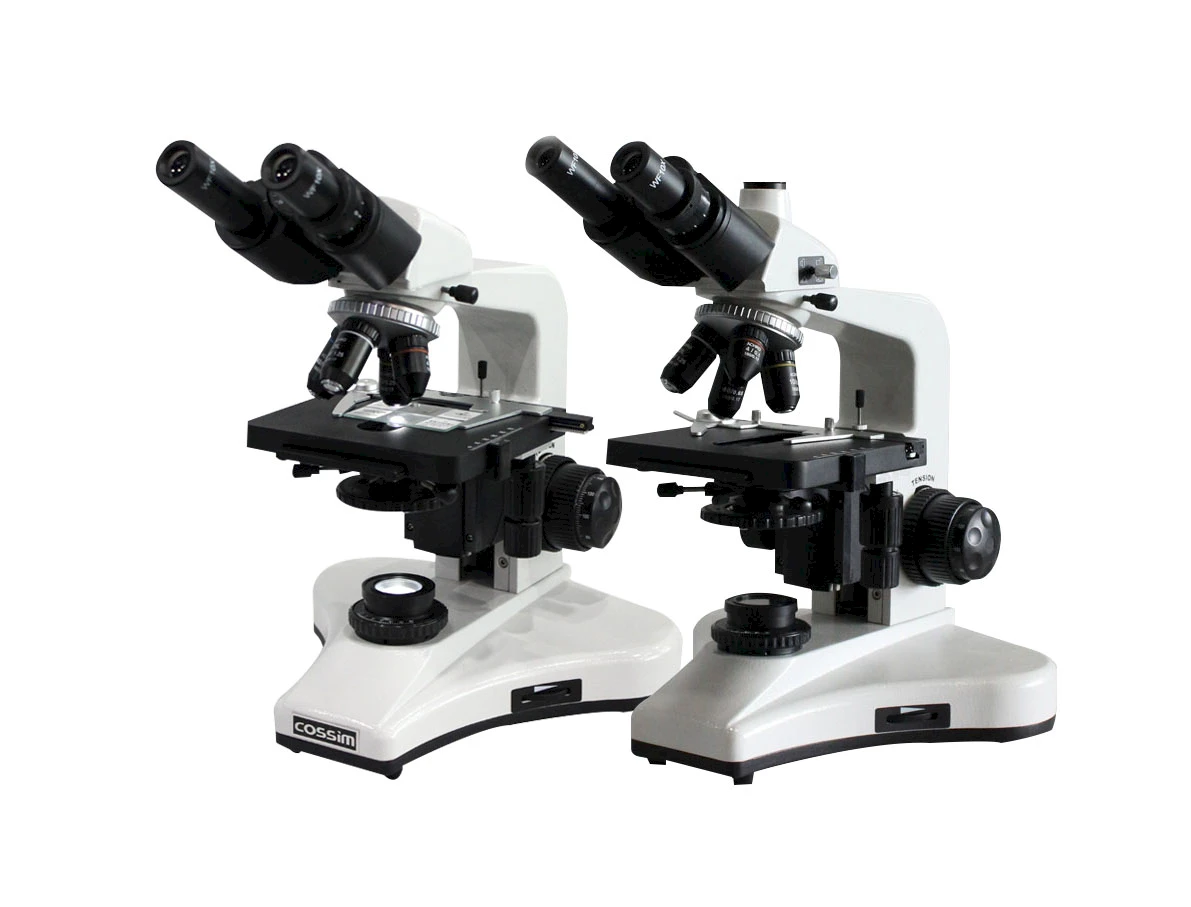

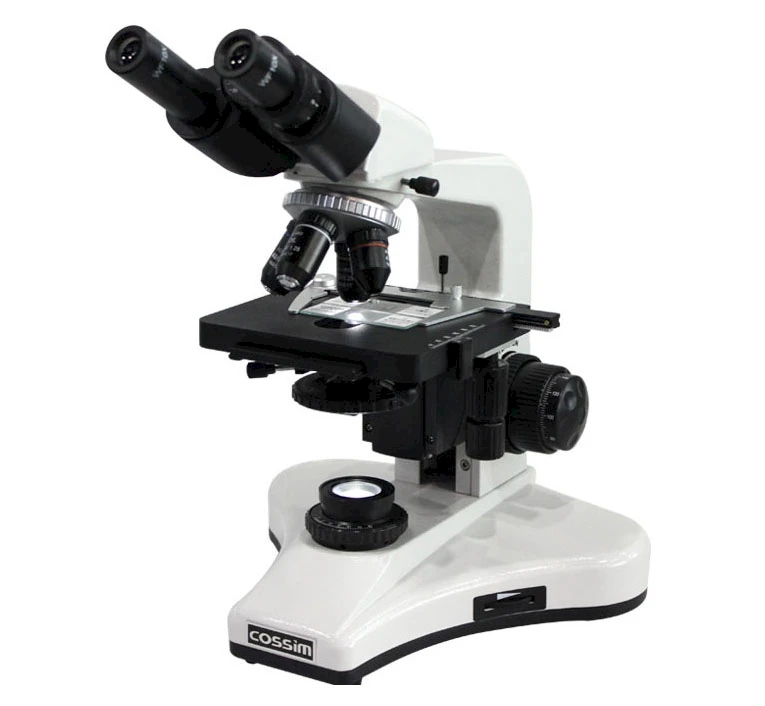

BL-123 Binocular & Trinocular 40X~1000X Biological Microscope for School Students Laboratory

  1. Microscope X
  2. Compound Microscopes
  3. BL-123

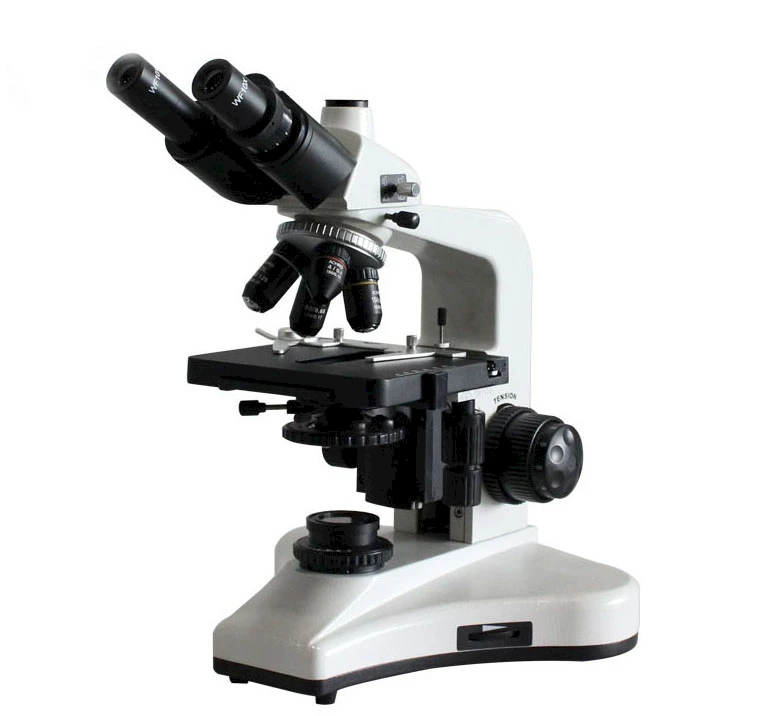

BL-123T Trinocular Biological Microscope

40X~1000X Total Mag., Articulate 360°, inclined 30°, 140×155mm Double Layer Mechanical Stage

Features

  • WF10X/ 20mm Eyepiece
  • 4X, 10X, 40X, 100X Objective Lens
  • 50 hours using time without electricity
  • Equipped with electric light source
  • Brightness continuous adjustable LED has the built-in charging system

Tags: Compound MicroscopesBiological MicroscopesClinical and LabHome and HobbySchools and Students

Request a Quote?

Get Quote Live chat Email Phone
Eyepiece
WF10X/ 20mm
N.A. 1.25
ABBE condenser
Filters B, Y, G

BL-123 Biological Microscope is widely used in research field, such as histology, biology, bacteriology, pathology and medicinal chemistry etc. It also has extremely important applications in teaching demonstration of universities and colleges, and the clinical analysis of the medicine.

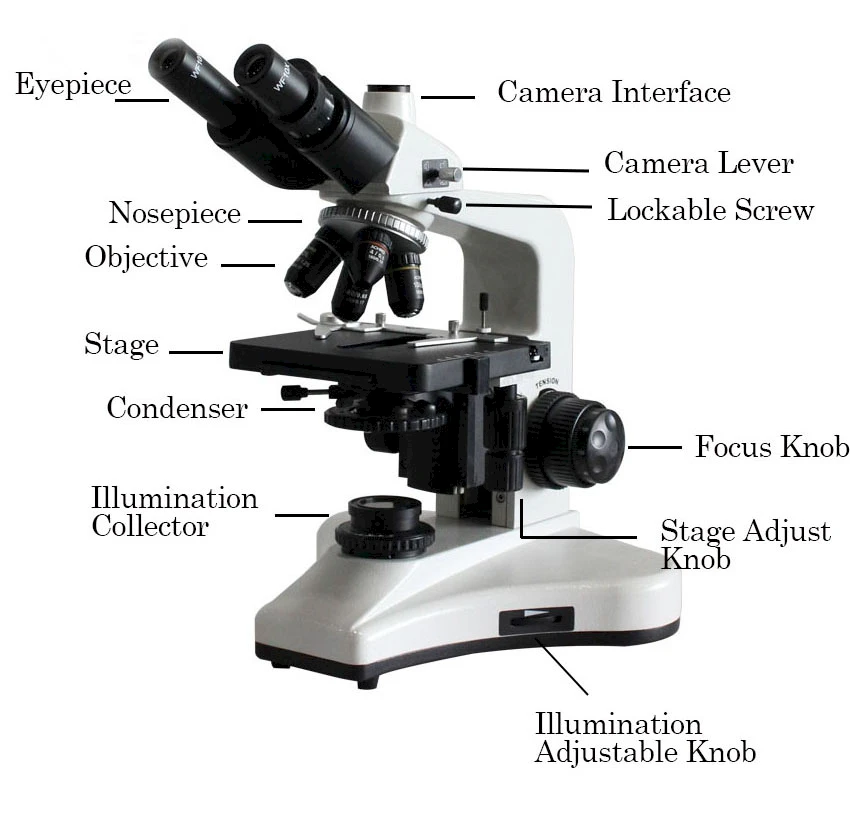

Structure of BL-123T Biological Microscope

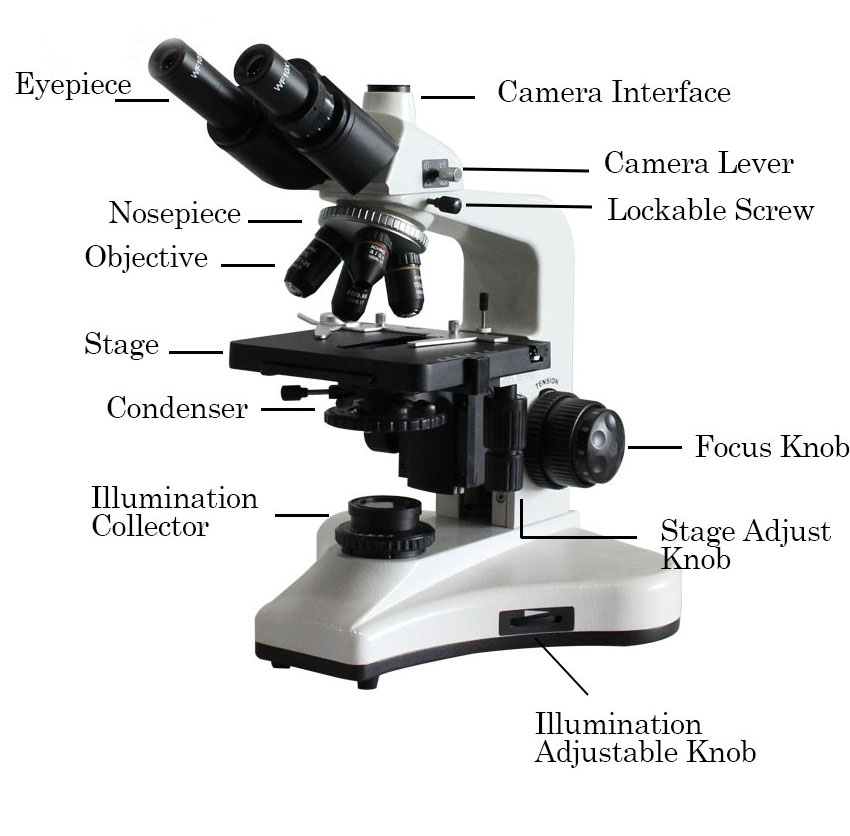

Structure of BL-123T Biological Microscope

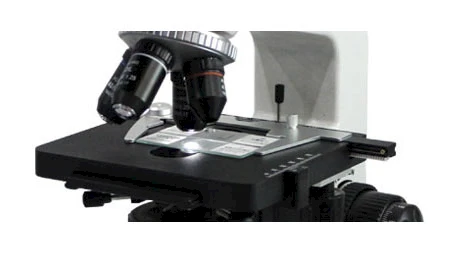

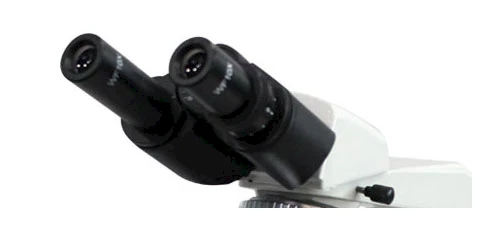

Head of BL-123Objective & Stage of BL-123

Head & Objectives & Stage of BL-123

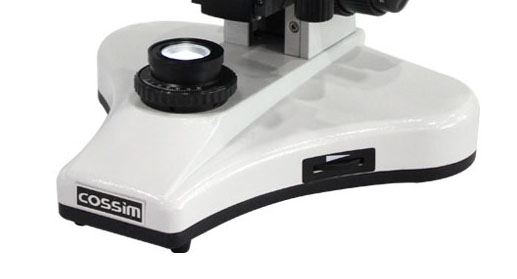

Illumination System of BL-123

Illumination System of BL-123

Specifications for BL-123:

Head

Binocular; Articulate 360°, inclined 30°, interpupillary distance: 55~75mm, adjustable diopter

Plan Eyepiece

WF10X/ 20mm

Achromatic N.A. Objective

4X/0.10 (W.D. 37.5mm)

10X/0.25 (W.D. 7.31mm)

40X(Spring)/0.65 (W.D. 0.63mm)

100X(Spring)/1.25 (W.D. 0.18mm)

Total Mag.

40X-1000X

Nosepiece

Quadruple nosepiece

Mechanical Tube

160mm

Condenser

N.A. 1.25 ABBE condenser, with iris diaphragm, ±20mm

Focusing System

Coarse and fine coaxial focusing (rack and pinion drive system), minimum division of fine focusing: 0.002mm, focusing range: 30mm

Double Layer Magnetic Base

Double Layer Mechanical Stage: 140×155mm;

Traveling Range: 74×54mm, vernier: 0.1mm

Filter

B, Y, G

Illuminator

Built-in LED adjustable light source, φ2—φ30mm adjustable iris diaphragm
