DTE-25 Motor Drive Auto Stereo 14~120X Digital 3D Microscope with 4K Camera & Side View for PCB Inspection
Auto 3D Digital Stereo Microscope; Real-time image observation 360° rotation; 120X Total Magnification
Features
- Real-time image observation and 360° rotation
- Rotate speed adjustable, continuous zoom, multi angles observation
- Front & side LED light sources, brightness adjustable
- Wide range of depth of field, high resolution (required digital camera support)
- Total Magnification can reach 120X, the max working distance is 86mm
Tags: Stereo Microscopes3D MicroscopeIndustrial Inspection
Request a Quote?
Get Quote Live chat Email Phone
14X~120X(Based on 15.6inch 4K monitor)
2D:86mm; 3D:50mm
Standard C mount
DTE-25 automatic 3D 360° video stereoscopic microscope has long working distance, wide field of view and high-definition imaging quality. Based on the two-dimensional observation, rotating three-dimensional observation function is added, its simple to push and pull to switch. Real-time image observation and 360° rotation, which makes unilateral specimen easy to be observed in all directions, multi-directionally.
Equipped with two type light sources: front light and side light, which perfectly solves the problem of light dark angle. Adding the 4K HDMI-compatible measuring microscope camera, which has SONY CMOS sensor. Providing photo, video, and measuring functions.
It is widely used in electronic components, precision hardware, deep hole wall, life science, animal and plant morphology, criminal investigation and identification and so on.
Structure of DTE-25 3D Stereo Microscope with 4K Measuring Camera
Structure of 4K Measuring CMOS Camera
Structure of DTE-25 3D Stereo Microscope Multi-Function Controller
Dimension of DTE-25 3D Stereo Microscope with 4K Measuring Camera

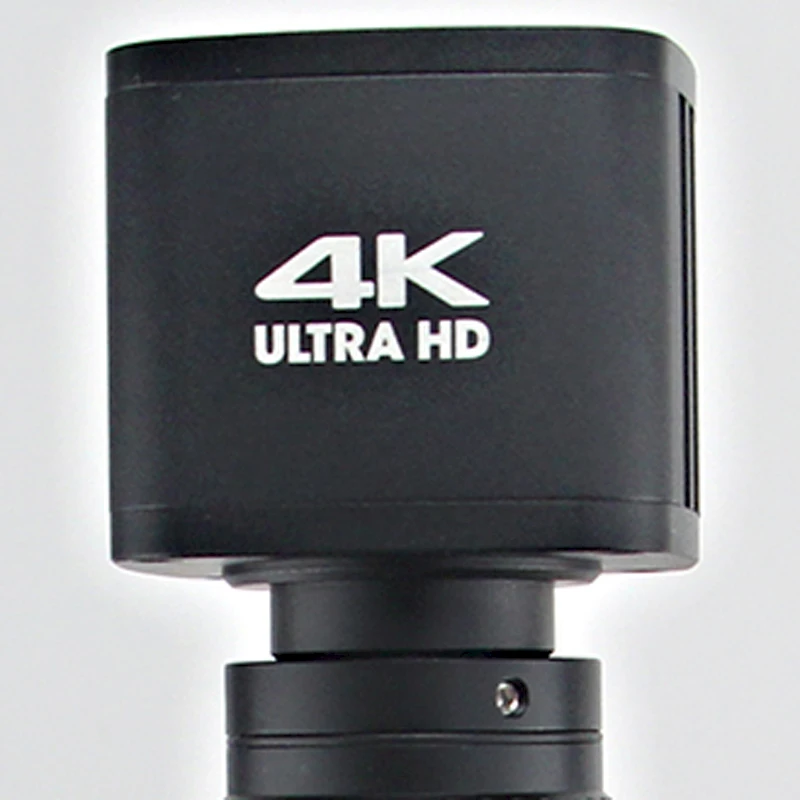

Three Optical Magnification Optional & 4K HDMI-compatible Camera

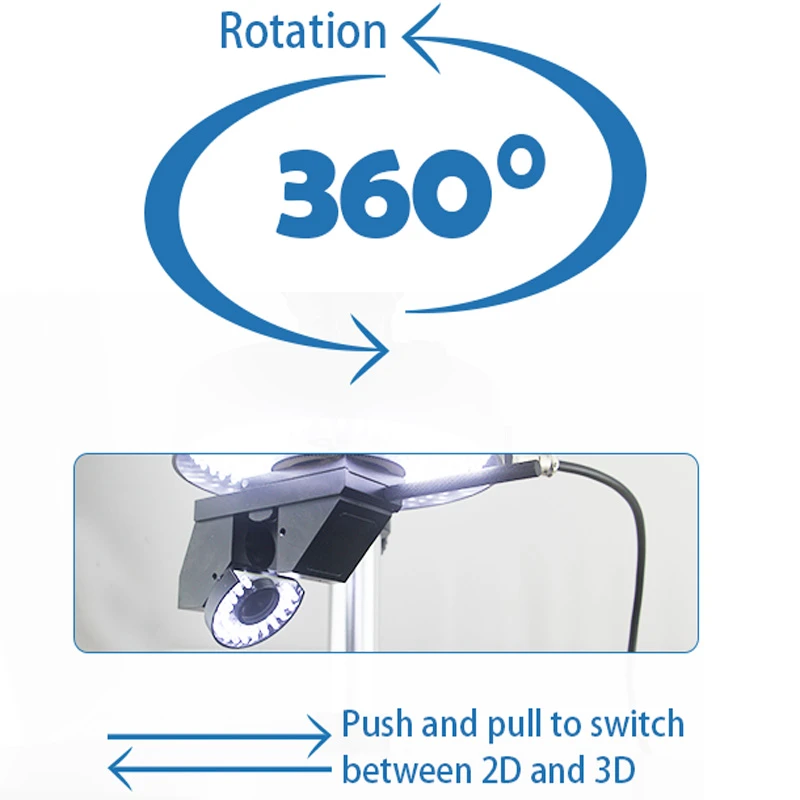

Two LED Light Source & Switch Mode
Parameters for Microscope DTE-25 | |
|---|---|
Optical magnification | 0.6-5.0X zoom body with 0.5X C mount |
Total magnification | 14-120X (based on 15.6inch 4K monitor) |
Working distance | 2D:86mm; 3D:50mm |
Ratio | 1:8.3 |
Field of view | 25.6x14.4-3.0*1.7mm |
Lens mount | Standard C mount |
Observe mode | 2D observation |
Automatic 360 degree rotation 3D observation | |
Push and pull switch | |
Sensor | 1/1.8” SONY CMOS |
Resolution | 3840x2160 |
Pixel | 8.0MP |
Frame | 60 FPS |
Pixel size | 2.0μm x 2.0μm |
Output | HDMI output |
Memory function | Take photo and video to U disk |
Basic Functions
Supporting taking photo, video saving to U disk. Playing Photo online, freezing, image mirroring, flip, automatic white balance, automatic exposure and other functions.
Measuring Function
Supporting line distance, circle, angle, polygon, etc.measurement, and the data could be saved.
