BJ-CX 40X Portable Metallurgical Microscope with Penlight

Portable Metallurgical Microscope BJ-CX

40X Magnification, Monocular Head, Portable Metallurgical Microscope

Features


  • 10X Eyepiece & 4X Objective
  • Adopts excellent optical system
  • Providing a bright, clear and undistorted image
  • Used in low light areas with a penlight attachment

Tags: Compound MicroscopesMetallurgical MicroscopesIndustrial Inspection

Request a Quote?


Get Quote Live chat Email Phone

Eyepiece
10X
Objective
4X
Base Stand Diameter
φ63mm
Working Distance
14.3mm

BJ-CX is a portable microscope which adopts excellent optical system. And it’s a brand-new portable microscope with a wide field of view for general applications. Providing a bright, clear and undistorted image with high quality optics and a rack focusing system. This portable microscope can be used in low light areas with a penlight attachment and an alloy base. It is widely used in biology, archaeology, botany, forensics, geology, entomology horticulture, numismatics and philately, quality control, textiles and electronic industries and so on. And it is also an excellent introductory microscope for a beginner.

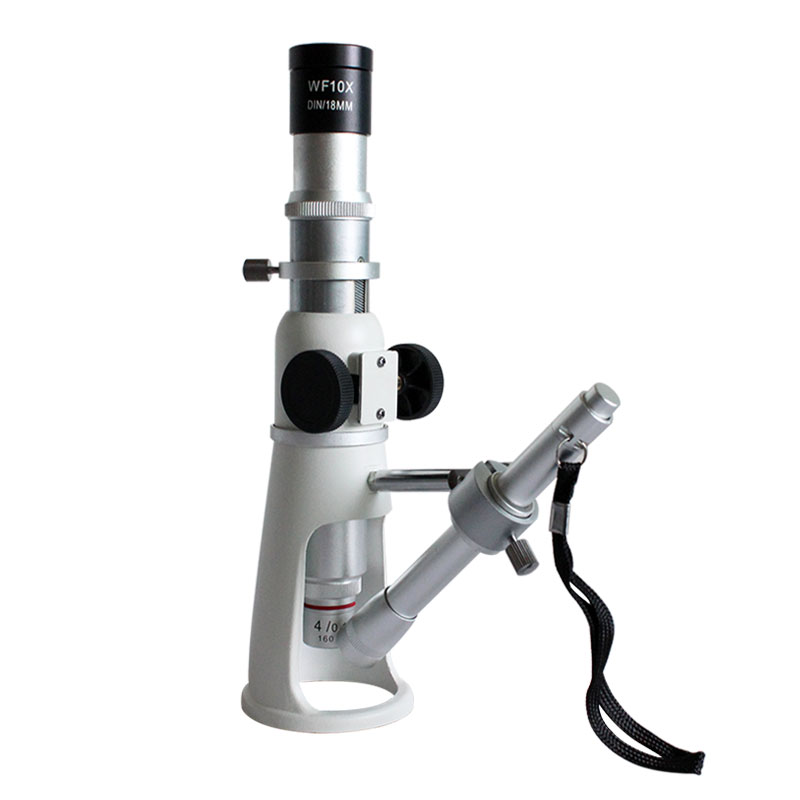

Portable Metallurgical Microscope BJ-CX

Portable Metallurgical Microscope BJ-CX

Portable Metallurgical Microscope BJ-CX

Structure of BJ-CX

Structure of Portable Metallurgical Microscope BJ-CX

Eyepiece of BJ-CXFocusing Knob of BJ-CX

Eyepiece & Focusing Knob of BJ-CX

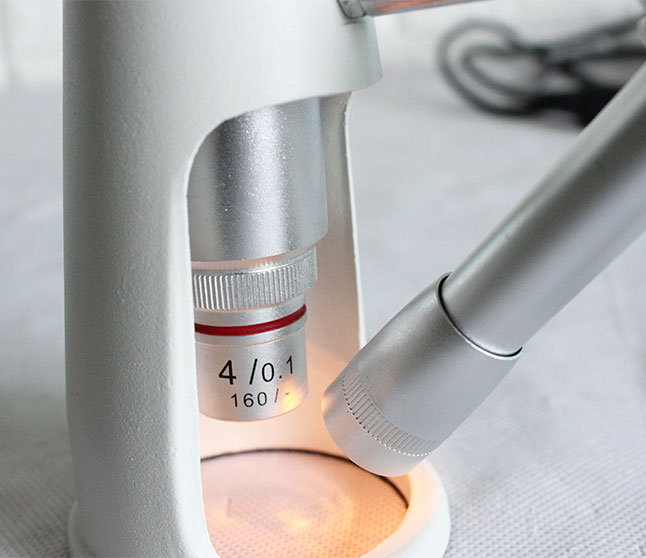

Objective of BJ-CXPenlight of BJ-CX

Objective & Penlight of BJ-CX

Specification for BJ-CX

Eyepiece

WF10X(Φ18mm) with Reticule 0.1mm

Mechanical Tube Length

160mm

Achromatic Objective

4X/0.1

Total Mag.

40X

Working Distance

14.3mm

Focusing Range

30mm

Base Stand Diameter

φ63mm

Illumination

LED Spot Light (no. 7 Dry Battery *2)

Size

143mm*63mm*210mm

Weight

0.65KG

Standard List for BJ-CX

A

Main Body

B

Eyepiece (10X)

C

Achromatic Objective (4X)

D

Spot Light

E

Power cord

F

Box

G

Operate Manual
