HVS-15AF Monocular Autofocus Integrated Stereo Video Microscope with Measurement Function

Sensor Size
1/2.8” Color CMOS

1080P@60fps
1080P@50fps

Menu
Full Digital UI Design

Save Function
U Disk

HVS-15AF Autofocus large field of view measurement microscope has the characteristics of fast transmission rate, and take pictures, videos and other picture processing functions. Suitable for medical and health, agriculture and forestry geology, electronic precision machinery and other industries and departments, especially suitable for LED, PCB inspection, stamping electroplating inspection, electronic components inspection and so on. It is also suitable for biological anatomy and macroscopic observation of insects. Language mode: Simplified Chinese, English, traditional Chinese and Japanese.

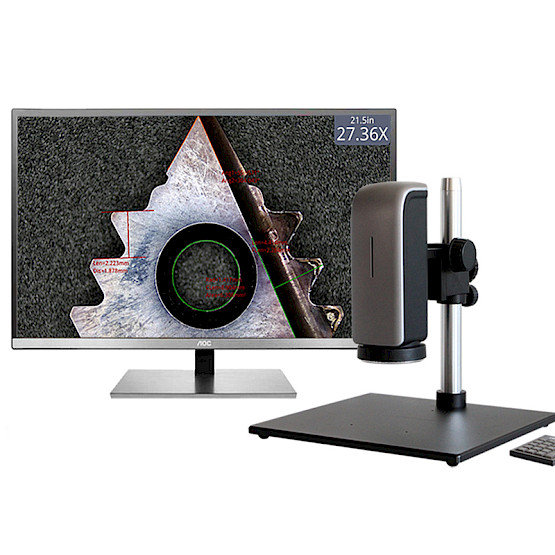

HVS-15AF Video Stereo Microscope

Structure of HVS-15AF Video Stereo Microscope

Keypad of HVS-15AF Video Stereo Microscope

Measuring Functions of HVS-15AF Video Stereo Microscope

Measured Sample Captured by HVS-15AF Video Stereo Microscope

Specification for HVS-15AF
Sensor	Color CMOS
Real Resolution	2MP
Sensor Size	1/2.8” CMOS
Menu	Full Digital UI Design
Control	Mouse Action
Power Supply	DC12V
Output interface	HDMI
Rate of Frame	1080P@60fps/1080P@50fps
Scanning Mode	Progressive scanning
White Balance	Manual / Auto
Exposure	Manual / Auto
Electronic shutter speed	1/50s(1/60s)～1/10000s
Optical Ratio	0.80～4.76
Digital Ratio	1.0～6.0
Digital Magnification	Available
Save Function	U Disk
