VGM300A 6.5~55X Jewelry Tools Equipment Diamond Setting Microscope Stand with Head Holder
6.5X~55X, Durable Base, Humanization Design, Horizontal ±15°, Hard Aluminum Alloy
Features
- Continuous zoom 6.5X~55X
- Spin angle is horizontal ±15°, main straight is 270°
- Adopts imported high-quality hard aluminum alloy fuselage stand
- Unique human head rest frame to make user no stress and improve work efficiency
Tags: Stereo MicroscopesGemological MicroscopesGemological Equipment
Request a Quote?
Get Quote Live chat Email Phone
WF10X(Φ22mm)
0.65X-5.5X
Dia. 76mm
±15°
VGM300A adopts optical system with clarity image, 3D effect and large magnification. This microscope is used in jewelry identification to observe the intrinsic and surface characteristics of the sample and is invisible to the naked eye.
Its gemological stand VGM-BR which adopts imported high-quality hard aluminum alloy fuselage, providing a sturdy and durable operation.
The humanized design, flexible stretching and flexible mechanical focusing mechanism to make operation more convenient.
Unique human head rest frame to make user no stress and improve work efficiency. Beautiful and practical structure of this universal stand, apply to variety of height, direction work and working environment.

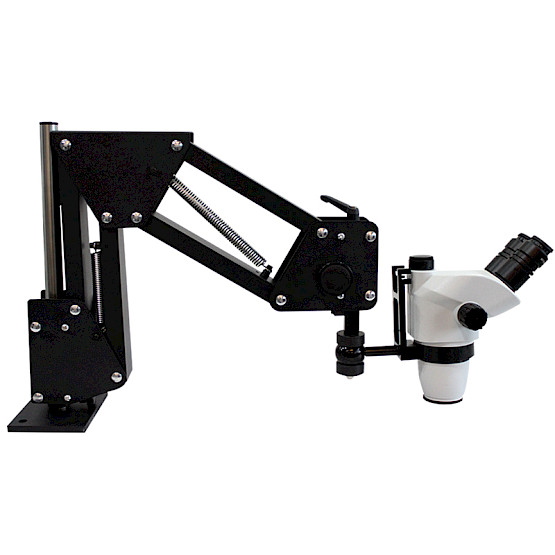

VGM300A Gemological Microscope

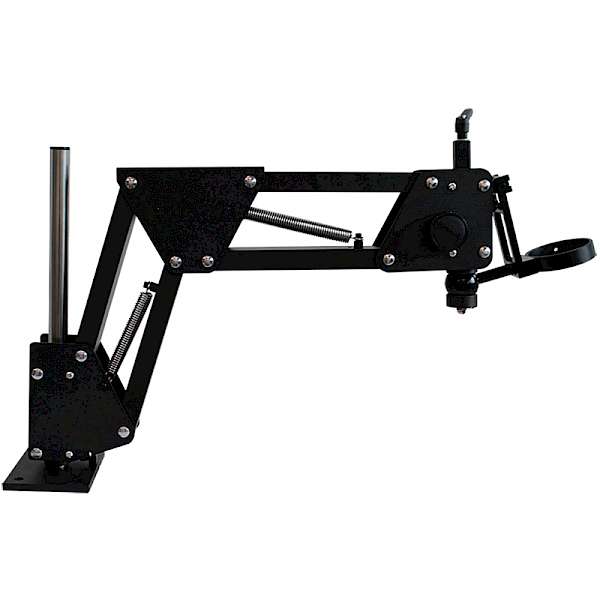

VGM-BR Gemological Microscope Stand Base
Structure of VGM-BR Gemological Microscope Stand
Structure of VGM300A Gemological Microscope

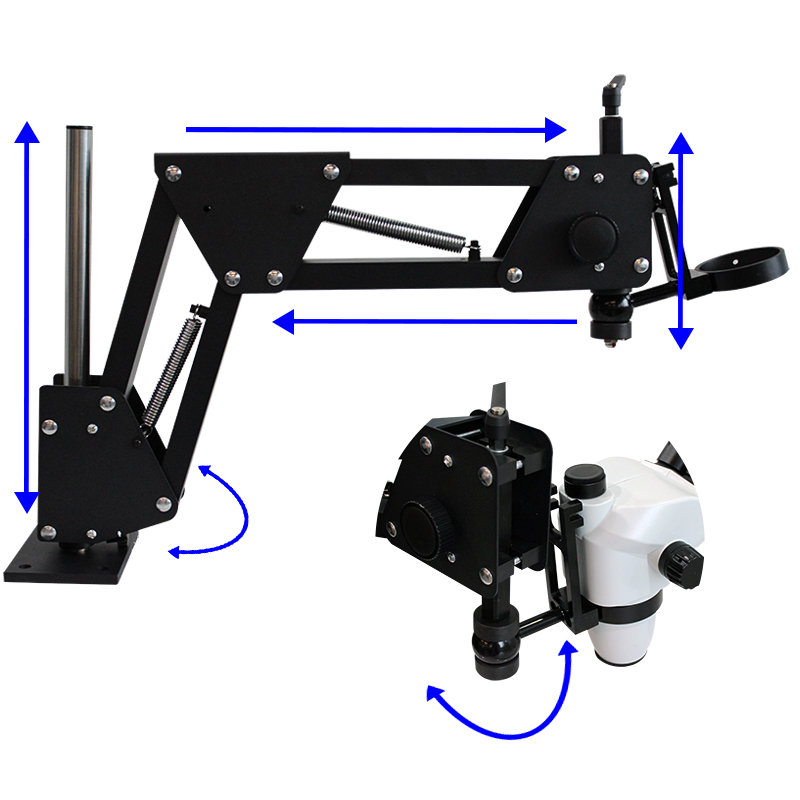

Operation of VGM-BR Gemological Microscope Stand Base
Base Stand & Focusing Knob of VGM300A Gemological Microscope
Head bracket & Head hole of VGM300A Gemological Microscope
Head shelf & 65Mn Spring of VGM300A Gemological Microscope
Packing of VGM-BR Gemological Microscope Stand Base
Specification for VGM300A | |
|---|---|
Eyepiece | High eye point WF10X(Φ22mm) adjustable diopter (micrometer can be installed) |
Objective | 0.65X-5.5X Ratio: 8.5:1 |
Total Mag. | 6.5X/55X |
Head | Trinocular, 45°inclined, 360°Rotatable, Diopter adjustment: ±5 diopters |
Interpupillary distance | 54-76mm |
Bracket Hole | Dia. 76mm~78mm |
Control High Range | 50mm |
Spin Angle | Horizontal ±15° |
Straight | ±15° |
Main Straight | 270° |
Zoom | 200~500 |
Material | Hard Aluminum Alloy |
Working Distance | 6.4” (160mm) |
Total Height | 500mm |
Gross Weight | 11KGs |
