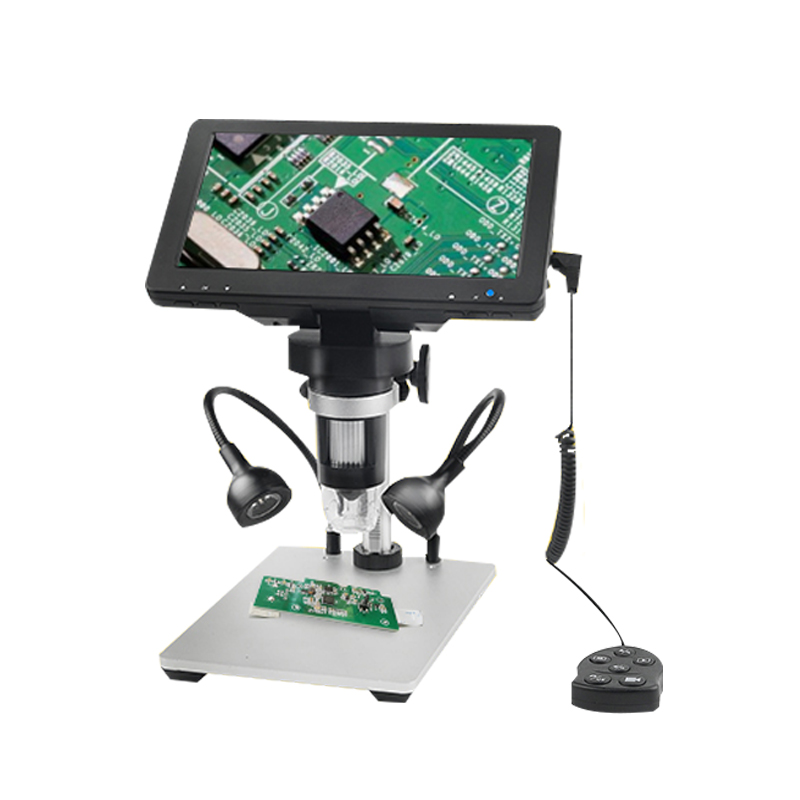

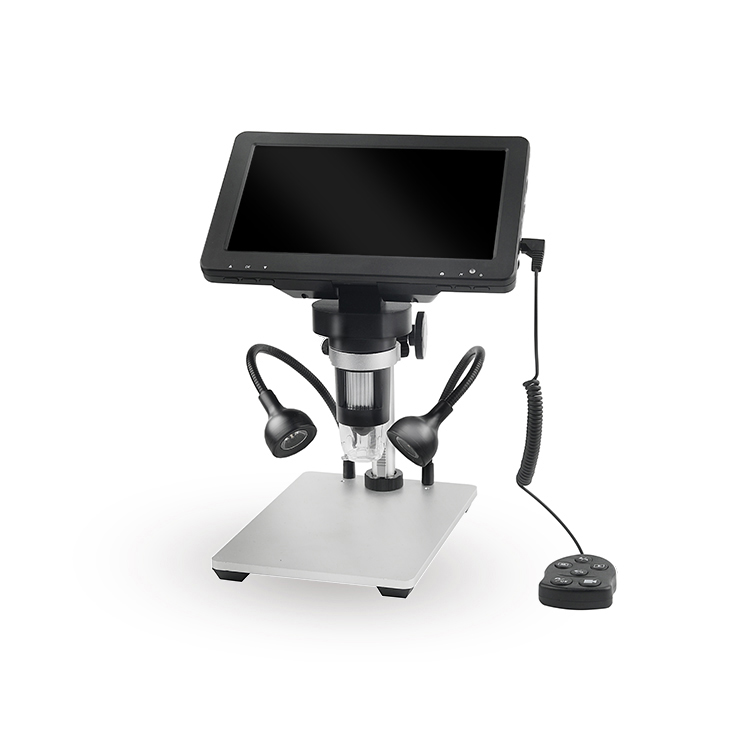

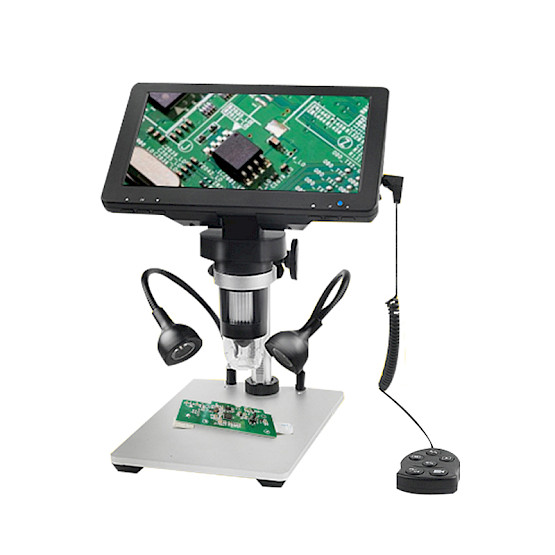

DM9 1200X 7Inch LCD Display Screen Handheld Digital Microscope with External LED Light Source

DM9 Digital Microscope

7 inch Display, External Light Source and Wired Remote, Industrial Maintenance, Jewelry Appraisal, Skin Detection, Magnified Inspection of Precision Objects

Features


  • Micro/USB2.0 interface output
  • 7 inch HD LCD screen, which is convenient to observe more
  • 1200X Magnified and 12MP resolution, offer more clarity imaging
  • External light source and wireless remote control, providing easy and stable operation

Tags: Industrial InspectionUSB OutputDigital MicroscopesHome and HobbyTeaching DemonstrationKids Microscopes

Request a Quote?


Get Quote Live chat Email Phone

Optical Size
1/4”
Focus Range
10~40mm
W.D.
10cm
Micro
USB2.0
0°~270° Rotate

DM9 is an Electric Digital Microscope, it has 7 inch HD LCD screen, which is convenient to observe more. The photo resolution ranges from 3M to 12M, 3M, 5M, 8M, 10M, 12M; the video resolution is 720P, 1080P, 1080FHD, which provides super clarity and sharp images.

Its display screen can be rotate to the max 270°, so it is easy to change the screen angles according to the operation demands. The max working distance can be 10cm, offering superior distance for workers to operate PCB welding, or phone repair. The external light source can provides not only alleviate the problem of light in complex environment, but also solve the reflection problem of objects under light source. The wireless remote control also offers easy and stable operation.

Connecting to the PC is available, support Windows XP, Win7, Win8.1, Win10, Mac OSx10.5 or higher. Supported language: English, traditional Chinese, simplified Chinese, German, Italian, Portuguese, Korean, Russian, French, Japanese, Arabic, Dutch.

The stand is very stable and two options can be chosen, one is aluminum alloy, the other one is fixed clamp.

This digital microscope can be used widely in various fields: PCB inspection, watch and phone repair, jewelry identification, learning and demonstration, textile testing, skin detection, print inspection, money check etc.

Structure of DM9 Digital Microscope

Structure of DM9 Digital Microscope

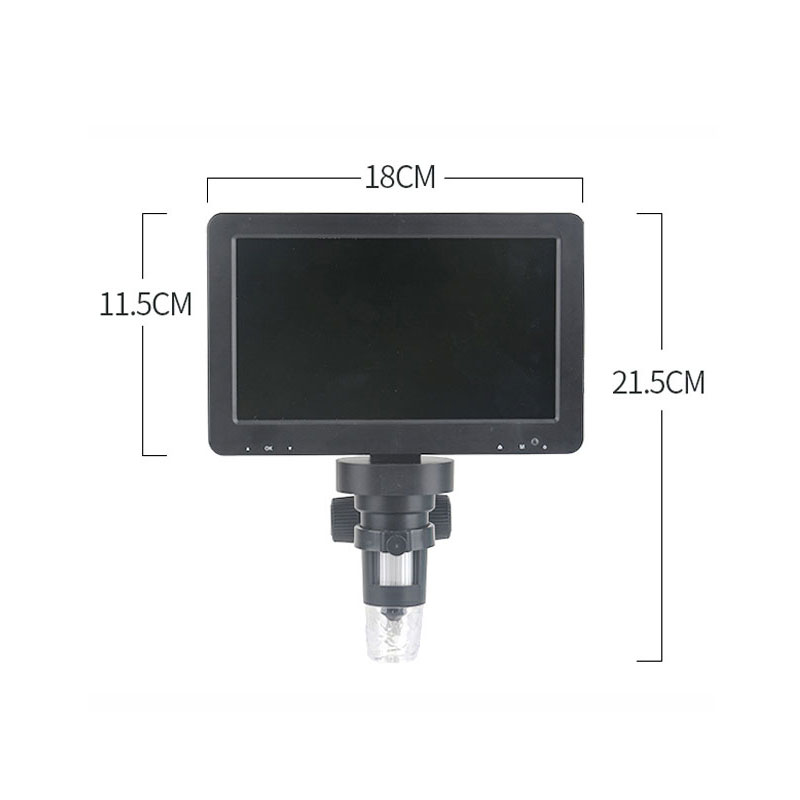

Size of DM9 Digital Microscope

Size of DM9 Digital Microscope

7inch LCD Display of DM9External Light Source of DM9

7inch LCD Display & External Light Source of DM9

Rotate Display Screen of DM9Working Distance of DM9

Rotate Display Screen & Working Distance of DM9

Specification for DM9

Model

DM9

Optical Size

1/4”

Real Resolution

2MP

Display Screen

7 inch HD

Display Screen

0°~270°

Magnification

1200X

Working Distance

10cm

Photo Resolution

3M, 5M, 8M, 10M, 12M

Video Resolution

720P, 1080P, 1080FHD

Video Mode

AVI

Focusing

Manual, range: 10~40mm

Stand

aluminum alloy, fixed clamp

Light Source

8 LED Light Lamp

Interface Output

Micro/USB2.0

TransmissionRate

30FPS

White Balance

Auto

Exposure

Auto

Lens Structure

2G+IR

Diaphragm

F4.5

View Angle

16°

Language

12 Language Available

Operation Tem.

-20°C ~ +60°C

Operation Humi.

30%~85%Rh

Operation Current

700mA

PowerDissipation

3.5W

PC Operation System

Windows XP, Win7, Win8.1, Win10, Mac OSx10.5 or higher

Box Dimension

24.4cm*20.4cm*8.1cm

Weight

1.07g

Carton

10 Boxes in one Carton

Weight: 11KG

Dimension: 49*42*22cm

Standard Packing List

No.

Project Name

Quantity

A

Microscope Main Body

1

B

Stand

1

C

Calibration

1

D

Reflector

1

E

Remote Control

1

F

USB Cord

1

G

Installation CD (Driver, Measurement, System Components, User Manual)

1

Clothes Captured by DM9

PCB Captured by DM9

PCB Captured by DM9

Wire Captured by DM9
