MS5 50X~1000X USB/WIFI Digital Phone Microscope USB Digital Microscope
50X~1000X Mag., WIFI, USB multiple interfaces, Within 3 meters distance Wifi, 640x480, 1280*720, 1920*1080
Features
- Magnification: 50X~1000X
- WIFI, USB multiple interfaces
- Built-in battery
- Photo/Video key button
- External LED supplementary light
Tags: Digital MicroscopesWIFI MicroscopesUSB MicroscopesWIFI OutputUSB Output
Request a Quote?
Get Quote Live chat Email Phone
1/6.5"
1920*1080
10~40mm
MS5 is a portable digital microscope which has multiple interfaces: WIFI and USB. It also can be connected to phone, pad, Laptop and PC, showing the images directly without using your eyes. It is easy to photo and video through the app and save images.
MS5 has complete functions, clear imaging, exquisite workmanship, built-in battery, computer connection, small in size and portable, support for up to 12 languages, etc.
This portable digital microscope can be used widely in various fields: electronic circuit board testing, industrial testing, textile testing, clock and mobile phone maintenance, skin inspection, scalp inspection, printing inspection, teaching and research tools, precision object amplification measurement, reading help, hobby research, etc.
Structure of MS5 Digital Microscope
Size of MS5 Digital Microscope
Top Functions of MS5
Key Button & LED Light Source of MS5

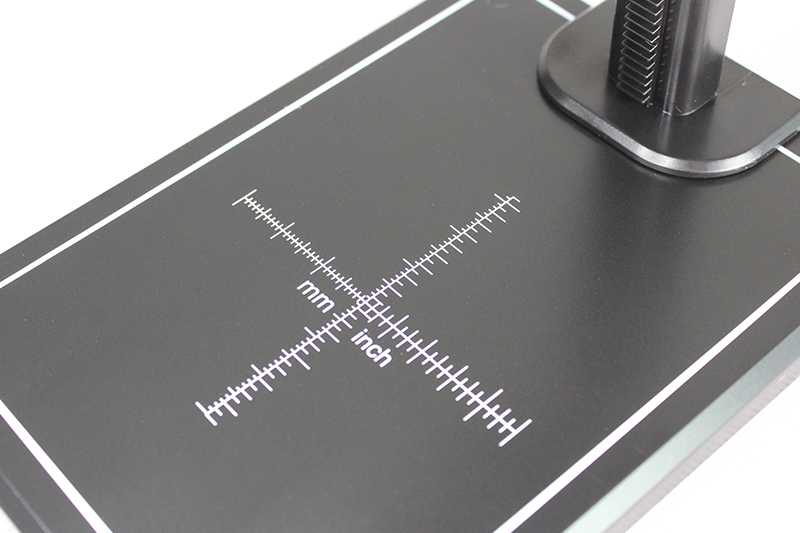

Focal Length Adjusting Roller & Specimen Base of MS5
Specification for MS5 | |
|---|---|
Item | Parameters |
Product name | MS5 digital microscope |
Optical dimension of lens | 1/6.5" |
Signal-to-noise ratio | 42dB |
Sensitivity | 2.5V/lux.s |
Photographic resolution | 640x480, 1280*720, 1920*1080 |
Video resolution | 640x480, 1280*720, 1920*1080 |
Video format | mov |
Picture format | JPG |
Focus mode | Manual |
Magnification factor | 50X-1000X |
Light source | 8 LEDs (adjustable brightness) |
Focusing range | 10 ~ 40mm (long-range view) |
White balance | Automatic |
Exposure | Automatic |
PC operating system | Windows xp, win7, win8, win10, Mac OS x 10.5 or higher |
WiFi distance | Within 3 meters |
Lens structure | 2G + IR |
Aperture | F4.5 |
Lens angle of view | 16° |
Interface and signal transmission mode | Micro/usb2.0 |
Storage temperature/humidity | -20°C - +60°C 10-80% RH |
Operating temperature/humidity | 0°C - +50°C 30% ~ 85% Rh |
Operating current | ~ 250 mA |
Power consumption | 1.25 W |
APP working environment | Android 5.0 and above, ios 8.0 and above |
WIFI implementation standard | 2.4 Ghz (IEEE 802.11 b/g/n) |
Packing of MS5 Digital Microscope
Standard Packing List | ||
|---|---|---|
No. | Project Name | Quantity |
A | Microscope Main Body | 1 |
B | Main Body Bracket | 1 |
C | Base Stand | 1 |
D | Calibration | 1 |
E | Operation Manual | 1 |
F | CD Drive | 1 |
G | Power Cord | 1 |
H | Box | 1 |
