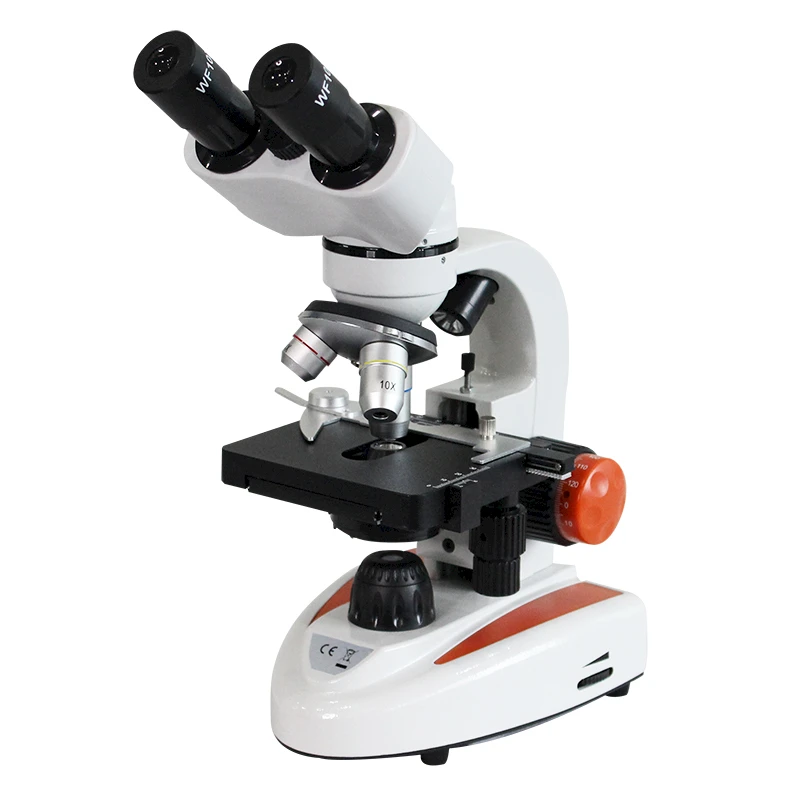

BL-10A Binocular Student Biological Microscope with Dual LED Light Source
40X~400X Total Mag., Binocular Head, 90x90mm Mechanical Stage, Dual LED Lamp
Features
- 40X~400X Total Magnification
- Single Lens Condenser N.A. 1.25
- Mechanical stage: 90x90mm, moving range 30x50mm
- Dual Up & Bottom LED Lamp with adjustable brightness
Tags: Compound MicroscopesBiological MicroscopesStudent MicroscopesSchools and StudentsKids Microscopes
Request a Quote?
Get Quote Live chat Email Phone
WF10X/18mm
40X~400X
BL-10A Binocular Biological Microscope equips with plan stage with vernier scale, 90x90mm, moving range 30x50mm, which suitable for different working environment. The dual (Up & Bottom) LED Light Source’s brightness is adjustable. Its humanized design is widely used in histology, biology, bacteriology, pathology, biochemistry and lab etc.
Structure of BL-10A Monocular Biological Microscope
Head & Eyepiece of BL-10A
Objectives & Focusing Knob of BL-10A
Reflected Light & Transmitted Light of BL-10A

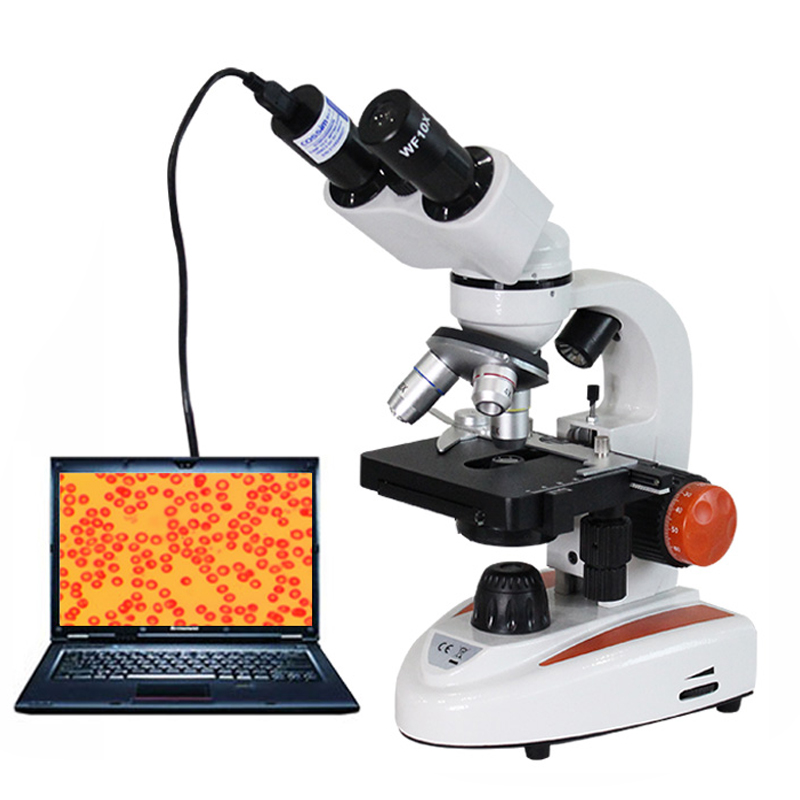

BL-10A with its Connected Laptop
Specification for BL-10A | |
|---|---|
Eyepiece | WF10X 18mm |
Eyepiece Tube | Binocular, 360° Rotatable, inclined 30° |
45mm DIN Objective | Achromatic 4X/0.10; 10X/0.25; 40X/0.65(Spring) |
Total Mag. | 40X~400X |
Focus System | Coaxial coarse/fine focusing with up stop; range:17mm |
Stage | Mechanical Stage (Size: 90mm x 90mm); Moving Range: 30*50mm |
Nosepiece | Backward Triple |
Condenser | Single Lens Condenser, With 6 Holes Disc Diaphragm, N.A.1.25 |
Light Source | Dual LED Light, Brightness Adjustable |
Optional Camera | 3MP or 5MP Digital Microscope Camera |
Weight | Gross: 1.9kg |
