BL-20A 40X~1600X Monocular Biological School Student Microscope with LED Illumination
40X~1600X Mag., 3W LED Lamp with adjustable brightness, Primary & Middle Student
Features
- 40X~1600X Total Magnification
- ABBE Condenser with iris diaphragm
- 3W LED Lamp with adjustable brightness
- Double Layer Mechanical Stage (Size: 120mm x 120mm)
Tags: Compound MicroscopesBiological MicroscopesStudent MicroscopesSchools and StudentsKids Microscopes
Request a Quote?
Get Quote Live chat Email Phone
WF10X 18mm
120mm x 120mm
BL-20A Monocular Biological Microscope equips with mechanical moving stage and light source, which suitable for different working environment. The LED Light Source’s brightness is adjustable. Its humanized design is widely used in histology, biology, bacteriology, pathology, biochemistry and lab etc.
Structure of BL-20A Monocular Biological Microscope

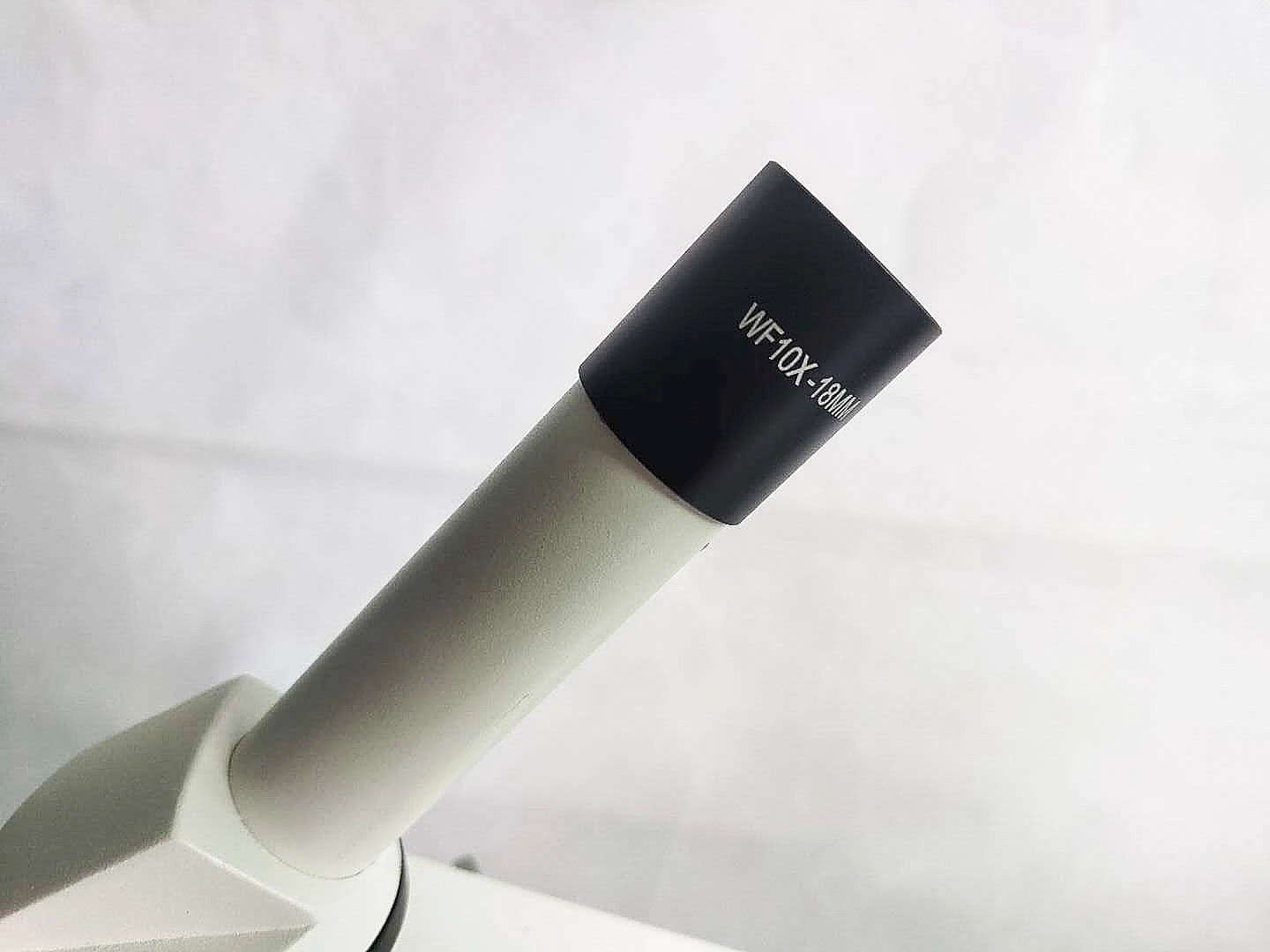

Eyepiece & Nosepiece & Objectives of BL-20A
Focus Knob & Light Source of BL-20A
BL-20A with its Connected Laptop
Parameters for BL-20A | |
|---|---|
Eyepiece | WF10X 18mm |
Eyepiece Tube | Monocular, 160mm |
Achromatic Objective | 4X/0.10; 10X/0.25; 40X/0.65; 100X/1.25(oil) |
Total Mag. | 40X~1000X |
Focus System | Coaxial coarse/fine focusing with up stop |
Stage | Double Layer Mechanical Stage (Size: 120mm x 120mm) |
Condenser | ABBE Condenser with diaphragm |
Light Source | 3W LED lamp with brightness control |
Camera | 3MP or 5MP Digital Microscope Camera |
Weight | NET: 2.5kg; Gross: 3kg |
Dimension | Instrument: 12 x 17 x 28(cm); Package: 22 x 16x 35(cm) |
Standard Packing List for BL-20A | ||
|---|---|---|
No. | Name | Quantity |
A | Microscope Main Body | 1 |
B | Monocular Eyepiece (WF10X) | 1 |
C | Objectives (4X; 10X; 40X; 100X(oil)) | 1 each |
D | Condenser | 1 |
E | Clip | 1 |
