BL-30D 40X~640X Monocular Binocular Biological Student Microscope for Students with Halogen Lamp
40X~640X Total Mag., Student Use, ABBE Condenser with iris diaphragm
Features
- 40X~640X Total Magnification
- ABBE Condenser with iris diaphragm
- 12V 10W Halogen Lamp, Brightness Adjustable
Tags: Biological MicroscopesSchools and StudentsStudent Microscopes
Request a Quote?
Get Quote Live chat Email Phone
WF10X; WF16X
120mm x 120mm
Halogen Lamp,
Its used in agricultural research and teaching in primary and secondary schools to observe various biological specimens, such as spores, rhizome cross sections, pollen, insect head, wing, foot, egg, and footprints. In the medical clinical work, the human body routine tests and so on. Equipped with a special camera adapter, the camera can be connected to observe, take pictures and measure images on the PC.
Structure of BL-30D Biological Microscope
Size of BL-30D Biological Microscope
Eyepiece & Focus Knob of BL-30D

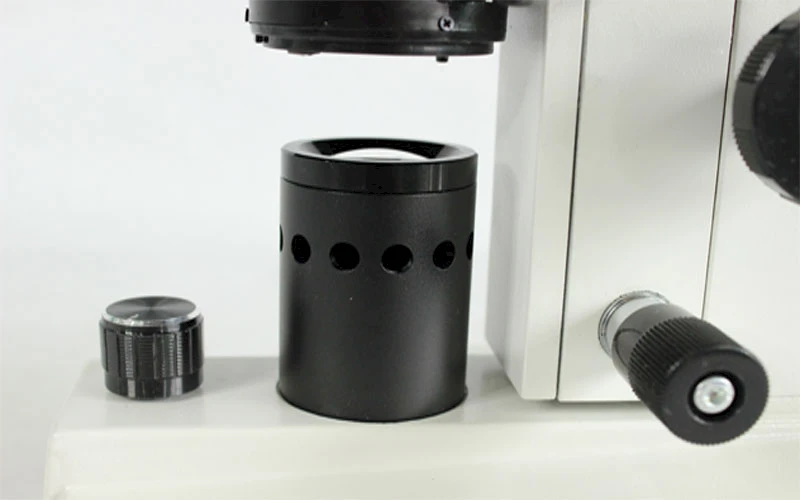

Mechanical Stage & Light Source of BL-30D
Objectives & Power Supply of BL-30D
BL-30D with its Connected Laptop
Parameters for BL-30D | |
|---|---|
Eyepiece | WF10X 18mm; WF16X 11mm |
Eyepiece Tube | Monocular, 160mm |
Achromatic Objective | 4X/0.10; 10X/0.25; 40X/0.65 |
Total Mag. | 40X~640X |
Focus System | Coaxial coarse/fine focusing with up stop |
Stage | Double Layer Mechanical Stage (Size: 120mm x 120mm) |
Condenser | ABBE Condenser with diaphragm |
Light Source | 12V 10W Halogen Lamp, Brightness Adjustable |
Weight | NET: 2.5kg; Gross: 3kg |
Dimension | Instrument: 12 x 17 x 28(cm); Package: 22 x 16x 35(cm) |
Standard Packing List for BL-30D | ||
|---|---|---|
No. | Name | Quantity |
A | Microscope Main Body | 1 |
B | Monocular Eyepiece (WF10X, WF16X) | 1 each |
C | Objectives (4X; 10X; 40X) | 1 each |
D | Condenser | 1 |
E | Clip | 1 |
