500X 12MP 3 Inch Continuous Zoom TFT Display Screen Handheld Digital Microscope with Image Processing Software Measurement

JT39 Digital Microscope

20X~500X, 3inch Display, Built-in Light Source, Coin Appraisal, Skin Detection, Magnified Inspection of Precision Objects

Features


  • 3inch HD LCD screen, which is convenient to observe more
  • 20~500X Magnified and 12MP resolution, offer more clarity imaging
  • USB2.0 interface output, support MicroSD card up to 32GB
  • 8 LEDs light source, brightness adjustable

Tags: Digital MicroscopesStereo MicroscopesHome and HobbyHome & HobbyKids MicroscopesStudent Microscopes

Request a Quote?


Get Quote Live chat Email Phone

3inch TFT
ratio: 4:3
Real Resolution
12MP
Display
0°~270°
Manual Focus
10~50mm
Interface
USB2.0/TV

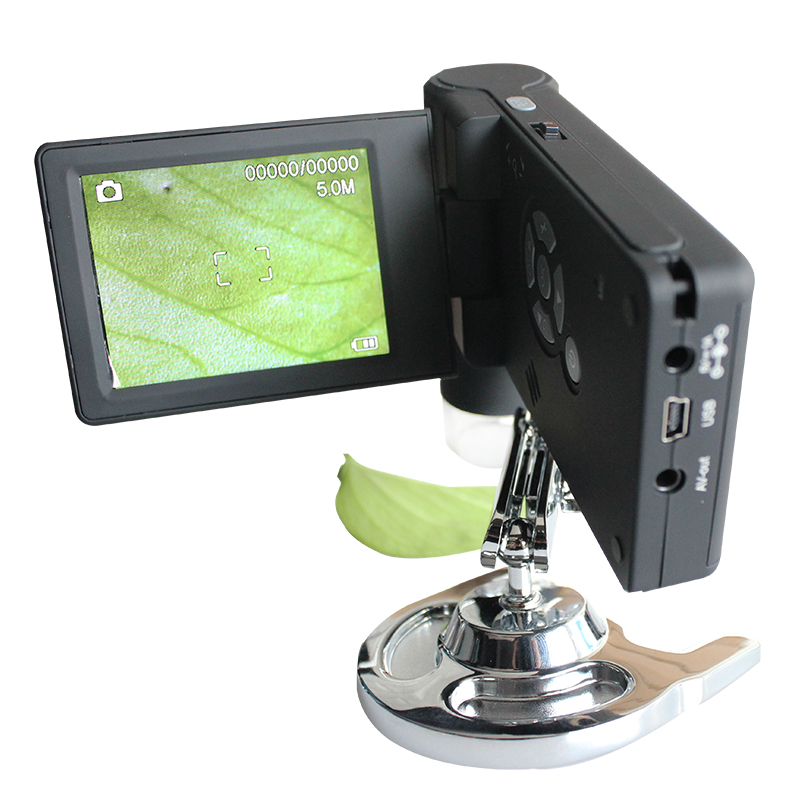

JT39 is an Hobby Digital Microscope, with 200X optical and 4X digital zoom, the magnification can be up to 500X. It has 3inch HD TFT screen, which is convenient to observe more. The photo resolution and video resolution range from 1.3M to 12M, 1.3M, 3M, 5M, 9M, 12M, which provides super clarity and sharp images.

Its display screen can be rotate to the max 270°, so it is easy to change the screen angles according to the operation demands. The stand is very flexible, can be rotated to any directions. The built-in LED light source (brightness adjustable by wheel) can alleviate the problem of light in complex environment.

Connecting to the PC is available by USB cable, support Win7, Win8, Win10, Mac OSx10. or higher, Android or higher. The PC software is available, including photo, video, calibration and measurement, Text and so on.

800mAh rechargeable li-ion battery provides a 3.5-4-hours standalone working time.

JT39 Digital MicroscopeJT39 Digital Microscope

JT39 Digital Microscope

JT39 Digital Microscope3inch TFT Display Screen of JT39 Digital Microscope

JT39 Digital Microscope

Structure of JT39 Digital Microscope

Structure of JT39 Digital Microscope

Size of JT39 Digital Microscope

Size of JT39 Digital Microscope

Operation of JT39 Digital Microscope

Operation of JT39 Digital Microscope

8 LEDs Light Source of JT39 Digital MicroscopeBattery of JT39 Digital Microscope

8 LEDs Light Source & Battery of JT39 Digital Microscope

Focus Wheel of JT39 Digital Microscope

Focus Wheel of JT39 Digital Microscope

Specification for JT39

Model

JT39

Display Screen

3inch TFT; ratio: 4:3

Image Sensor

12MP high quality sensor

Real Resolution

5MP

Display Screen

0°~270°

Magnification

20X~200X~500X

Focus Range

Manual Focus, 10~50mm

Resolutions

12M, 8M, 5M, 3M

Photo Resolution

1.3M, 3M, 5M, 9M, 12M, GVA

Video Resolution

1.3M, 3M, 5M, 9M, 12M, GVA

Frame Rate

30FPS

Interface

USB2.0

TV output

Available (to any monitor with TV in)

Card Slot

Available

Stand

Flexible Base, 360 Rotate

Light Source

8 LEDs Light Source, brightness adjustable

Language

OSD Languages: English, Germany, French, Spanish, Italian, Portuguese, Japanese, Chinese

Software Languages: English, Germany, French, Spanish

Operation Tem.

-20°C ~ +60°C

Operation Humi.

30%~85%Rh

Adapter

Input: 100~240V, 50/60Hz; Output: 5V, 1A

Power Sources

Li-ion 3.7V / 800mAh battery

Work Time: 4 hours

Charging Time: 5 hours

PC Operation System

Win7, Win8, Win10, Mac OSx10.14 or higher, Android 4.0 or higher

Functions

Photo, video, calibration and measurement, text etc.

CPU

Pentium 11 or above

RAM

512MB

Product Size

13cm*10.3cm*2.9cm

Weight

195g (with battery)

Standard Packing List

No.

Project Name

Quantity

A

Microscope Main Body

1

B

Stand

1

C

Lithium Battery

1

D

AC Adapter

1

E

TV Cable

1

F

USB Cable

1

G

User Manual

1

H

Cleaning Fabric

1

I

CD

1

J

Carry Bag

1

K

Box

1
