Full APO Long Working Distance Infinity Plan Apochromatic Microscope Objective Lens 2X 5X 10X 20X 50X 100X
Copper Material; 5X, 10X, 20X, 50X, 100X; Normal, Infrared, BF /DF; Metallurgical Infinity Full APO Objectives
Features
- Long Working Distance
- Infinity Plan Full Apochromatic Objective Lens
- Good Looking & Exquisite Copper Material
- Used for Infinity Metallurgical Microscope
- Different Magnification Satisfied Different Demands
- Suit for Operators with Glasses
Tags: Microscope ObjectiveObjective LensInfinity ObjectivesAPO Objectives
Request a Quote?
Get Quote Live chat Email Phone
Plan Achromatic
26mm

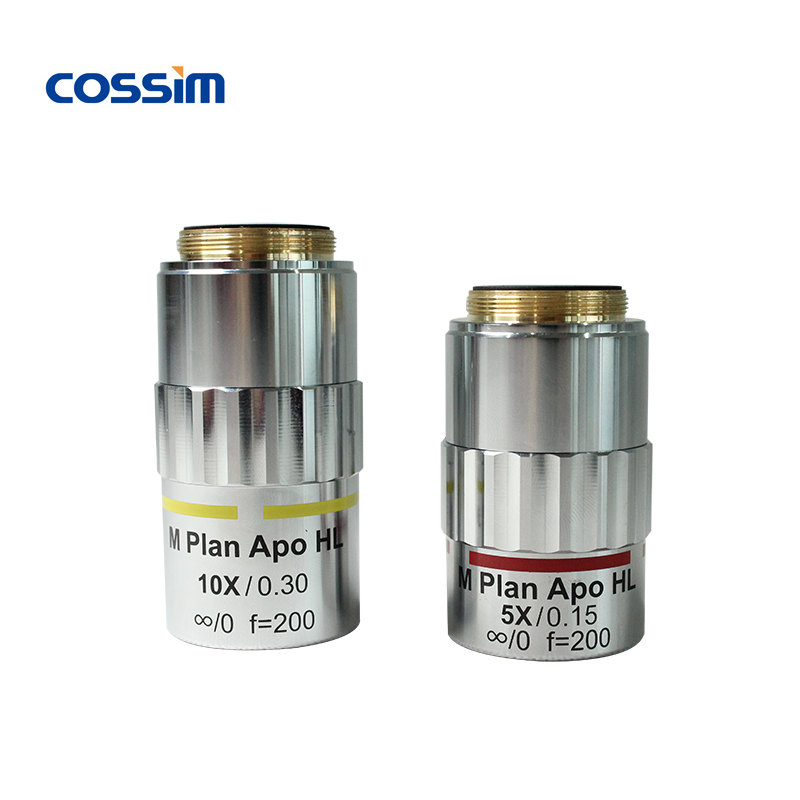

5X & 10X Infinity APO Plan Achromatic Metallurgical Microscope Objectives

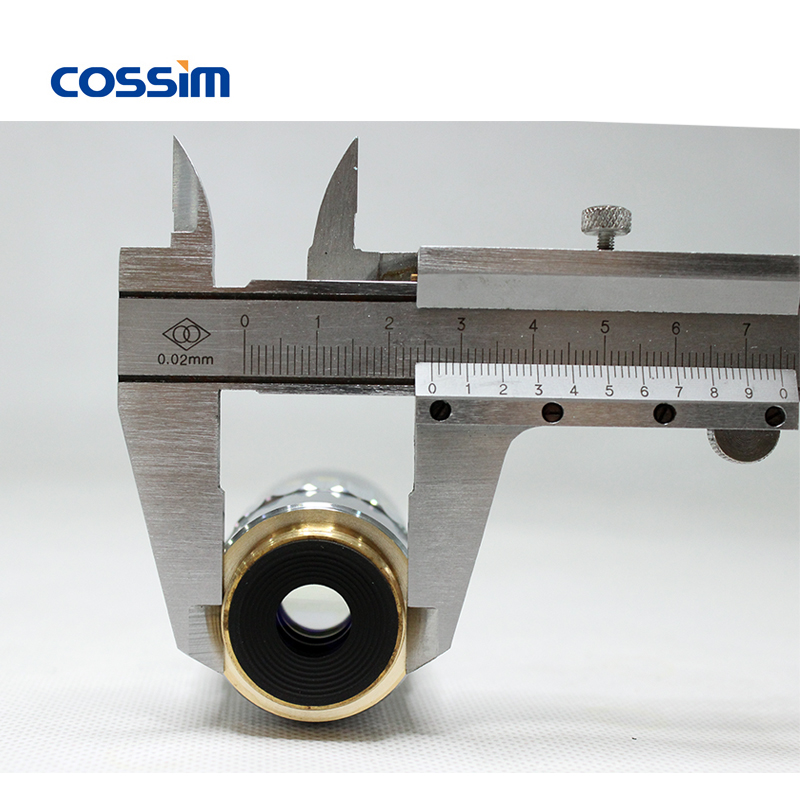

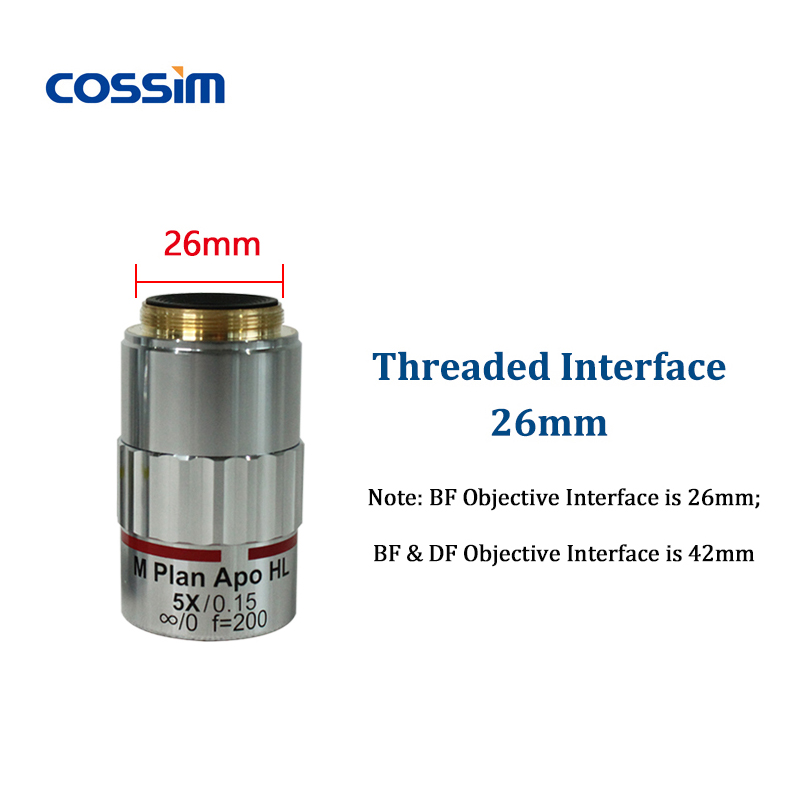

Threaded Interface 26mm
Threaded Interface 26mm

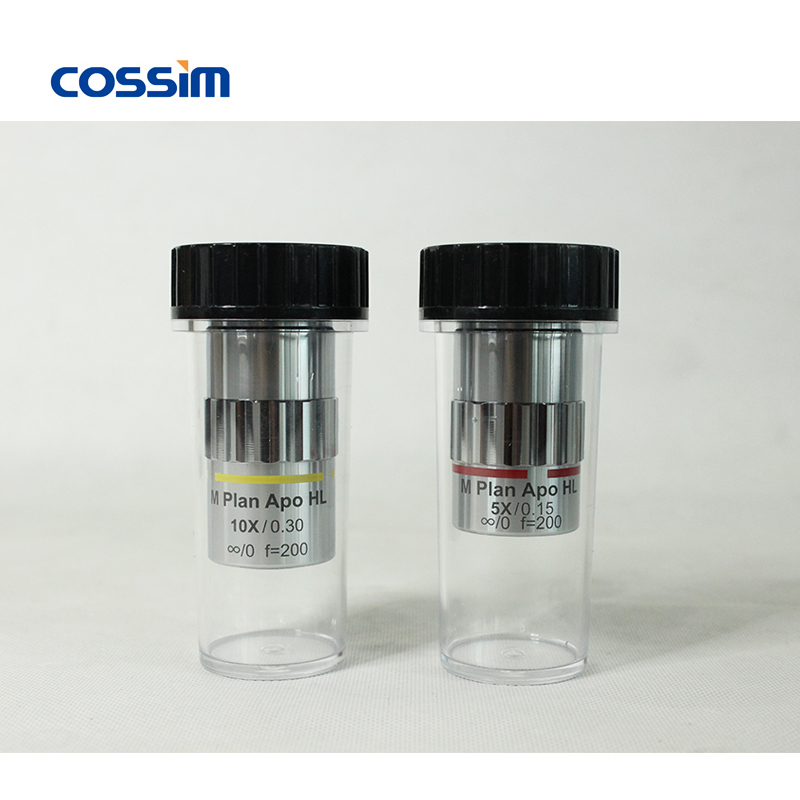

Objective Protective Boxs
Specification for APO Infinity Metallurgical Objectives: | ||||||
|---|---|---|---|---|---|---|
Item | Metallurgical BF Objective | |||||
Mag. | N.A. | W.D. | F.L. | R(μm) | D.F. | |
2X | 0.055 | 34mm | 34mm | 6.5 | 110μm | M26x1/36 |
5X | 0.15 | 44.9mm | 44.9mm | 2.5 | 18μm | M26x1/36 |
10X | 0.3 | 33.9mm | 33.9mm | 1.0 | 3.5μm | M26x1/36 |
20X | 0.3 | 30.9mm | 30.9mm | 1.0 | 3.5mm | M26x1/36 |
20X | 0.45 | 20.1mm | 20.1mm | 0.7 | 1.6μm | M26x1/36 |
50X | 0.45 | 20.1mm | 20.1mm | 0.7 | 1.6μm | M26x1/36 |
50X | 0.65 | 9.4mm | 9.4mm | 0.4 | 0.55μm | M26x1/36 |
100X | 0.8 | 6mm | 6mm | 0.4 | 0.6μm | M26x1/36 |
Item | Metallurgical BF Objective (Infrared) | |||||
Mag. | N.A. | W.D. | F.L. | R | D.F. | |
5X | 0.15 | 44.9mm | 44.9mm | 2.5 | 18μm | M26x1/36 |
10X | 0.3 | 33.9mm | 33.9mm | 1.0 | 3.5μm | M26x1/36 |
20X | 0.3 | 30.9mm | 30.9mm | 1.0 | 3.5mm | M26x1/36 |
20X | 0.45 | 20.1mm | 20.1mm | 0.7 | 1.7μm | M26x1/36 |
50X | 0.45 | 20.1mm | 20.1mm | 0.7 | 1.6μm | M26x1/36 |
50X | 0.65 | 9.4mm | 9.4mm | 0.4 | 0.55μm | M26x1/36 |
100X | 0.8 | 6mm | 6mm | 0.4 | 0.6μm | M26x1/36 |
Item | Metallurgical BF/DF Objective | |||||
Mag. | N.A. | W.D. | F.L. | R | D.F. | |
2X BD | 0.055 | 33mm | 33mm | 6.5 | 110μm | M42x1/36 |
5X BD | 0.15 | 44mm | 44mm | 2.5 | 18μm | M42x1/36 |
10X BD | 0.3 | 34mm | 34mm | 1.0 | 3.5μm | M42x1/36 |
20X BD | 0.3 | 30mm | 30mm | 1.0 | 3.5mm | M42x1/36 |
20X BD | 0.45 | 19mm | 19mm | 0.7 | 1.6μm | M42x1/36 |
50X BD | 0.45 | 19.5mm | 19.5mm | 0.7 | 1.6μm | M42x1/36 |
50X BD | 0.65 | 8.5mm | 8.5mm | 0.4 | 0.55μm | M42x1/36 |
100XBD | 0.8 | 4.5mm | 4.5mm | 0.4 | 0.6μm | M42x1/36 |
