195mm Achromatic Biological Microscope Objective lens for Biological Microscope with RMS 20.2mm Interface & Integrated Parfocal Ring
4X, 10X, 40X, 100X, Copper Material, Standard RMS 20.2mm Interface, Integrated Parfocal Ring, Biological Microscope Objetcive Lens
Features
- Standard RMS 20.2mm Interface
- Good Looking & Material of Copper
- Different Magnification Satisfied Different Demands
- Used for Biological Microscopes
Tags: Biological MicroscopesBiological LensMicroscope ObjectiveObjective LensAchromatic Objectives
Request a Quote?
Get Quote Live chat Email Phone
Objectives
RMS 20.2mm
The higher magnification, the smaller aperture is, at At low magnification, the field of view is larger and brighter; The effect of high magnification observation is more excellent.

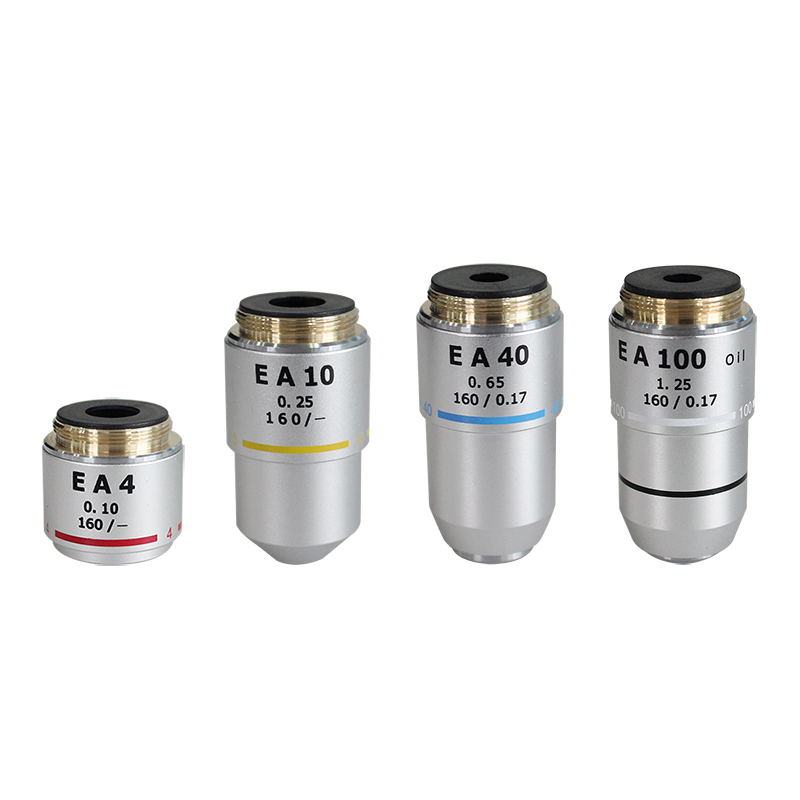

195mm Achromatic Biological Microscope Objective Lens
4X & 10X 195mm Achromatic Objective Lens
40X & 100X 195mm Achromatic Objective Lens
Structure of 195mm Achromatic Biological Microscope Objective Lens
Different Length of 195mm Achromatic Biological Microscope Objective Lens
Standard RMS 20.2mm Interface
Objective Protective Boxs
Specification for 195mm Biological Microscope Objectives | ||||
|---|---|---|---|---|
Item | 4X | 10X | 40X | 100X |
N.A. | 0.10 | 0.25 | 0.65 | 1.25(Oil) |
W.D. | 17.35mm | 2.04mm | 0.19mm | 0.18mm |
Length | 35.5mm | 42mm | 48.3mm | 49mm |
Spring | NO | YES | ||
Interface | 20.2mm | |||
Tube Length | 160 | |||
Cover-glass Thickness | 0.17 | |||
