W1200C Ultra-High 12MP 5G WIFI+4K HDMI+USB+LAN Digital Microscope Camera with Measuring Function Software
4000x3000@30fps,3840x2160@30fps, Rolling Shutter, 380-650nm Spectral response
Features
- High Content 12.0M 5G WIFI+4K HD+USB2.0+LAN 12.0M Digital Camera
- 1/2.3" CMOS H264 Codec Supply Accurate Color Restoration For Fluorescent Image
- Ultra-High Resolution 4000x3000 Preview At Super High Speed 30fps
- Multiple Image Modes Specially Adjusted For Different Microscope Brands
- Creative APP Support Real Time Depth of Field Fusion & Auto Focus Function
Tags: Microscope CamerasWIFI CamerasWIFI MicroscopesHDMI CamerasHDMI MicroscopesUSB CamerasUSB3.0 CamerasUSB MicroscopesUSB Output
Request a Quote?
Get Quote Live chat Email Phone
1.55umx1.55um
Manual Exposure
Manual White Balance
DC 5V2A
Different Views of W1200C Camera

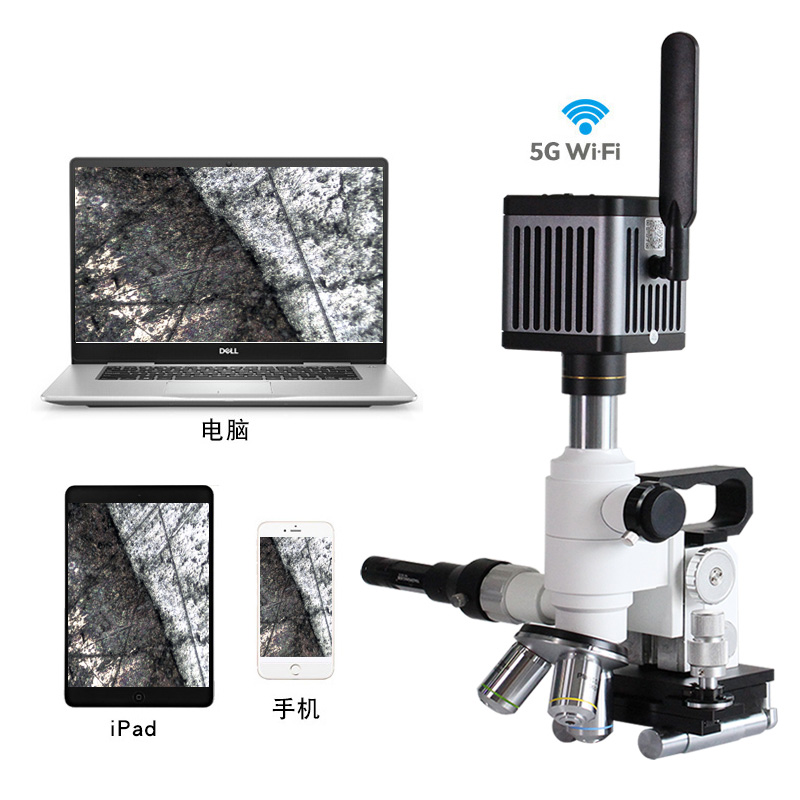

W1200C with its Connected Microscope
Multiple Outputs of W1200C Microscope Camera
W1200C Ergonomic Design
USB+ HDMI Simultaneous Outputs
5G WIFI+ Network+ HDMI Simultaneous Output (recommended total number of connections within 13 units)
Cutting-edge Image Codec Technology & Advanced Color-calibration Algorithm
Testing Method: Photos are taken at the same position in the same slide with same microscope 100X oil lens in bright field by the same person, the cameras are all adjusted to their best parameters. (Photos are real without handling by Photoshop).
Specification for W1200C: | |
|---|---|
Physical resolution | 12.0MP |
lmage sensor | SONY IMX412 CMOS |
Exposure mode | Rolling Shutter |
Maximum resolution | 4000x3000(12,000,000Pixels) |
Multiple Outputs | USB Output, PC Software |
HD-MI Output | |
5G WIFI Output, App Software | |
LAN Port, Ethernet Output | |
ISO sensitivity | Equivalent to 100-12800 |
Sensor size | 1/2.3" |
Pixel size | 1.55umx1.55um |
Spectral response | 380-650nm |
Exposure capability | Real-time auto and manual adjustment |
Exposure time | 10us-333ms |
White balance | Real-time auto and manual RB adjustment |
Preview resolution | 4000x3000@30fps,3840x2160@30fps |
Power supply | DC 5V 2A |
Wireless protocol | 5G WiFi IEEE802.11ac |
A/D conxertsion bit depth | 12bit |
Software and App | Windows Software: KoPa Capture Pro, App for mobiles: KoPa WiFi Lab |
Packing List for W1200C: | ||
|---|---|---|
No. | Item | Quantity |
A | W1200C Microscope Camera (with USB Cable) | 1 |
B | Power supply | 1 |
C | HDMI Cable | 1 |
Dimension of W1200C Camera
