HD-4KY 4K Ultra HD IMX678 1/1.8 Cmos Industrial Camera Digital Microscope Camera with HDMI Type-C Outputs for Phone Soldering
Real 4K HDMI & USB & TF Card; SONY IMX678 1/1.8" CMOS Sensor; C-Mount; Measurement Functions
Features
- Adopt with 1/1.8” CMOS Sensor, show the live image directly on any HDMI monitor
- Adopt 4K imported Sony CMOS image sensor
- HDMI-compatible 3840 30FPS / 1080P 120FPS & 60 FPS image output
- 4K video recording
- One-key freeze
- Support Photo, video measurement (PC Software)
- Support Horizontal + Vertical, Horizontal Mirroring, Vertical Mirroring
- Support manual/automatic exposure, exposure compensation value adjustment
- Support manual/automatic/one-key white balance, red, green and blue adjustable
- Support 10 Groups of Horizontal and Vertical Lines, Optional Colors (Blue, Orange, Transparent, Black, White, Red, Green) Line can be moved
- Tick Mark: Can be set mm, um inch mil cm
- Support image storage method: TF Card + UVC
- Support remote control operation, clearer images without shaking when taking pictures
- Sturdy metal shell
- Lens interface: C mount
Tags: Microscope CamerasHDMI CamerasHDMI MicroscopesUSB CamerasUSB MicroscopesUSB2.0 CamerasUSB OutputIndustrial Inspection
Request a Quote?
Get Quote Live chat Email Phone
C mount
30FPS
120FPS & 60FPS
UVC
DC 5V—12V
Front & Back Views of HD-4KY

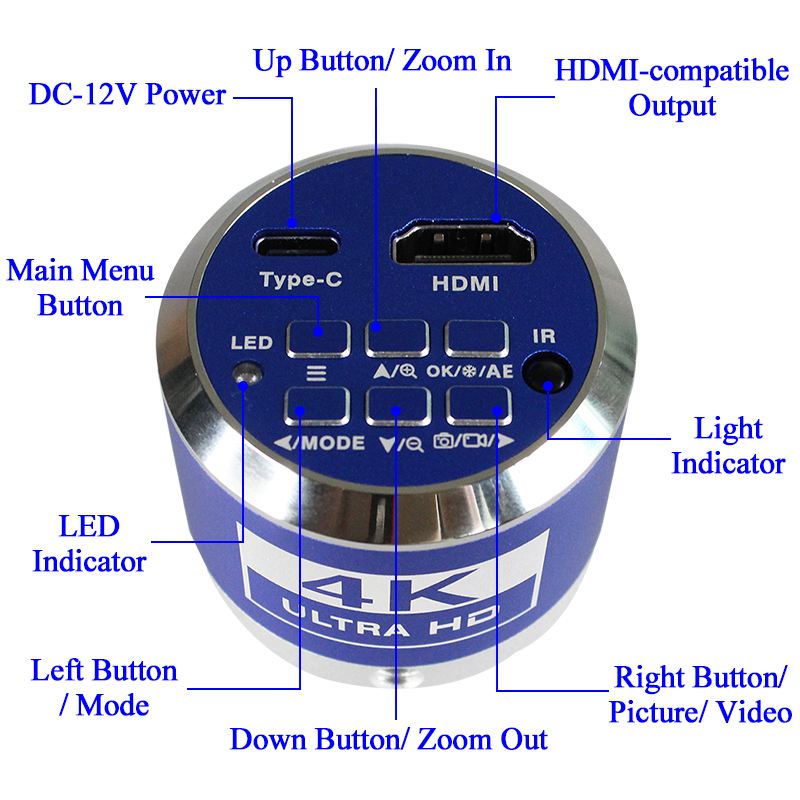

Structure of HD-4KY
Remote Control of HD-4KY
Specification for HD-4KY: | |
|---|---|
Pixel size | 2.0µm × 2.0µm |
Sensor | SONY IMX678 1/1.8inch |
output | HDMI/ TF Card |
Lens mount | C-Mount |
Image resolution | 3840*2160 |
Video resolution | 3840*2160 @ 30FPS |
FPS | 3840*2160 @ 30FPS 1920*1080 @ 120FPS & 60FPS |
Save Function | TF Card / UVC |
Exposure | Auto/Manual |
Exposure Time | 0~33MS |
Exposure | Compensation Support |
White balance | Auto/Manual |
Other Functions | Support Color, Mirror, Lines, Tick Mark Etc. |
System | Youngwin OS |
PC Software | S-EYE2.0 |
Input voltage | DC 5V—12V |
Remote control | Support remote control operation |
Working Tem. | 0~60℃ |
Storage Tem. | -20~85℃ |
Net Weight | 0.11KG |
Product Size | 50*45.9m |
Standard Packing List for HD-4KY: | ||
|---|---|---|
No. | Item | Quantity |
1 | Digital Camera | 1 |
2 | Remote control | 1 |
3 | Power | 1 |
4 | USB Cable | 1 |
5 | Operation Manual | 1 |
6 | Box | 1 |
Real Images Captured by HD-4KY
