VM2400I 50X-1000X Coded Nosepiece Trinocular Inverted Metallurgical Microscope with Brightness Memory Function for Wafer Inspection

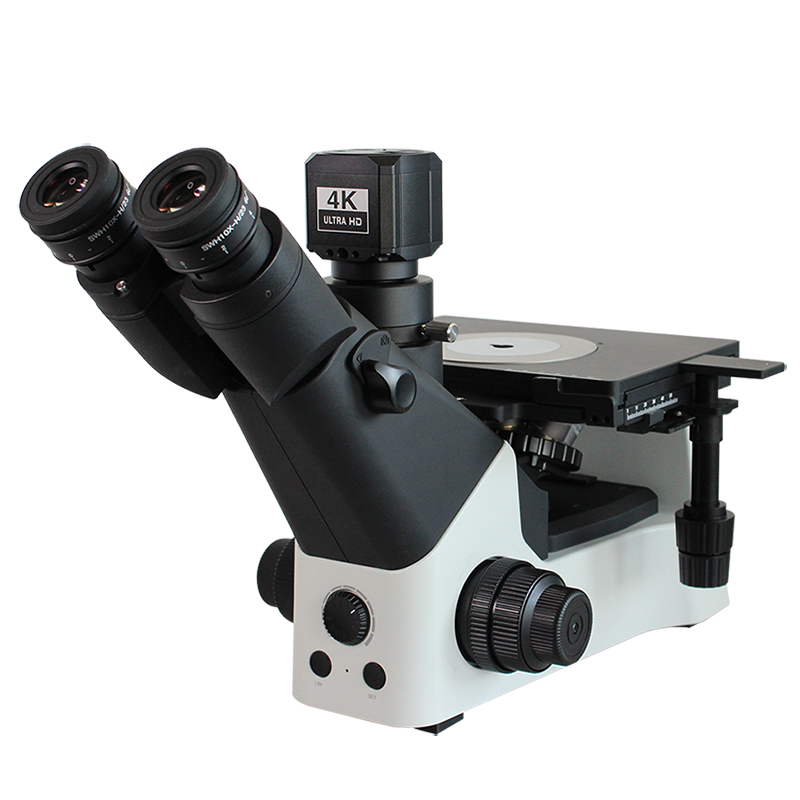

VM2400I Inverted Metallurgical Microscope

45mm Infinite Optical System; SWH10X (Φ23mm) Eyepiece; Standard Mag. 50X~500X; 5V/10W LED Illumination with Brightness Memory Function

Features


  • Infinite Objective Lens: 5X, 10X, 20X, 50X, 100X (Optional)
  • Trinocular Head, Inclined 45°, Interpupillary Distance 50-75mm
  • Double Layer Mechanical Stage: 215mmx165mm with Scale
  • Coded Quintuple Nosepiece, to Show lens magnification when switching, adjusts the calibration values recorded
  • Brightness Memory Function, remember the lighting brightness when using each objective

Tags: Compound MicroscopesMetallurgical MicroscopesIndustrial InspectionInverted MicroscopesSoldering Microscopes

Request a Quote?


Get Quote Live chat Email Phone

Wide Field Eyepiece
SWH10X (Φ23mm)
R: T Ratio
100:0 or 0:100
Low-hand Coaxial
Coarse Fine Focus
Stage Size 215mmx165mm
Moving Range 45mmx35mm
C-mount Adapter
0.5X

VM2400I Trinocular Coded Inverted Metallurgical Microscope equips with the long working distance bright field plan achromatic objective lens and wide field eyepiece. Observing irregular samples which weighs less than 5 KGs or large volume height.

It also has 5V/10W LED bulb illumination, with brightness memory function, which can remember the lighting brightness when using each objective, automatically adjust the light intensity when different objectives are converted to each other, reduce visual fatigue, and improve work efficiency.

It is mainly used for identification and analysis of the internal structures and organizations in different metals and alloys, or for observing certain characteristics of material surfaces, such as scratches, cracks, and uniformity of spraying.

It is the important and ideal instrument for researching metallography in metal physics. The instruments can select special photography device to take euploid pictures of atlas metallograph. The instruments are suitable for scientific research, colleges and factories.

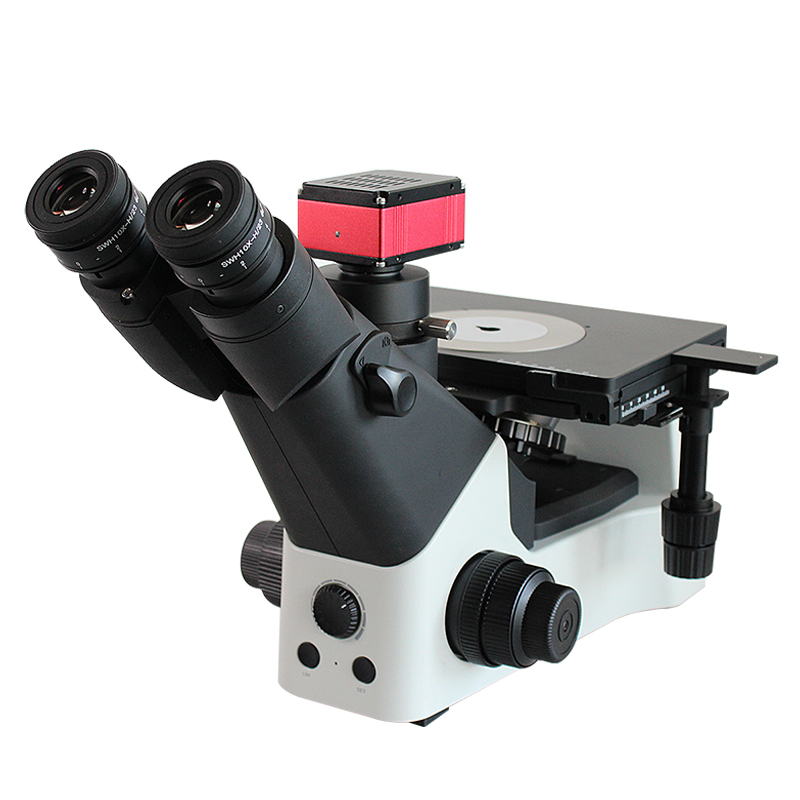

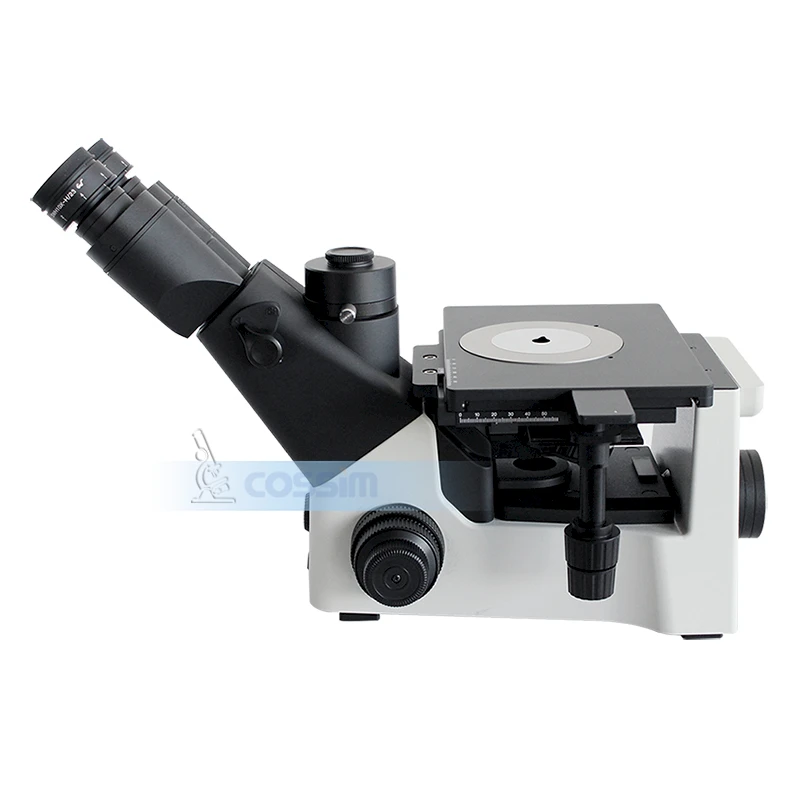

Different Views of VM2400IDifferent Views of VM2400I

Different Views of VM2400I

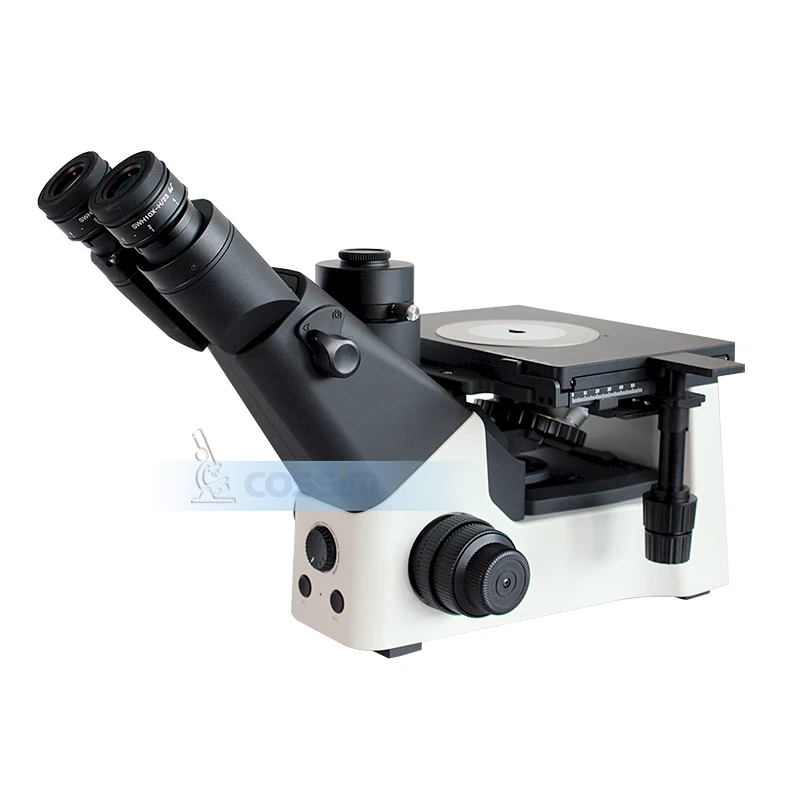

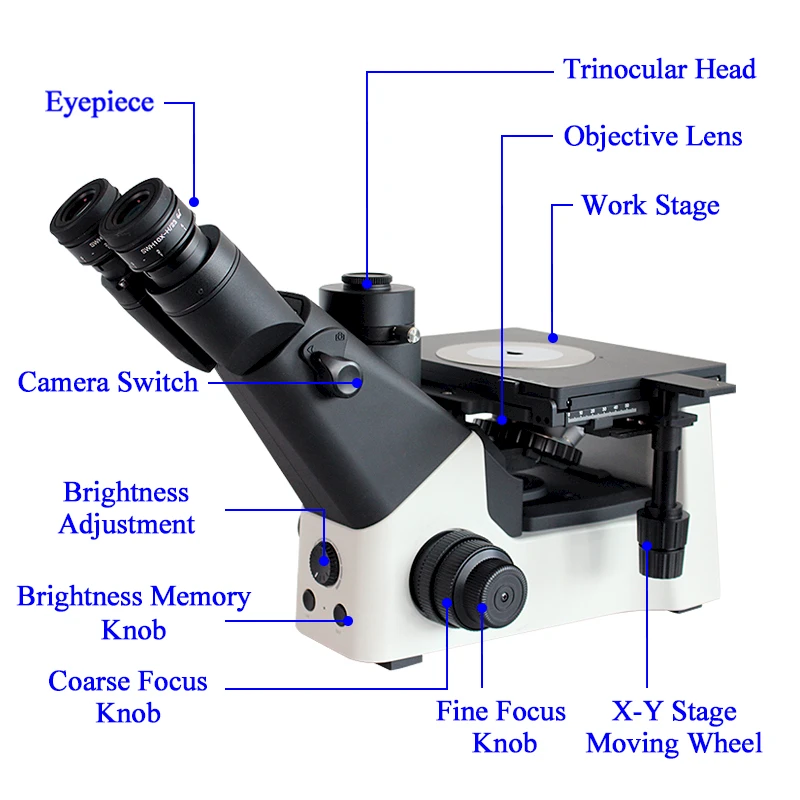

Structure of VM2400I

Structure of VM2400I

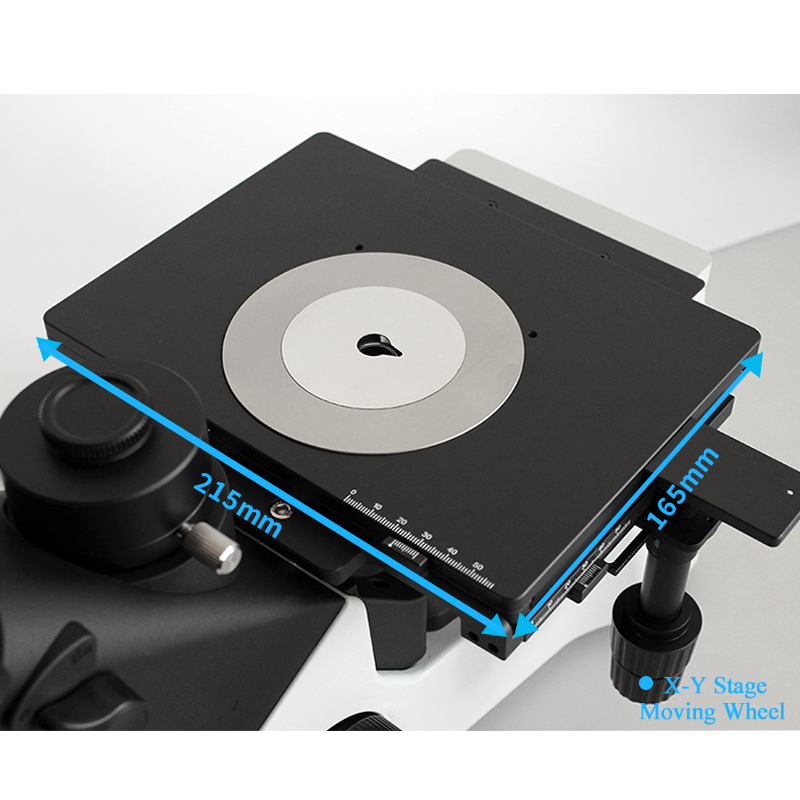

Working Stage of VM2400I

Working Stage of VM2400I

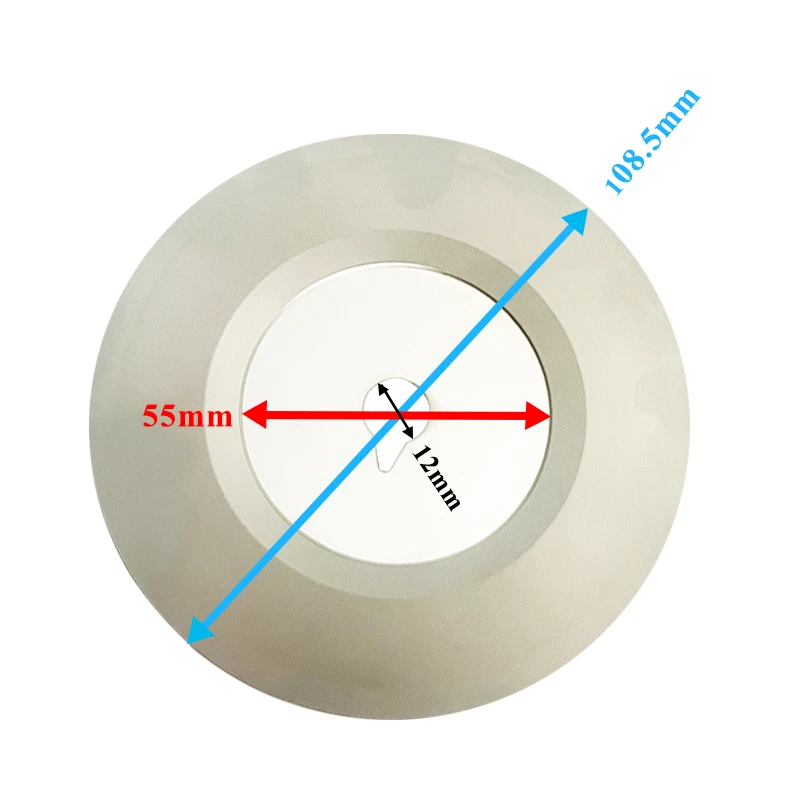

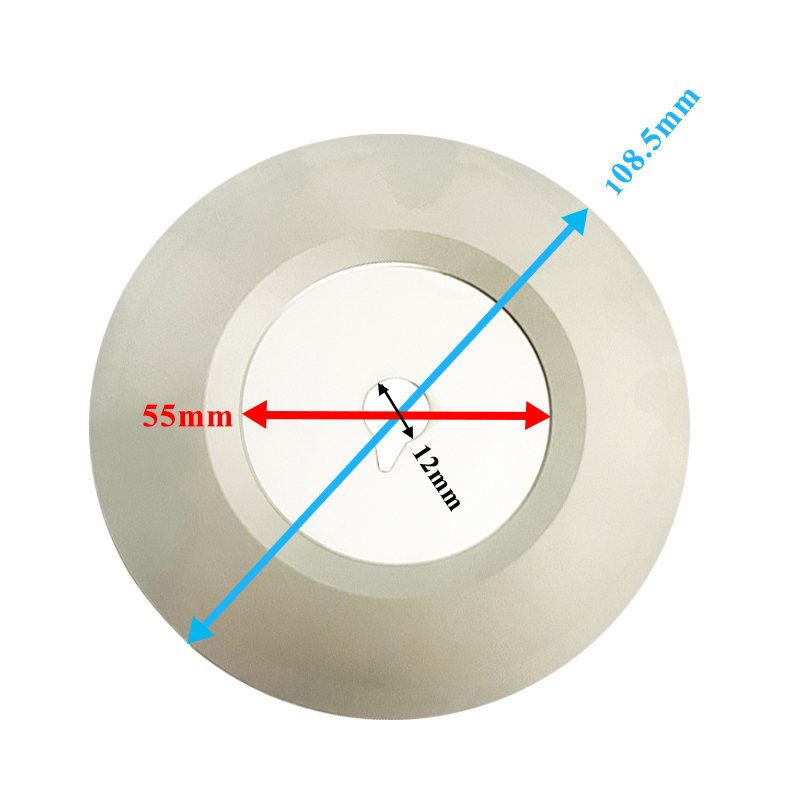

Hole Size of Stage

Hole Size of Stage

Coded Quintuple Nosepiece of VM2400I

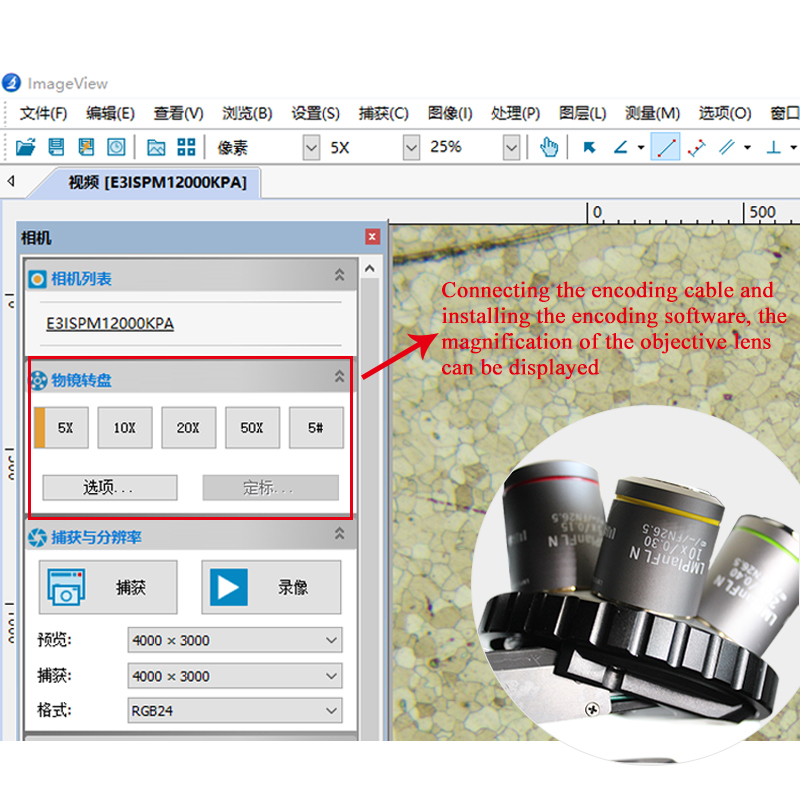

Coded quintuple nosepiece, automatically adjusts the calibration values recorded in the software when switching lens magnification with Image analysis software, Which is easy to operate and reducing measurement errors

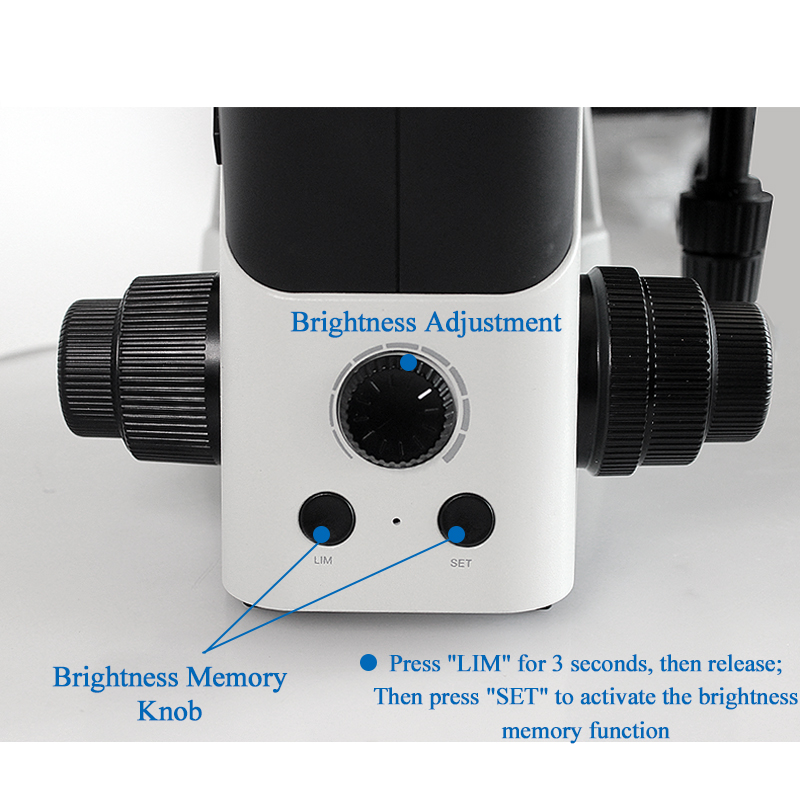

Brightness Memory Function of VM2400I

5V/10W LED illumination, with brightness memory function, which can remember the lighting brightness when using each objective, automatically adjust the light intensity when different objectives are converted to each other, reduce visual fatigue, and improve work efficiency

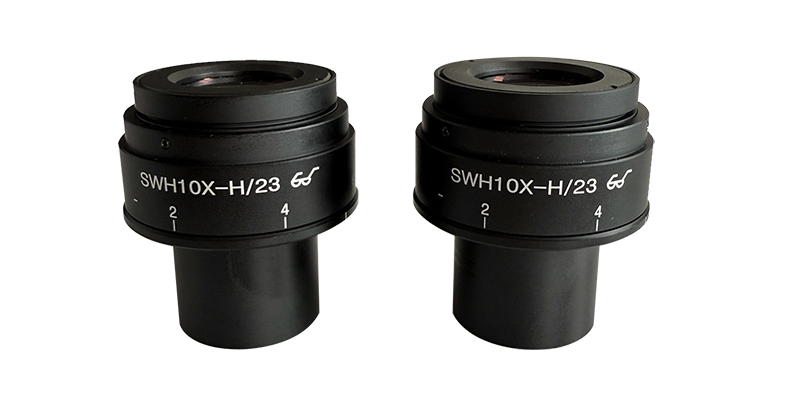

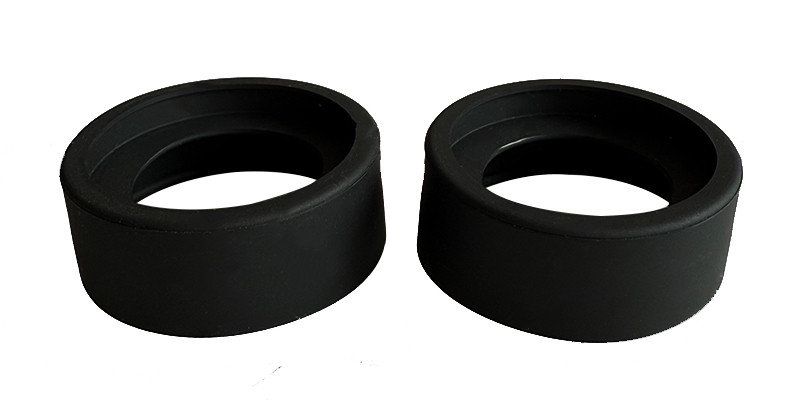

Eyepiece of VM2400IEyeguard of VM2400I

Eyepiece & Eyeguard of VM2400I

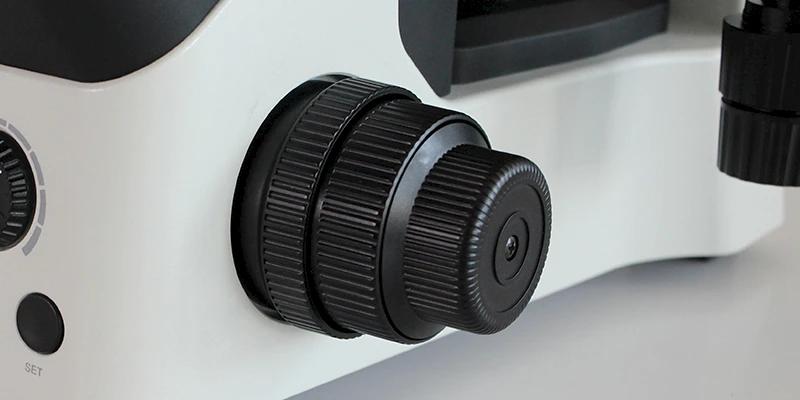

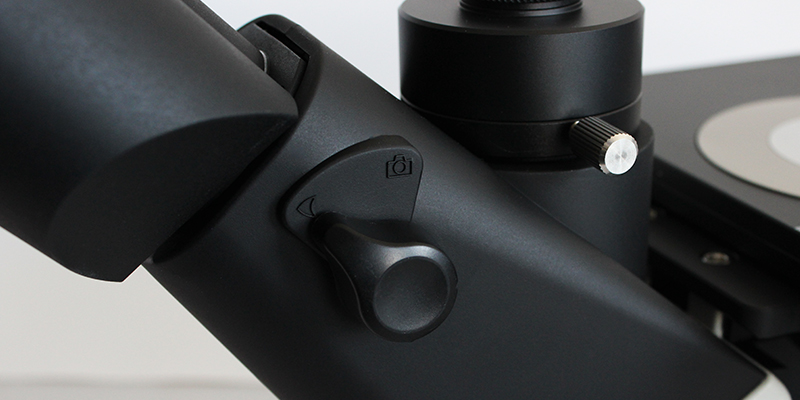

Observation Switch of VM2400IFocus Knob of VM2400I

Observation Switch & Focus Knob of VM2400I

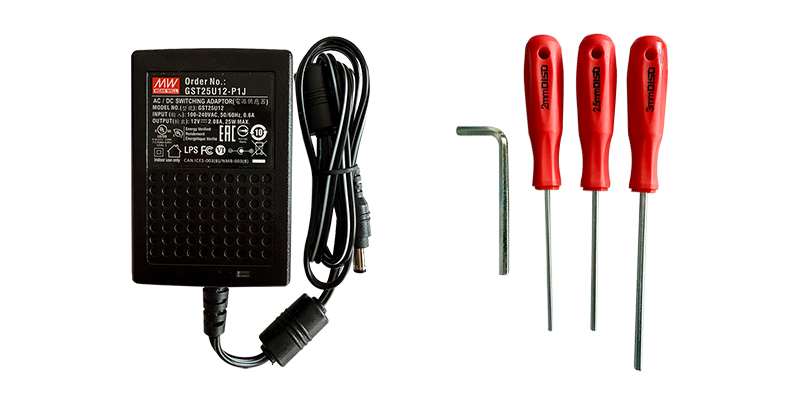

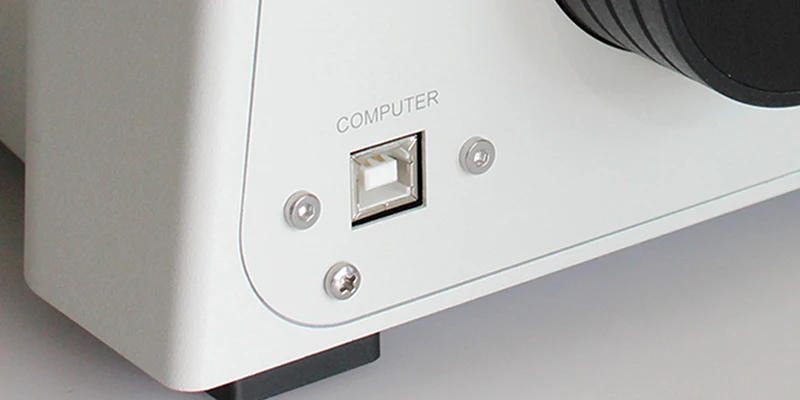

Encode-interface of VM2400IPower Supply & Tools of VM2400I

Encode-interface & Power Supply & Tools of VM2400I

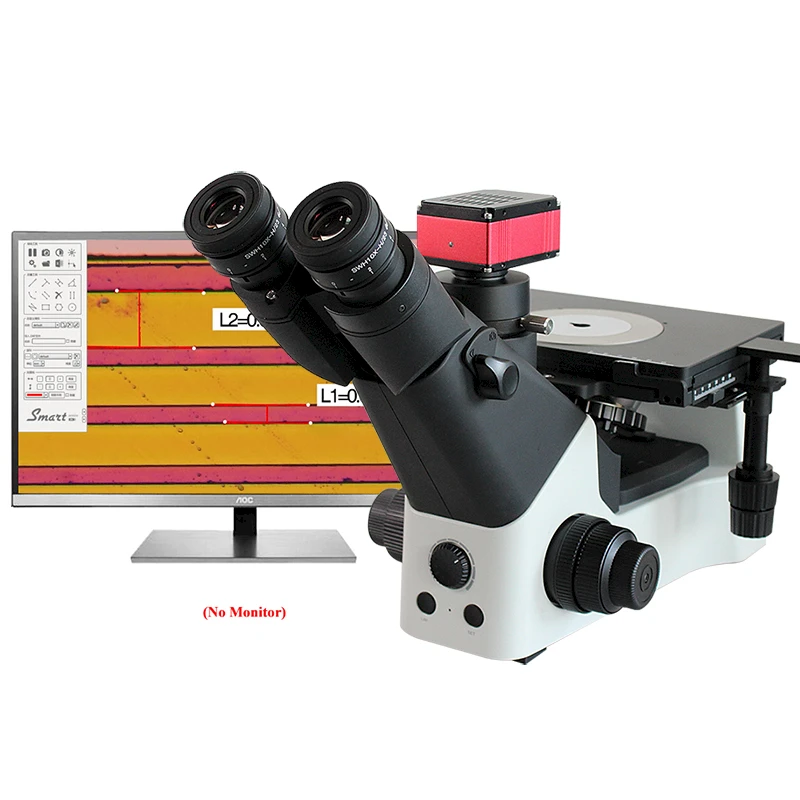

VM2400I with its Connected HD-4KLD HDMI Camera

4K IMX 1/1.8” CMOS Sensor HDMI-compatible & USB2.0 Interface, 3840 30FPS / 1080P 60FPS image output, offering measurements & record

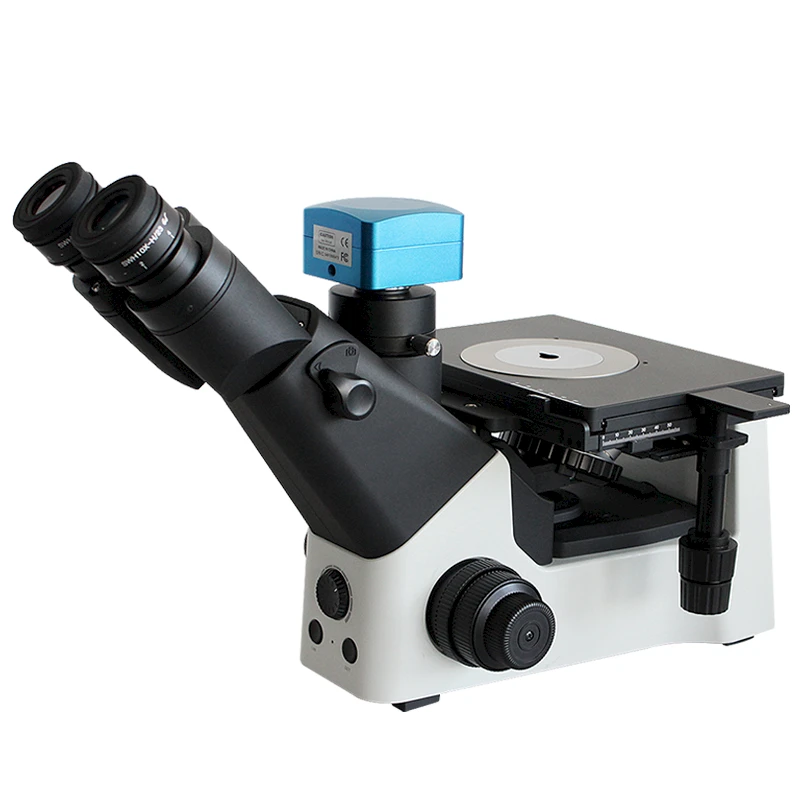

VM2400I with its Connected HD-4KR HDMI Camera

HDMI-compatible USB 4K Industrial CCD Microscope Camera for Measuring.

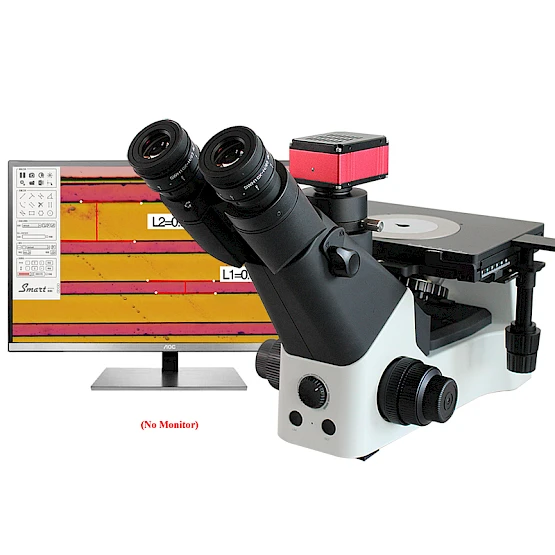

VM2400I with its Connected USB Microscope Camera

5MP~45MP High Resolution USB2.0/ USB3.0 Interface, Can be connected with PC, Laotop. Providing Measurements, Auto Exposure Etc. Functions.

Specification for VM2400I:

Eyepiece

High eyepoint, wide field plan eyepiece, SWH10X (Φ23mm)

Eyepiece Tube

Seidentopf Trinocular Head, Inclined 45°, Interpupillary Distance 50-75mm, ± 5 diopters, R: T Ratio =100:0 or 0:100

Objective

Infinite metallurgical microscope lens

5XNA0.15WD12

10XNA0.3WD16

20XNA0.40WD12

50XNA0.55WD8.5

100XNA0.8WD2.1 (Optional)

Magnification

50X~500X

Nosepiece

Coded quintuple nosepiece, automatically adjusts the calibration values recorded in the software when switching lens magnification with Image analysis software, Which is easy to operate and reducing measurement errors

Focus System

Low-hand coaxial coarse/fine focus system, with tension adjustable and up stop, Coarse range: 9mm, focal plane up 6.5mm, down 2.5mm, minimum division of fine focusing: 2μm

Working Stage

Double layer mechanical (Size:215mmx165mm, moving range:45mmx35mm)

Camera Adapter

0.5X, C-mount adapter, with focusing function

Illumination Unit

5V/10W LED bulb, brightness control

Brightness memory function, which can remember the lighting brightness when using each objective, automatically adjust the light intensity when different objectives are converted to each other, reduce visual fatigue, and improve work efficiency

Weight

N.W.: 8.5kgs; G.W.: 10kgs

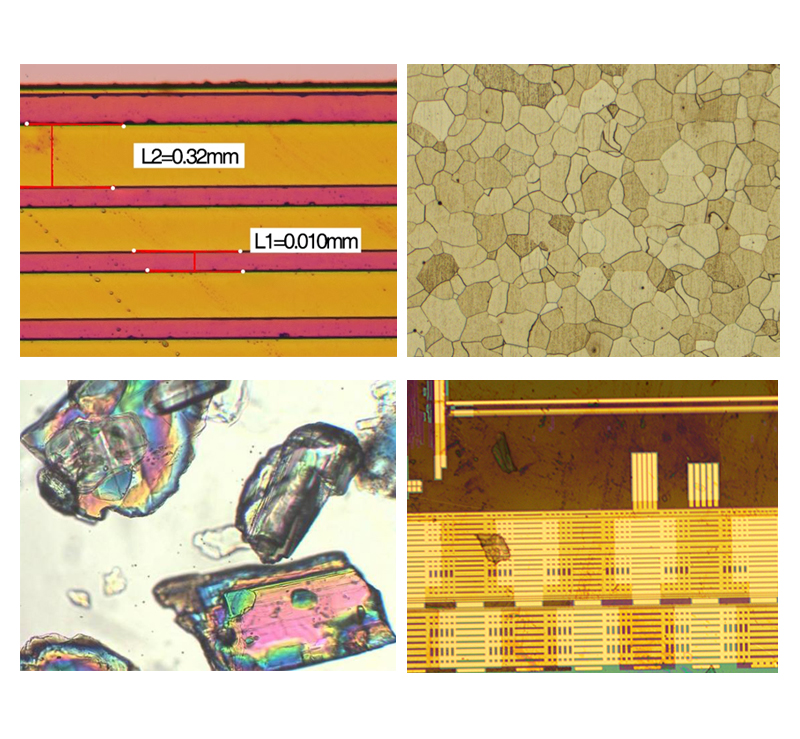

Real Images Captured by VM2400I

Application of VM2400I Inverted Metallurgical Microscope
