11.6“ Integrated 5MP HDMI USB Microscope LCD Screen Microscope Monitor with Simultaneously Display on an External Screen

  1. Microscope X
  2. Microscope Accessories
  3. Monitor
  4. YW5612
YW5612 Monitor

IMX335 Sensor, 5MP LCD, HDMI & USB, Record, Save & Measurement Functions, DC-12V/2A

Features

  • Wireless mouse control
  • Supply photography, video, save functions
  • 11.6” LCD Display Screen
  • USB & HDMI output
  • Image color restore close to primary color

Tags: Microscope MonitorMicroscope Screen

Request a Quote?

Get Quote Live chat Email Phone
Resolution
1920*1080@60FPS
Pixel Size
2UM*2UM
Weight
1KG

YW5612 provides not only wireless mouse control, but also the multiple output interfaces, such as HDMI-compatible, USB. It is easy to record and save the photos and videos in the USB flash disk, and this display screen has all the function of the digital industrial camera, especially the measurement.

YW5612 MonitorYW5612 Monitor

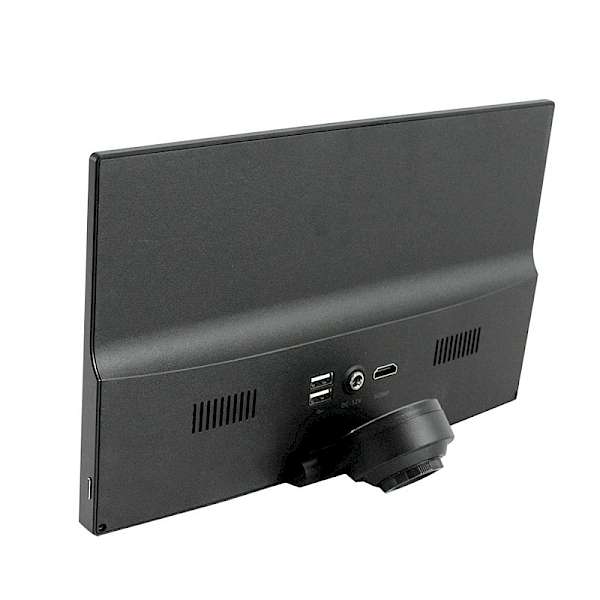

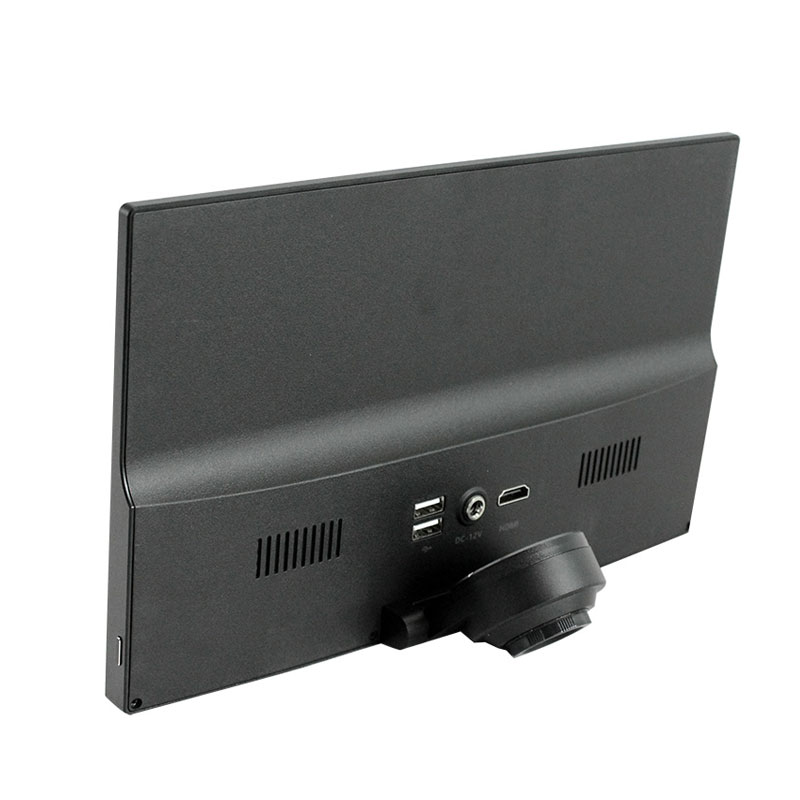

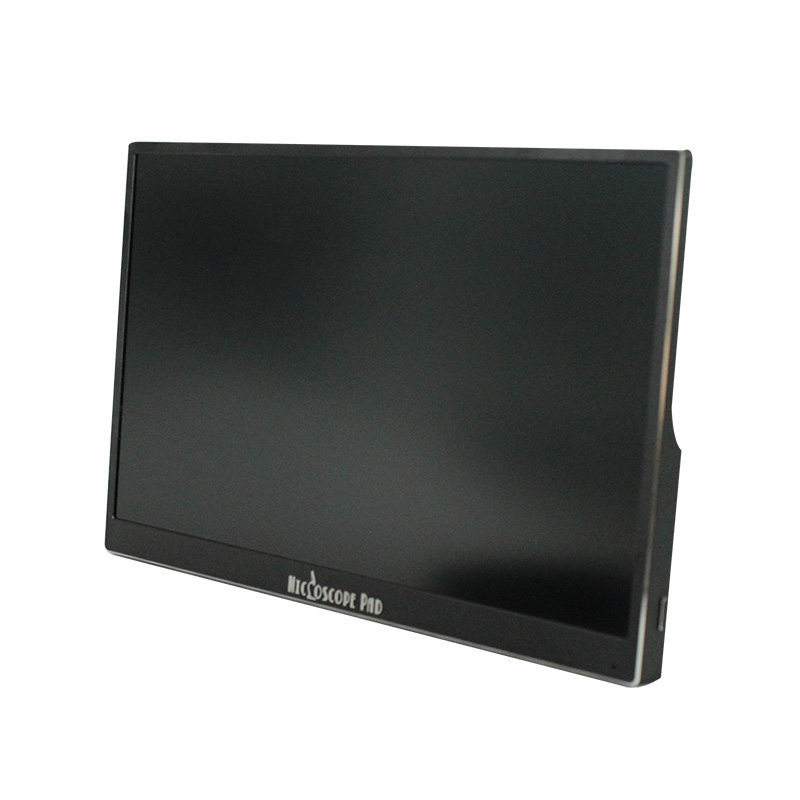

The Front & Back of YW5612

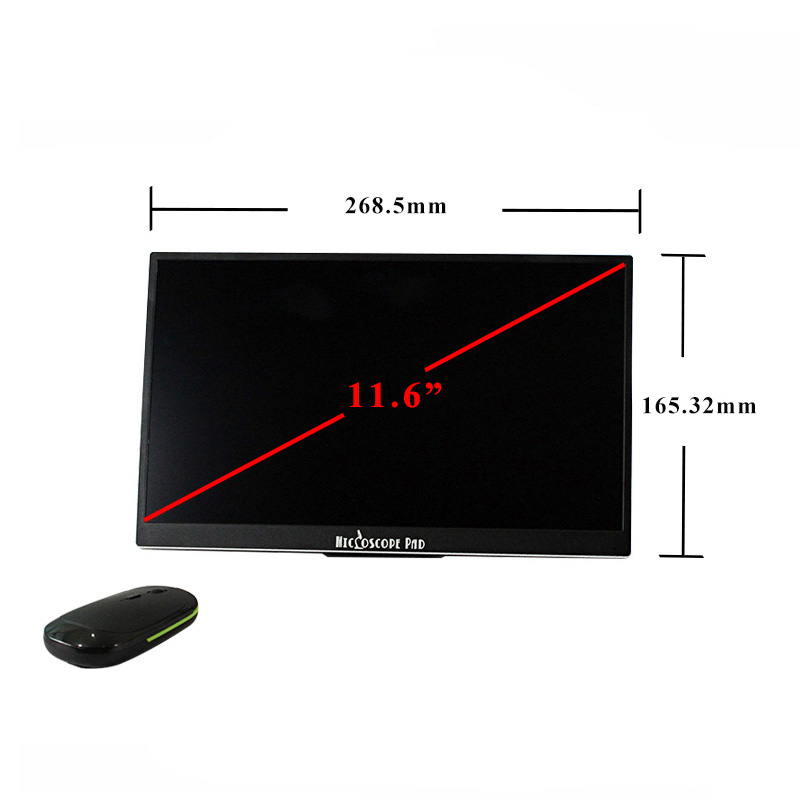

Size of Microscope Monitor YW5612

Size of Microscope Monitor YW5612

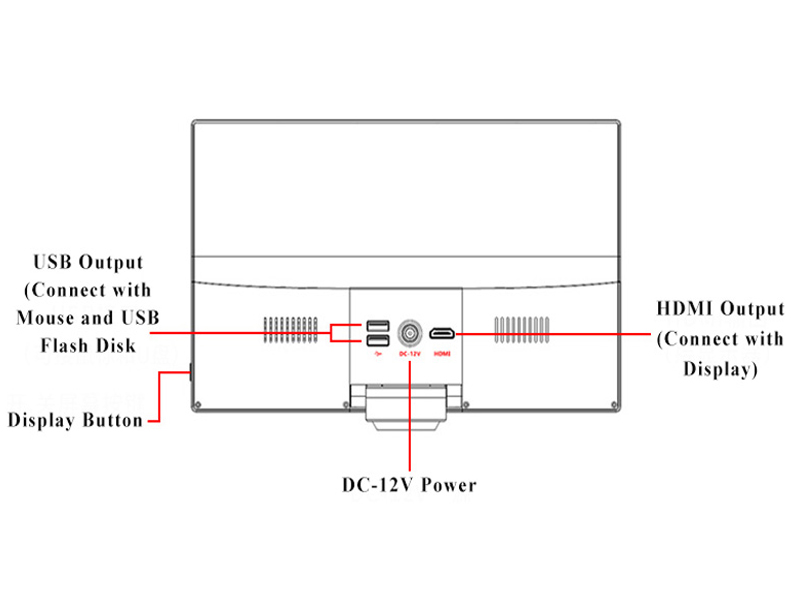

Structure of YW5612

Structure of YW5612

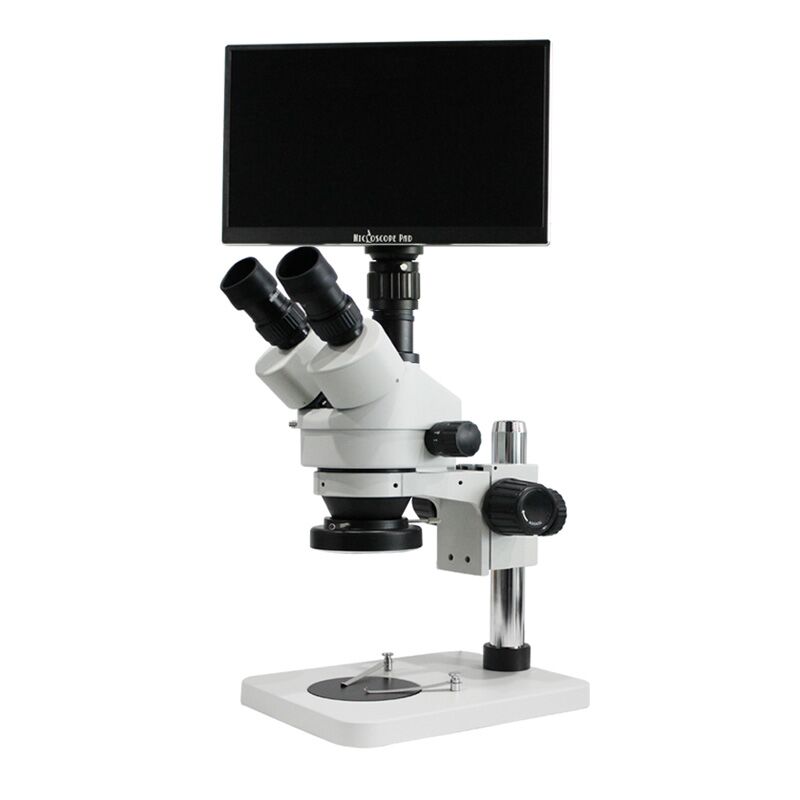

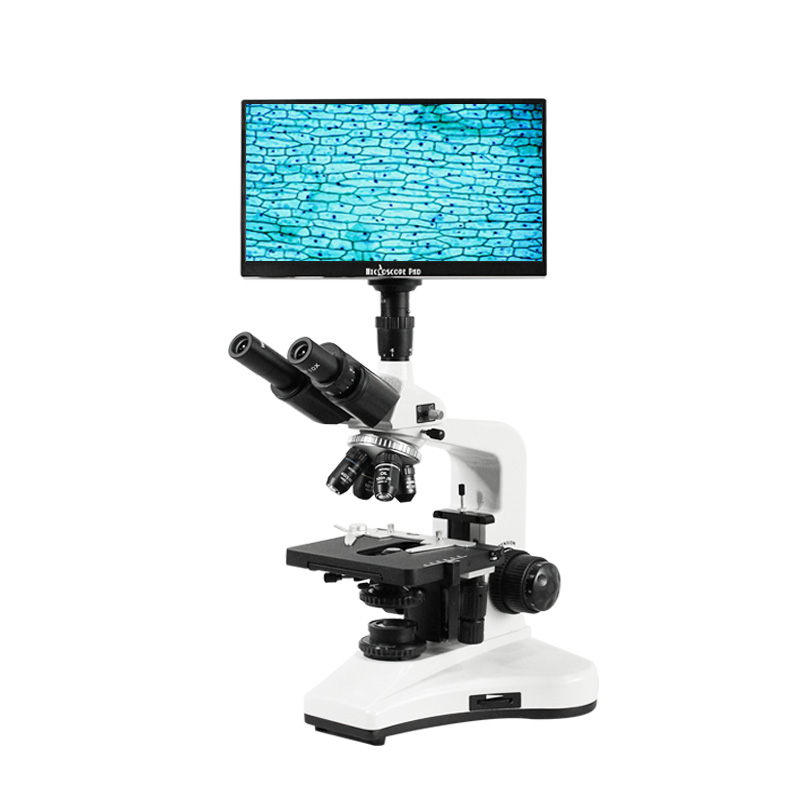

YW5612 with its Connected Stereo MicroscopeYW5612 with its Connected Biological Microscope

YW5612 with its Connected Microscopes

Parameters of the YW5612：

Model

YW5612

Size

11.6” integrated screen

Sensor

IMX335

Pixel

5MP

Resolution

1920*1080@60FPS

Output

HDMI、USB

Pixel Size

2UM*2UM

Power

DC-12V/2A

Basic Function

Images Adjustable

Image Quality Adjustment

Exposure, color temperature, white balance

Camera Function

Mirror image, screen freeze, flip, wide dynamic, zoom in, zoom out

Grid Lines

color and thickness adjustable

Measurement

268.5*165.32*83.05mm

Weight

1.0kg

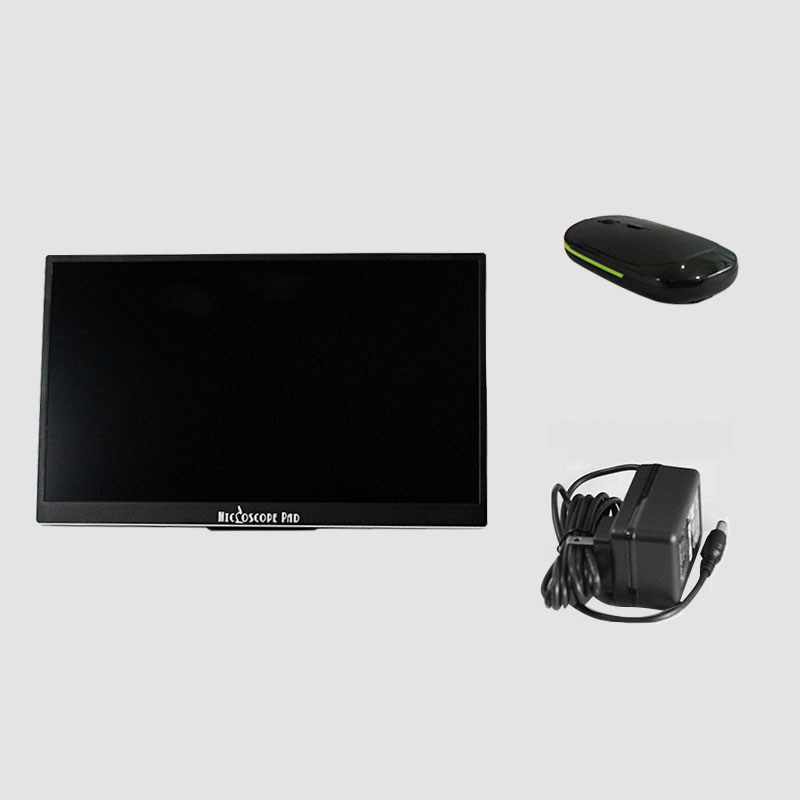

Standard Packing List of YW5612
