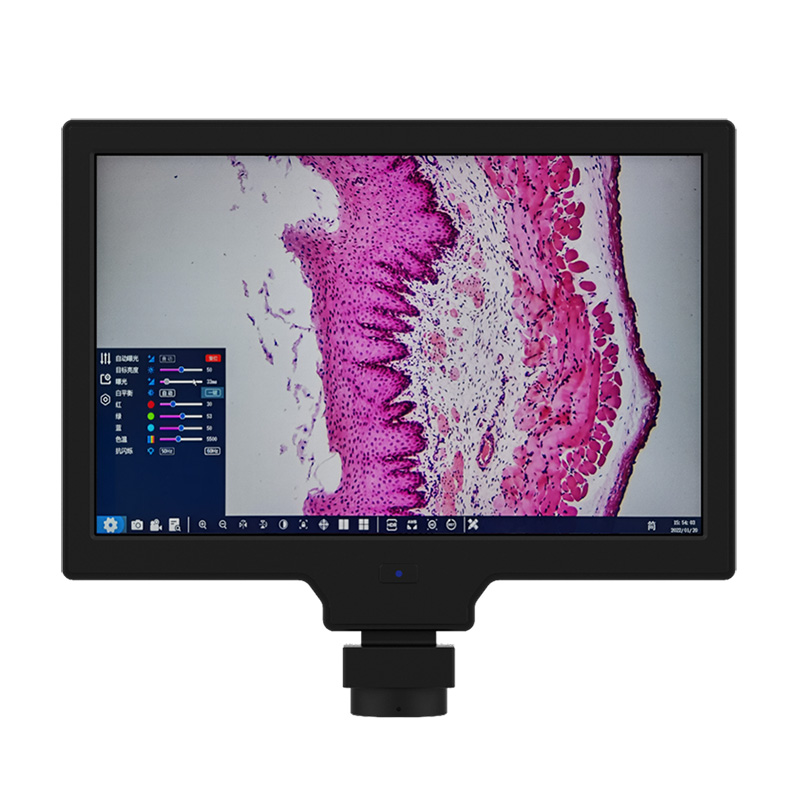

10inch 2MP HDMI & USB/UVC Output Microscope Monitor Integrated Screen with Measurement Software
1920*1080@ 60FPS, 1/2.8” IMX307 Sensor, HDMI USB/UVC, Record, Save & Measurement Functions, DC-12V
Features
- 10inch Display Screen
- Mouse control

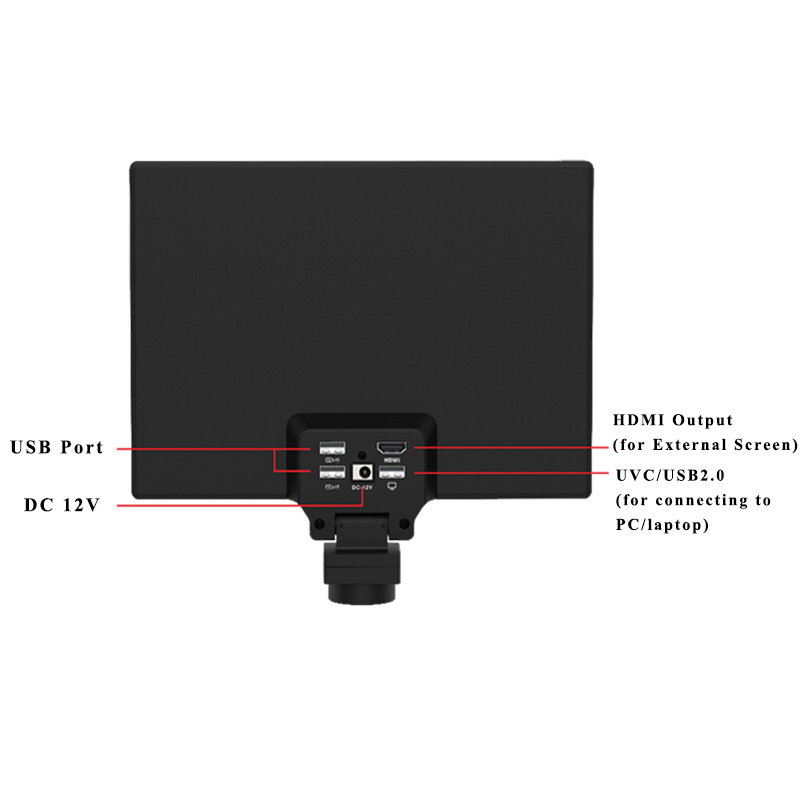

- USB2.0/UVC & HDMI outputs
- Supply photography, video, save functions
- Image color restore close to primary color
Tags: Microscope ScreenMicroscope Monitor
Request a Quote?
Get Quote Live chat Email Phone
Parameters of the YW101： | |
|---|---|
SENSOR | IMX307 |
Sensor size | 1/2.8” |
Pixel size | 2.9*2.9μm |
Resolution | 1920*1080 |
Frame rate | 1920*1080@ 60FPS |
Storage | USB stick or UVC to computer |
Video | 1920*1080@30FPS |
Exposure time | 0-999MS |
Exposure | Auto and manual, providing target brightness settings |
White balance | Auto，manual and ROI modes |
Parameter | Contrast, Saturation, Brightness, Sharpness, Noise Reduction etc. |
Software | Youngwin OS |
PC software | S-EYE2.0 |
Working temperature | 0-60℃ |
Storage temperature | -20-85℃ |
Size | 241.6*165.20*8.8mm |
Weight | 0.7kg |
Power | DC 12V |
