9inch HD Microscope Screen C-mount Integrated Microscope Camera Monitor Save Record Functions
Features
- 9” LCD Display Screen
- Wireless mouse control USB2.0
- Supply photography, video, save function
- Image color restore close to primary color
Tags: Microscope MonitorMicroscope Screen
Request a Quote?
Get Quote Live chat Email Phone
1024*600
10X
1/3”
SD Card
YW090C integrated functions, such as Exposure, Contrast, Sharpness etc. It is easy to record and save the photos and videos in the U-disk, which is really convenient.

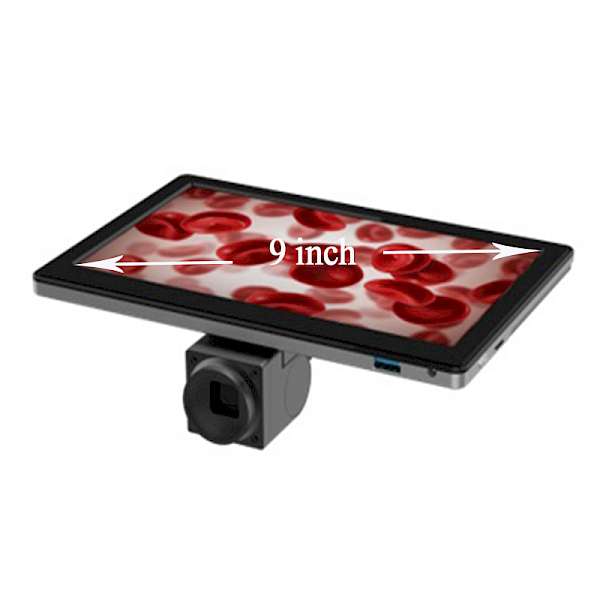

YW090C Microscope Monitor

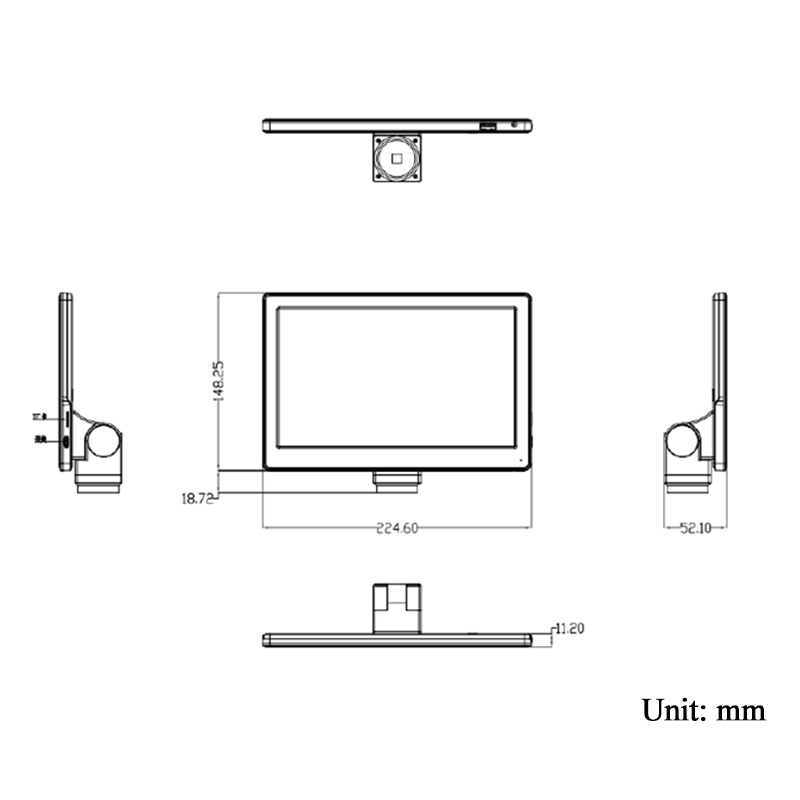

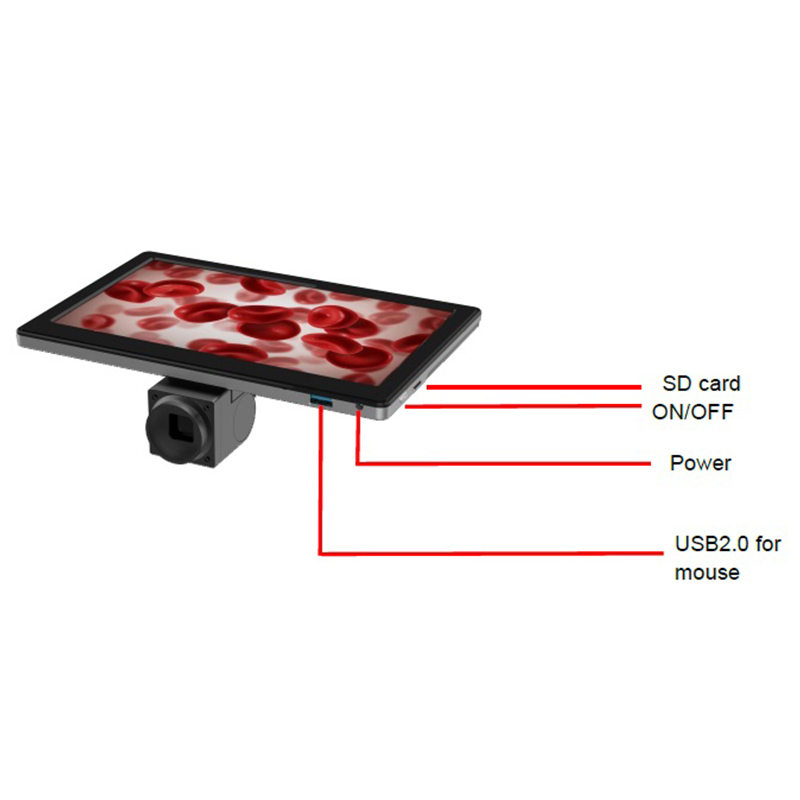

Structure of YW090C Screen
Specification for YW090C: | ||
|---|---|---|
Specification | Model | YW090C |
Category | All in one monitor camera | |
Sensor | 1/3” | |
Effective pixel | Full HD | |
Resolution | 9” resolution 1024*600 high definition monitor | |
Output | USB2.0, SD card | |
Pixel size | 2.75*2.75 μm | |
Power | DC-12V/1A | |
Function | Basic function | Brightness, Contrast, Saturation, White balance, Monochrome, HDR wide dynamic |
UI interface | Mouse control | |
Image adjustment | Sharpness, Denoise etc. | |
Storage | Snap, Video, Preview | |
Camera function | 10X digital zoom, Flip/Mirror, Freeze, Dynamic contrast | |
Crosshair | Color/Size adjustable | |
Grid | 8 sets of grid and can be saved | |
Package | Size | 224.6*148.25*52.1mm |
N.W | 0.6kg | |
Standard accessory | Mouse, DC-12V power | |
