48MP 1080P Hdmi USB Electron Video Digital Microscope Camera with Cantilever Foldable Stand Holder Bracket
7X~45X Standard Mag.; 20~1000mm W.D.;Any Directions; HDMI & USB Outputs; LED light source
Features
- 7X~45X (Standard Optical Mag.)
- Long working distance: 20~1000mm
- For any directions, clamp installation range: 6cm
- Adopt with 1/3” 48MP CMOS Sensor, show the live image directly on any HDMI
- HDMI 1980*1080P 60FPS image output
- 48MP video recording
- Support Photo, video measurement (PC Software), TF card saving etc.
- Wide field of view, clear imaging and strong stereo sensation
Tags: Stereo MicroscopesMonocular MicroscopesIndustrial InspectionMeasuring MicroscopesHDMI MicroscopesUSB MicroscopesSoldering MicroscopesEngraving
Request a Quote?
Get Quote Live chat Email Phone
with 10.1” display
C-mount
1/3 inch 48MP
1920×1080@ 60F/S
TF Card 64Gb

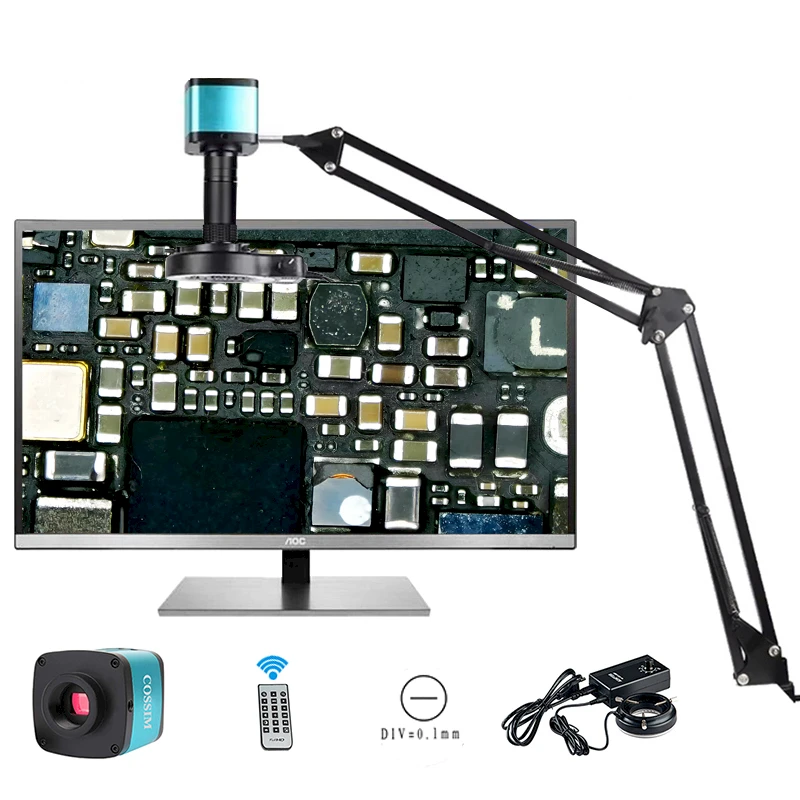

DTB-45-HD48 Monocular Digital Stereo Microscope provides 3D image effect, easy operation, nice design, high cost effective. It is widely used in the inspection of production line of electronic industry, the verification of printed circuit board, defects in printed circuit components, etc.

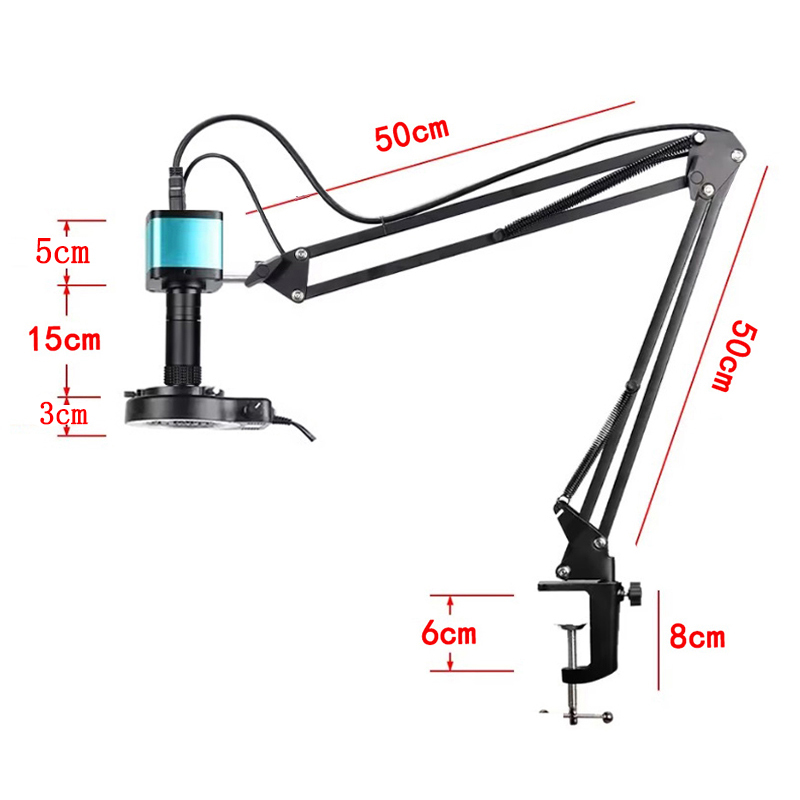

Size of DTB-45-HD48

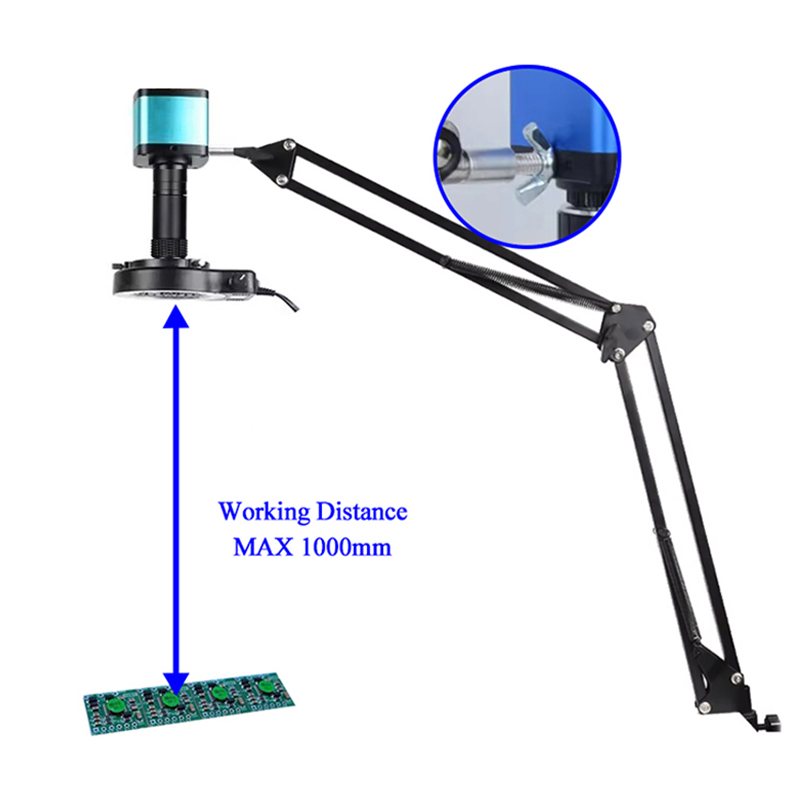

Working Distance of DTB-45-HD48

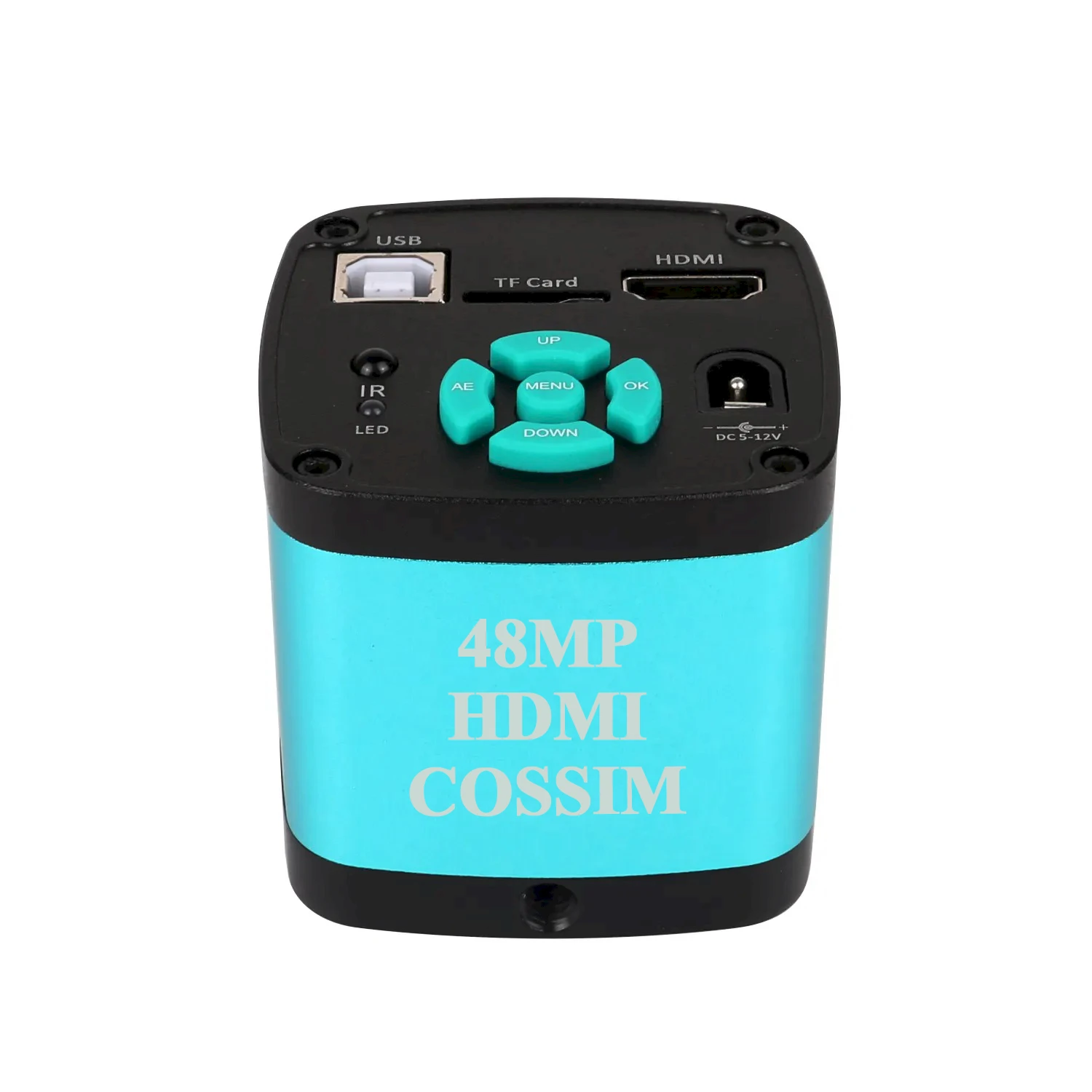

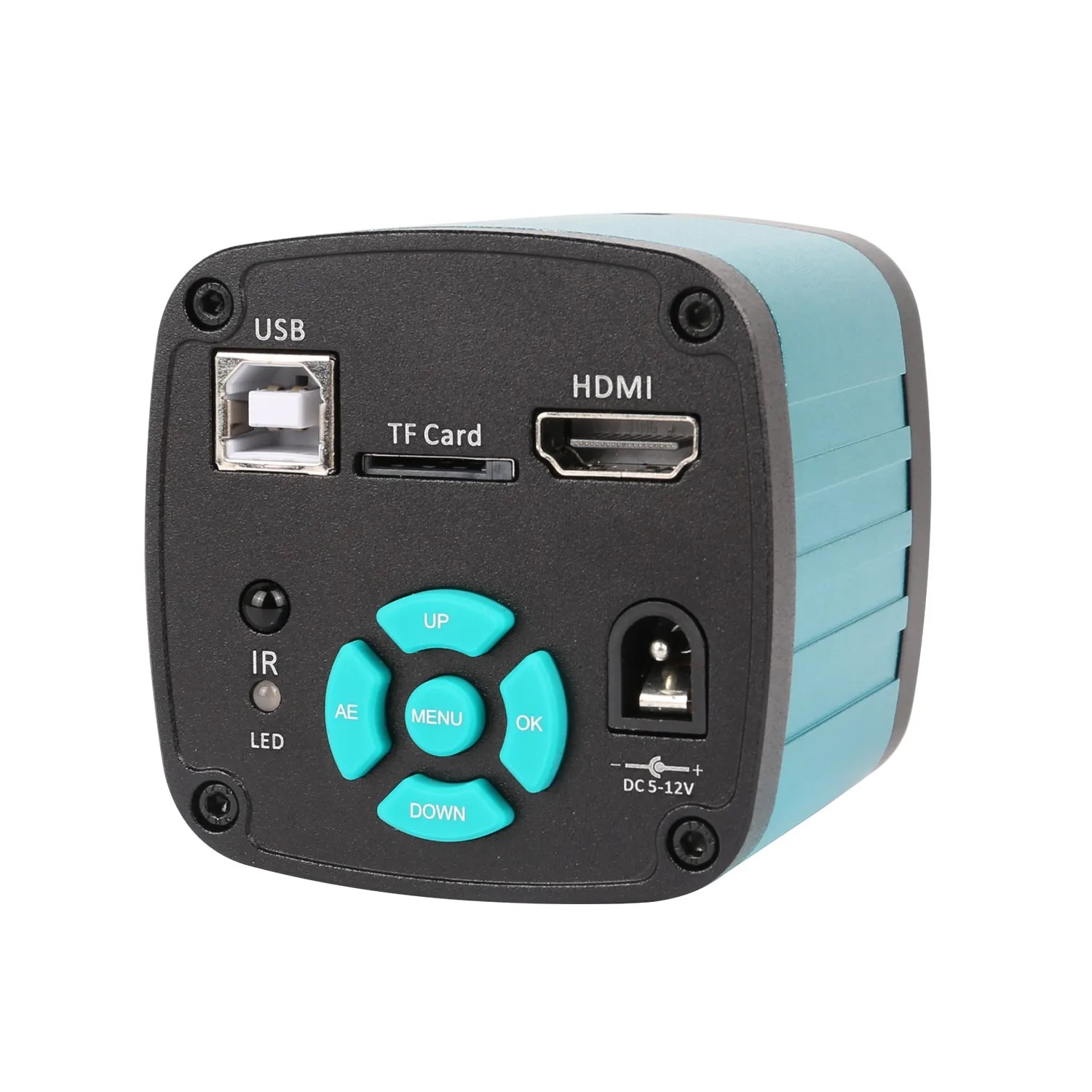

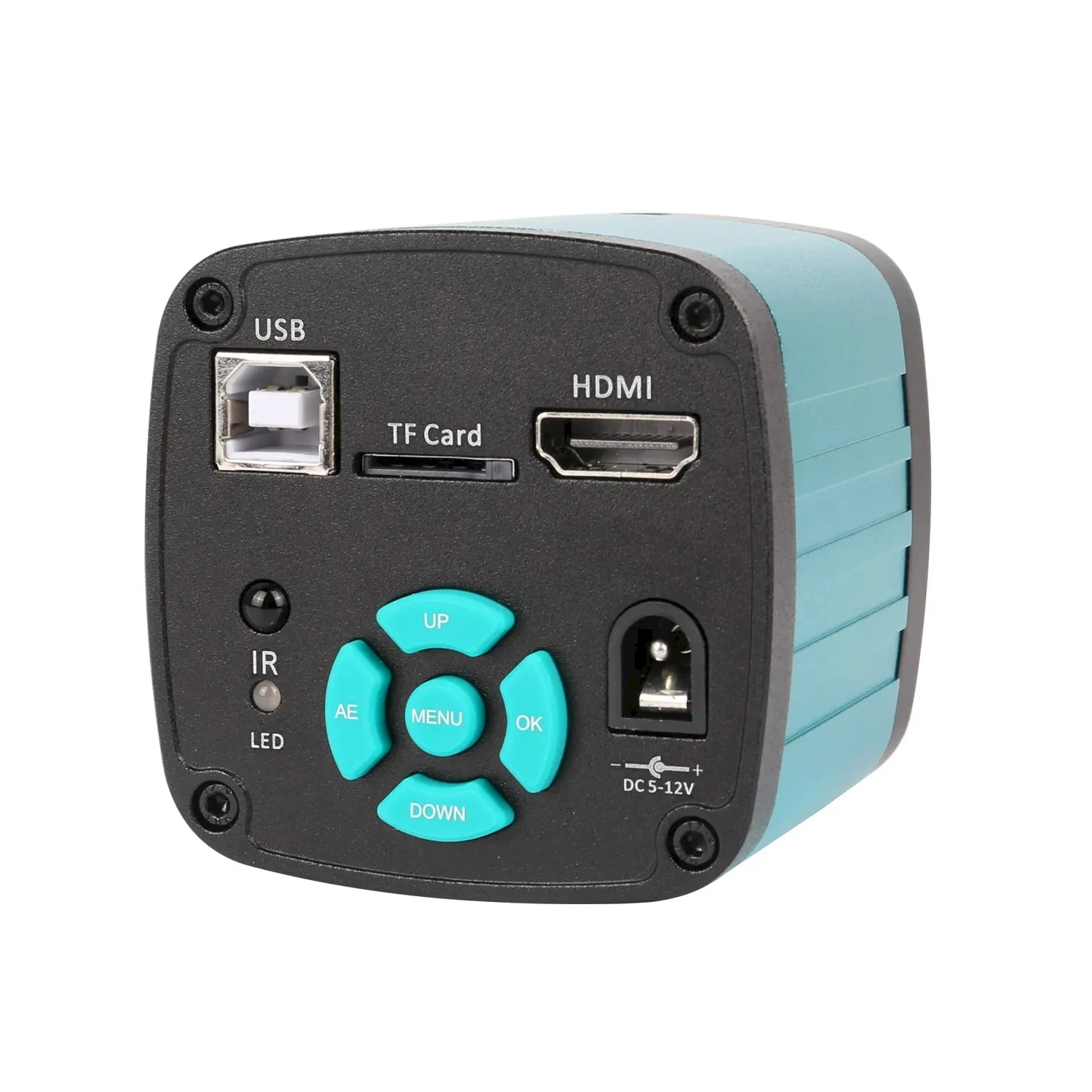

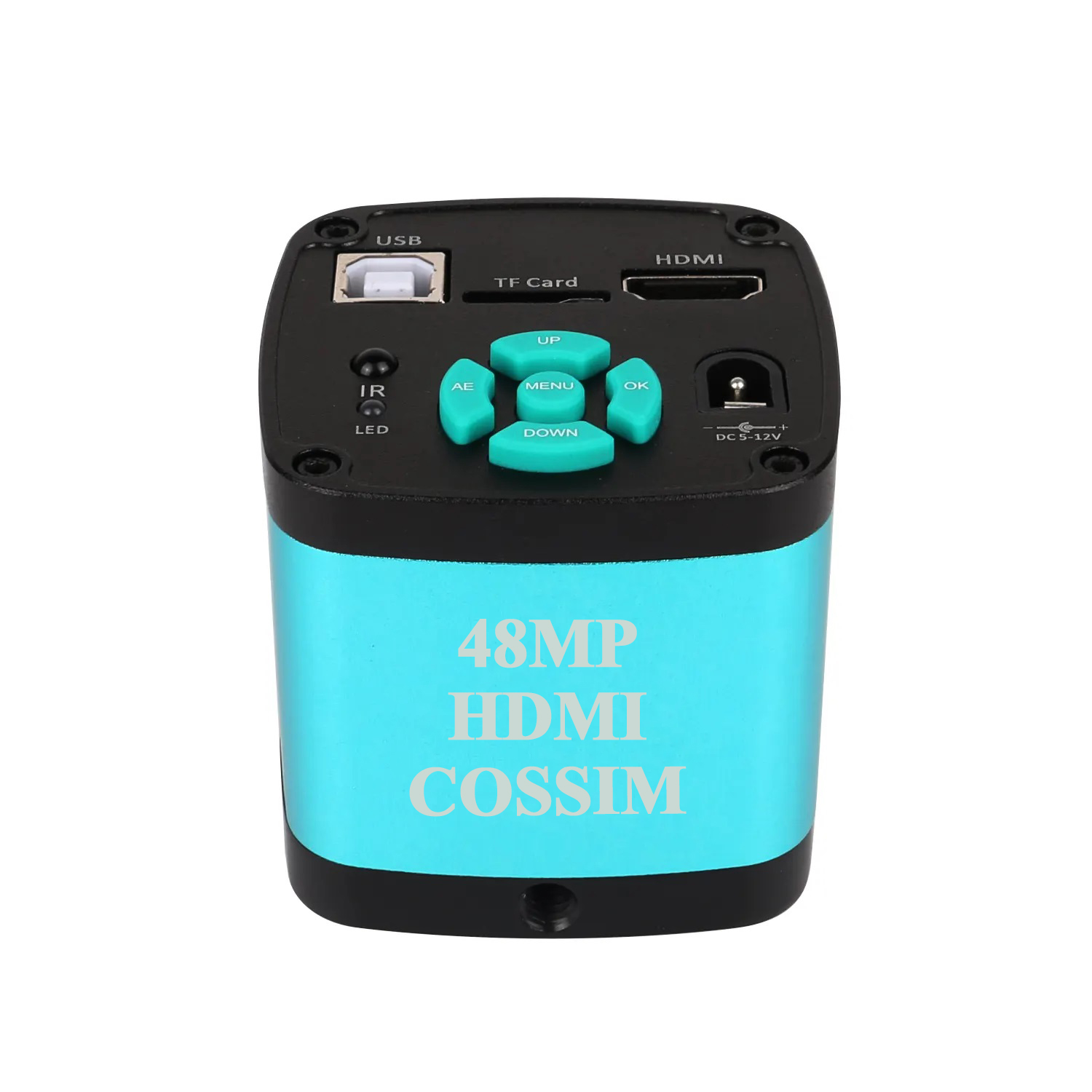

HD4800 48MP Microscope Camera
Specifications for Microscope: | |
|---|---|
Drawtube | Monocular |
Objective | 0.7X~4.5X, ratio: 1:6.4 |
Total Magnification | 5X~100X (when with 10.1” display) |
Digital Device | HDMI 48MP Camera |
Interface | Standard C-mount |
Adapter Lens | 0.5X |
Focusing | Pole |
Working Distance | 20mm~1000mm |
Illumination | LED Ring Light |
ID: 60.5mm (inner: Φ 60mm) | |
Lamp Bead: 60 Granule | |
Max Illuminance : 60,000 Lux | |
Specifications for Camera: | |
Pixel size | 1.335µm × 1.335µm |
sensor | 1/3 inch 48MP |
output | HDMI/USB |
Lens mount | C/CS |
Image resolution | 1920×1080 (for HDMI), |
Video resolution | 1920×1080@ 60F/S |
Exposure | Auto/Manual |
Exposure | Compensation Support |
White balance | automatic/manual, support RGB adjustable |
Centerline | Support |
Storage | 64GB |
Input voltage | DC 5V—12V |
Scribing | supports 8 straight lines, color, thickness and position are adjustable |
Remote control | support remote control operation |
Net Weight | 0.25KG |
Gross Weight | 0.45KG |
Product Size | 66*66*49m |
Box Size | 145*130*70mm |

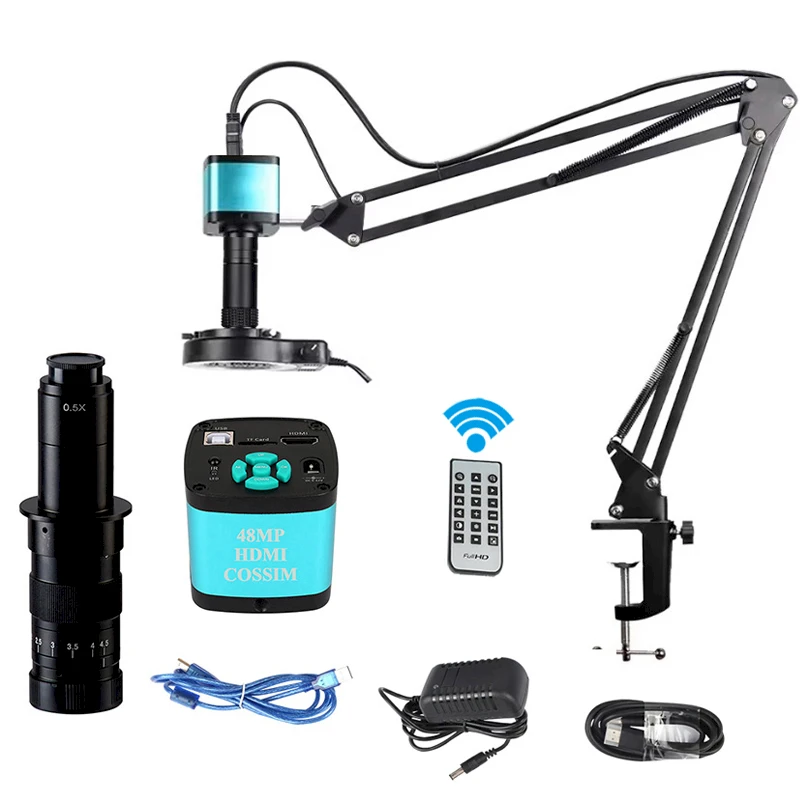

Standard Packing List: | |
|---|---|
Item | Quantity |
Monocular Microscope | 1 |
Foldable Holder | 1 |
LED Ring Light | 1 |
Digital Camera (48MP) | 1 |
Remote control | 1 |
Power | 1 |
USB & HD-MI Cable | 1 for each |
Operation Manual | 1 |
Box | 1 |
