FA Series Machine Vision Lens
FA Series Machine Vision Lens
support short working distance, high cost-effective
Core Features
- Compatible with resolutions sensor
- Super low distortion
- High relative illumination
- Compact and small structure

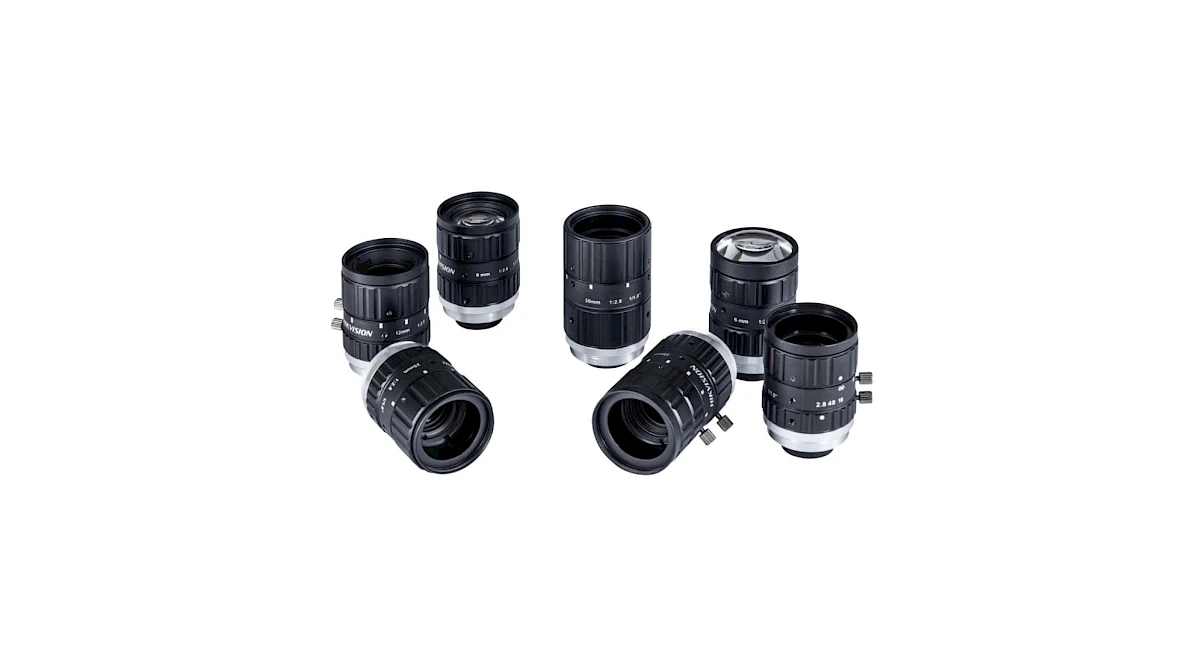

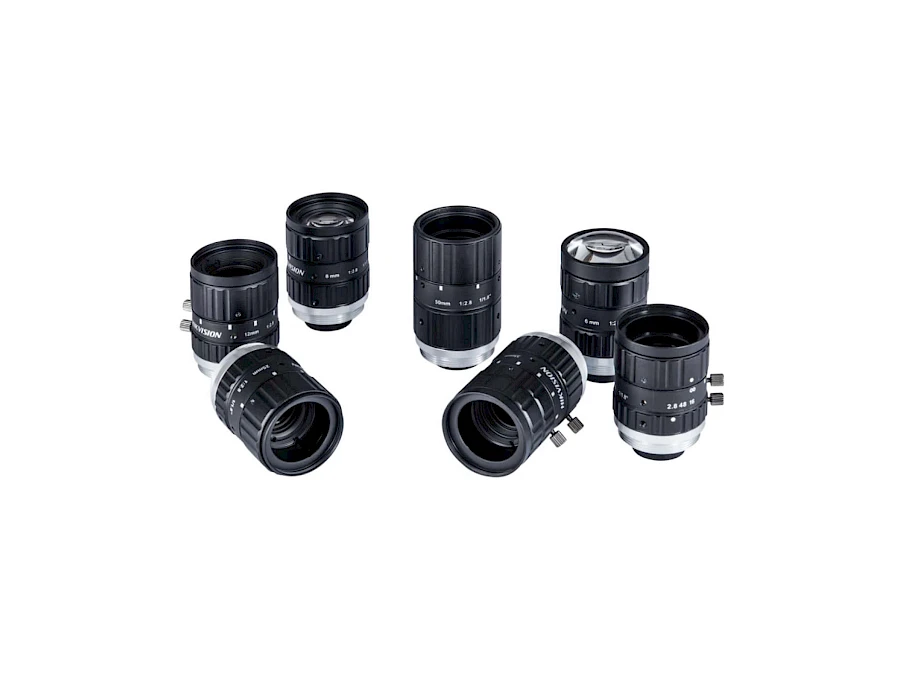

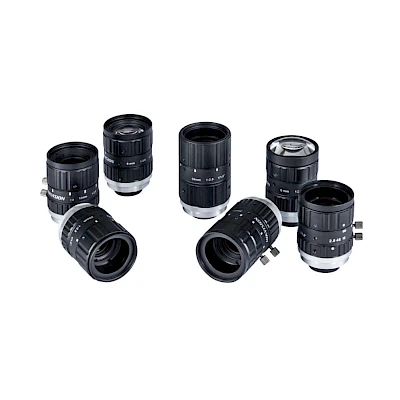

FA-A Series Machine Vision Lens (1/1.9”6M Resolution)
- Compatible with 6M resolutions sensor
- The minimum F# is 2.8，support the maximum 1/1.9” sensor
- Super low distortion and high relative illumination
- Optimized for machine vision illumination light and sensor
- Smart structure, high seismic resistance, high and low temperature work stability
- Multilayer broadband coating ensures high transmittance and low stray light of visible and near infrared light
- Support ultra-short work distance, the different working distances are optimized to ensure the lens's optimal performance
Model | EFFL | F# Number | Optical Distortion | FOV | Minimum Working Distance(m) | Filter Thread | Interface | ||
|---|---|---|---|---|---|---|---|---|---|
D | H | V | |||||||
FA-A0628M-6MP | 6 | F2.8-F16 | -1.50% | 73.5° | 62.8° | 44.5° | 0.035 | ~ | C |
FA-A0828M-6MP | 8 | F2.8-F16 | -0.96% | 58.5° | 49.3° | 34.0° | 0.04 | M27*0.5 | C |
FA-A1228M-6MP | 12 | F2.8-F16 | -0.38% | 41.2° | 34.4° | 23.4° | 0.06 | M27*0.5 | C |
FA-A1628M-6MP | 16 | F2.8-F16 | -0.08% | 31.0° | 25.7° | 17.5° | 0.07 | M27*0.5 | C |
FA-A2528M-6MP | 25 | F2.8-F16 | -0.02% | 19.8° | 16.3° | 10.9° | 0.15 | M25.5*0.5 | C |
FA-A3528M-6MP | 35 | F2.8-F16 | -0.02% | 13.8° | 11.3° | 7.6° | 0.18 | M27*0.5 | C |
FA-A5028M-6MP | 50 | F2.8-F16 | 0.11% | 9.7° | 8.0° | 5.4° | 0.30 | M25.5*0.5 | C |

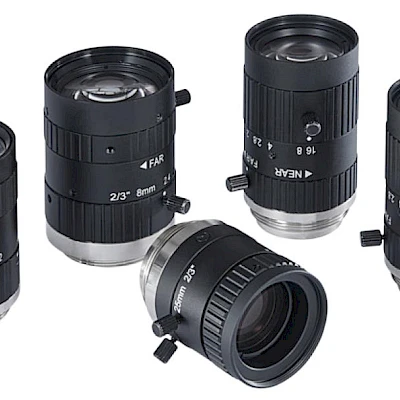

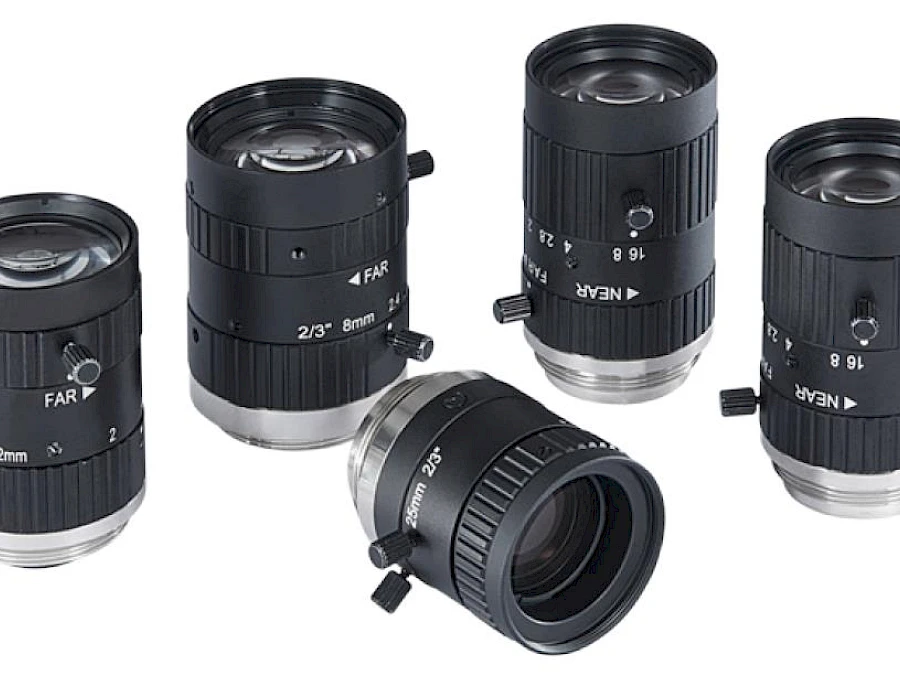

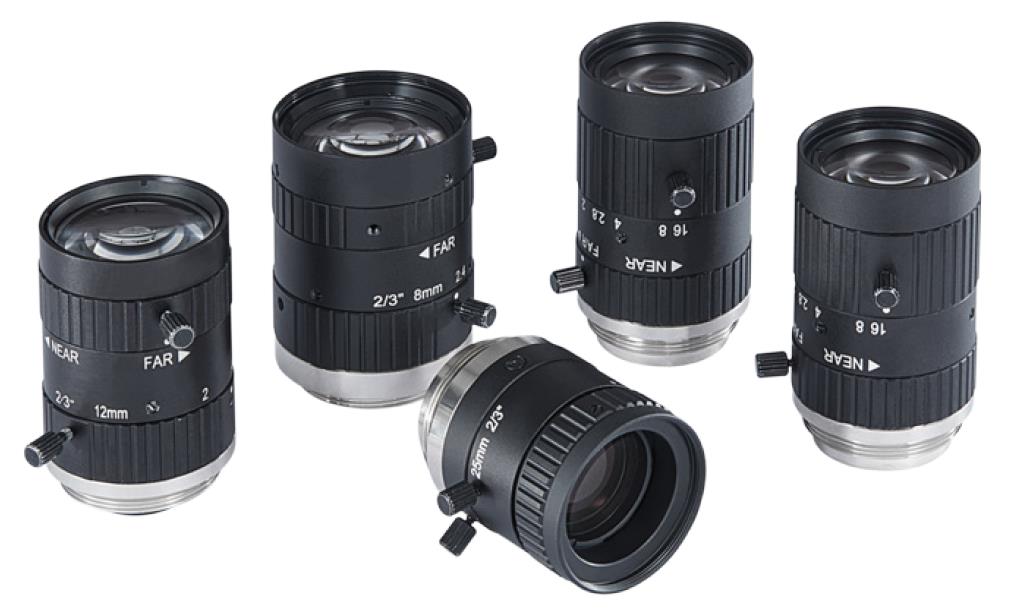

FA-B Series Machine Vision lens (2/3" 6M Resolution)
- Compatible with 6M resolutions sensor
- The minimum F# is 2.0，support the maximum 2/3” sensor
- Super low distortion to ensure high measurement accuracy
- Compact structure, can be integrated to compact apparatus
- High performance price ratio
Model | EFFL(mm） | F# Number | Optical Distortion | FOV | Minimum Working Distance(m） | Filter Thread | Interface | ||
|---|---|---|---|---|---|---|---|---|---|
D | H | V | |||||||
FA-B0824M-5MP | 8 | F2.4-F16 | -2.06% | 70.2° | 58.1° | 44.5° | 0.03 | ~ | C |
FA-B1220M-5MP | 12 | F2.0-F16 | -1.01% | 48.8° | 40.2° | 30.6° | 0.08 | ~ | C |
FA-B1620M-5MP | 16 | F2.0-F16 | -0.28% | 37.8° | 30.8° | 23.5° | 0.10 | M27*0.5 | C |
FA-B2520M-5MP | 25 | F2.0-F16 | -0.88% | 23.5° | 18.8° | 14.2° | 0.15 | M27*0.5 | C |
FA-B3520M-5MP | 35 | F2.0-F16 | -0.09% | 17.8° | 14.3° | 10.8° | 0.20 | M27*0.5 | C |
FA-B5028M-5MP | 50 | F2.8-F16 | 0.04% | 12.5° | 10.1° | 7.5° | 0.35 | M27*0.5 | C |

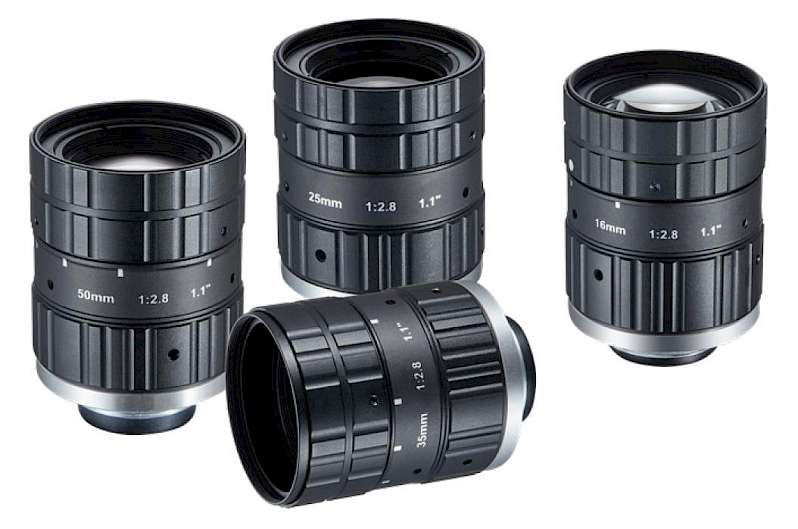

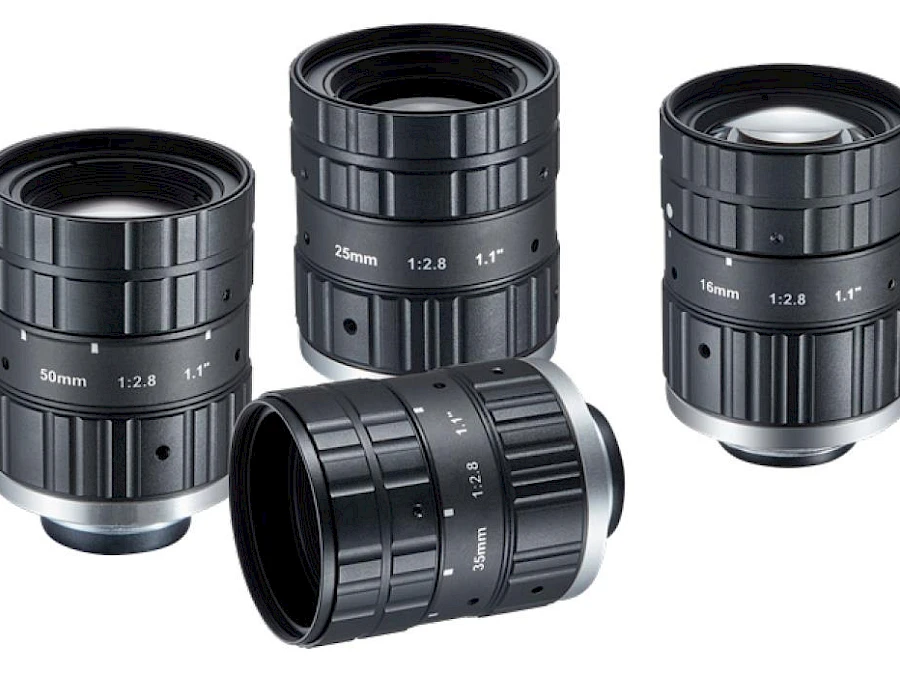

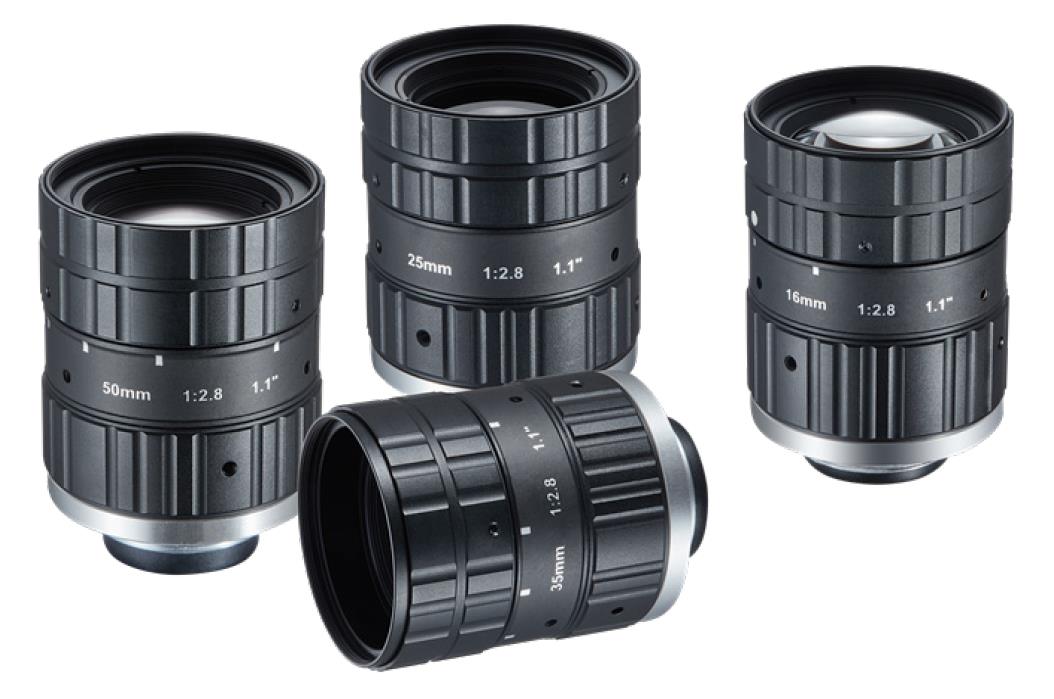

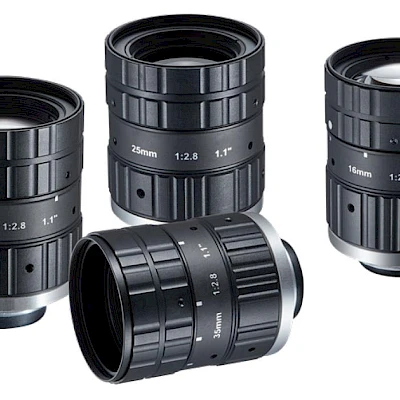

FA-C Series Machine Vision Lens(1" 10M Resolution)
- Compatible with 10M resolutions sensor
- The minimum F# is 2.8，support the maximum 1” sensor
- Super low distortion and high relative illumination
- Optimized for machine vision illumination light and sensor
- Smart structure, high seismic resistance, high and low temperature work stability
- Multilayer broadband coating ensures high transmittance and low stray light of visible and near infrared light
- Support ultra-short work distance, the different working distances are optimized to ensure the lens's optimal performance
Model | EFFL(mm） | F# Number | Optical Distortion | FOV | Minimum Working Distance(m） | Filter Thread | Interface | ||
|---|---|---|---|---|---|---|---|---|---|
D | H | V | |||||||
FA-C1228M-12MP | 12 | F2.8-F16 | -1.79% | 70.5° | 59.8° | 46.2° | 0.10 | ~ | C |
FA-C1628M-12MP | 16 | F2.8-F16 | -1.30% | 54.8° | 44.9° | 33.9° | 0.08 | M35.5*0.5 | C |
FA-C2528M-12MP | 25 | F2.8-F16 | 0.40% | 36.7° | 29.6° | 22.1° | 0.12 | M35.5*0.5 | C |
FA-C3528M-12MP | 35 | F2.8-F16 | -0.21% | 26.7° | 21.4° | 15.9° | 0.18 | M35.5*0.5 | C |
FA-C5028M-12MP | 50 | F2.8-F16 | -0.05% | 18.9° | 15.1° | 11.2° | 0.28 | M35.5*0.5 | C |

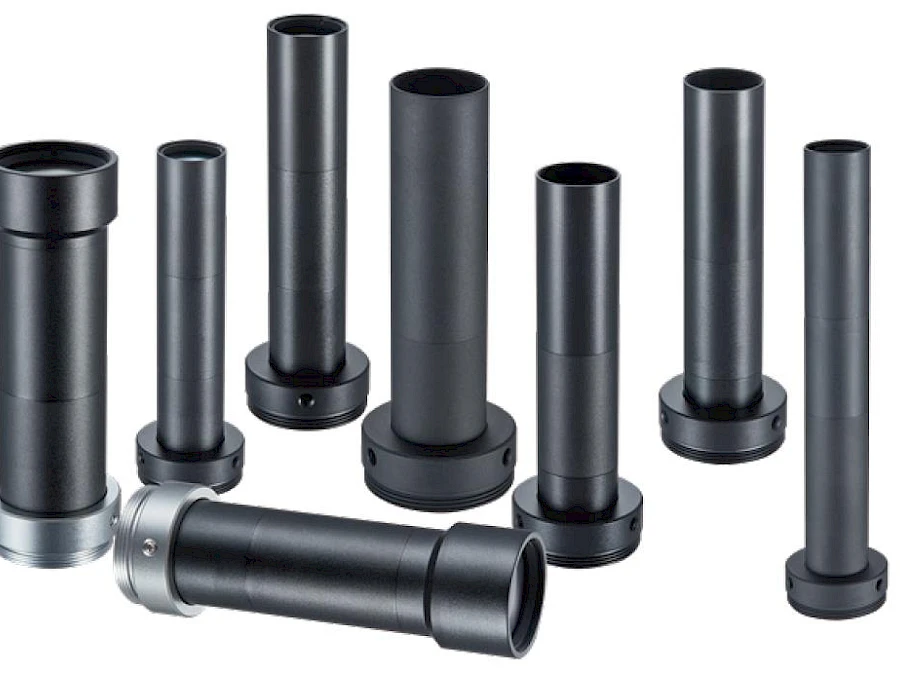

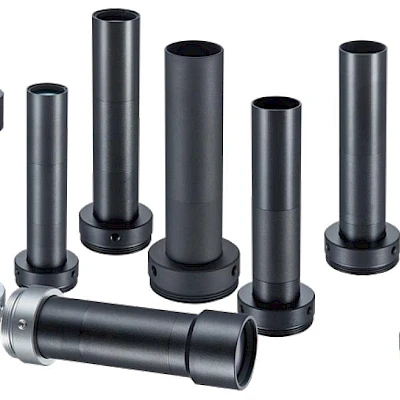

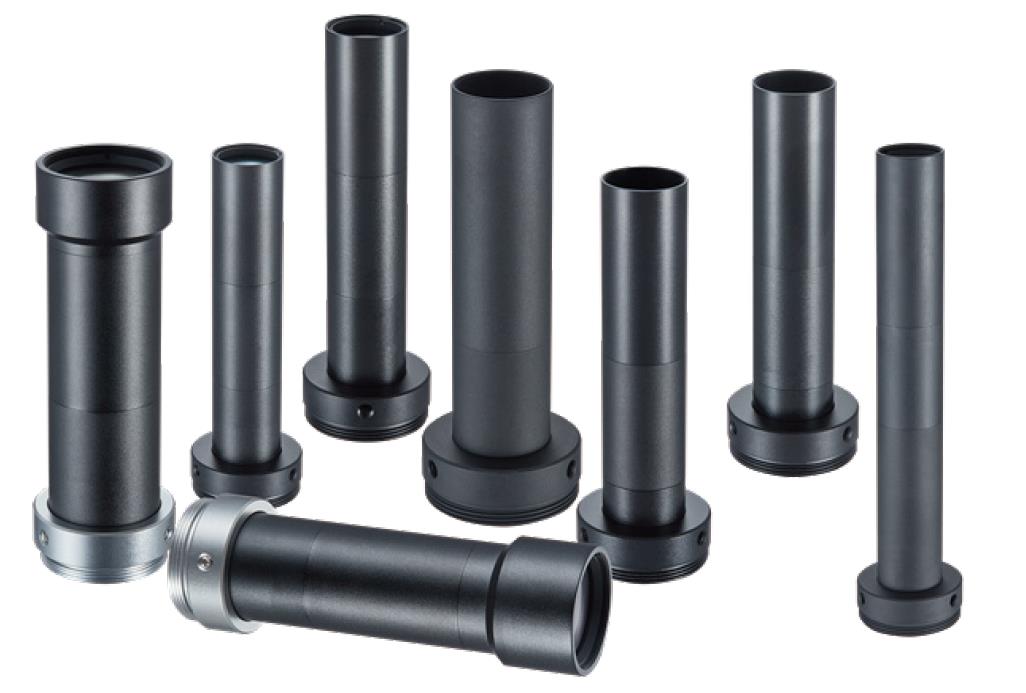

FA-D and FA-E Series Telecentric Lens
Model | Magnification | WD (mm) | Sensor Size | DOF (mm) | Resolution (um) | Optical Distortion | Telecentricity | F# | TTL （mm） | Max Diameter (mm) | Coaxial Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|
FA-D-05-110 | 0.5 | 110 | 2/3" | 2.98 | 12 | ≤0.05% | ≤0.1° | 9.3 | 120.5 | 35 | √ |
FA-D-08-65 | 0.8 | 65 | 2/3" | 1.25 | 8.3 | ≤0.10% | ≤0.1° | 10 | 89.7 | 26 | |
FA-D-08-130 | 0.8 | 130 | 2/3" | 1.4 | 9.4 | ≤0.10% | ≤0.1° | 11.2 | 117.1 | 28 | √ |
FA-D-1-65 | 1 | 65 | 2/3" | 0.8 | 7.5 | ≤0.10% | ≤0.1° | 11 | 79.9 | 26 | √ |
FA-D-1-110 | 1 | 110 | 2/3" | 0.88 | 7.4 | ≤0.05% | ≤0.1° | 11 | 128.4 | 30 | √ |
FA-D-2-65 | 2 | 65 | 2/3" | 0.2 | 4.5 | ≤0.10% | ≤0.1° | 13.2 | 80.0 | 26 | √ |
FA-D-2-110 | 2 | 110 | 2/3" | 0.27 | 4.5 | ≤0.05% | ≤0.1° | 13.6 | 130.4 | 30 | √ |
FA-D-4-110 | 4 | 110 | 2/3" | 0.11 | 3.7 | ≤0.05% | ≤0.1° | 22 | 110.2 | 30 | |
FA-E-05-110 | 0.5 | 110 | 1/2" | 2.9 | 25.4 | ≤0.50% | ≤0.1° | 18.8 | 46.2 | 16 | |
FA-E-05-65 | 0.5 | 65 | 1/2" | 2 | 8.5 | ≤0.10% | ≤0.1° | 6.5 | 68.0 | 16 | |
FA-E-08-65 | 0.8 | 65 | 1/2" | 2.9 | 20 | ≤0.10% | ≤0.1° | 23.9 | 76.0 | 16 | √ |
FA-E-08-130 | 0.8 | 130 | 1/2" | 2.9 | 20 | ≤0.10% | ≤0.1° | 23.5 | 97.1 | 18 | √ |
FA-E-1-65 | 1 | 65 | 1/2" | 1.1 | 10 | ≤0.20% | ≤0.1° | 14.9 | 80.0 | 16 | √ |
FA-E-1-110 | 1 | 110 | 1/2" | 1.5 | 13.2 | ≤0.10% | ≤0.1° | 19.7 | 109.8 | 18 | √ |
FA-E-2-65 | 2 | 65 | 1/2" | 0.33 | 5.6 | ≤0.10% | ≤0.1° | 16.7 | 80.1 | 16 | |
FA-E-2-110 | 2 | 110 | 1/2" | 0.7 | 12.9 | ≤0.20% | ≤0.1° | 31.7 | 73.8 | 16 | |
FA-E-3-110 | 3 | 110 | 1/2" | 0.3 | 7.65 | ≤0.10% | ≤0.1° | 34.2 | 117.1 | 16 | √ |
FA-E-4-110 | 4 | 110 | 1/2" | 0.18 | 6.1 | ≤0.10% | ≤0.1° | 36.3 | 132.5 | 16 | √ |
