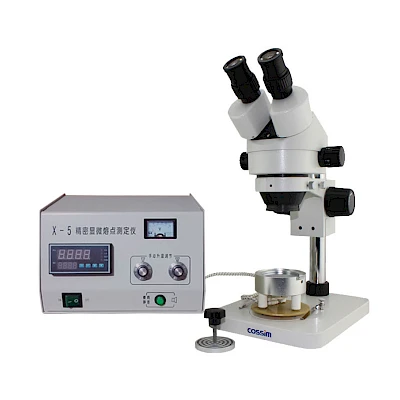

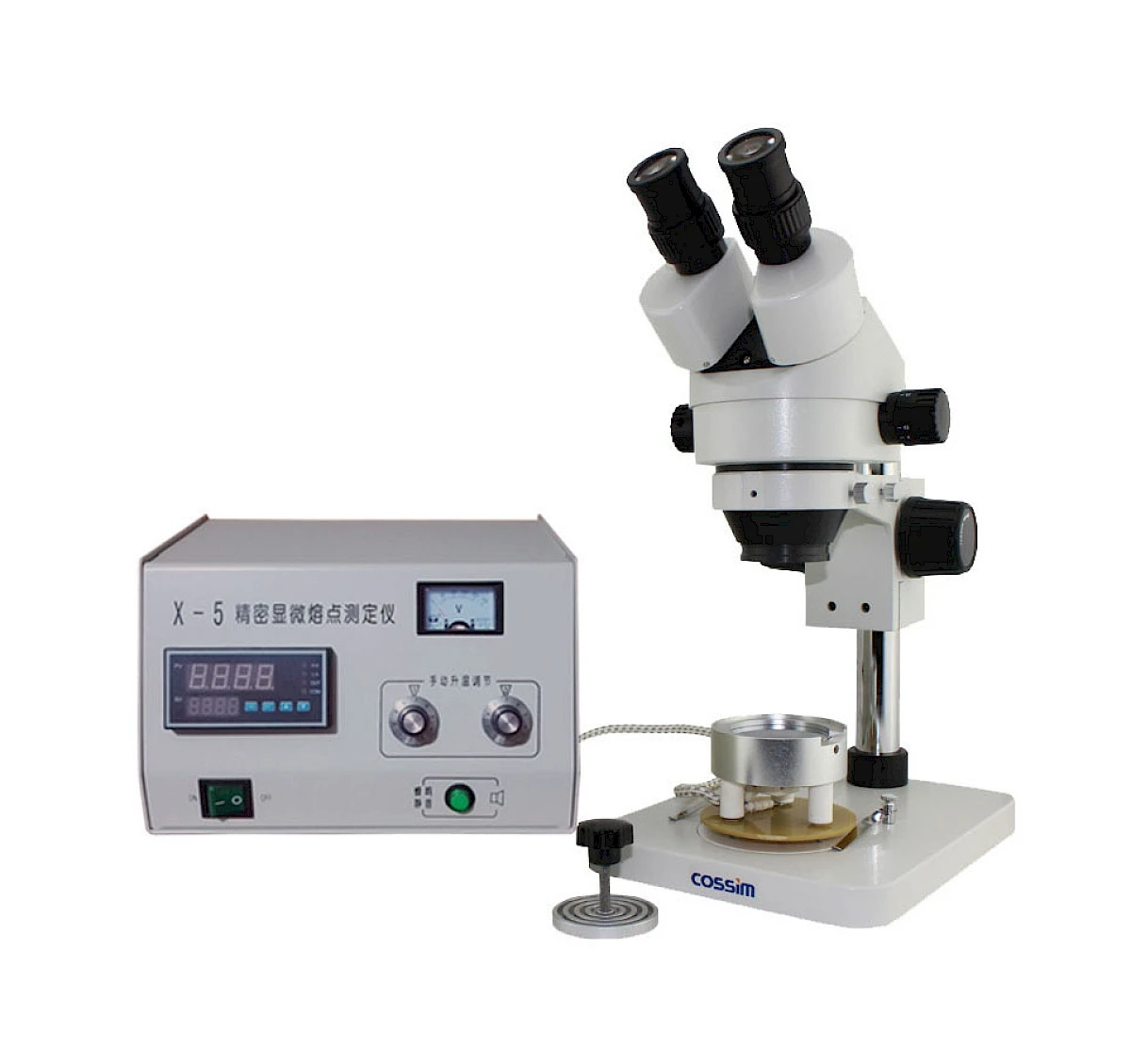

X-5T is a combination of X-5 Heating Platform & 7X~45X Stereo Microscope. X-5 adopts intelligent control and manual adjustment, and the double row of LED shows the measured temperature. Due to the technology, the instrument has good precision, accurate display and control of the surface temperature. This micromelting apparatus detector is accurate, clarity, steady. It also can control a wide range of temperature. Actually, this instrument can be used separately or used with stereo microscopes.
This instrument can be widely used in medical health, chemical industry, textiles. Pharmaceutical production and testing. The teaching experiment of chemical engineering and chemistry specialty in colleges and universities. This product is capable of organic single crystal, morphology analysis of organic eutectic substances; observe the melting process of the crystal. To determine the melting point temperature of the crystal; The three - state transformation and deformation of matter are studied. The research and teaching of solid state physics and other fields provide advantageous detection means.
X-5T
Operate Principle
The instrument X-5 adopts the form of man-machine dialogue to output parameters, using prompts for dataing. The instrument adopts the most advanced ATMEL single chip microcomputer as the main machine, which reduces the peripheral parts and improves the reliability. The power supply adopts professionally designed anti-interference circuit to eliminate the interference of power frequency and current radiation, and adopts high precision voltage stabilizing integrated circuit.
Instrument with single-chip microcomputer as the core, with the adjustment of buttons, digital tube and other peripheral components. The input signal is converted into moderate voltage signal by the signal regulator (amplifier and filter circuit), which has good stability and linearity. After the level digital signal is restored to the corresponding measured parameter value signal, it is sent to the digital tube for display. The PC can output the corresponding numerical quantity through PID adjustment, according to the temperature control quantity deviation. The power supply adopts specially designed anti-interference circuit to eliminate the interference of power frequency and its current radiation.
