195mm Achromatic Biological Microscope Objective lens with RMS 20.2mm Interface with 4X, 10X, 40X, 100X

195mm

Standard RMS 20.2mm Interface, Rubber Ring Outside, Parfocal Ring Inside, Biological Microscope Objetcive Lens

Core Features

Achromatic Objective Lens
Standard RMS 20.2mm Interface
Rubber Ring Design for easy operate
Good Looking & Material of Copper
Different Magnification Satisfied Different Demands
Used for Biological Microscopes

Configurations

Achromatic 195mm

Objectives

Interface

RMS 20.2mm

Copper Material

The higher magnification, the smaller aperture is, at At low magnification, the field of view is larger and brighter; The effect of high magnification observation is more excellent.

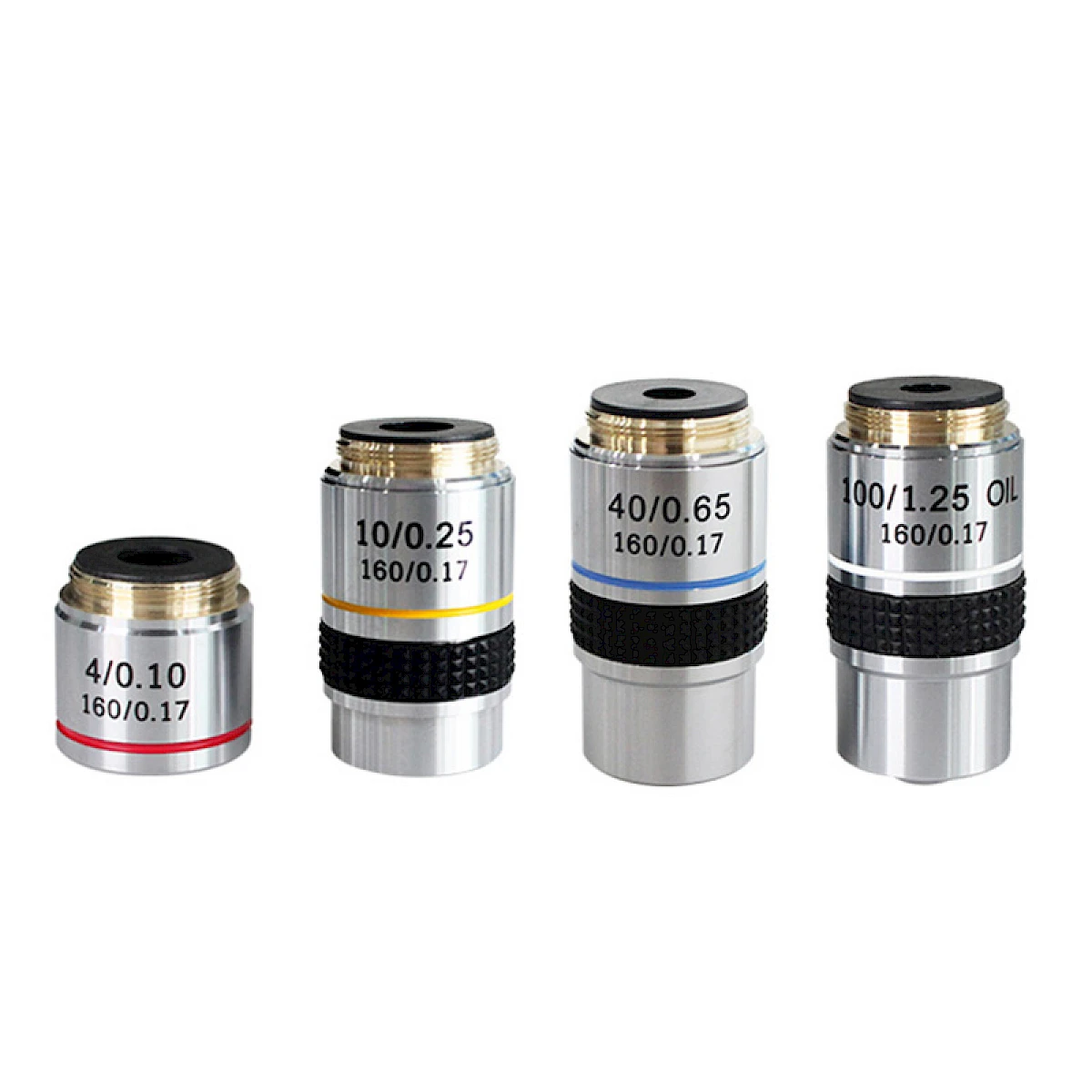

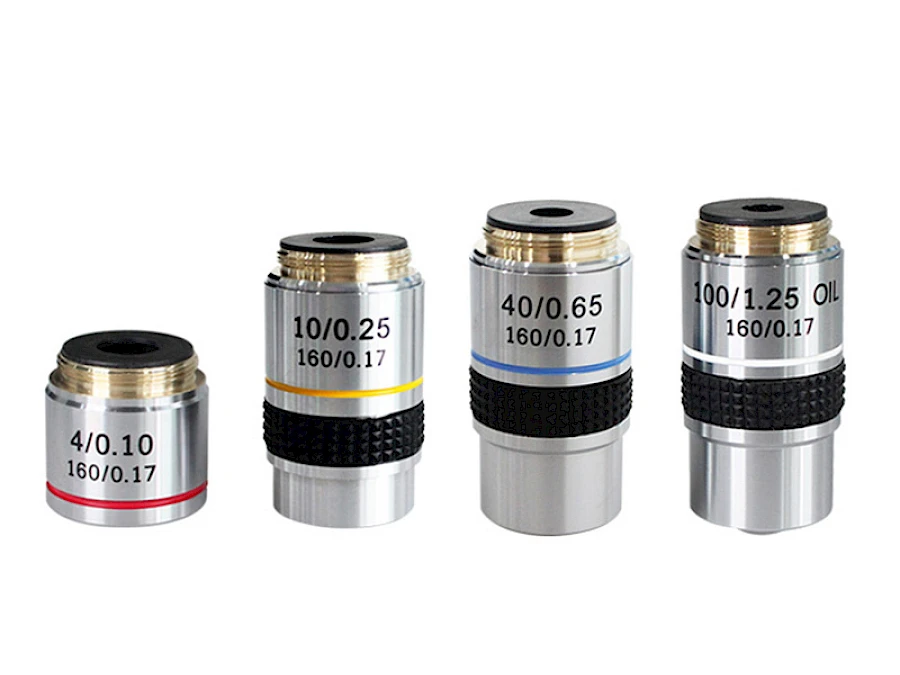

195mm Achromatic Biological Microscope Objective Lens

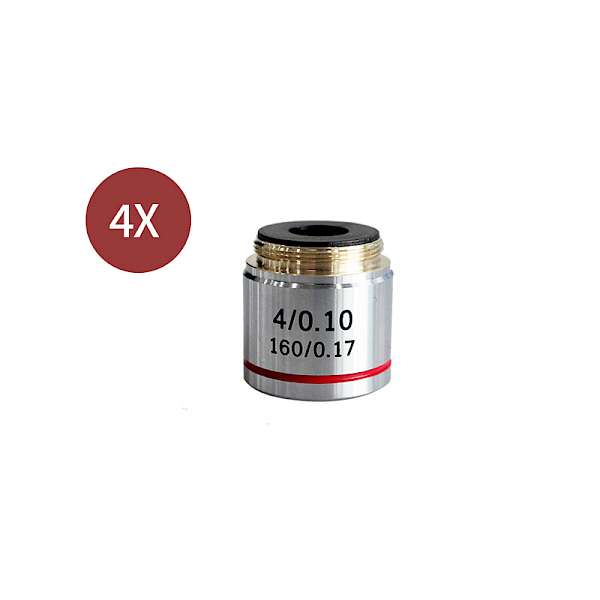

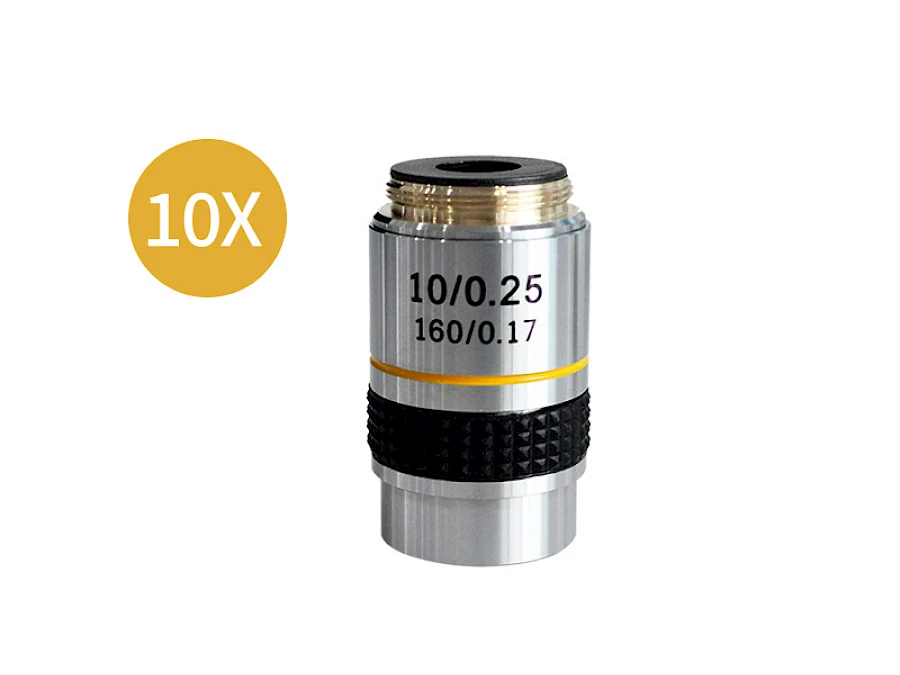

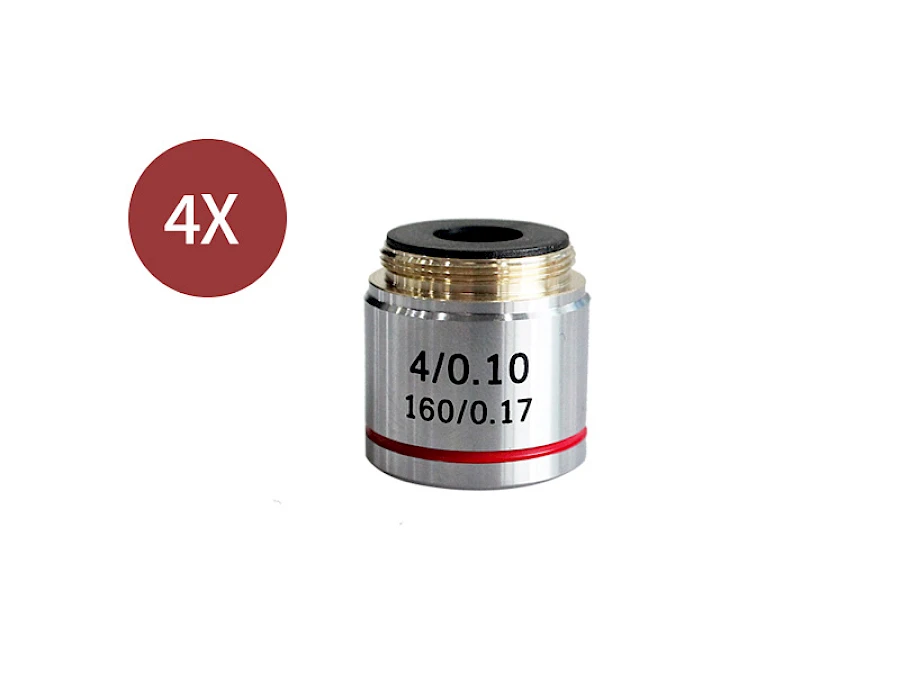

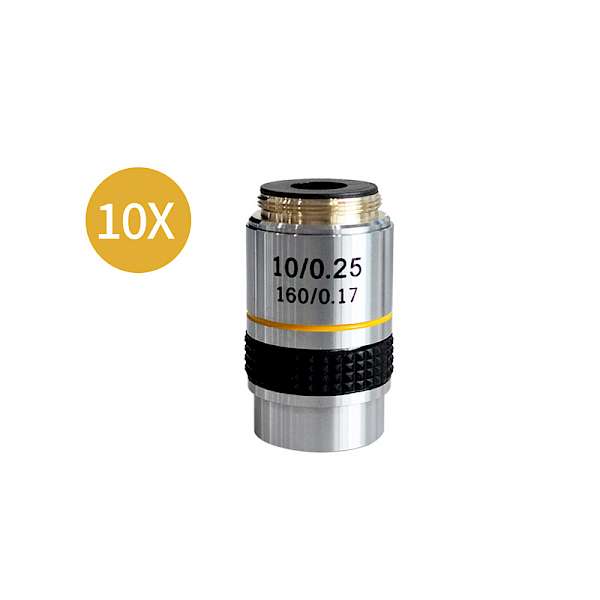

4X & 10X 195mm Achromatic Objective Lens

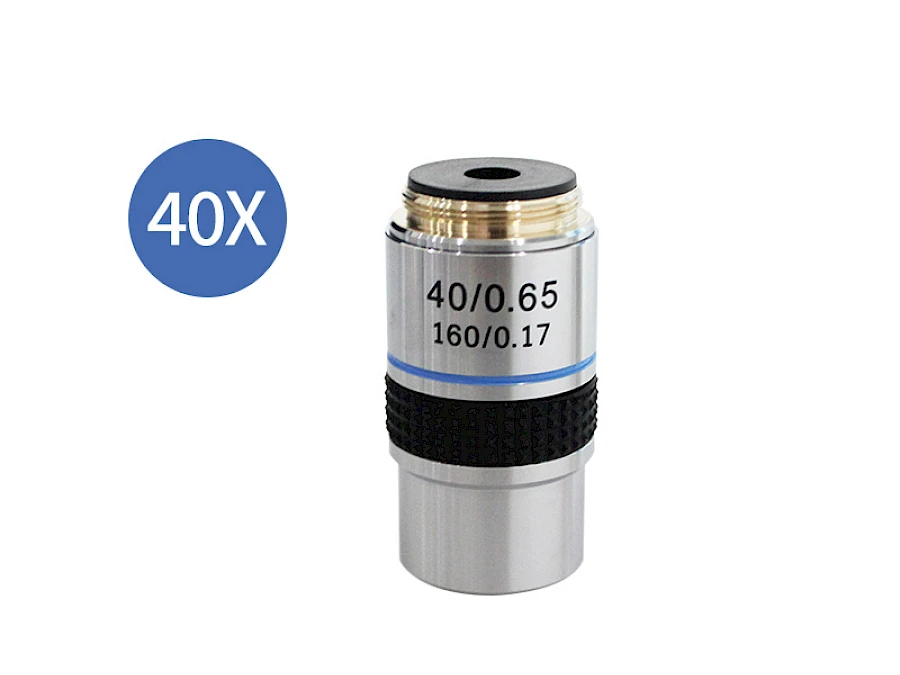

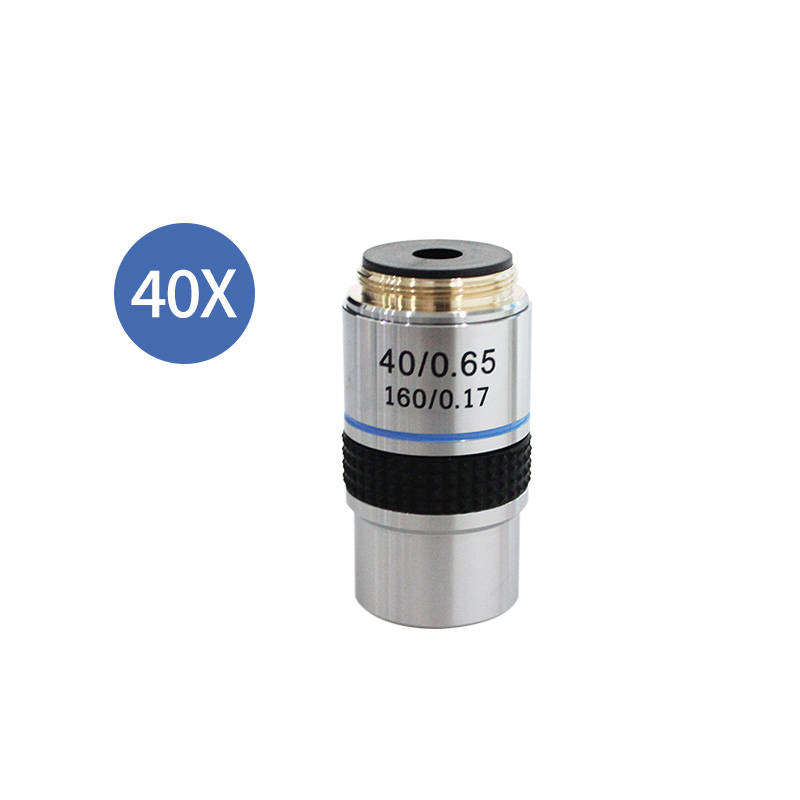

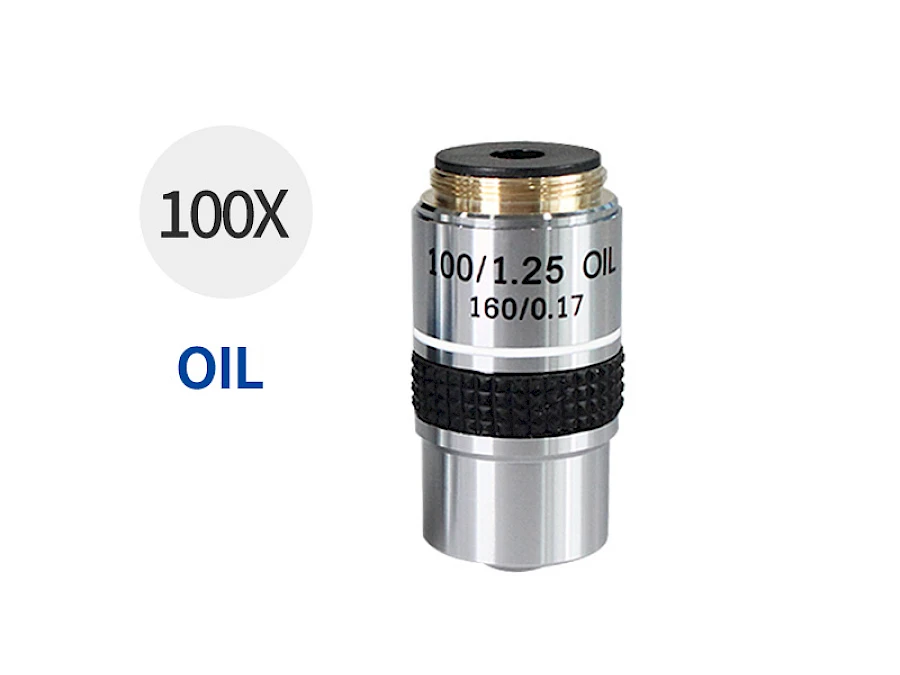

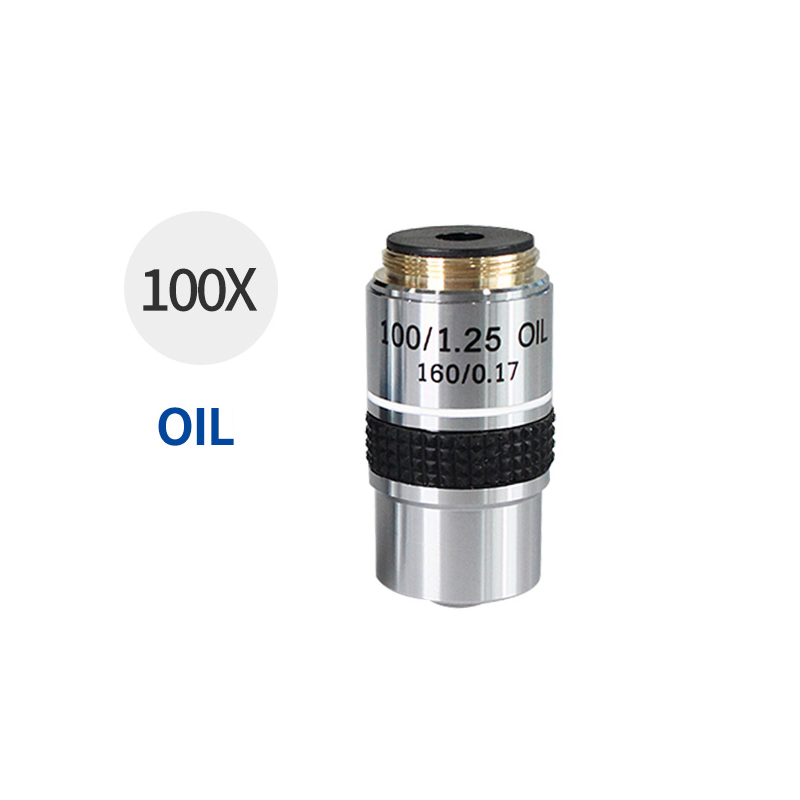

40X & 100X 195mm Achromatic Objective Lens

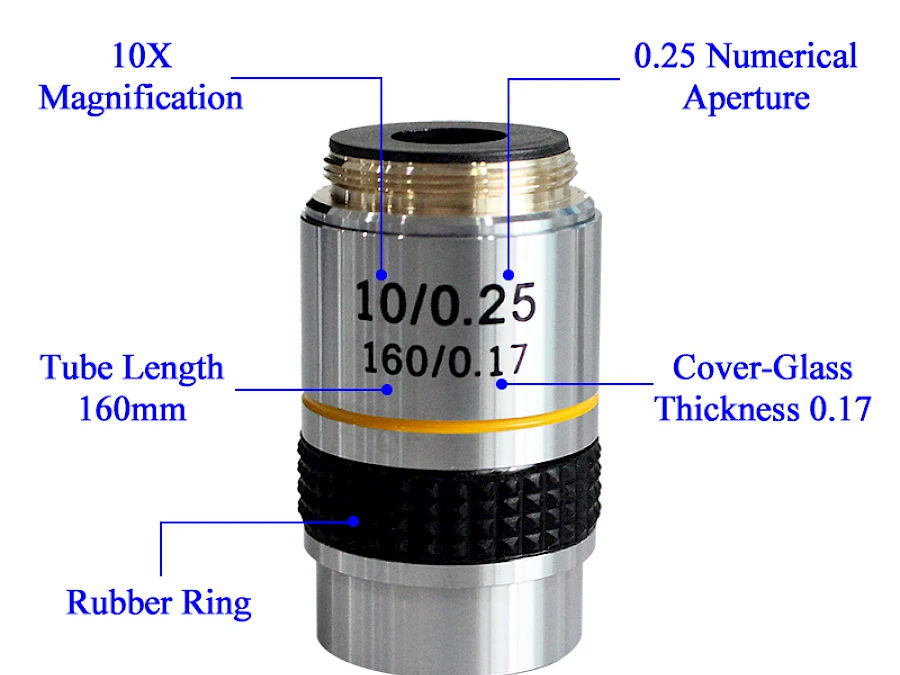

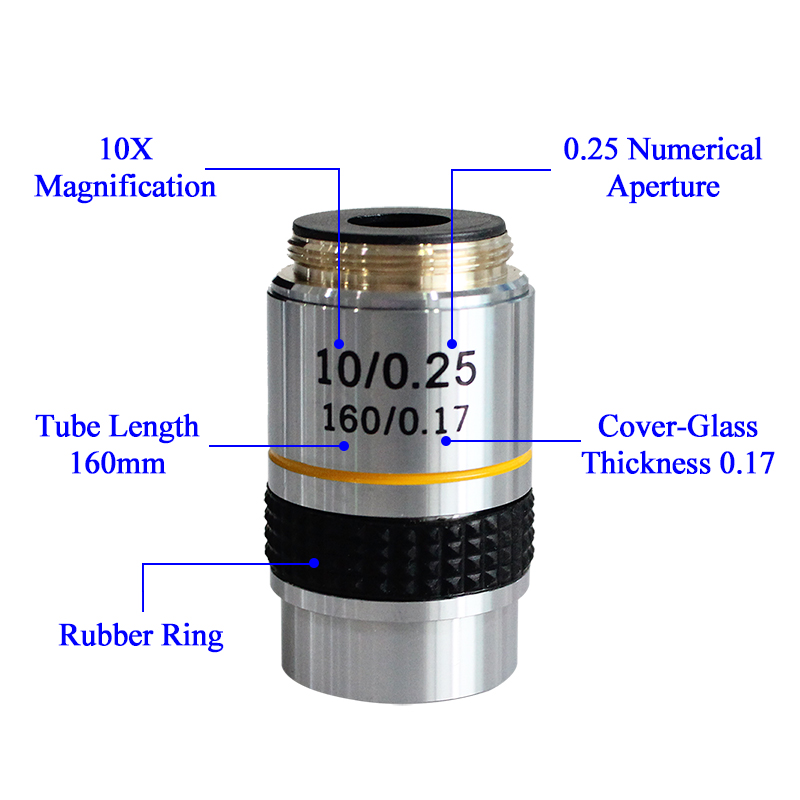

Structure of 195mm Achromatic Biological Microscope Objective Lens

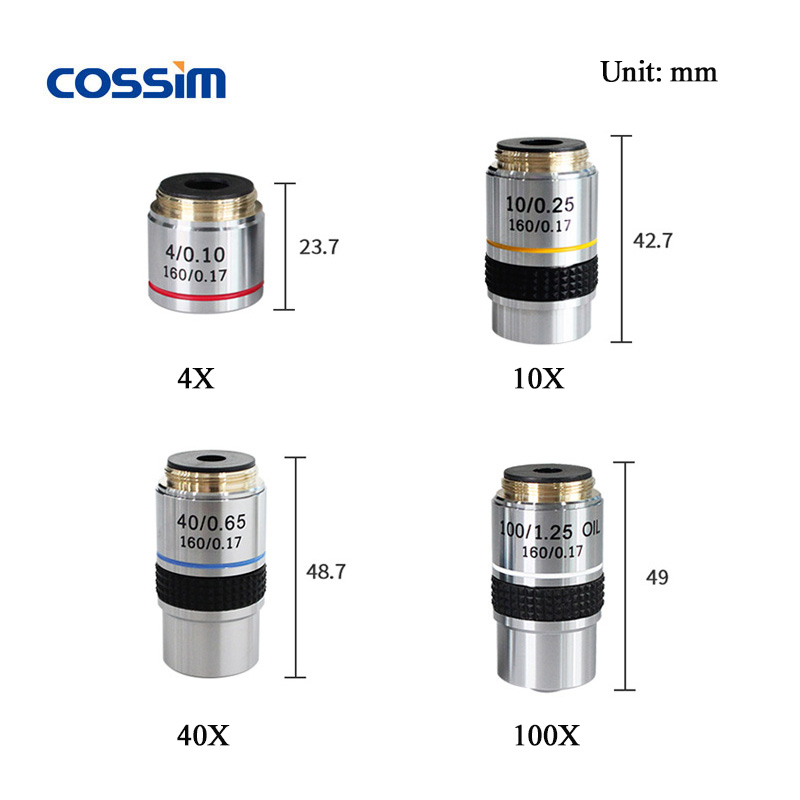

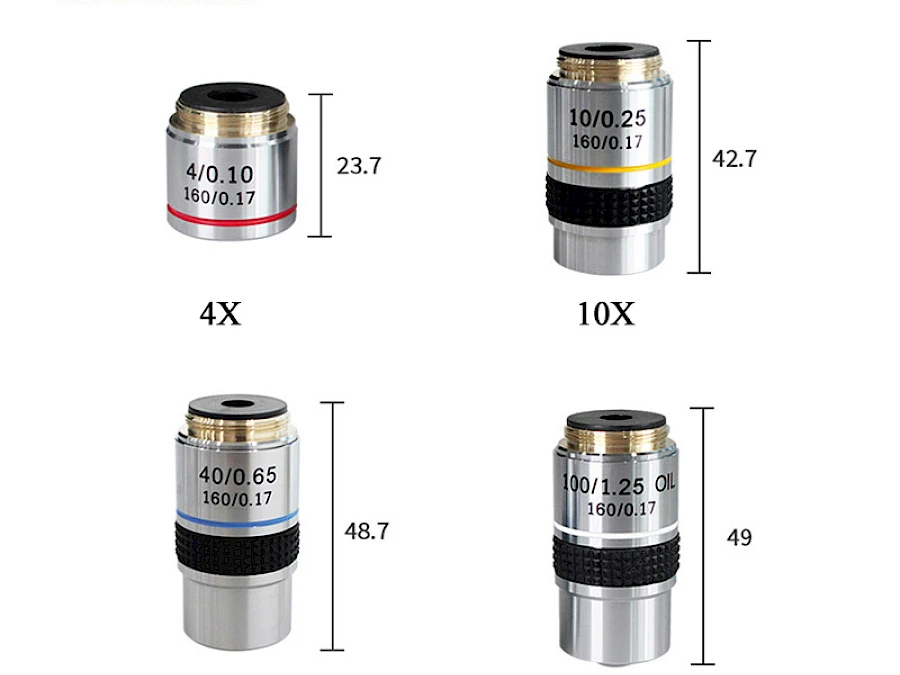

Different Length of 195mm Achromatic Biological Microscope Objective Lens

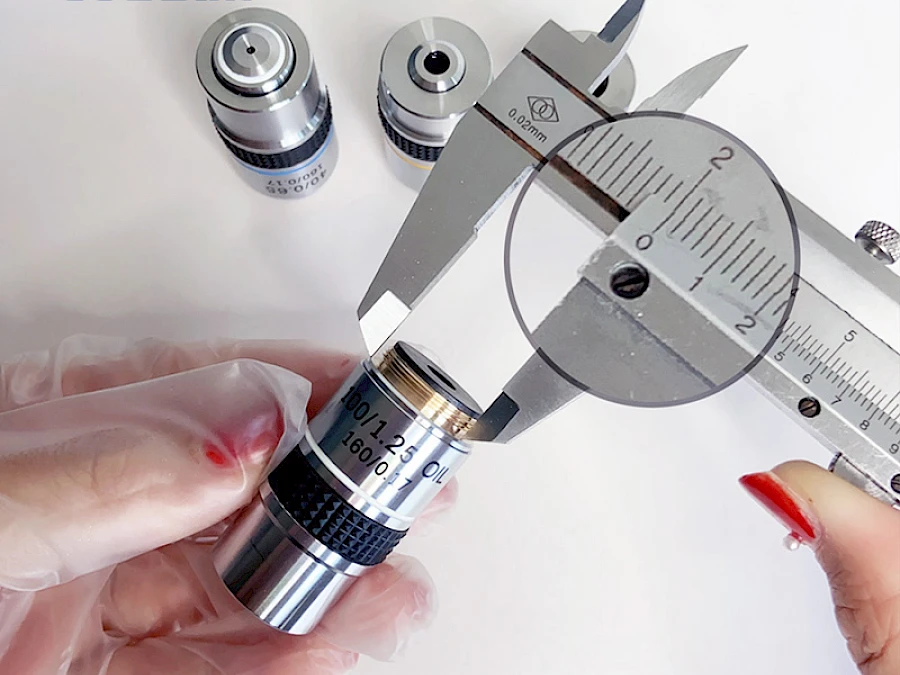

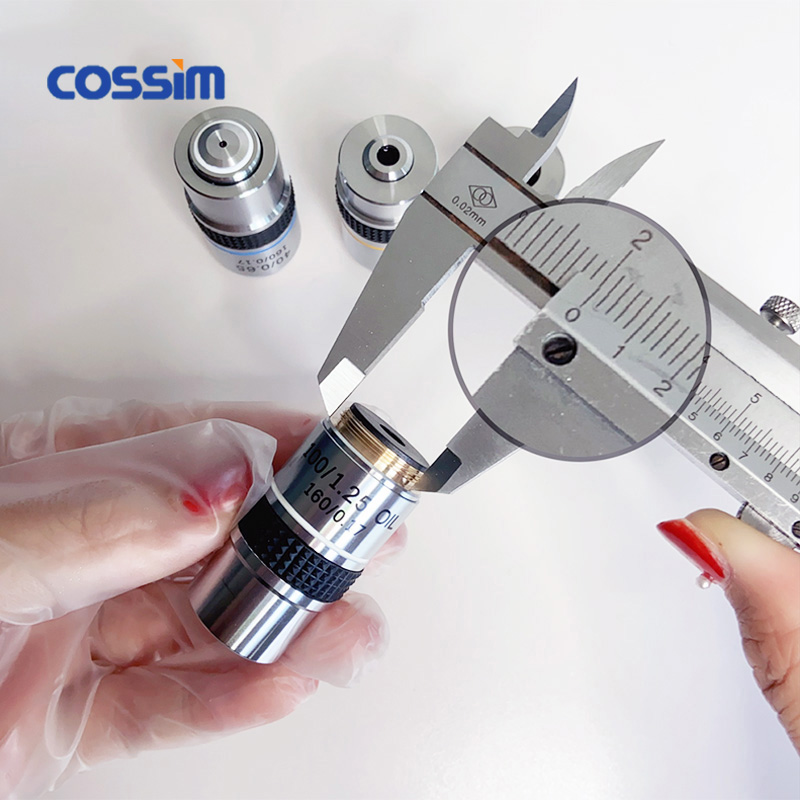

Standard RMS 20.2mm Interface

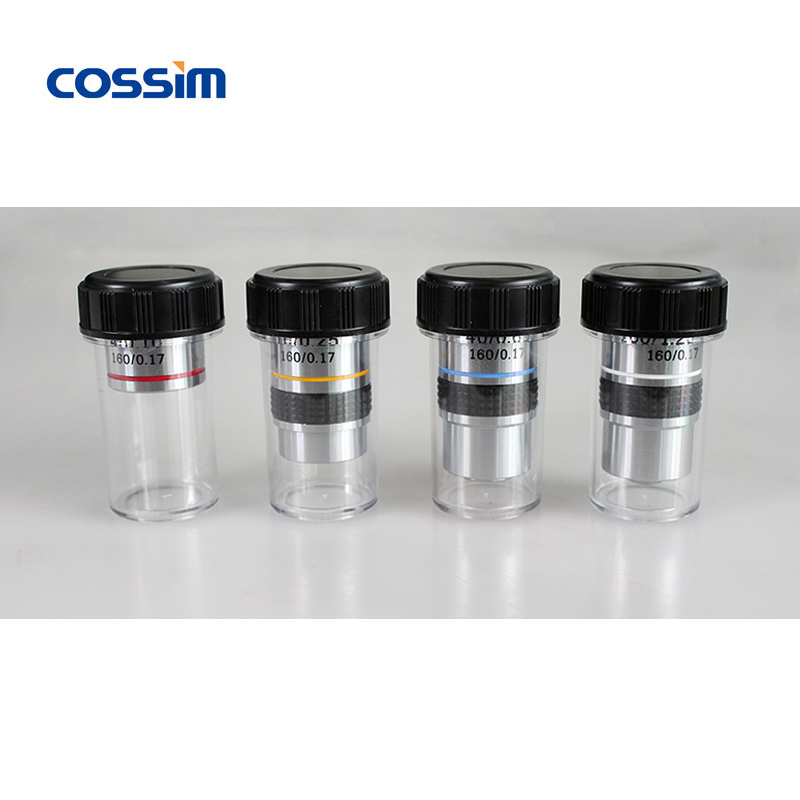

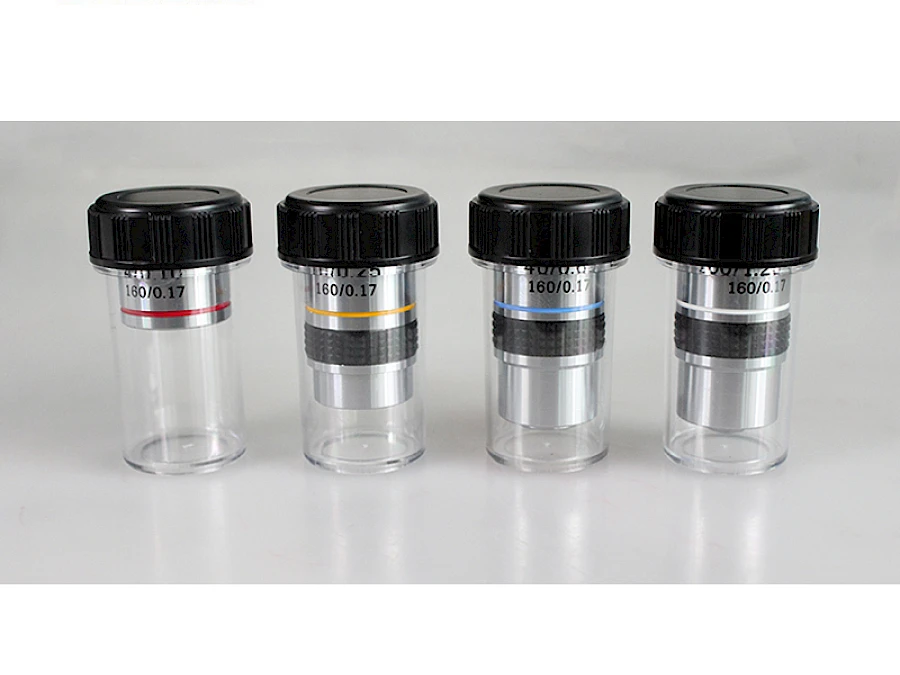

Objective Protective Boxs

Specification for 195mm Biological Microscope Objectives
Item	4X	10X	40X	100X
N.A.	0.10	0.25	0.65	1.25(Oil)
Length	23.7mm	42.7mm	48.7mm	49mm
Spring	NO		YES
Interface	20.2mm
Tube Length	160
Cover-glass Thickness	0.17
