TPHD1080PA

TPHD1080PA HDMI Displayer

HDMI, Super TFT, high definition,

Core Features

HDMI monitor
Panasonic IPS LCD panel
True 1080P
High contrast ratio up to 1000:1
LED backlight with 50000 hours long life time
11.6 inch active area

Configurations

high definition

Super TFT

wide view angle

high contrast

fast frame rate

excellent color.

Request Quotation Email Phone Back to Products

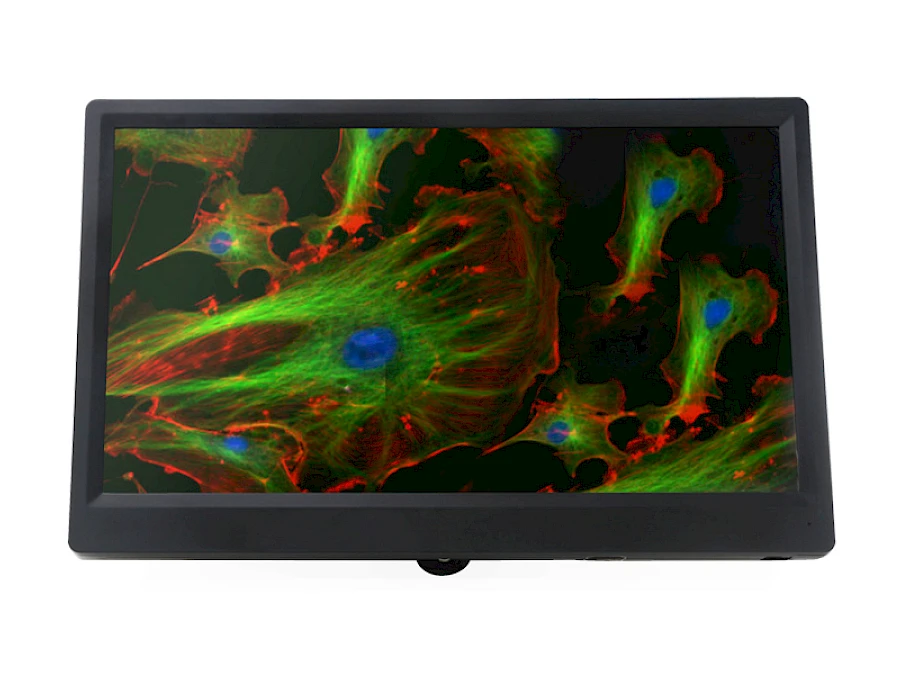

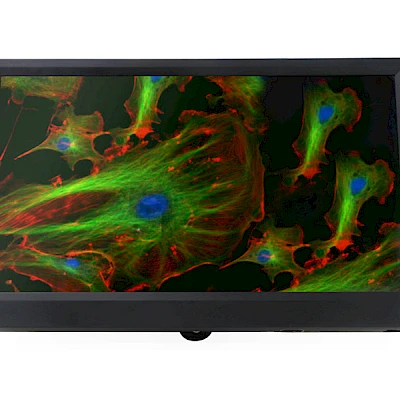

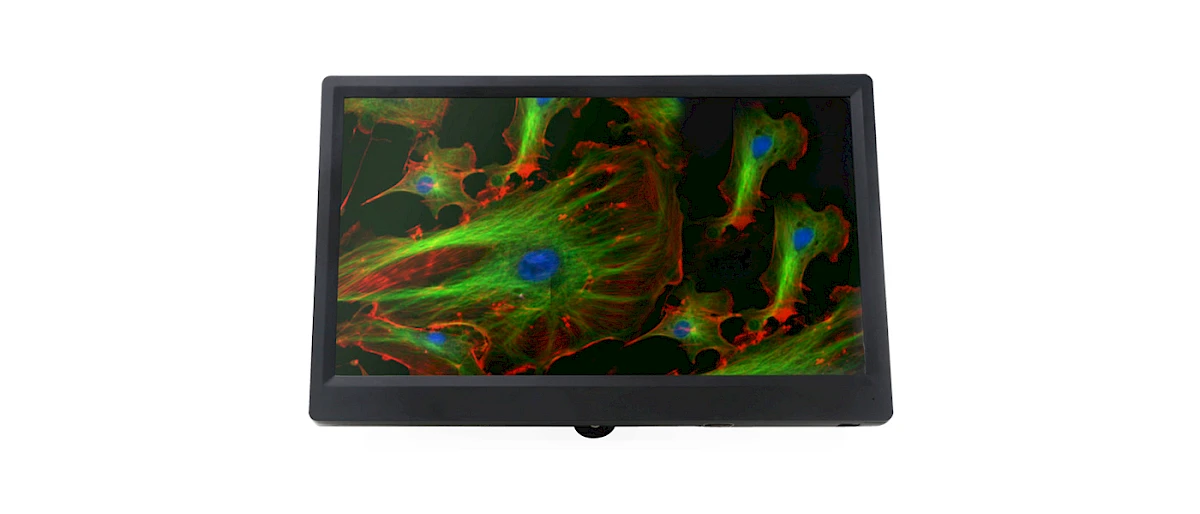

Front View of TPHD1080PA

TPHD1080PA is born with XCAM series HDMI camera and can be used for high definition display. It adopts Panasonic IPS LCD panel(Super TFT) to guarantee the wide view angle and high contrast. Together with XCAM HDMI camera, TPHD1080PA could make the imaging & display solution simple, flexible and intuitive. Outstanding performance of TPHD1080PA helps XCAM HDMI camera reach fast frame rate and excellent color.

TPHD1080PA and XCAM0720PHB/PHC Camera

Front View of TPHD1080PA

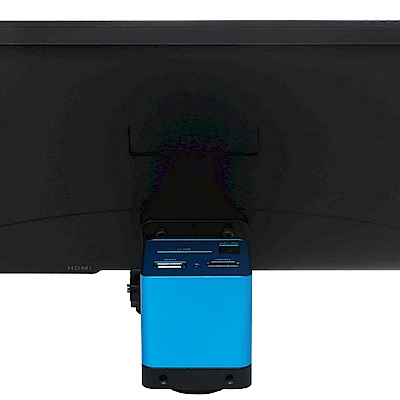

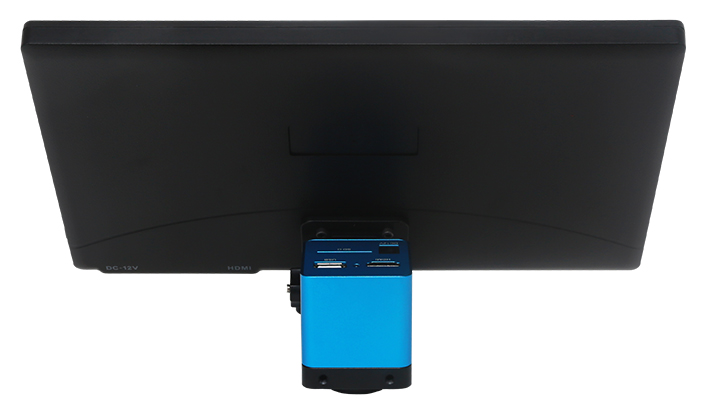

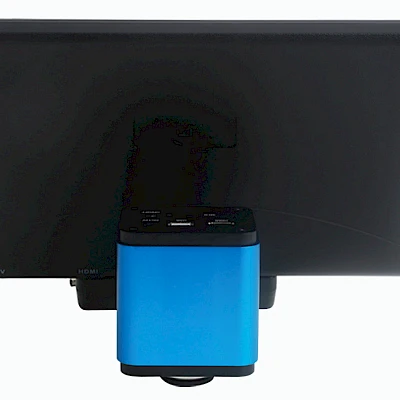

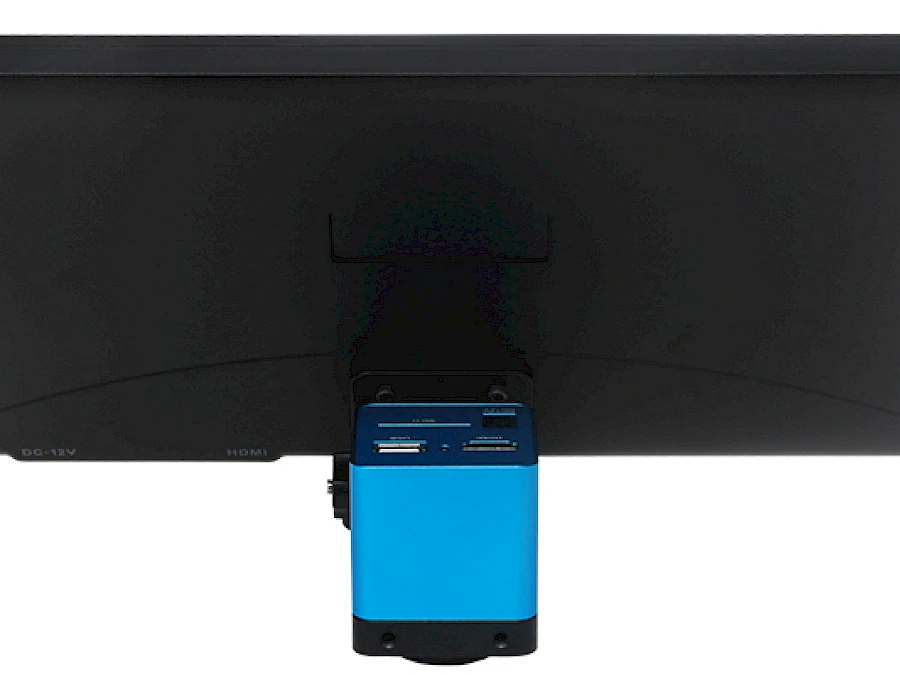

Back View of TPHD1080PA+XCAM Series Camera

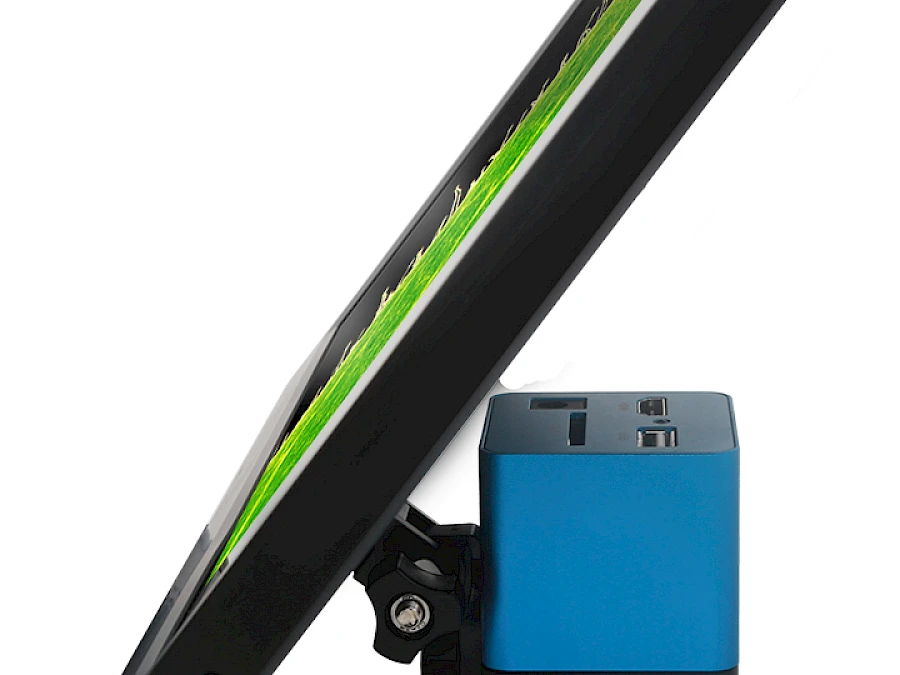

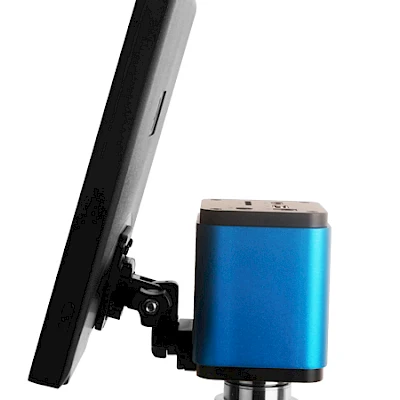

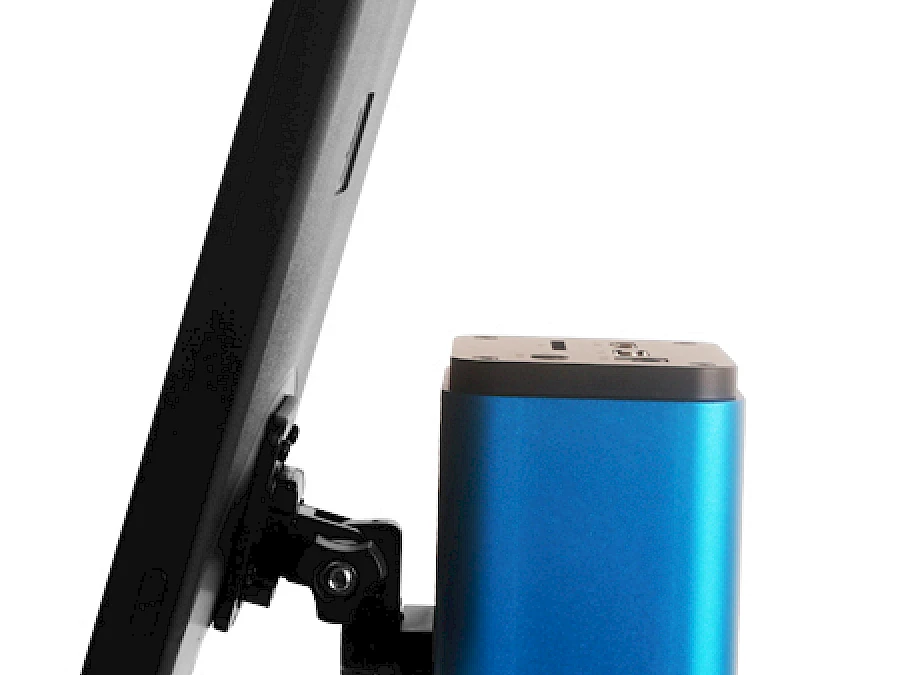

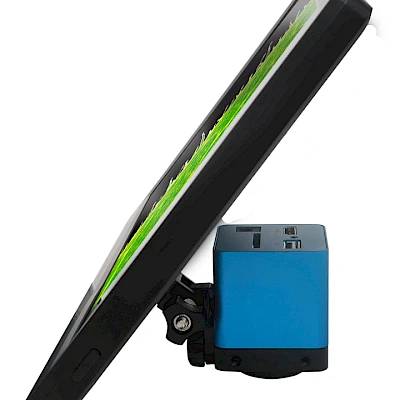

Side view of TPHD1080PA+XCAM Series Camera

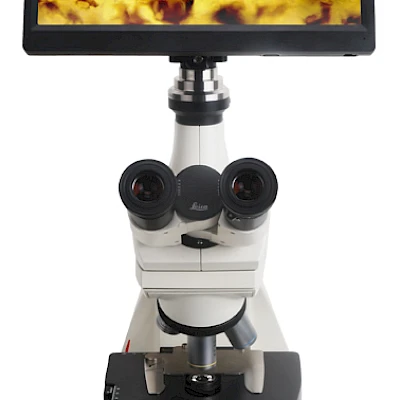

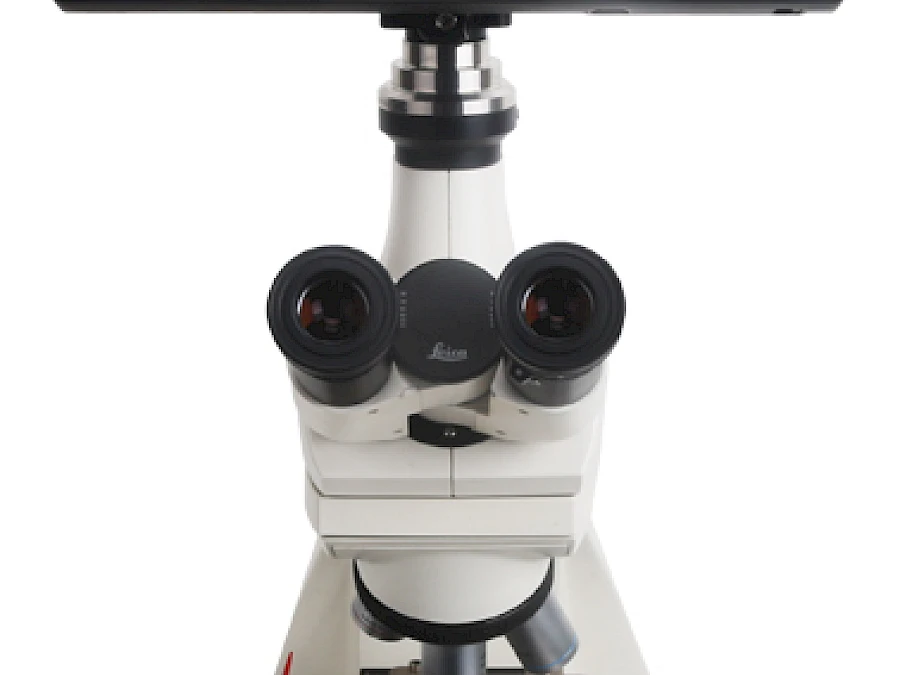

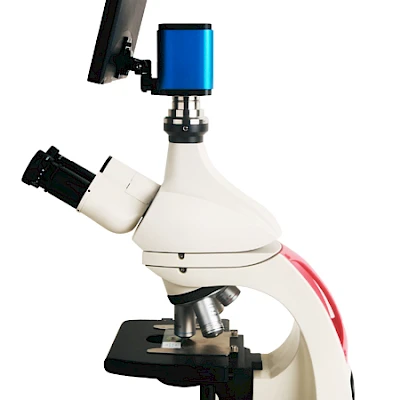

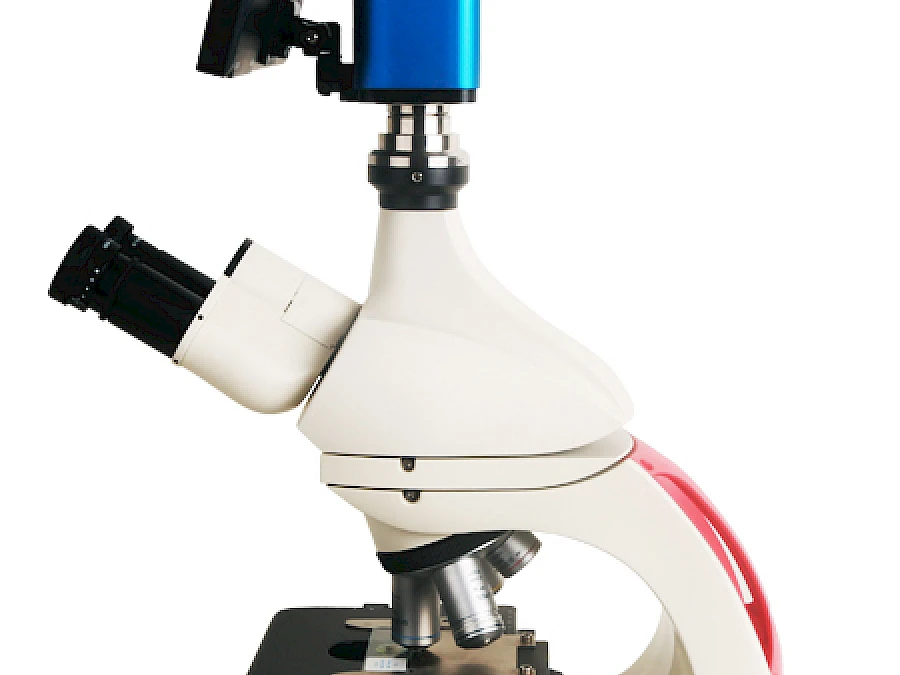

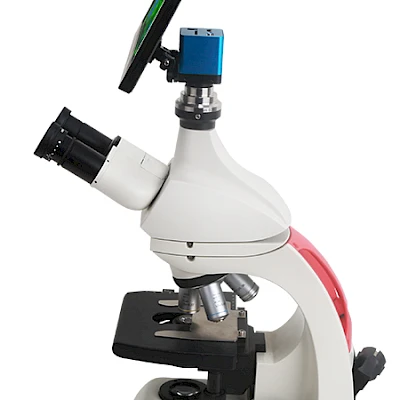

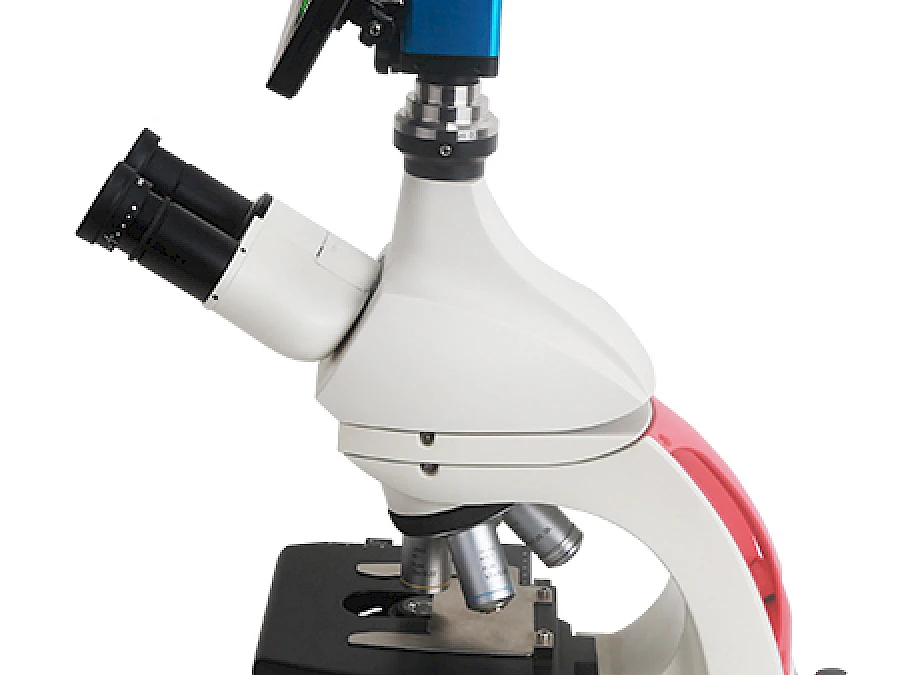

Front and Side View of Leica Microscope+XCAMSeries Camera and TPHD1080PA

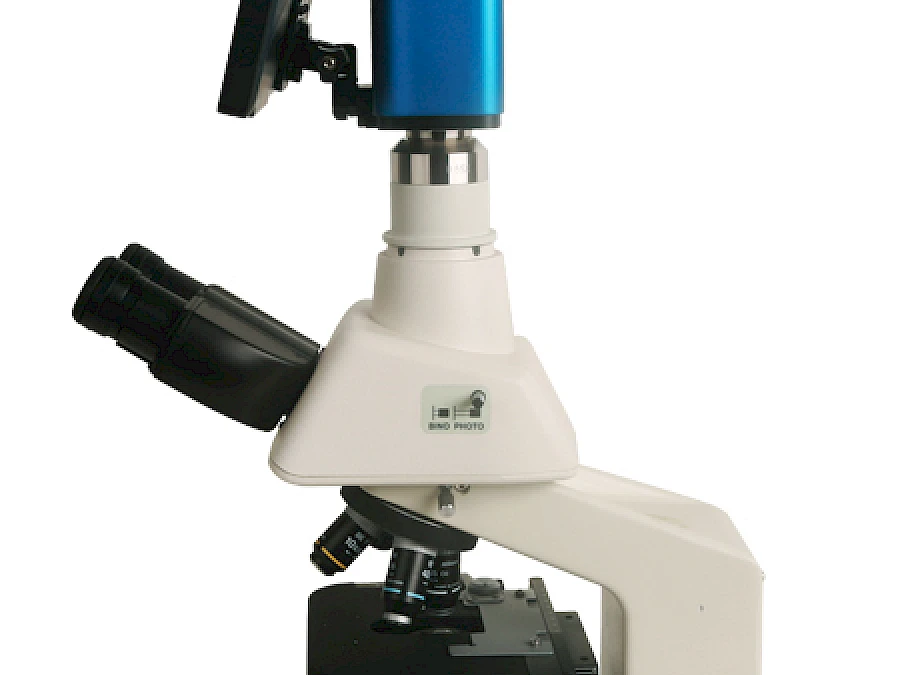

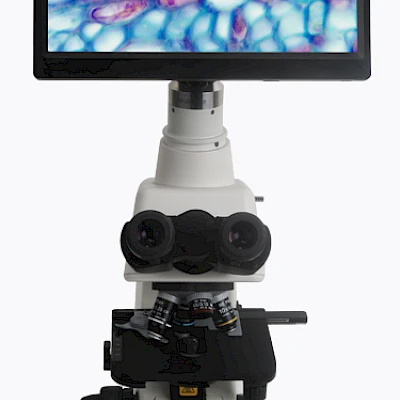

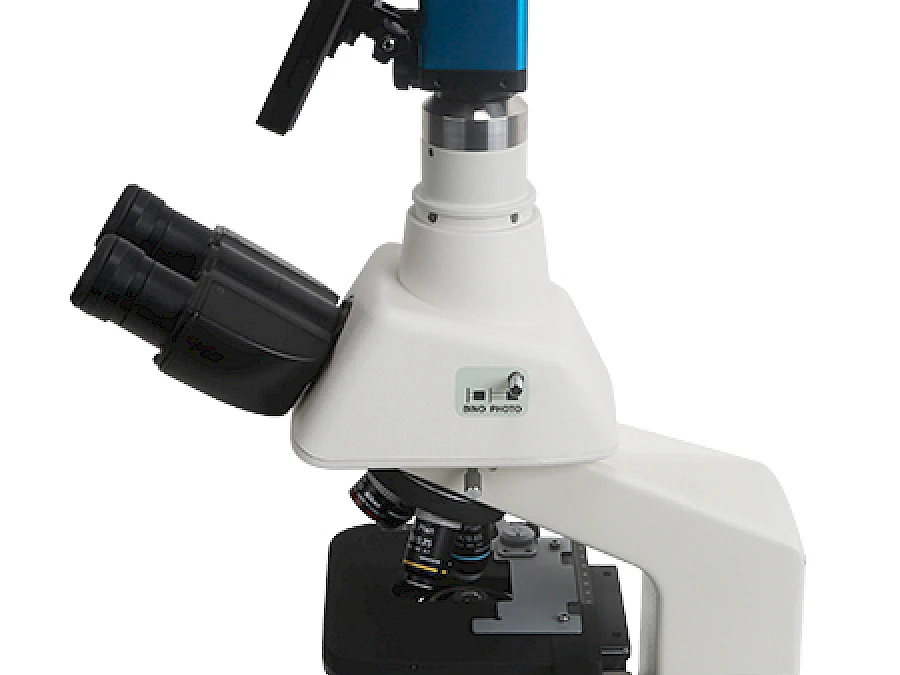

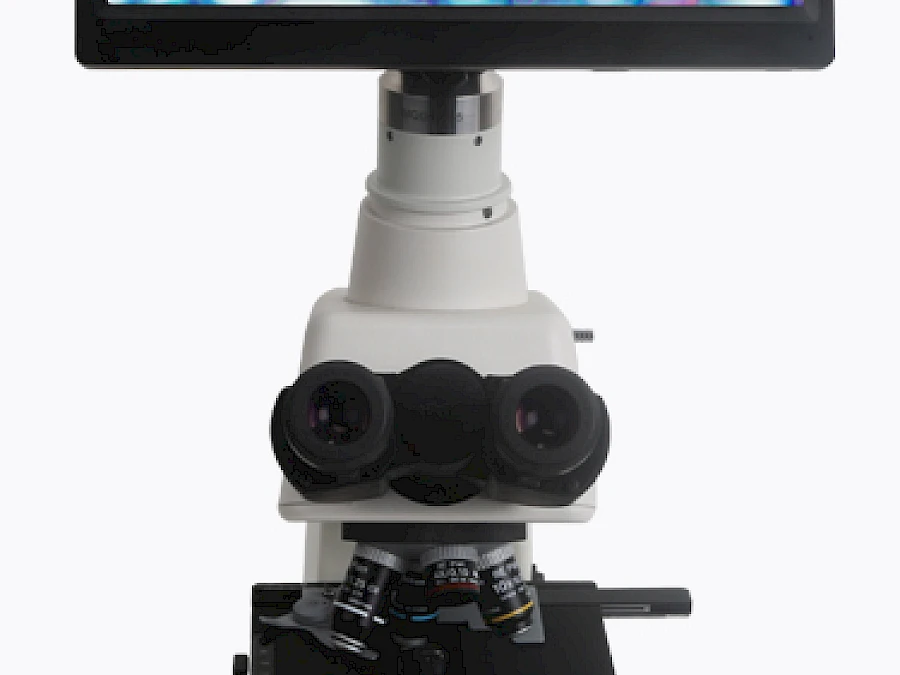

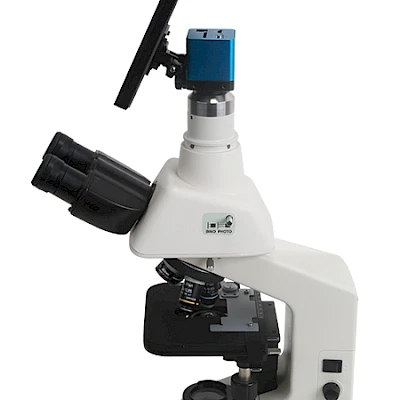

Front and Side View of Nikon Microscope+XCAMSeries Camera and TPHD1080PA

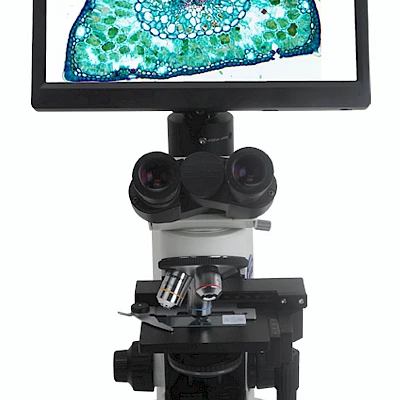

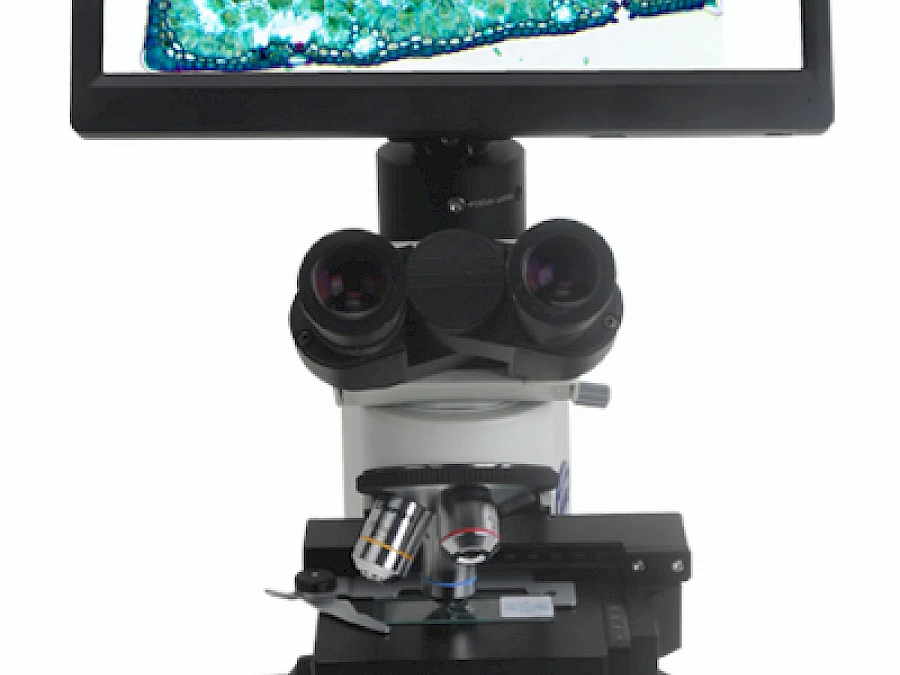

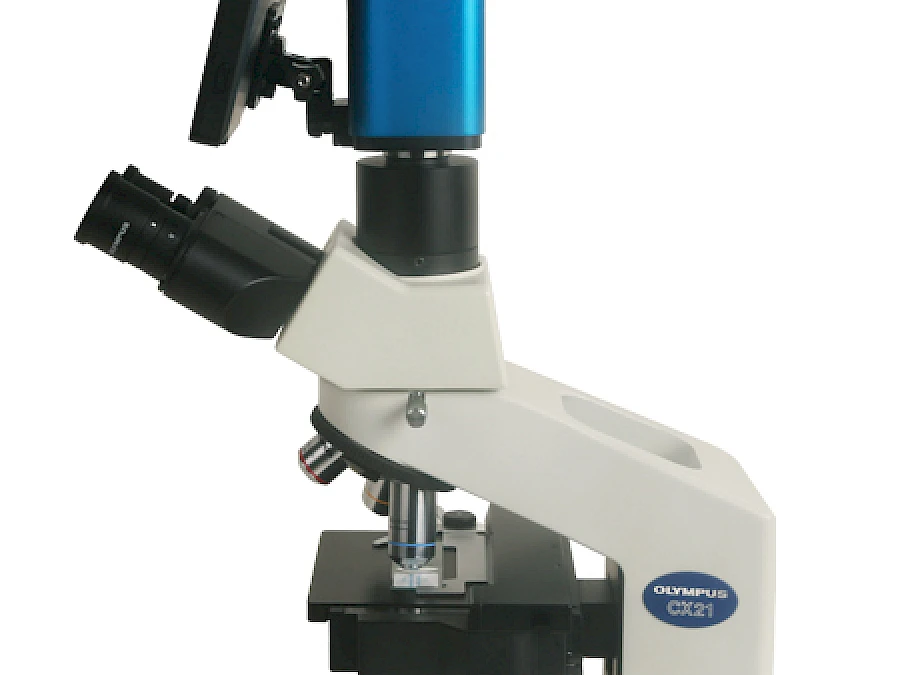

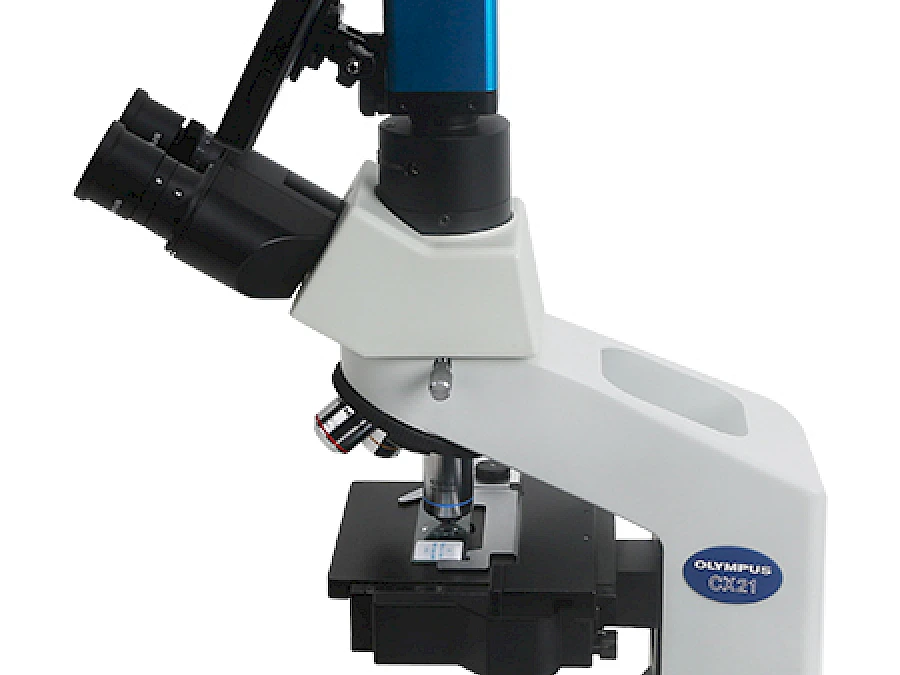

Front and Side View of Olympus Microscope+XCAMSeries Camera and TPHD1080PA

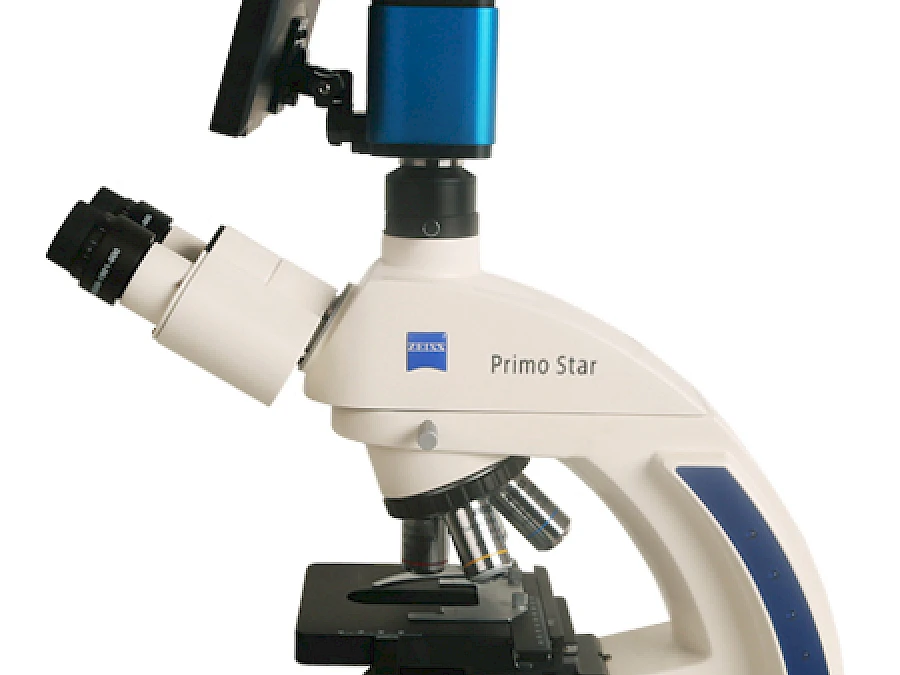

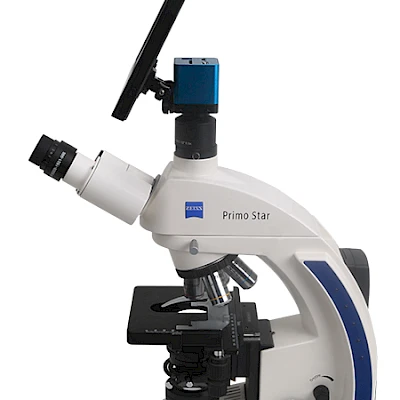

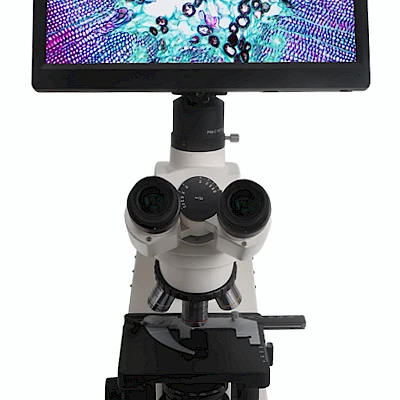

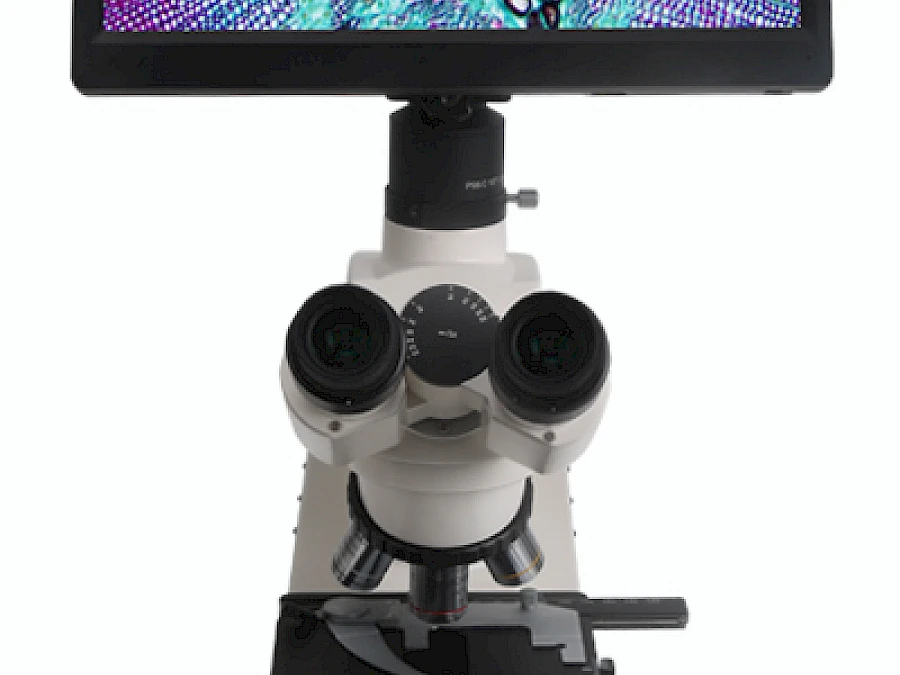

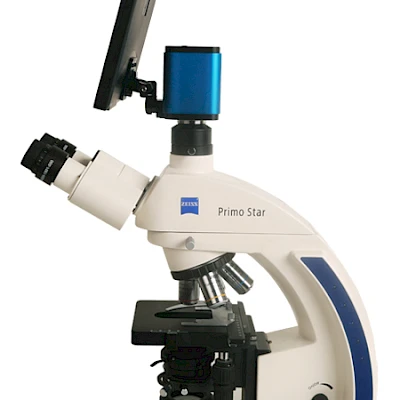

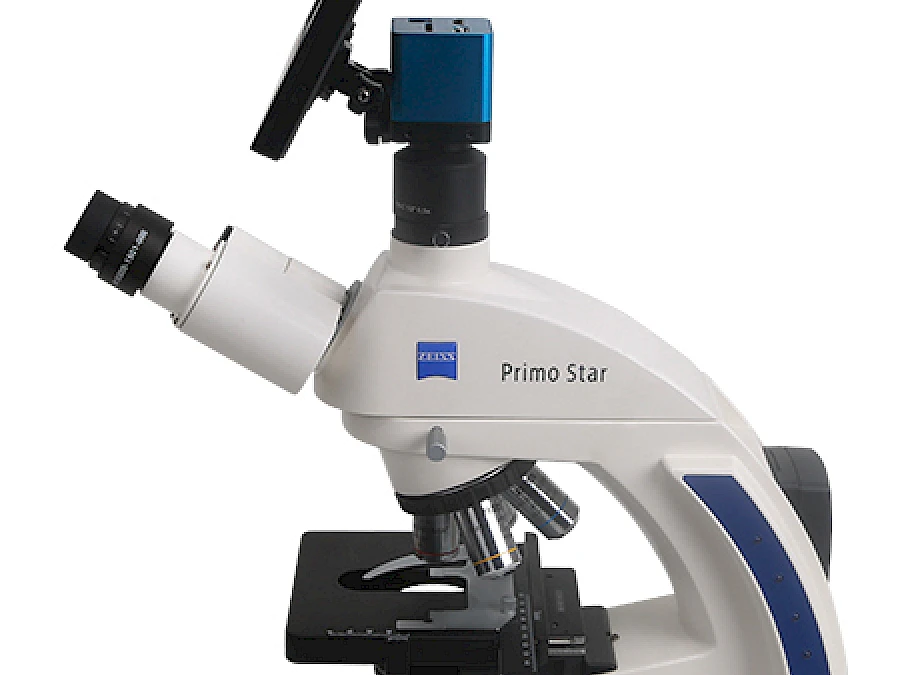

Front and Side View of Zeiss Microscope+XCAMSeries Camera and TPHD1080PA

TPHD1080PA and XCAM1080PHA,XCAM1080PHB/PHD Camera

Front View of TPHD1080PA

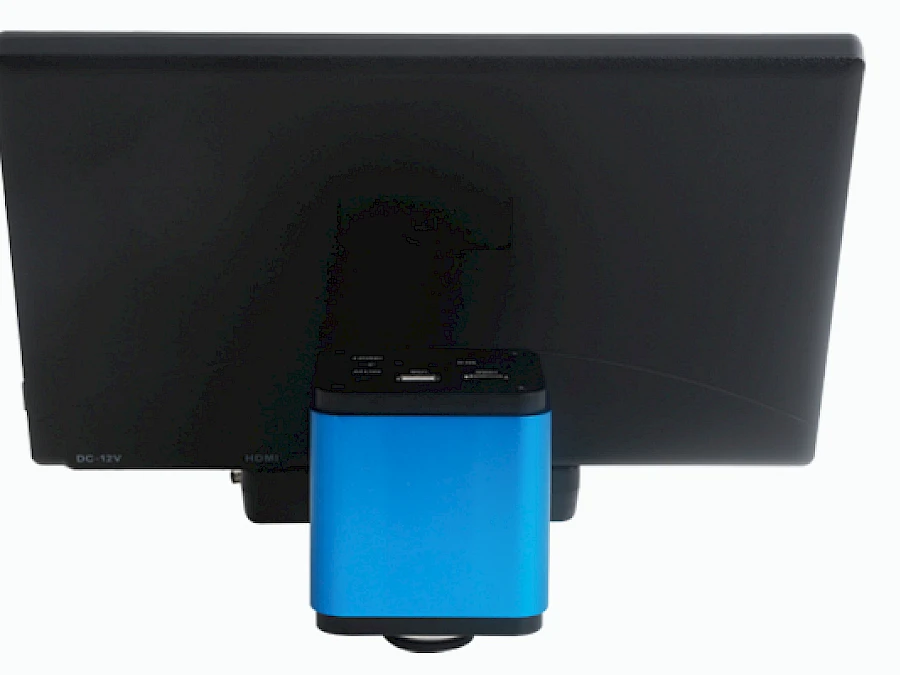

Back View of TPHD1080PA+XCAM Series Camera

Side view of TPHD1080PA+XCAM Series Camera

Front and Side View of Leica Microscope+XCAMSeries Camera and TPHD1080PA

Front and Side View of Nikon Microscope+XCAMSeries Camera and TPHD1080PA

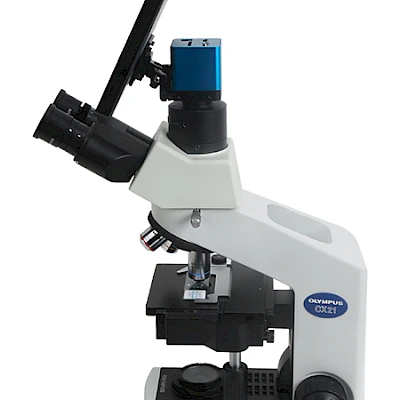

Front and Side View of Olympus Microscope+XCAMSeries Camera and TPHD1080PA

Front and Side View of Zeiss Microscope+XCAMSeries Camera and TPHD1080PA

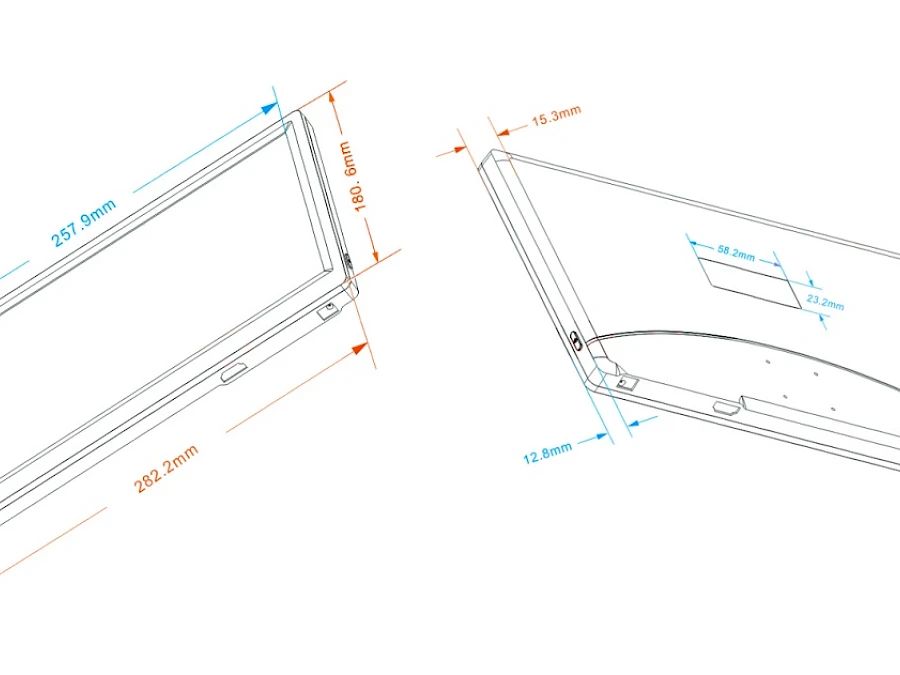

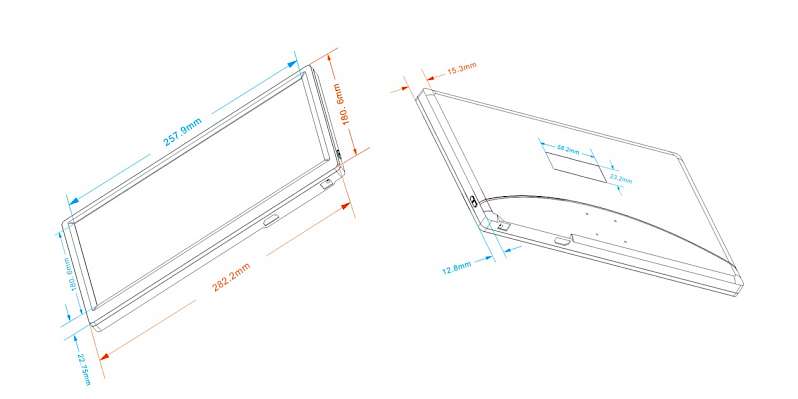

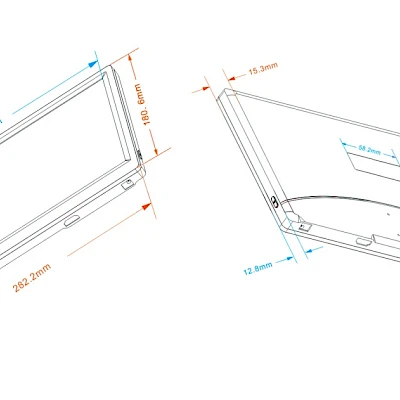

Dimension of TPHD1080PA

Dimension of TPHD1080PA

Order Code	Active Area(Inch)	Video Fomat	Resolution	Contrast	Color(Million)	View Angle
TPHD1080PA HD1080A	11.6	HDMI	1080P	1000:1	16.7	IPS Full View

Basic Performance
LCD Panel	Panasonic IPS LCD Screen(Super TFT)
Input Video Format	HDMI
Native Resolution	1920 x 1080
Display Type	16:9 Ratio 11.6 Inch Active Matrix Super TFT LCD
Typical Contrast Ratio	1000:1
Colors	16.7 Million
Viewing Angle(L/R/U/D)	IPS Full Vew
Active Display Area	258mm(W) × 145mm(H)
Pixel Pitch	0.134(W) X 0.134(H) mm
Brightness	350 cd/ sq.m ;400cd sq.m / Optional
Backlight	LED Backlight， 50000 hours
Outline Parameter
Color	Black
Dimension	281(L)179(H)15.6(W) mm
Weight	400g
Operating Environment
Operating Temperature	-15 Degree~55 Degree
Humidity Non Condensing	Operating:10%-90%, Storage: 5%-90%
Synchronization Range	30-80 KHz Horizontal, 55-75 Hz Vertical
Power Supply	AC110V-220V /DC12V(1A )
Power Consumption	Max 12W
