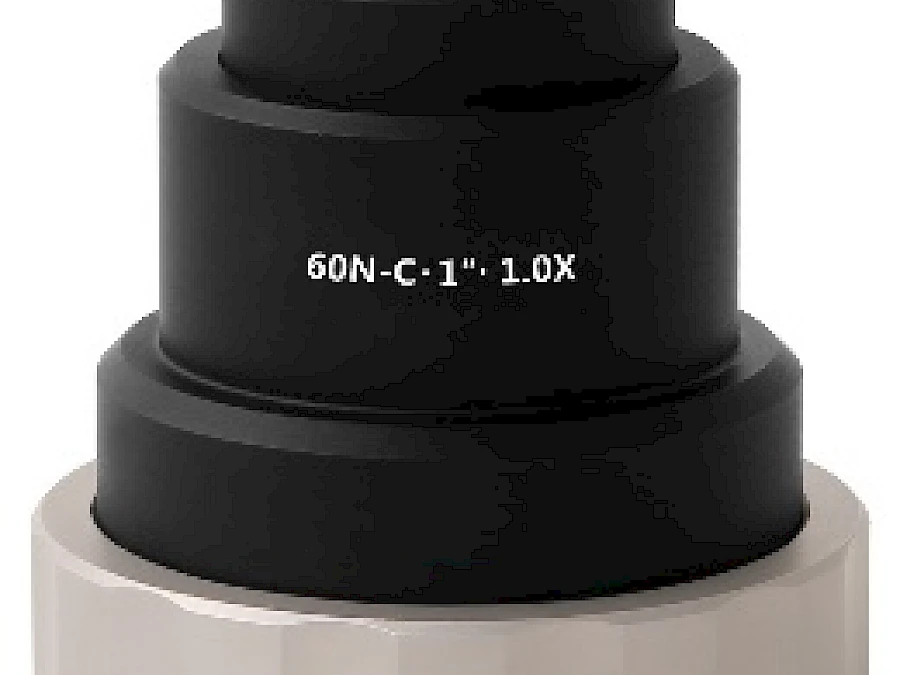

- Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch)

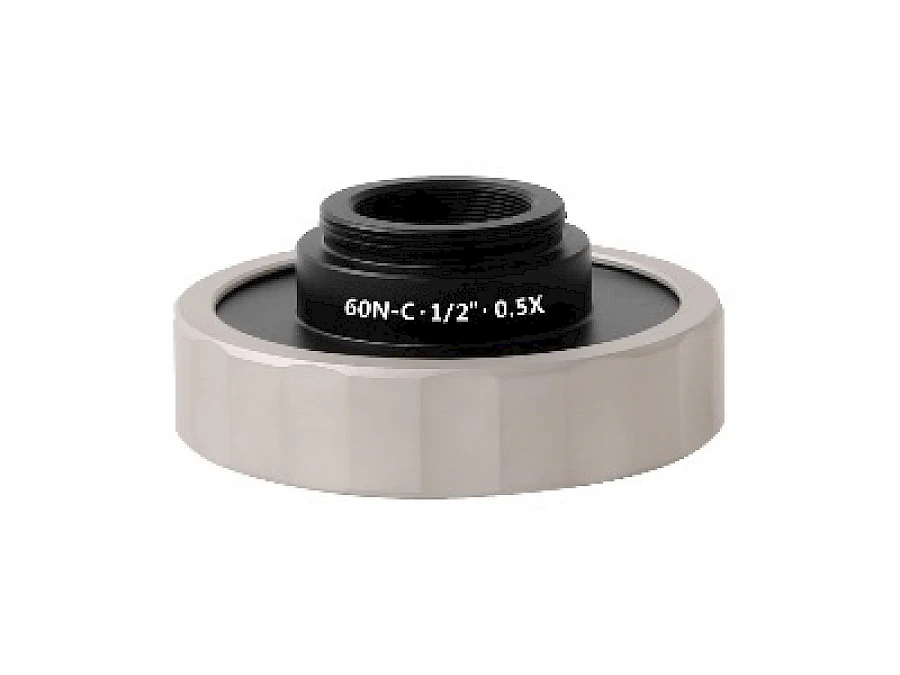

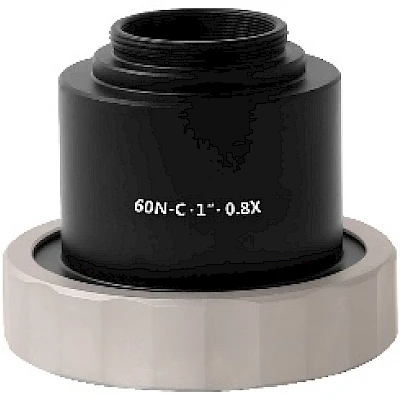

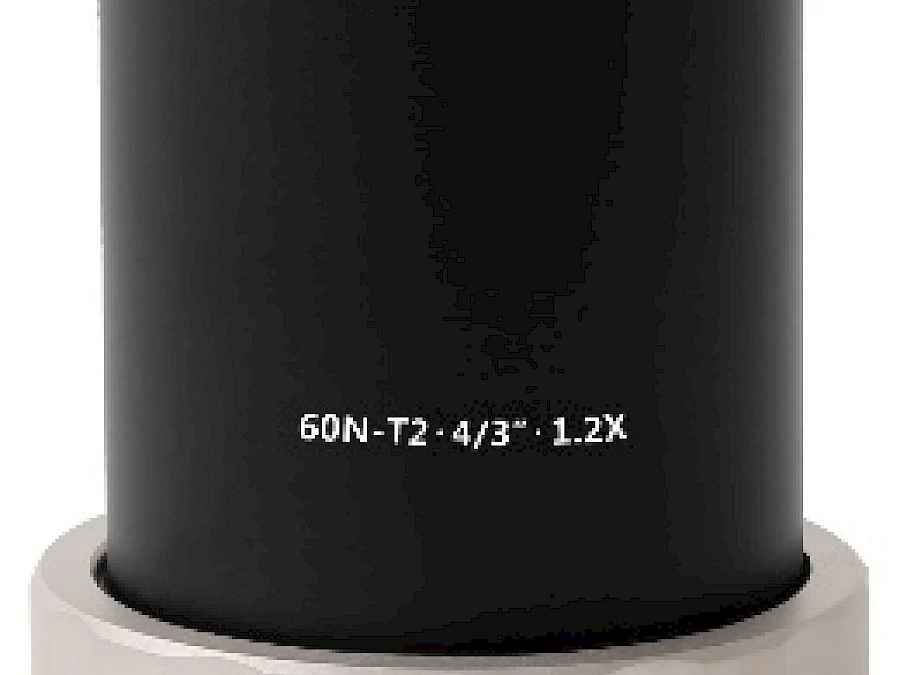

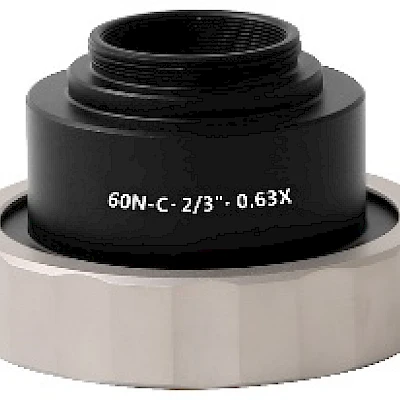

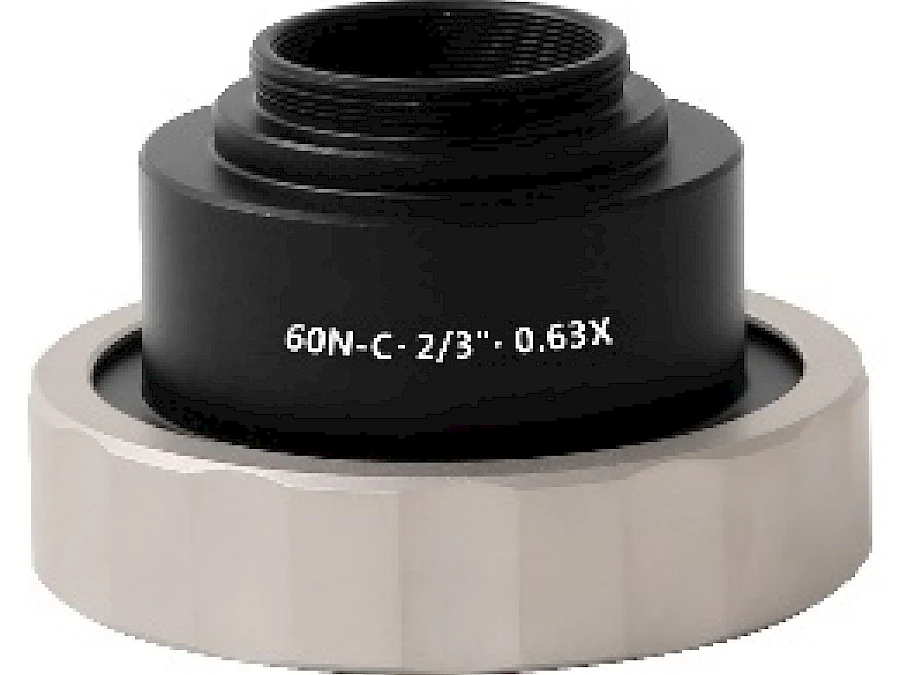

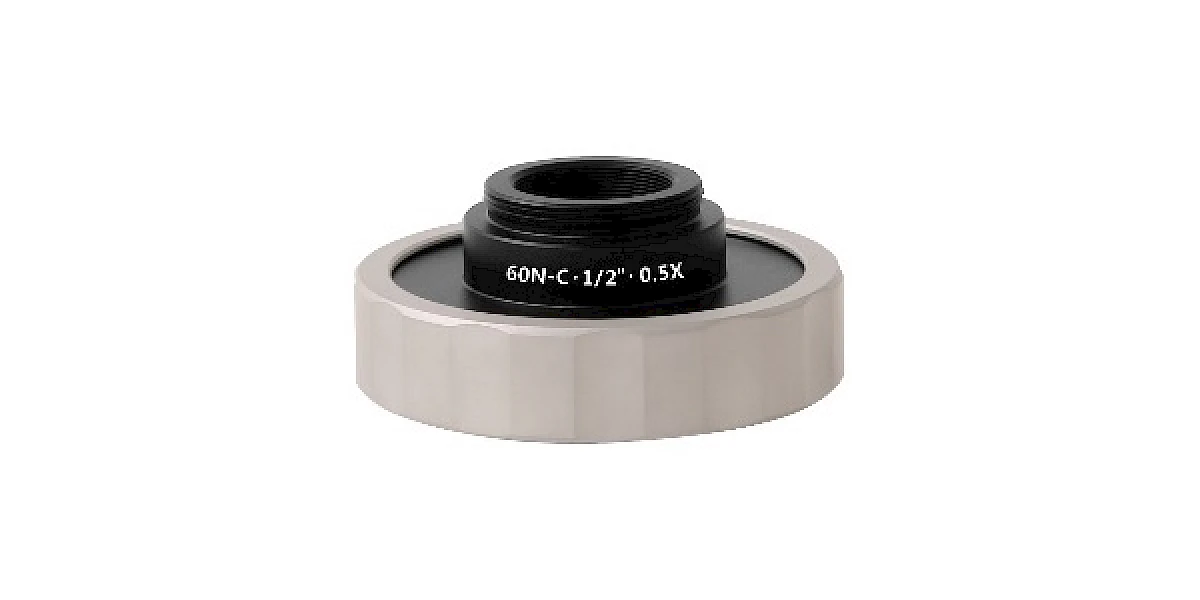

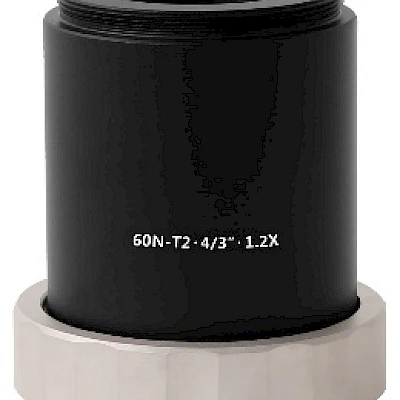

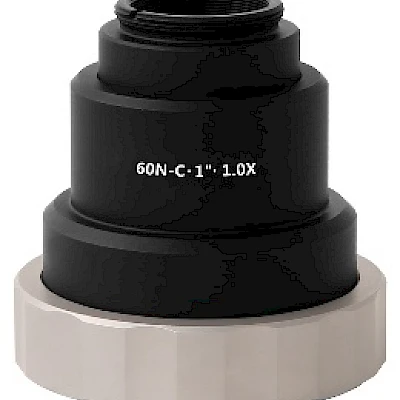

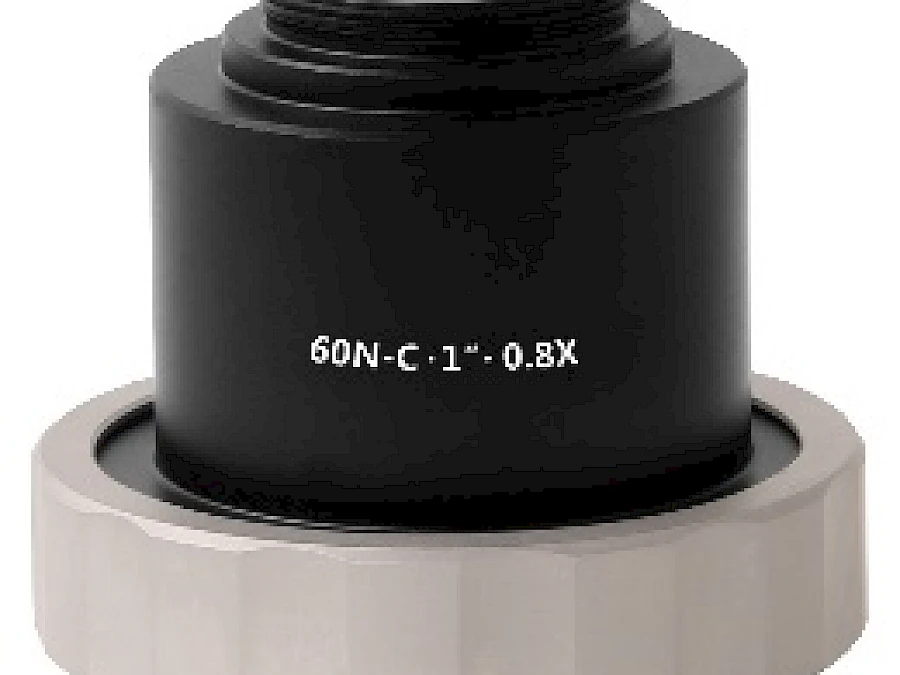

- With different built-in reduction lens (1.2X,1X, 0.8X, 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips)
- Can be installed in Zeiss UIS trinocular tube such as Axio series microscope
- Build of material: anodized aluminum
- Telecentric optics with low light deficiency
- Parfocal with different microscope objective lenses
- Diffraction limited MTF
- Aperture totally coupled with UIS microscope objective’s exit pupil

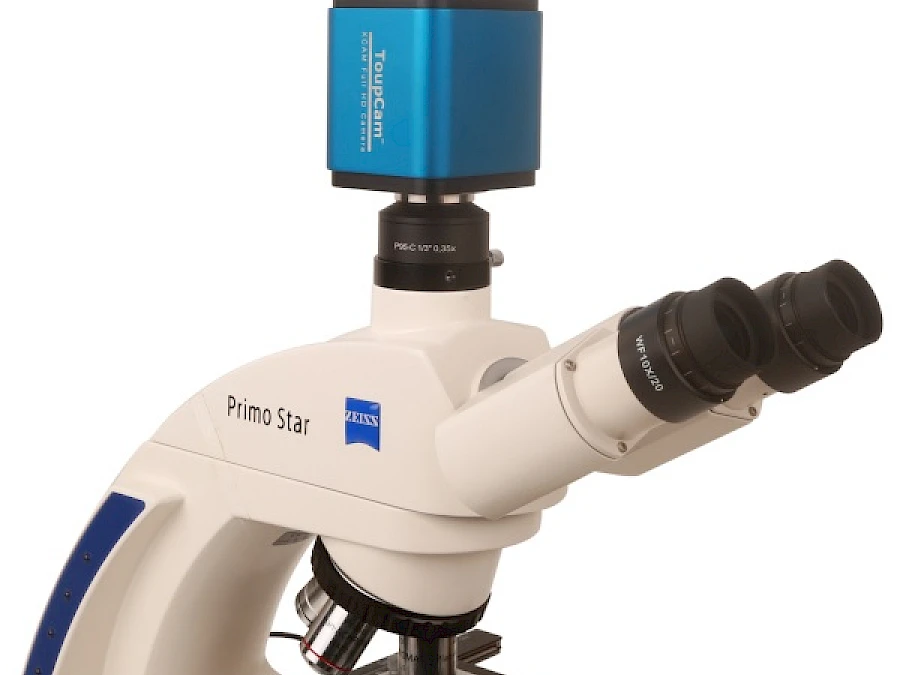

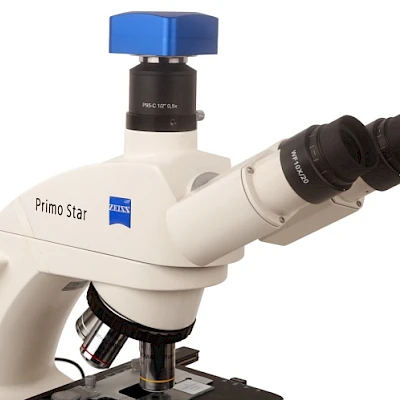

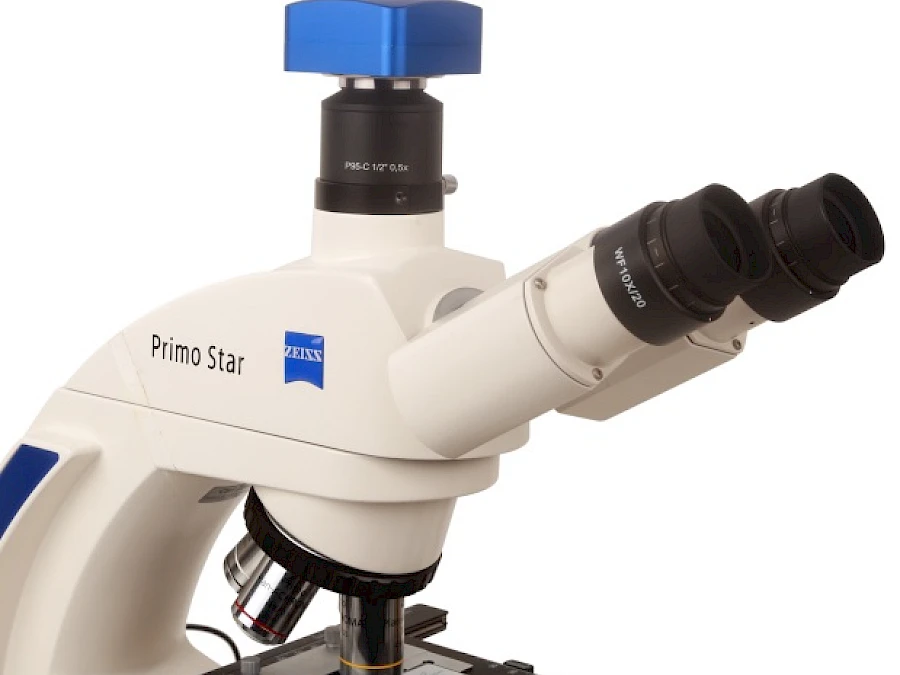

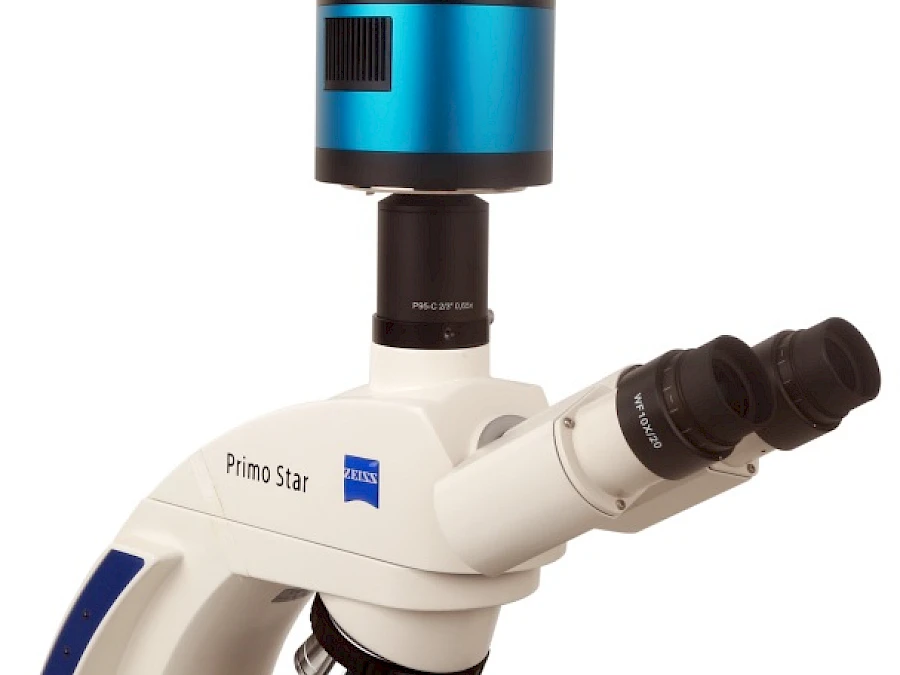

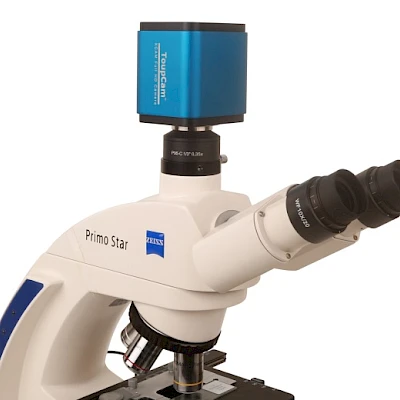

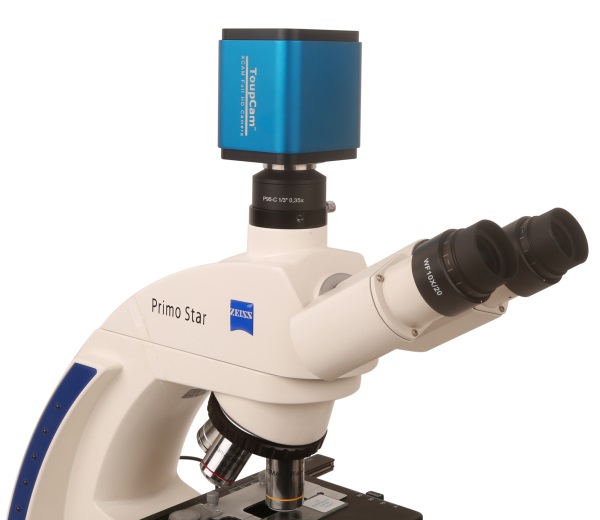

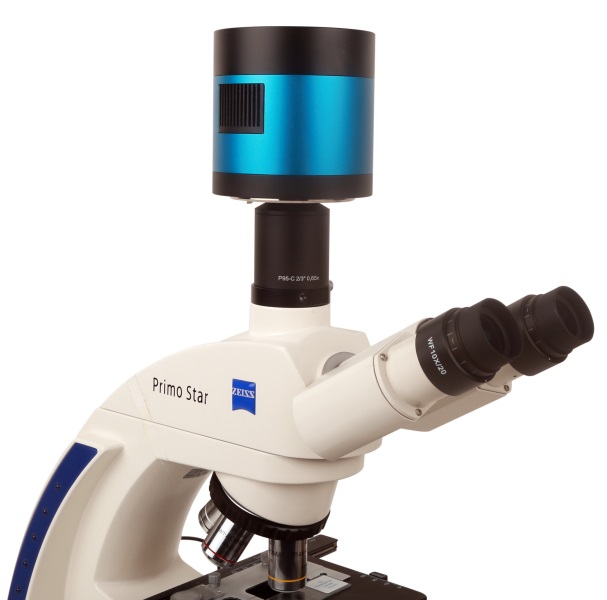

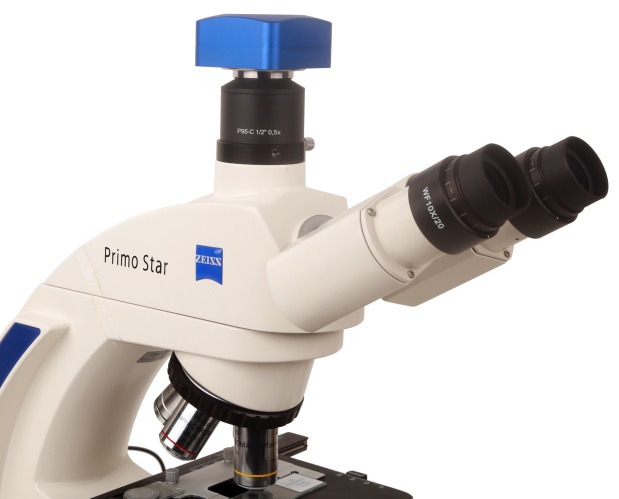

The Primo Star and Camera
