BJX-1000

BJX-1000 Portable Metallurgical Microscope with optional GB analysis software

100X-500X, USB, WIFI, available to match CCD camera, WIFI, Electronic eyepiece, metallurgical software

Core Features

Compact and portable
Triple nosepiece for convenient use without changing objectives
LED illuminator (battery), without additional charge required
Equipped with magnetic base which could be fixed on the sample directly

Configurations

Field site

WF10X(Φ18mm)

100X-500X

Request Quotation Email Phone Back to Products

BJX1000 Field Sites Portable Metallurgical Microscope extensively used for metallorgraphic examination and failure analysis of large workpiece. Grind sampling/ observe directly on the workpiece without cutting and sampling. Improve metal inspection effeciency and products quality control. No damage to the workpiece , especially the finished products. Available to match CCD camera, WIFI, Electronic eyepiece, metallurgical software which are convenient to collect, save and input images for analysis and research.

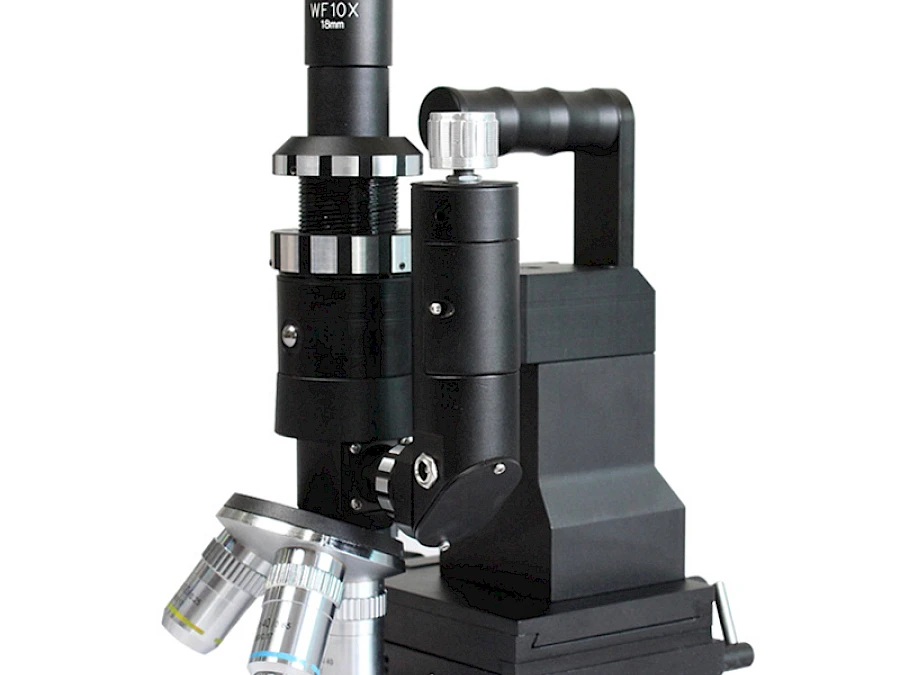

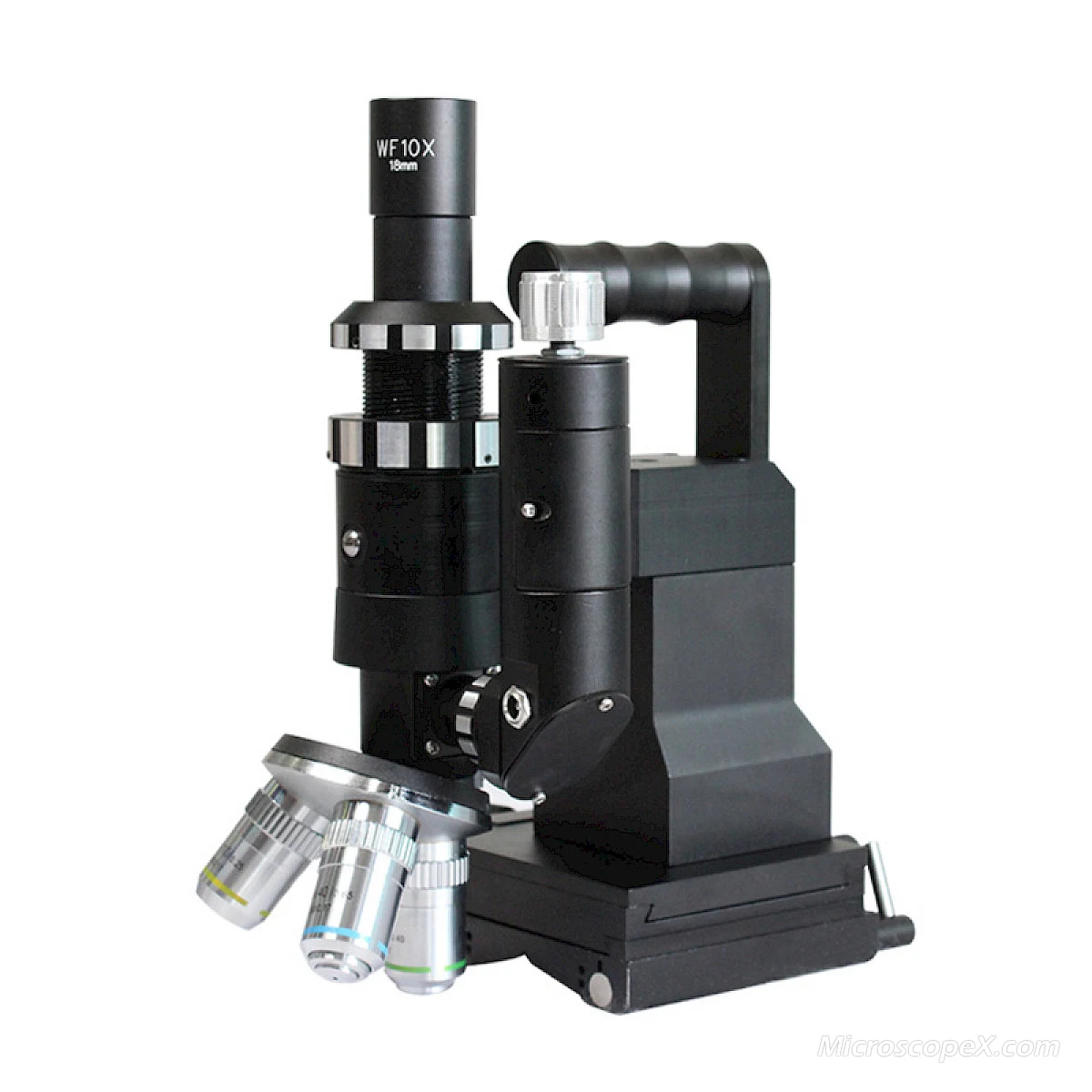

BJX-1000

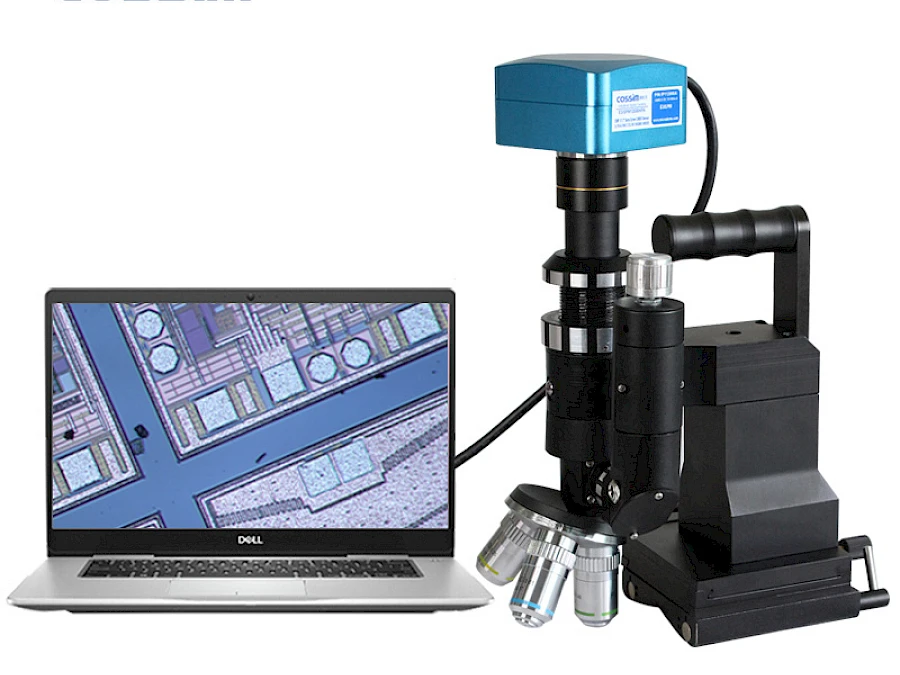

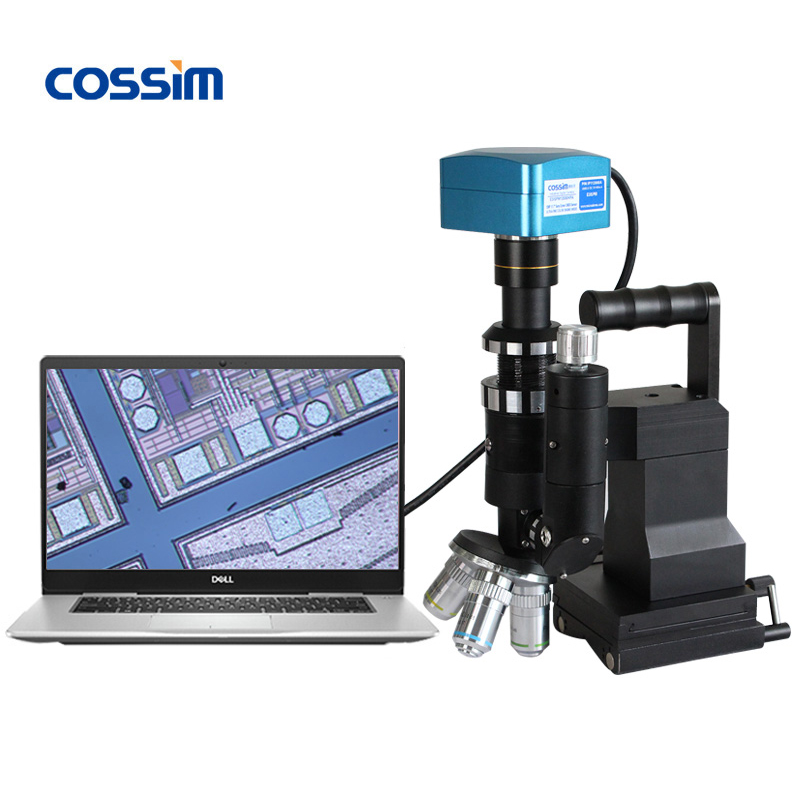

BJX-1000 with USB Camera

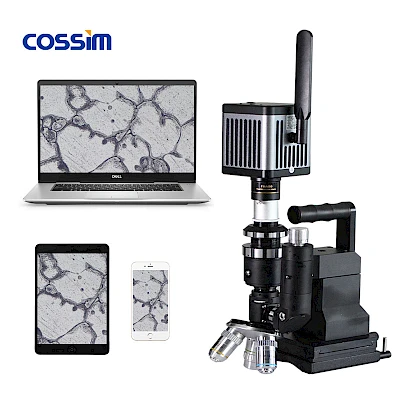

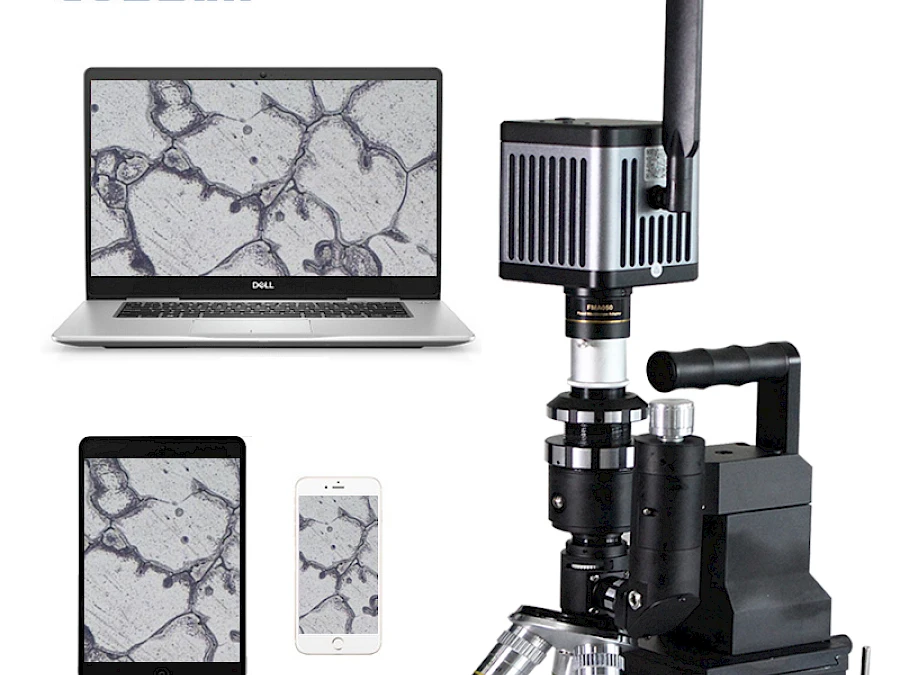

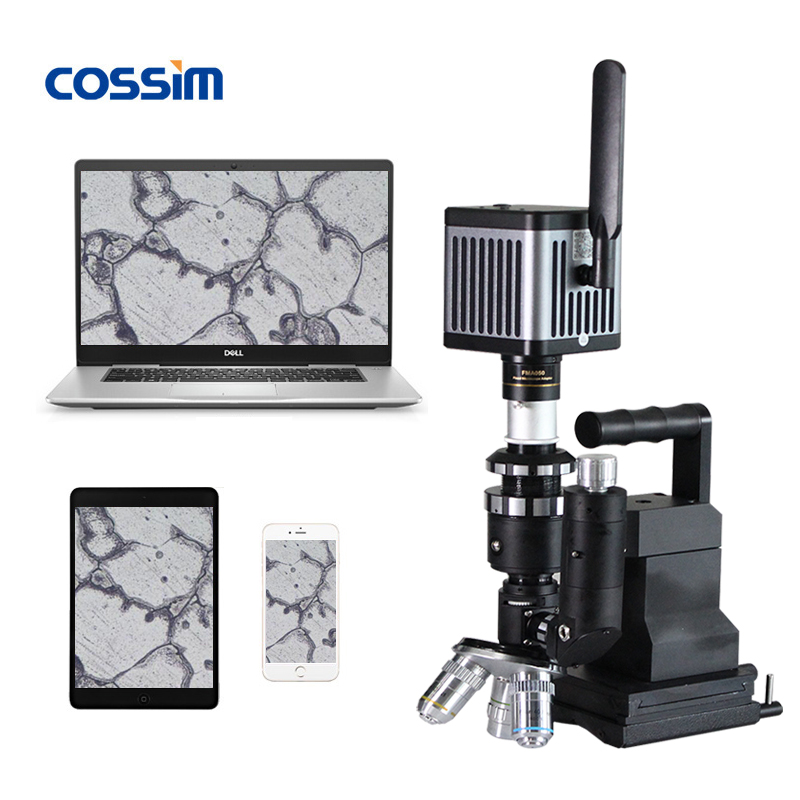

BJX-1000 with WIFI Camera

Specification for BJX-1000
Plan Eyepiece	WF10X(Φ18mm)
Plan Metallurgical Objective (Long WD)	10X、20X、50X
Total Mag.	100X-500X
Focus Range	Coarse movement: 25mm Fine movement: 1mm
Magnetic Base	Moving Stage: 90X70mm; Range: 10mm(vertical), 10mm (horizontal); suction force: 10mm X,Y axis, on-off magnetic foot, Suction force: 25N/cm2, with switch supply
Mechanical Tube	160mm
Illuminators	3W LED, charging power supply
Weight(Instrument)	Net: 4kg, Gross: 6.5kg
Suitcase Size	Aluminium alloy suitcase: 33X25X20cm

Packing List for BJX-1000
A	Main Body
B	Eyepiece 10X
C	Objective (10X,20X,40X)
D	Polarizer
E	Power Cord
F	Suitcase
G	Warranty Card
H	Certificate
I	Operation Manual

Optional Accessories(Please buy the following products if you need)
A	Plan Eyepiece	WF16X、WF20X
B	Plan Metallographic Objective	5X、40X、60X、80X、100X
C	Microscope Camera	USB HD5-12MP Camera, Wifi camera can operate live observation on phone and Ipad directly. Equipped with hot spots for 5 people to observe simultaneously.
D	Metallographic Analysis Software	GB analysis software with 438 latest standard, in line with American standard and other functions, such as: automatic rating and report.
