BL-10A

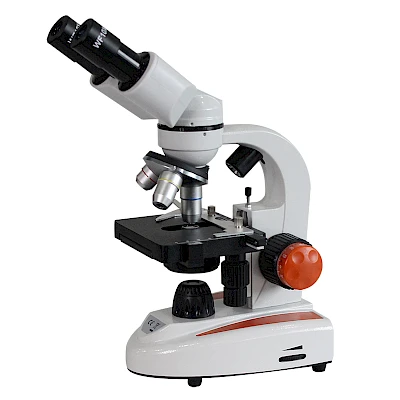

BL-10A Binocular Student Biological Microscope with Dual LED Light Source

40X~400X Total Mag., Binocular Head, 90x90mm Mechanical Stage, Dual LED Lamp

Core Features

40X~400X Total Magnification
Single Lens Condenser N.A. 1.25
Mechanical stage: 90x90mm, moving range 30x50mm
Dual Up & Bottom LED Lamp with adjustable brightness

Configurations

Eyepiece

WF10X/18mm

Magnification

40X~400X

Triple Nosepiece

Request Quotation Email Phone Back to Products

BL-10A Binocular Biological Microscope equips with plan stage with vernier scale, 90x90mm, moving range 30x50mm, which suitable for different working environment. The dual (Up & Bottom) LED Light Source’s brightness is adjustable. Its humanized design is widely used in histology, biology, bacteriology, pathology, biochemistry and lab etc.

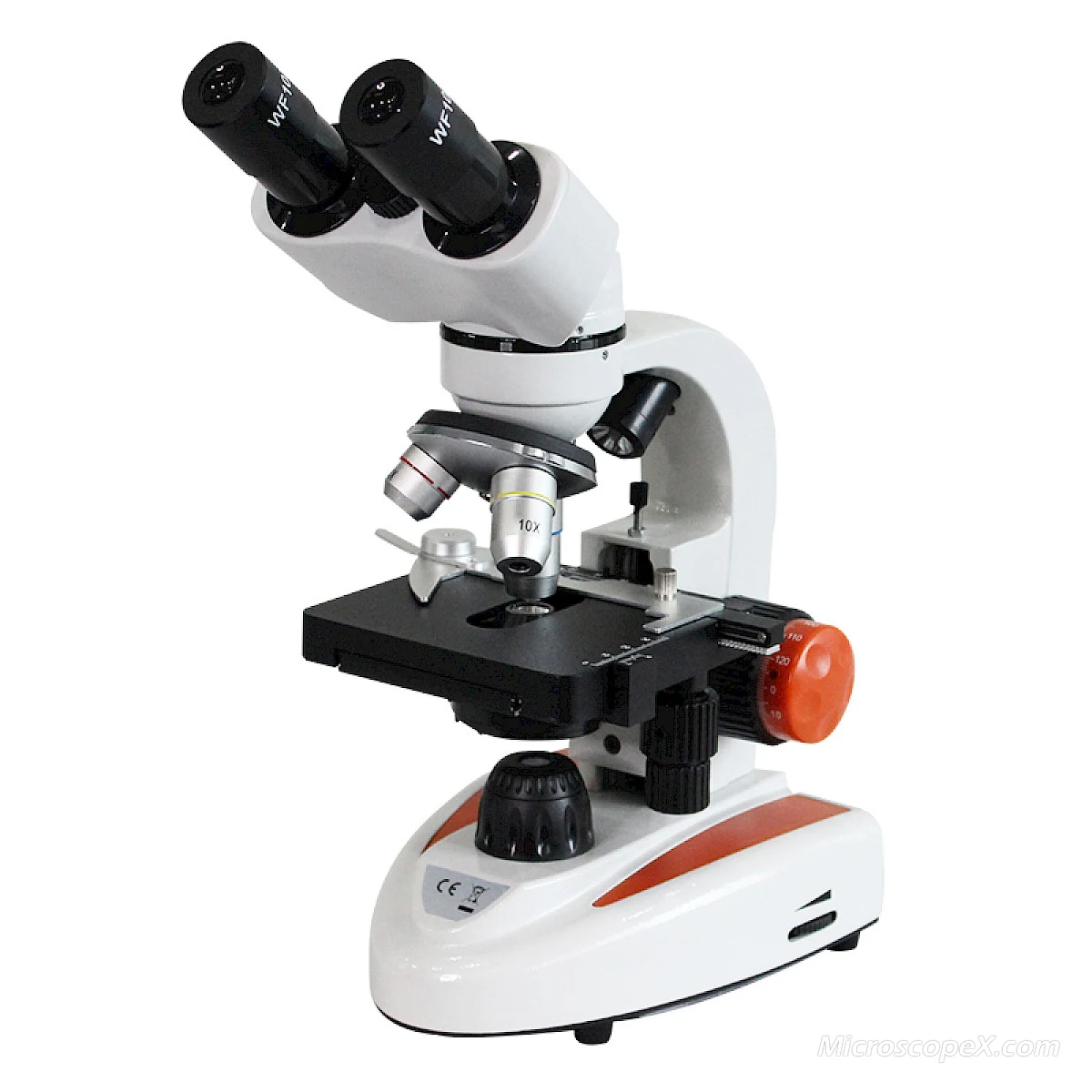

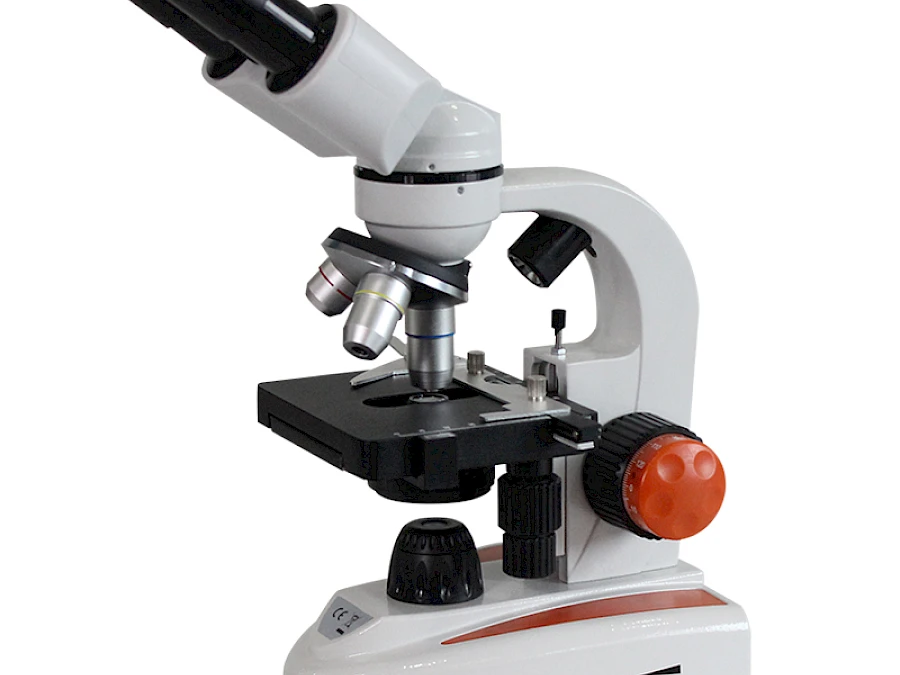

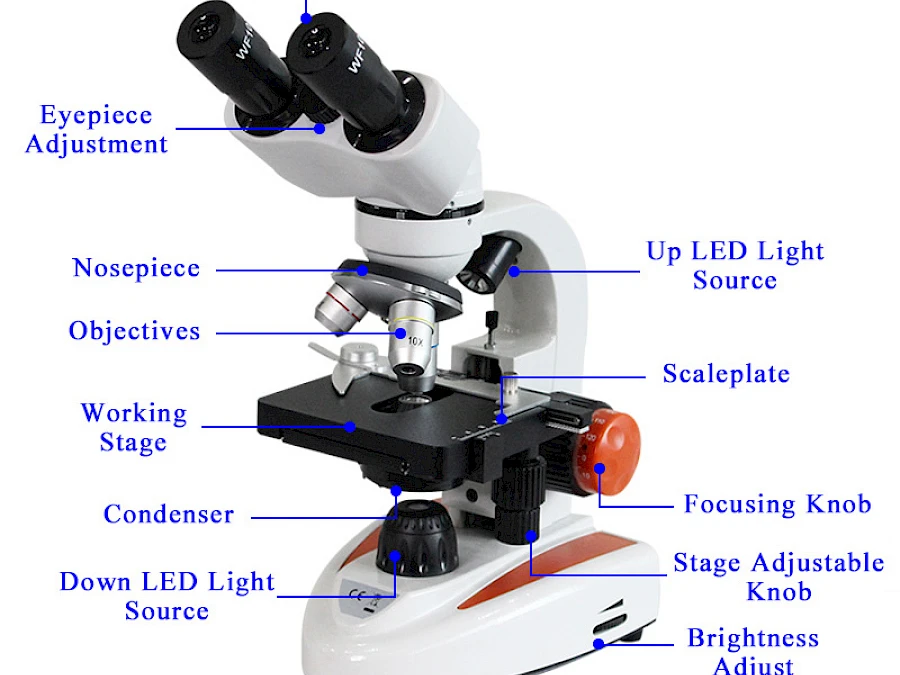

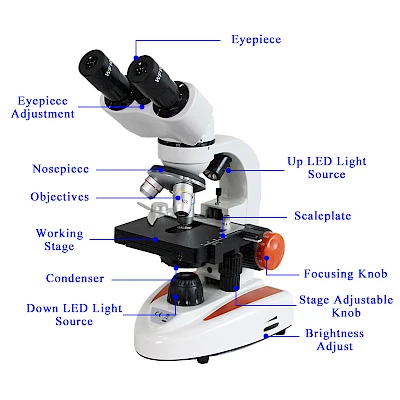

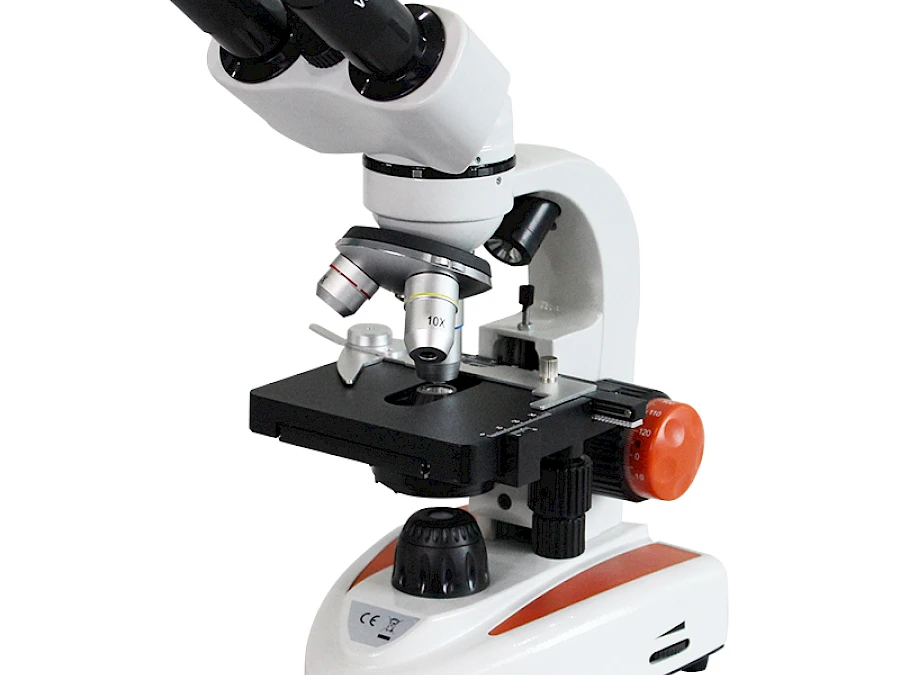

Structure of BL-10A Monocular Biological Microscope

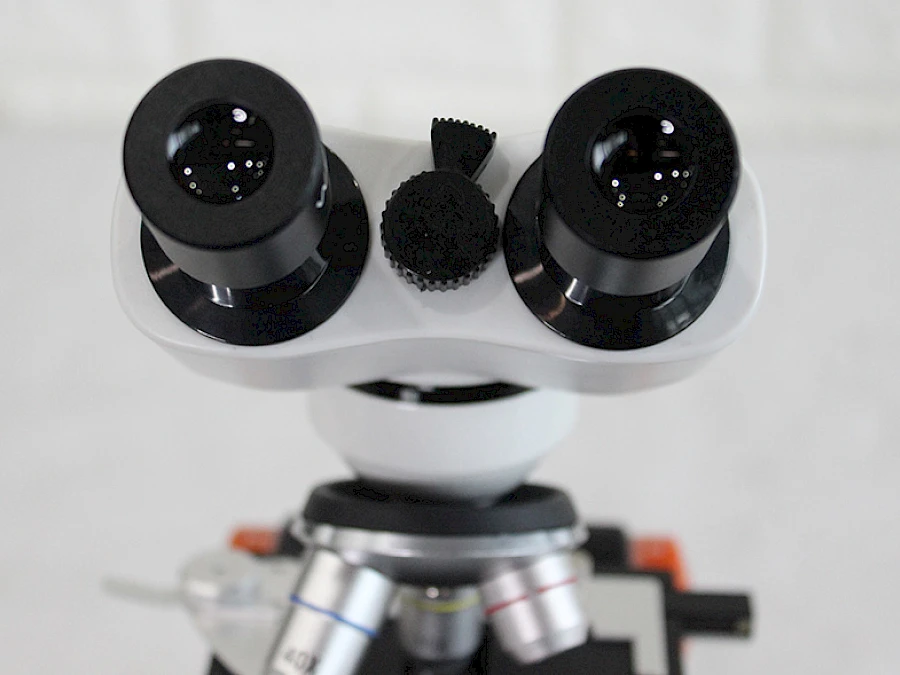

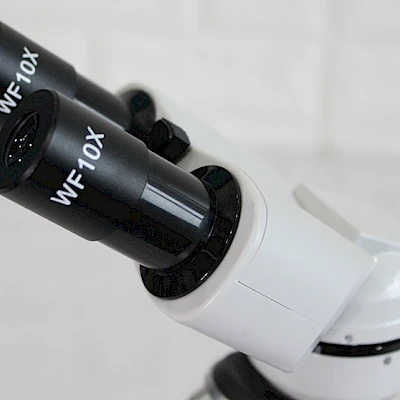

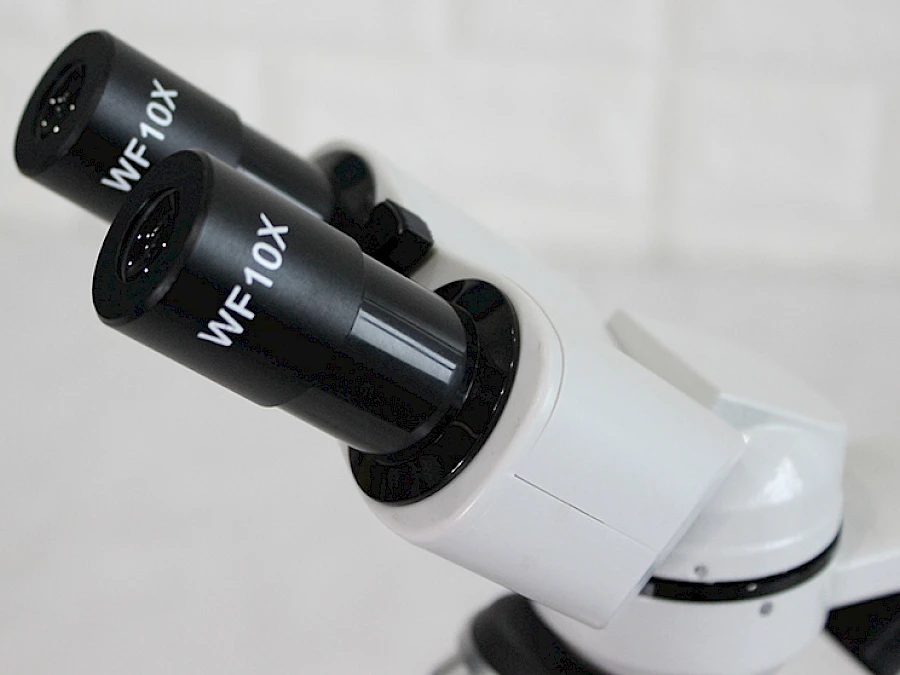

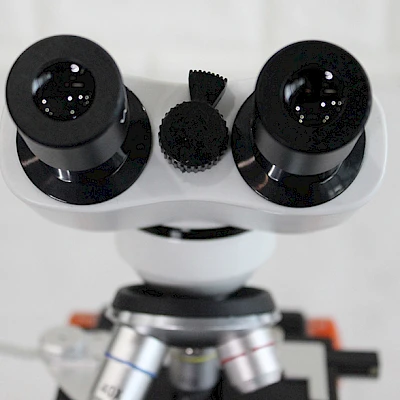

Head & Eyepiece of BL-10A

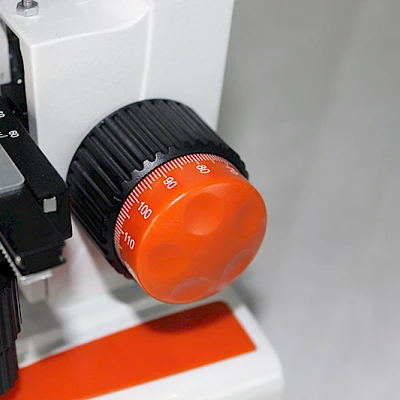

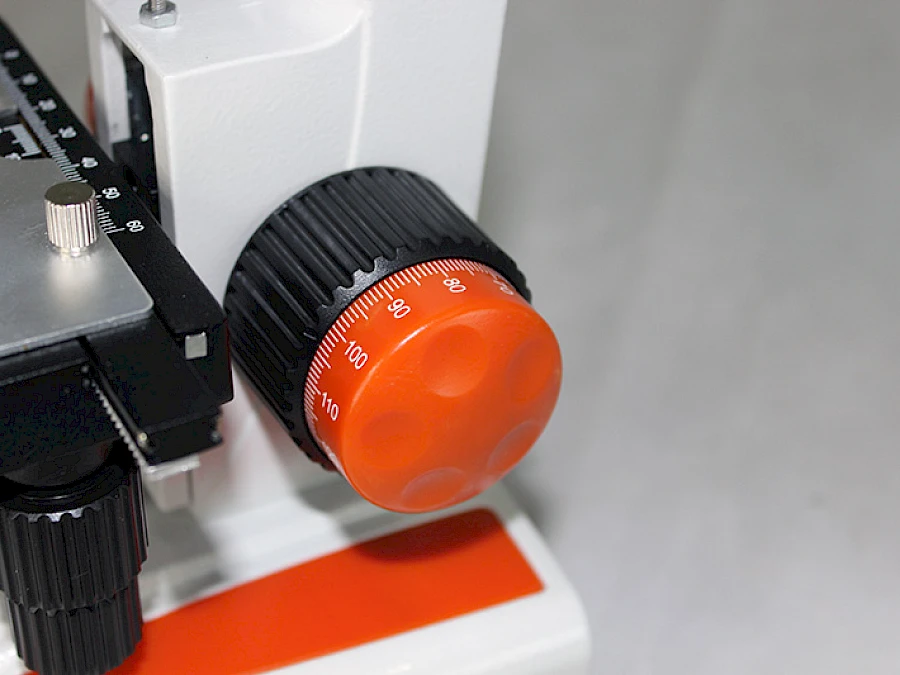

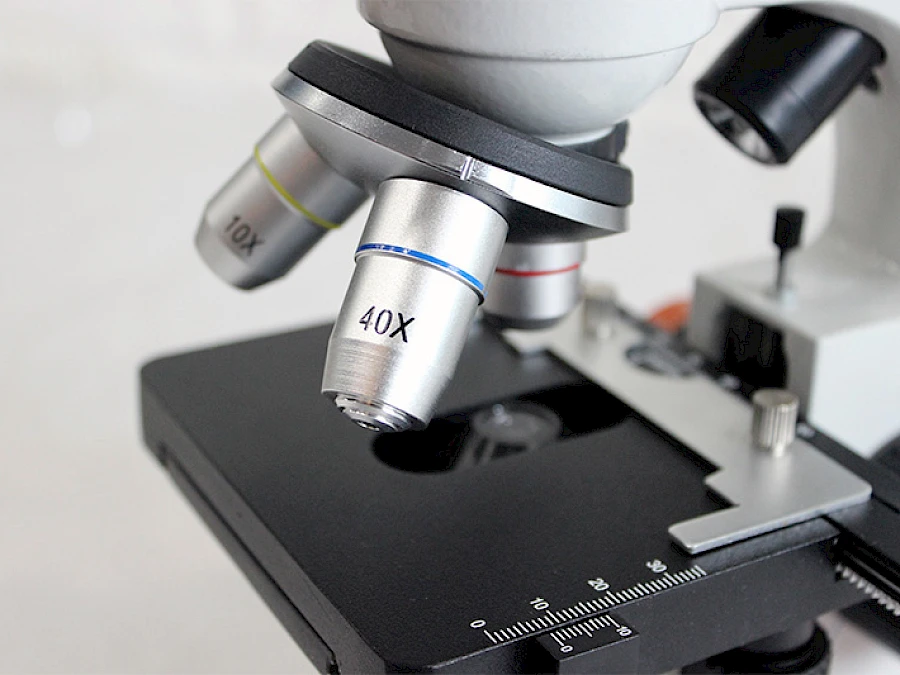

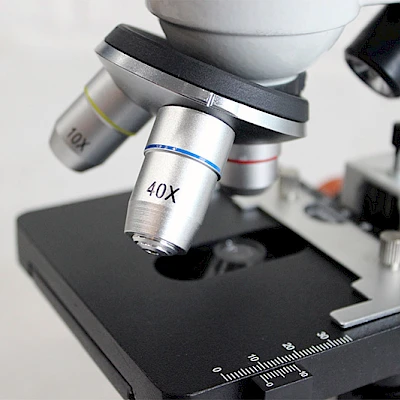

Objectives & Focusing Knob of BL-10A

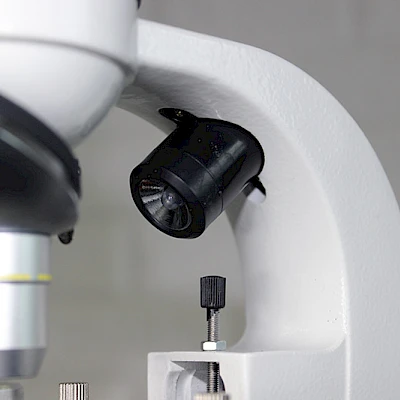

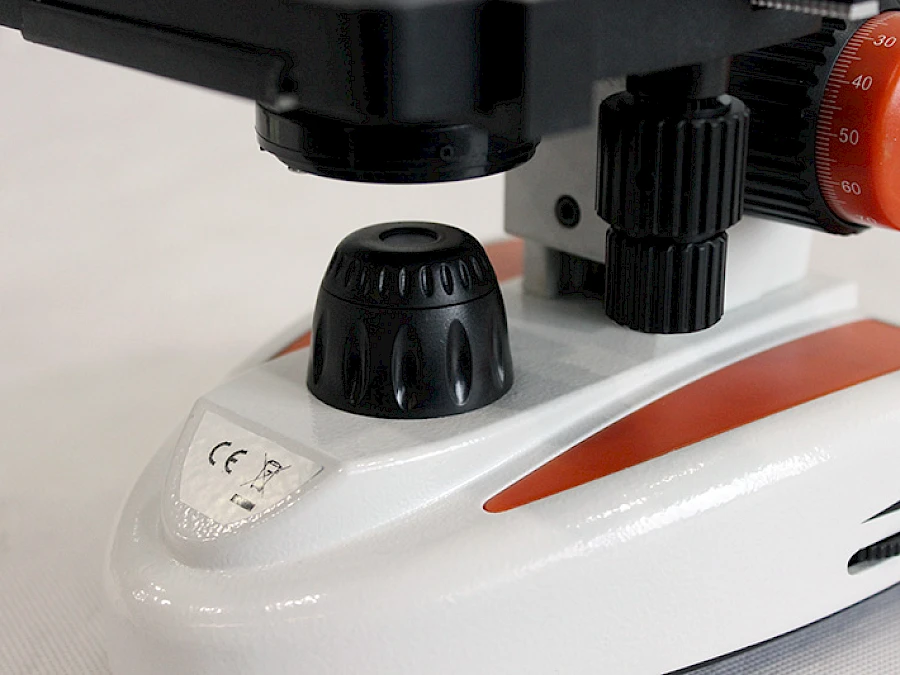

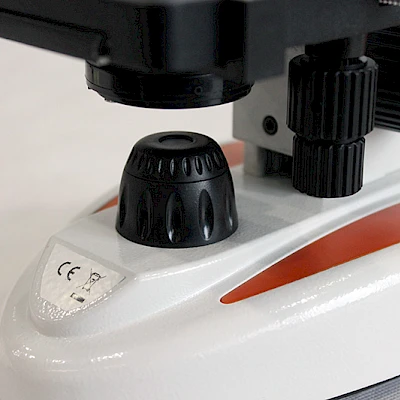

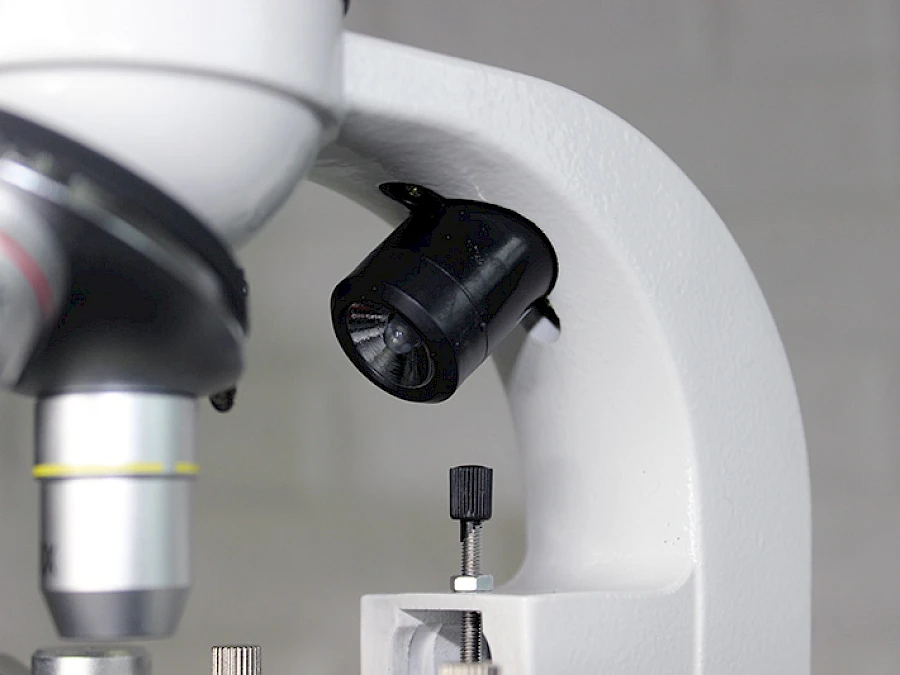

Reflected Light & Transmitted Light of BL-10A

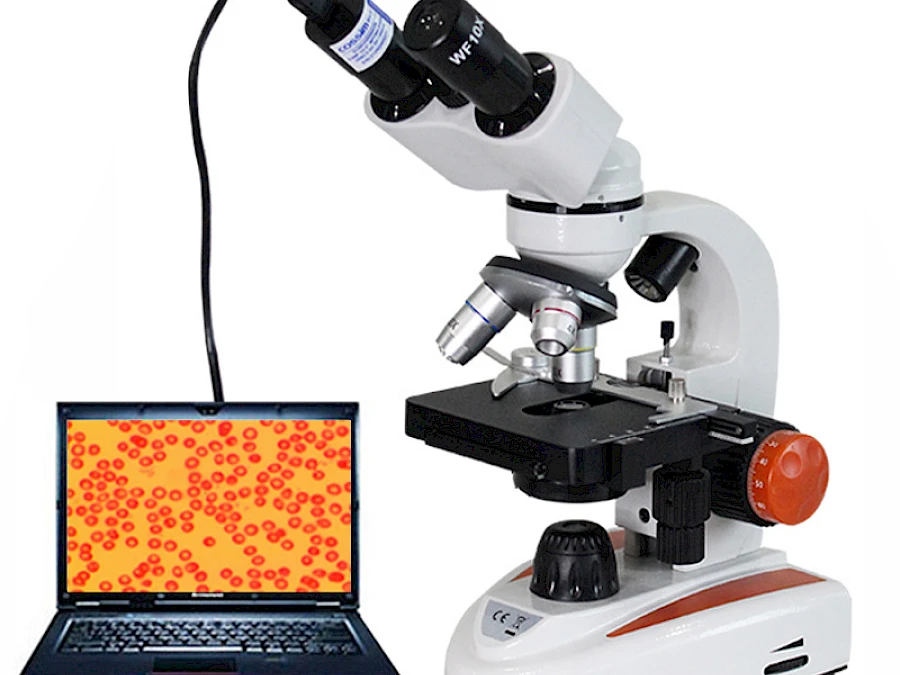

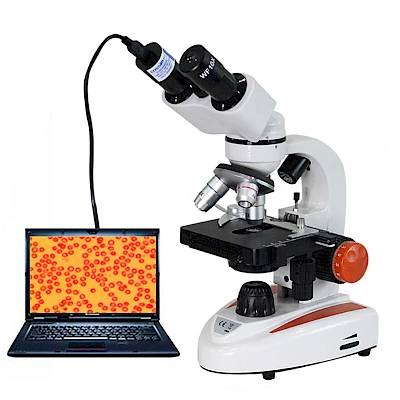

BL-10A with its Connected Laptop

Specification for BL-10A
Eyepiece	WF10X 18mm
Eyepiece Tube	Binocular, 360° Rotatable, inclined 30°
45mm DIN Objective	Achromatic 4X/0.10; 10X/0.25; 40X/0.65(Spring)
Total Mag.	40X~400X
Focus System	Coaxial coarse/fine focusing with up stop; range:17mm
Stage	Mechanical Stage (Size: 90mm x 90mm); Moving Range: 30*50mm
Nosepiece	Backward Triple
Condenser	Single Lens Condenser, With 6 Holes Disc Diaphragm, N.A.1.25
Light Source	Dual LED Light, Brightness Adjustable
Optional Camera	3MP or 5MP Digital Microscope Camera
Weight	Gross: 1.9kg
