BL-1614 & BL-1614T

BL-1614 & BL-1614T Kohler Illumination Biological Microscope with Phase Contrast Unit / Infinity Optical System

40X--1000X, 12V50W halogen lamp, adjustable brightness

Core Features

With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear
Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm
Using Kohler illumination with 12V 50w halogen lamp with brightness control

Request Quotation Email Phone Back to Products

BL-1614 & BL-1614T Biological microscopes are equipped with plan achromatic objectives and wide field eyepieces. They have clear image, wide field,beautiful sculpt, convenient operation etc. They can be widely used for biology, medicine, agriculture and industry area. They are the ideal instruments in medical treatment, teaching demonstration and scientific research.

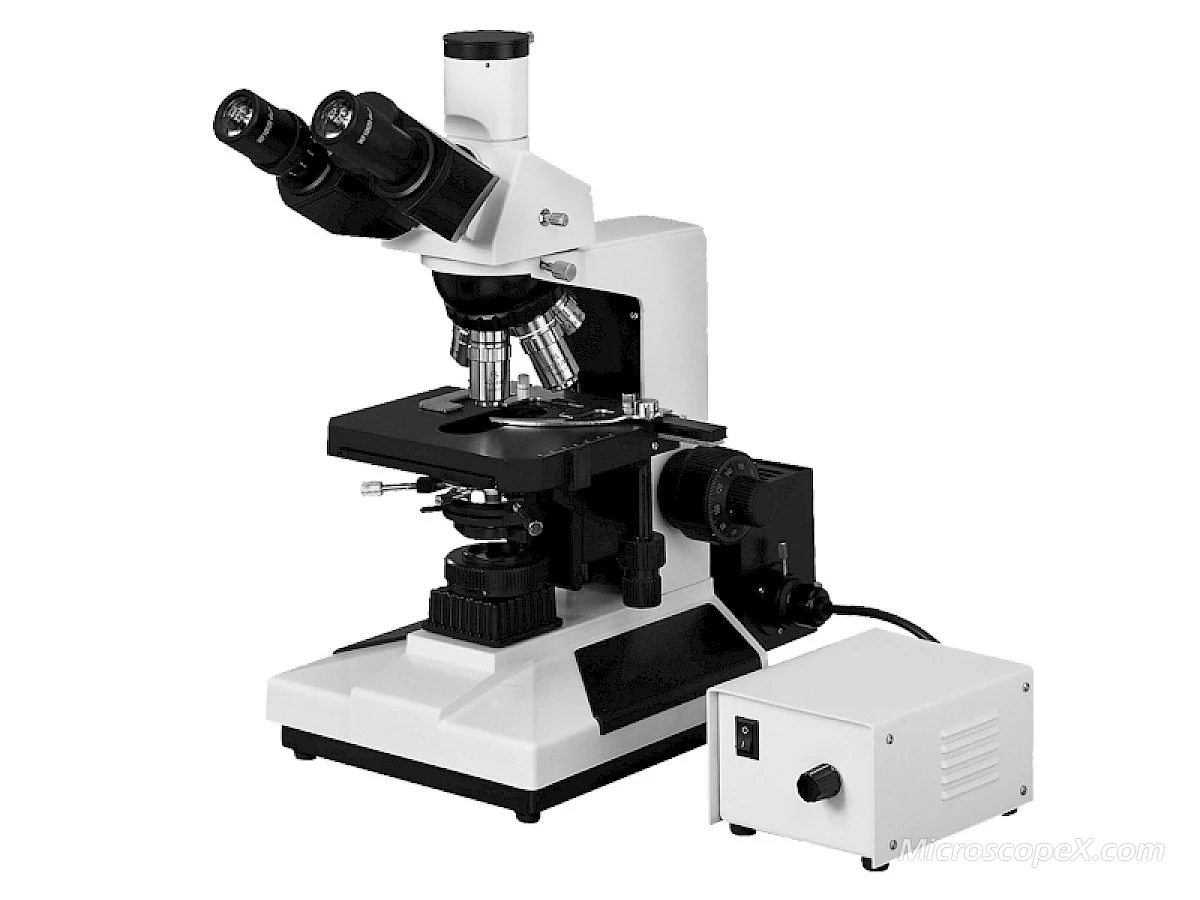

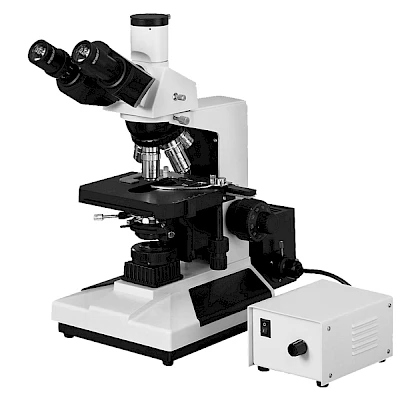

BL-1614 & BL-1614T

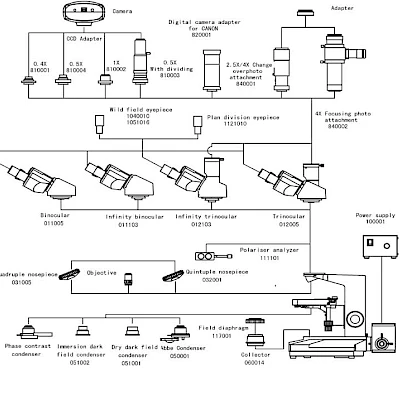

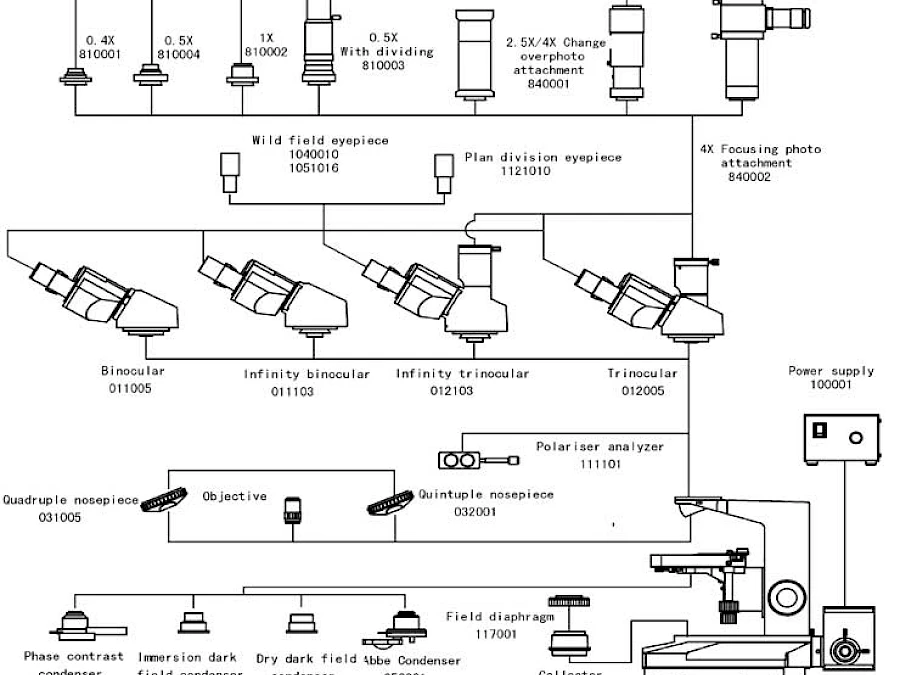

Diagram of BL-1614 & BL-1614T

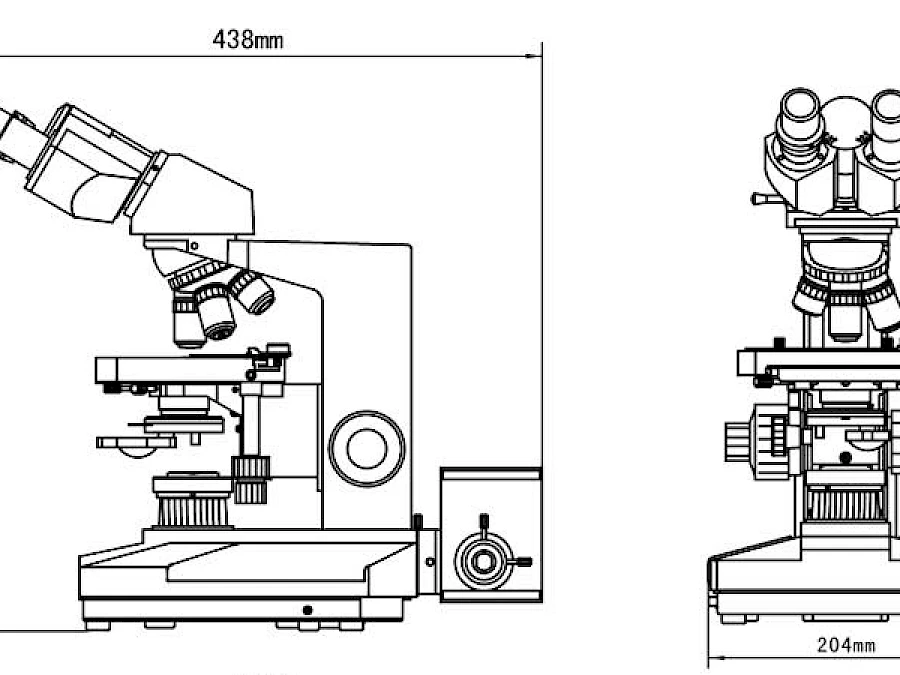

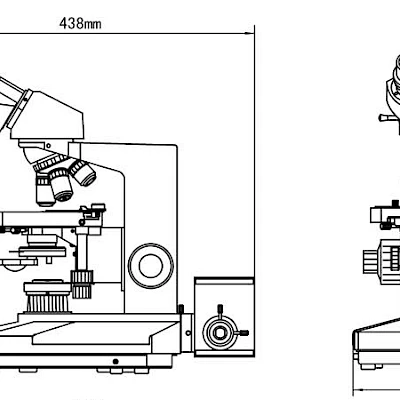

Dimension of BL-1614 & BL-1614T

Specification for BL-1614 & BL-1614T
Eyepiece	WF10X(Φ20mm)
Objective	Plan achromatic PL 4X/0.10
	Plan achromatic PL 10X/0.25
	Plan achromatic PL 20X/0.40
	Plan achromatic PL 40X/0.65(Spring)
	Plan achromatic PL 100X/1.25(Spring, oil)
Eyepiece tube	Binocular (Inclined 30°)
Focus System	Coaxial coarse/fine focusing, with tension adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece	Quintuple (Backward ball bearing inner locating)
Stage	Double Layer Mechanical Stage (Size: 160mm x 140mm, Move range: 75mm x 50mm)
Abbe Condenser	N.A. 1.25 Rack & pinion adjustable
Filter	Blue, Frosted filter
Collector	For Halogen lamp
Light Source	12V 50W Halogen lamp with brightness control

Accessories for BL-1614 & BL-1614T
Eyepiece	WF16X(Φ11mm)
Eyepiece	Dividing 10X(Φ18mm) 0.1mm/Div
Eyepiece tube	Trinocular (Inclined 30°)
Filter	Green
Filter	Yellow
Nosepiece	Quadruple (Backward ball bearing inner locating)
Condenser	Dark Field	Immersion type
Condenser	Dark Field	Dry type
Phase Contrast Unit	Eyepiece	Centering telescope
	Objective	Phase contrast plan achromatic 10X/0.25 PHP
		Phase contrast plan achromatic 20X/0.40 PHP(Spring)
		Phase contrast plan achromatic 40X/0.65 PHP(Spring)
		Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
	(PH-Ⅰ ) Turnplate phase contrast condenser
	(PH-Ⅱ) Turnplate phase contrast condenser
	Flashboard phase contrast condenser
	Pull board phase contrast condenser
Infinity Optical System	Eyepiece tube	Binocular(inclined 30°)
	Eyepiece tube	Trinocualr(inclined 30°)
	Eyepiece	Centering telescope
	Objective	Infinity plan achromatic 4X/0.10
		Infinity plan achromatic 10X/0.25
		Infinity plan achromatic 20X/0.40
		Infinity plan achromatic 40X/0.65(Spring)
		Infinity plan achromatic 100X/1.25(Spring, oil)
		Infinity phase contrast plan achromatic 10X/0.25 PHP
		Infinity phase contrast plan achromatic 20X/0.40 PHP
		Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
		Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil)
CCD Adapter	0.4X
	0.5X
	1X
	0.5X with dividing 0.1mm/Div
Camera	DV-1(With USB & video output)
	DV-2(With USB output)
	DV-3(With video output)
Digital Camera Adapter	CANON Digital camera adapter(A610,A620,A630,A640)
Photograph Unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD Adapter
	PK Adapter
Facility Polarize	Polarizer(360° rotatable stage)
Facility Polarize	Analyzer
