BL-161A & BL-161B

BL-161A & BL-161B Binocular / Trinocular Biological Microscope with Collector & Condenser

40X~1000X, Binocular / Trinocular, transmitted illuminator system

Core Features

With wide field eyepieces and plan achromatic objectives, the field of view is wide and clear
Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm
Using Kohler illumination with 6V 20W halogen lamp with brightness control

Configurations

Stage

160mm x 140mm

WF10X(Φ20mm)

Quatruple/Quintuple

ABBE Condenser

6V 20W Halogen

Request Quotation Email Phone Back to Products

BL-161A & BL-161B Biological microscopes are equipped with plan achromatic objectives and wide field eyepieces. They provide clear image, wide field, convenience operation. They can be widely used for biology medicine agriculture and industry area. They are the ideal instrument in medical treatment, teaching demonstration and scientific research.

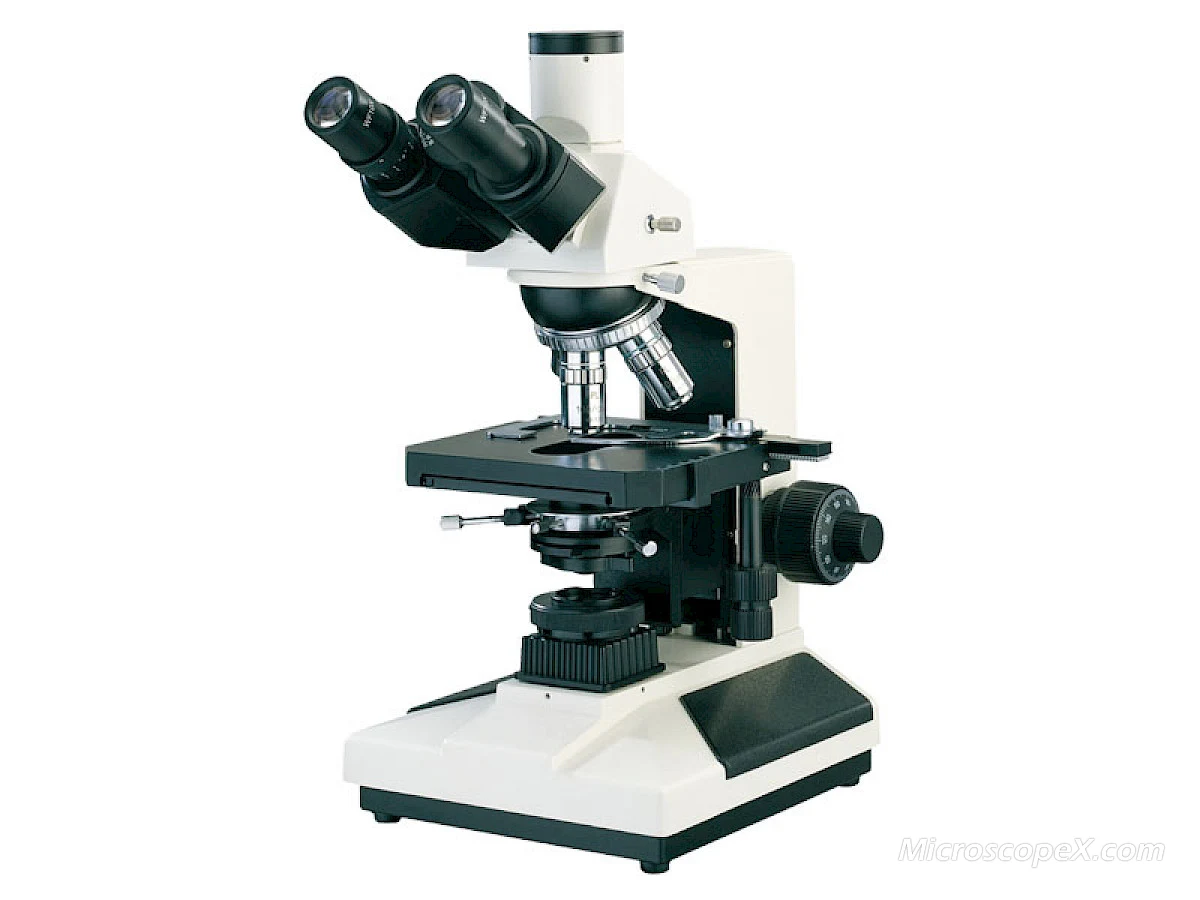

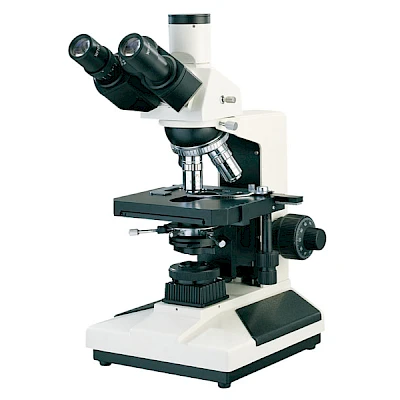

BL-161A & BL-161B

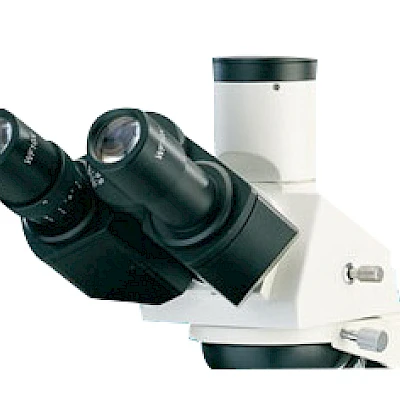

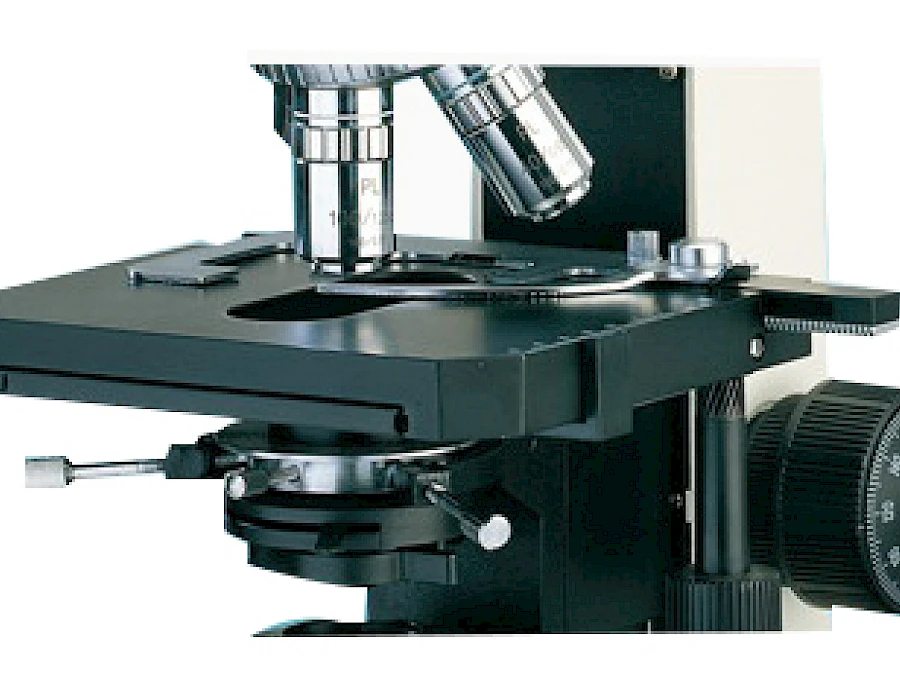

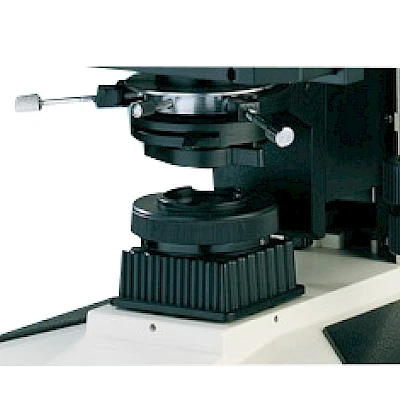

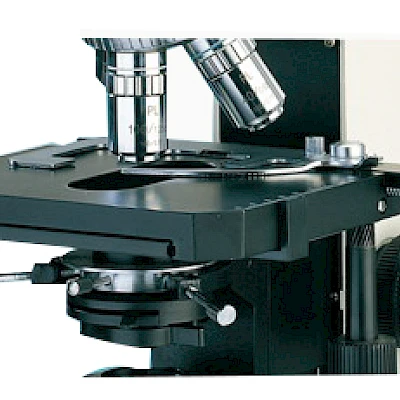

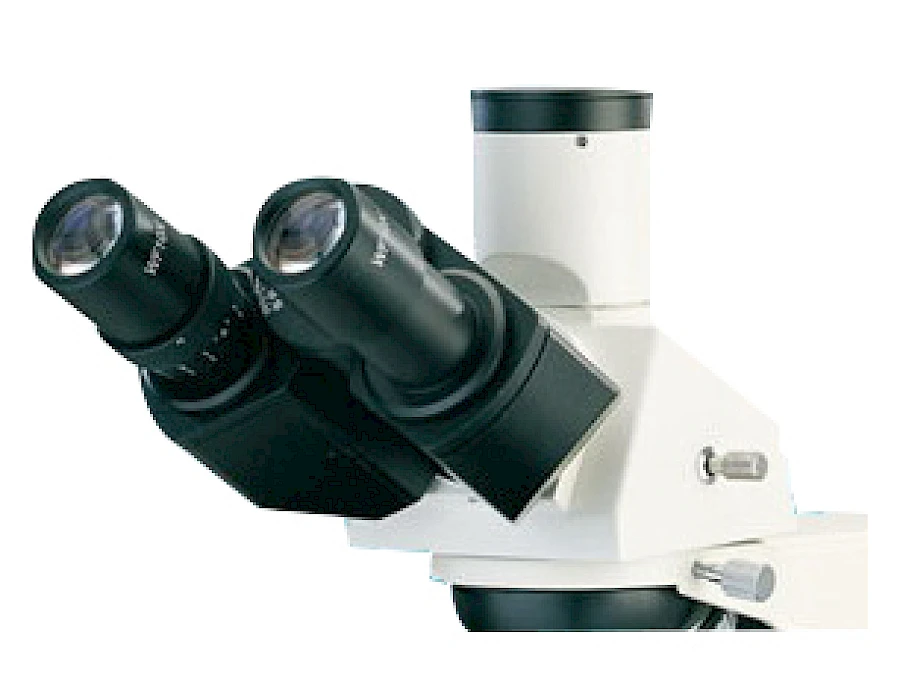

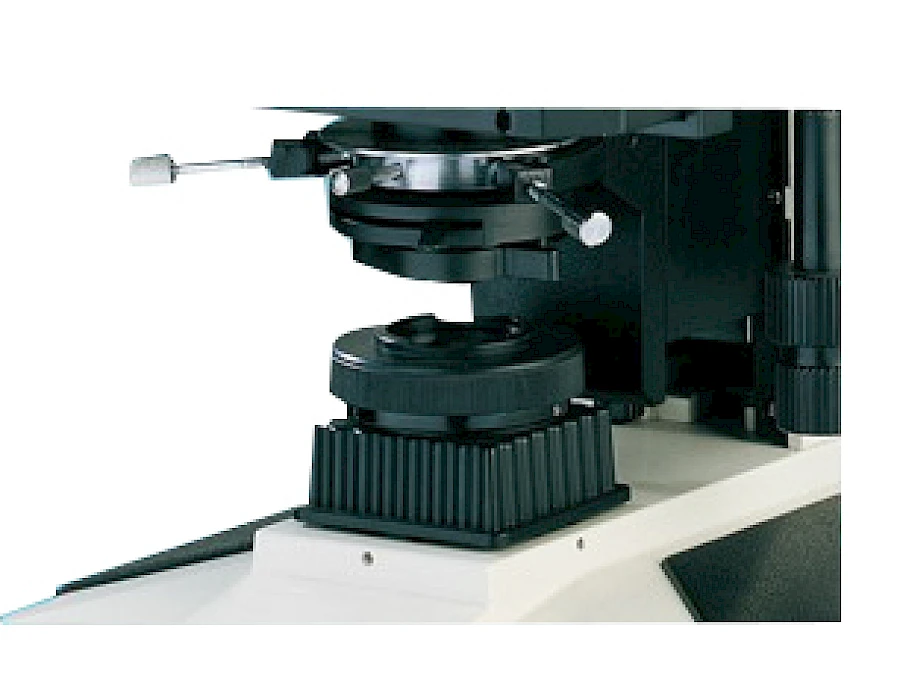

Head & Stage & Illumination of BL-161A & BL-161B

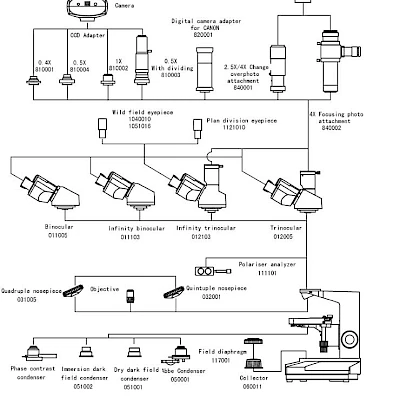

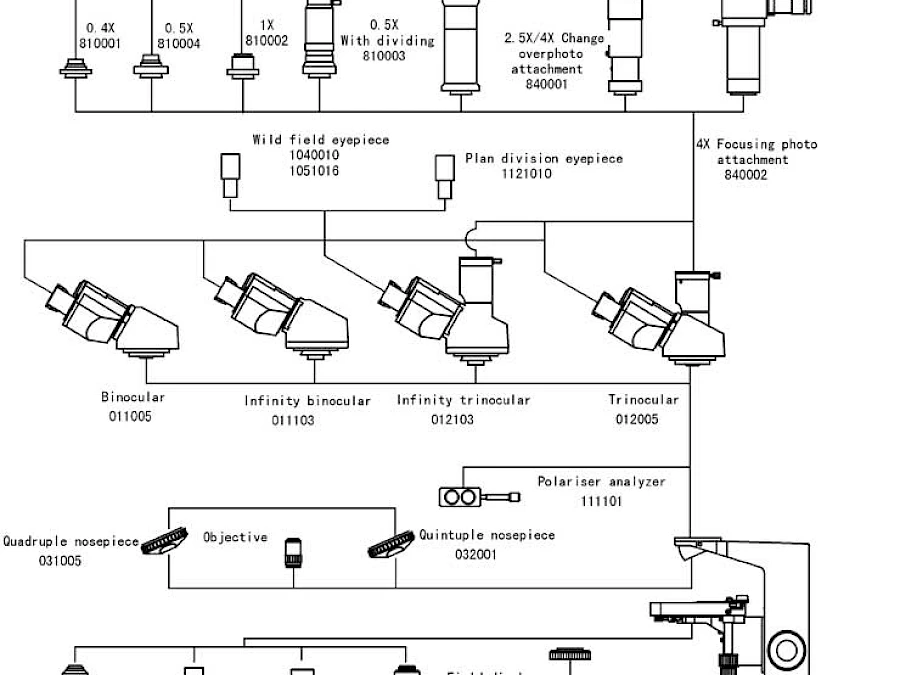

Diagram of BL-161A & BL-161B

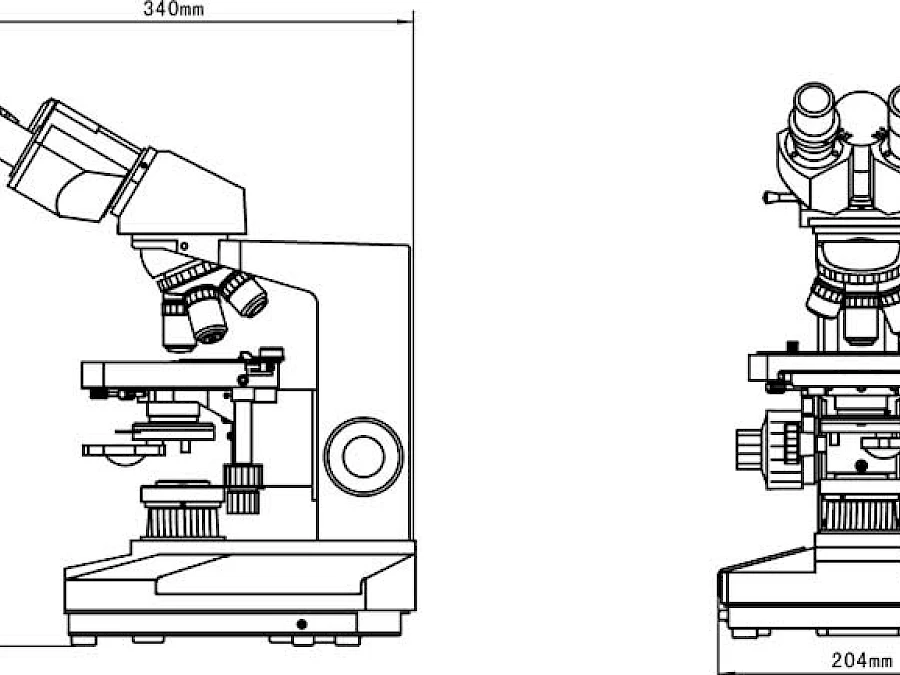

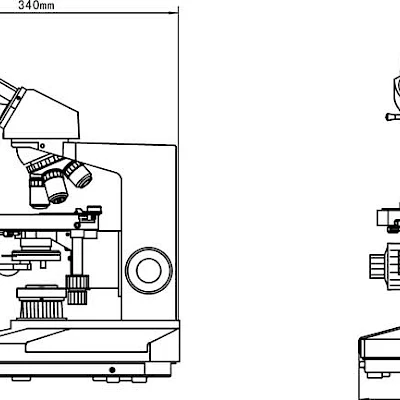

Dimension of BL-161A & BL-161B

Item	Objective	Nosepiece
BL-161A	Plan Achromatic PL4X/0.10 Plan Achromatic PL10X/0.25 Plan Achromatic PL40X/0.65(S) Plan Achromatic PL100X/1.25(s,oil)	Quatruple (Backward ball bearing inner locating)
BL-161B	Plan Achromatic PL4X/0.10 Plan Achromatic PL10X/0.25 Plan Achromatic PL20X/0.40 Plan Achromatic PL40X/0.65(S) Plan Achromatic PL100X/1.25(s,oil)	Quintuple (Backward ball bearing inner locating)

Item

Objective

Nosepiece

BL-161A

Plan Achromatic PL4X/0.10

Plan Achromatic PL10X/0.25

Plan Achromatic PL40X/0.65(S)

Plan Achromatic PL100X/1.25(s,oil)

Quatruple (Backward ball bearing inner locating)

BL-161B

Plan Achromatic PL4X/0.10

Plan Achromatic PL10X/0.25

Plan Achromatic PL20X/0.40

Plan Achromatic PL40X/0.65(S)

Plan Achromatic PL100X/1.25(s,oil)

Quintuple (Backward ball bearing inner locating)

Specification for BL-161A & BL-161B
Eyepiece	WF10X(Φ20mm)
Eyepiece Tube	Binocular (inclined 30°)
Focus System	Coaxial coarse/fine focusing, with tension adjustable and up stop, minimum division of fine focusing: 2μm
Stage	Double Layer Mechanical Stage (Size: 160mm x 140mm, Move range: 75mm x 50mm)
Condenser	ABBE Condenser N.A. 1.25 Rack & pinion adjustable
Filter	Blue, Frosted
Collector	For Halogen lamp
Light Source	6V 20W Halogen lamp with brightness control

Accessories for BL-161A & BL-161B
Eyepiece	WF 16X(Φ11mm)
Eyepiece	Dividing 10X(μ20mm), 0.1mm/Div
Eyepiece tube	Trinocular (inclined 30°)
Condenser	Dark Field	Dry type
Condenser	Dark Field	Immersion type
Filter	Green, Yellow
Phase Contrast Unit	Eyepiece	Centering Telescope
	Objective	Phase contrast plan achromatic 10X/0.25 PHP
		Phase contrast plan achromatic 20X/0.40 PHP(Spring)
		Phase contrast plan achromatic 40X/0.65 PHP(Spring)
		Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
	(PH-Ⅰ) Turnplate phase contrast condenser
	(PH-Ⅱ) Turnplate phase contrast condenser
	Flashboard phase contrast condenser
	Pull board phase contrast condenser
Infinity optical system	Eyepiece tube	Binocular(inclined 30°)
	Eyepiece tube	Trinocular(inclined 30°)
	Eyepiece	Centering telescope
	Objectives	Infinity Plan Achromatic 4X/0.10
		Infinity Plan Achromatic 10X/0.25
		Infinity Plan Achromatic 20X/0.40
		Infinity Plan Achromatic 40X/0.65(S)
		Infinity Plan Achromatic 100X/1.25(S,Oil)
		Infinity Phase contrast plan achromatic 10X/0.25 PHP
		Infinity Phase contrast plan achromatic 20X/0.40 PHP
		Infinity Phase contrast plan achromatic 40X/0.65 PHP(Spring)
		Infinity Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
CCD Adapter	0.4X
	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	DV-1 (with USB & video output)
	DV-2 With USB output
	DV-3 With video output
Photograph Unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD adapter
	PK adapter
Digital camera adapter	CANON Digital camera adapter (A610, A620, A630, A640)
Facility polarize	Polarizer	360° rotatable stage
Facility polarize	Analyzer
