BL-180T

BL-180T 1000X Ergonomic Design Biological Microscope with Hand Shank

40X~1000X, Streamline figure, tension adjustable and limit stopper

Core Features

Adopted excellent optical system, equipped with excellent optical performance
The notions of design streamline figure and pastel color makes the microscope has more beautiful appearance
It achieves the notion of design of ergonomics, so it can provide the more comfortable operation and more operational room.
The appropriate design can make it update of increasing correlative accessories, for instance, simple polarized system and phase contrast observation
Base on the human design, the microscope has the hand shank in the back of it, because of the design, you can easily take up the microscope and move it

Configurations

WF10X(Φ22mm)

PL 4X/10X/40X/100X

180mm x 150mm

75mm x 50mm

3W LED

Request Quotation Email Phone Back to Products

BL-180T Biological Microscope is equipped with excellent infinity plan achromatic objectives and wide field eyepieces. The ideal ergonomic design is adopted, such as low-lying focusing knobs, backward nosepiece and integrated handle, so that operate the instruments easier and have wider space, especially moving the instruments is better safety. They can be used for biology, medical treatment, teaching demonstration and scientific research.

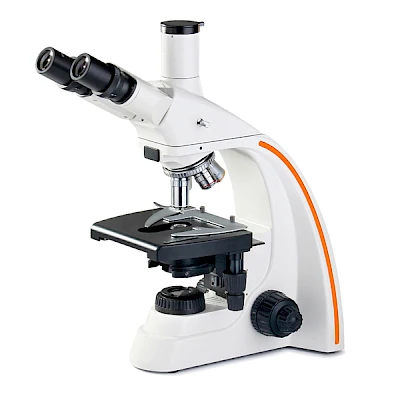

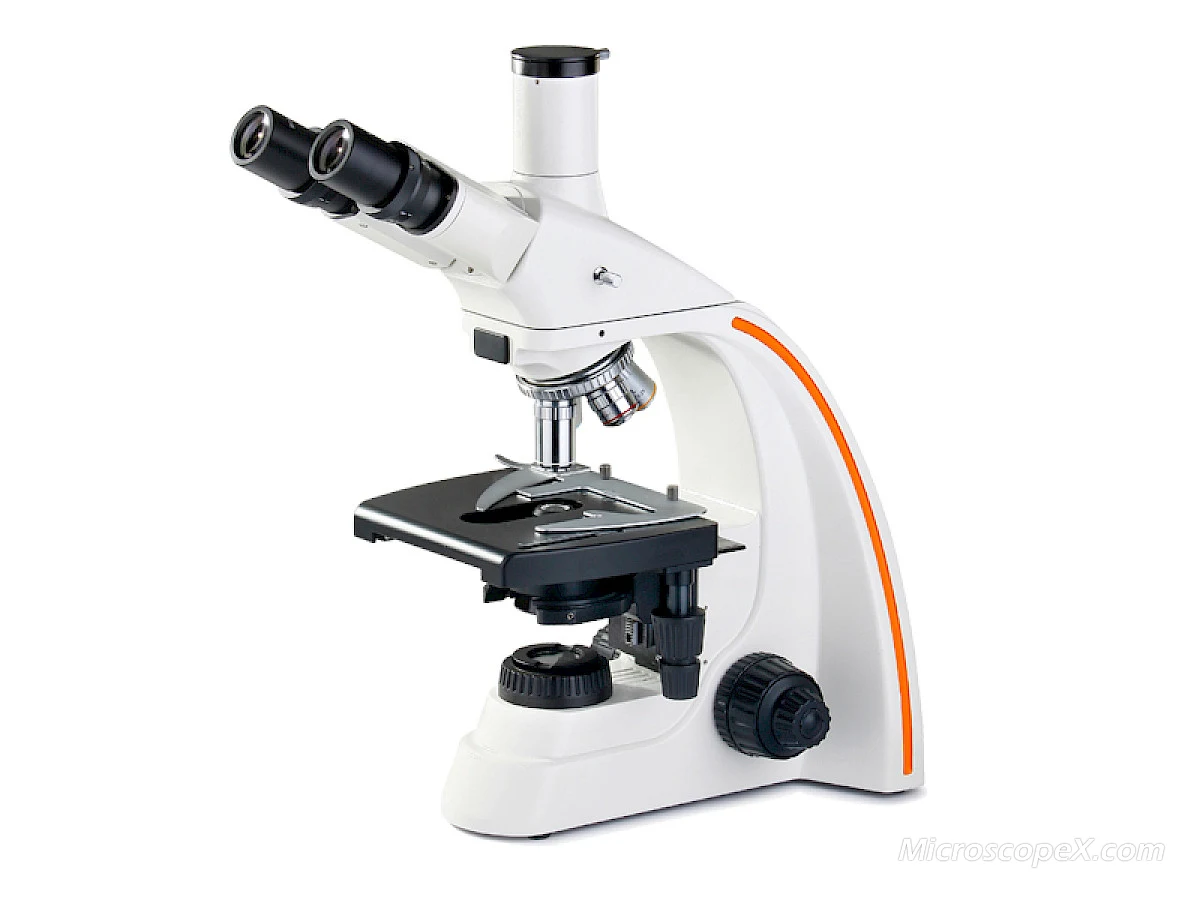

BL-180T

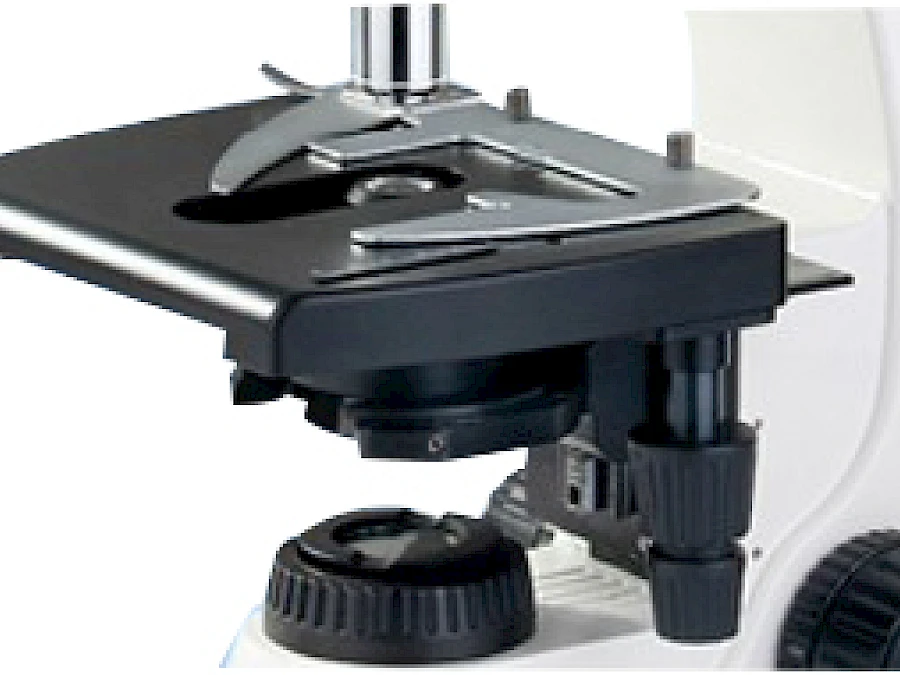

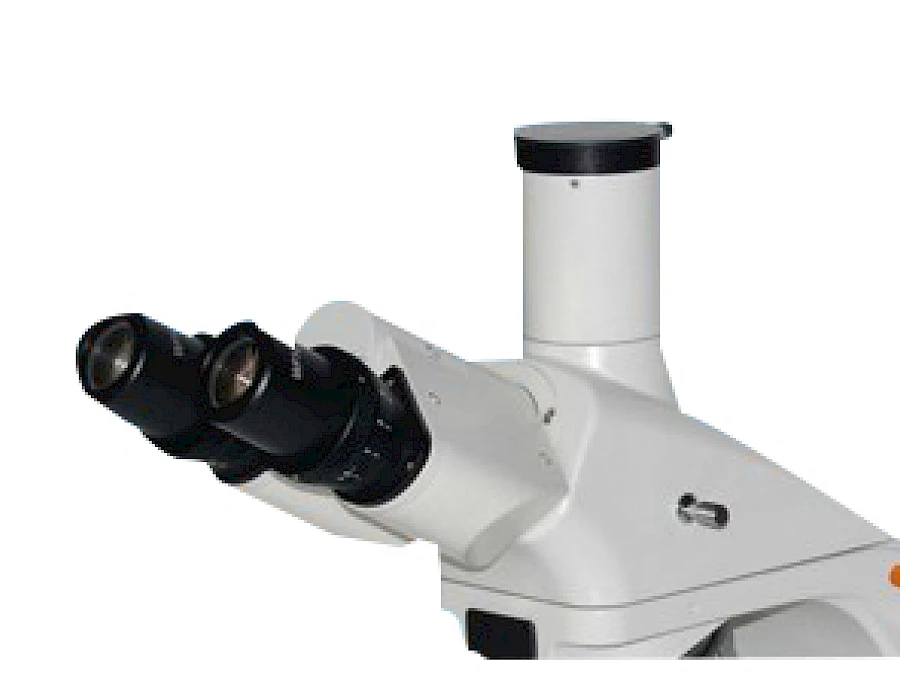

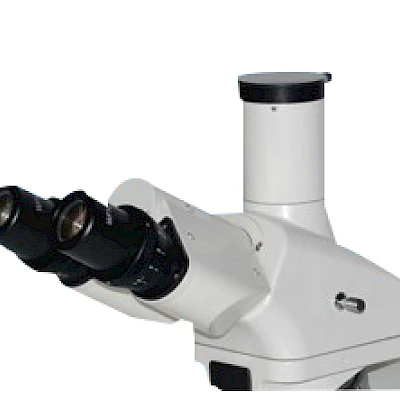

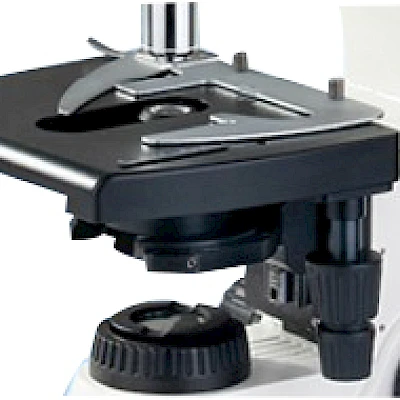

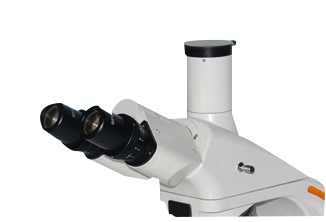

Head & Stage of BL-180T

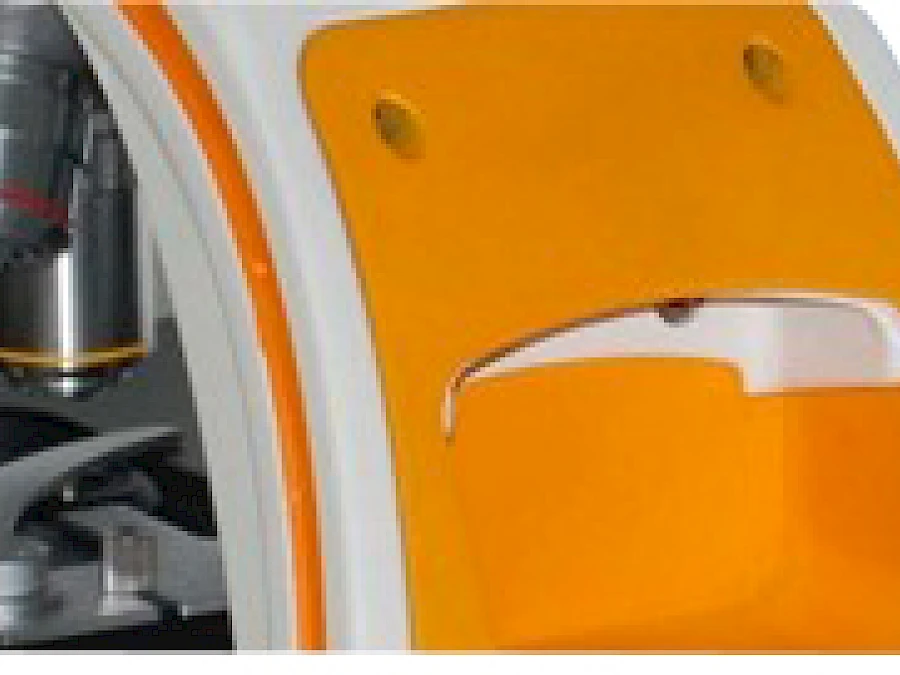

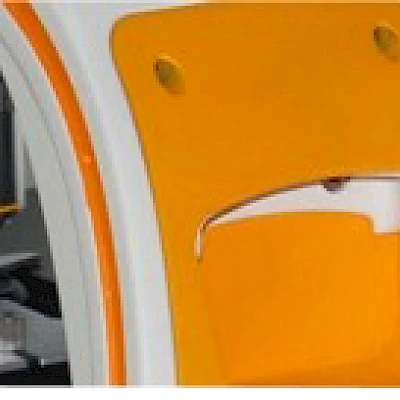

Hand Shank of BL-180T

Digital Camera Photo

Phase Observe

Dark Type Observe

Polarized Observe

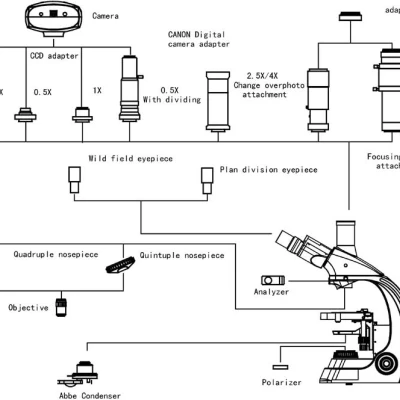

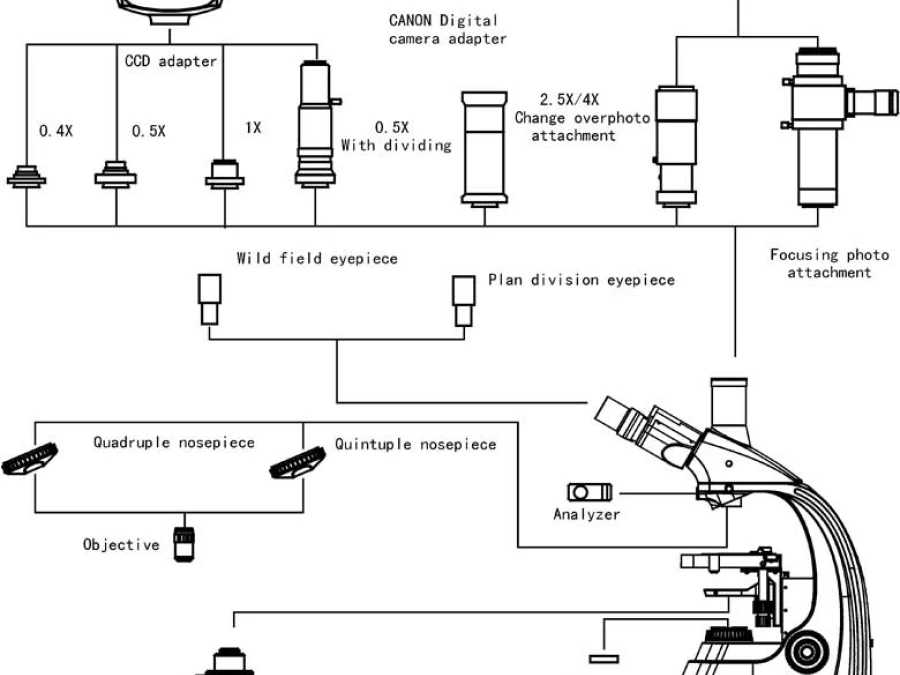

Diagram of BL-180T

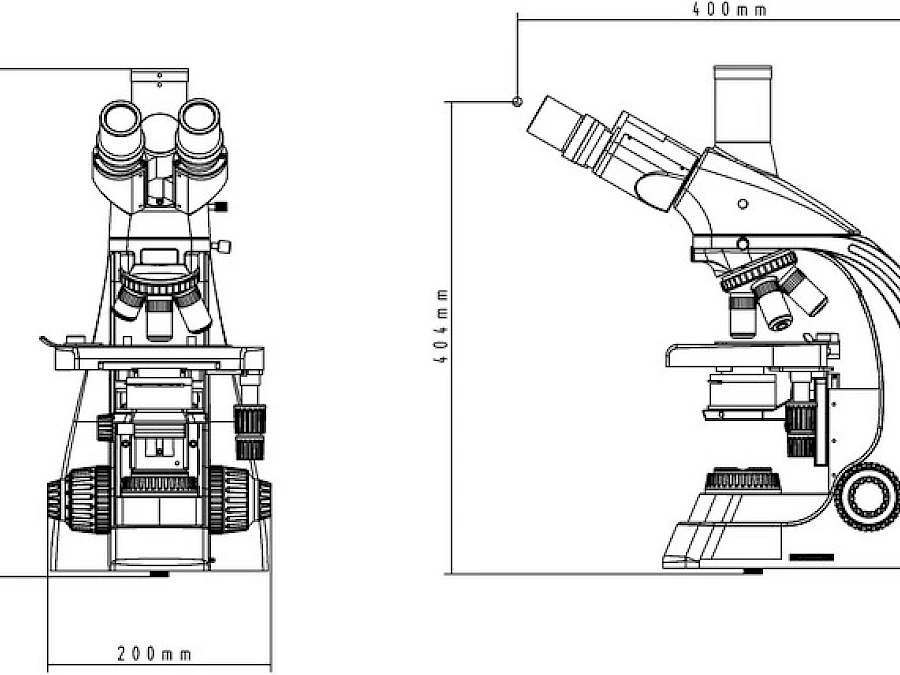

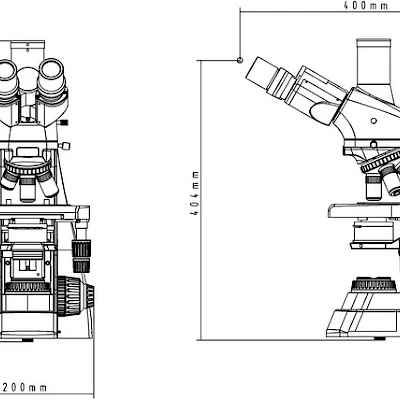

Dimension of BL-180T

Specification for BL-180T
Eyepiece	WF10X(Φ22mm)
Objective	Infinity plan achromatic objective
	PL 4X/0.10
	PL 10X/0.25
	PL 40X/0.65
	PL 100X/1.25
Eyepiece tube	Trinocular, inclined 30°
Focus System	Coaxial coarse/fine focusing, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm
Nosepiece	Quadruple (Backward ball bearing inner locating)
Stage	Double Layer Mechanical Stage (Size: 180mm x 150mm, Move range: 75mm x 50mm)
Transmitted Illumination System	ABBE Condenser N.A. 1.25 Rack & pinion adjustable
	Blue filter and Ground glass
	3W LED, Brightness adjustable

Accessories for BL-180T
Eyepiece	Dividing eyepiece (field number:Φ22mm) 0.10mm/Div
Objective	Infinity plan achromatic objective
	PL 20X/0.40(Work distance)：8.8 mm
	PL 60X/0.85(Work distance)：0.25mm
Filter	Green, Yellow
Phase Contrast Unit	Eyepiece	Centering Telescope
	Objective	Infinity phase contrast plan achromatic 10X/0.25 PHP
		Infinity phase contrast plan achromatic 20X/0.40 PHP
		Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
		Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
	Sliding phase contrast
CCD Adapter	0.4X
	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	DV-130/200/300/500/900 USB output
Camera	DV-1A/DV-1B Video output
Digital camera adapter	CANON(EF) NIKON(F)
Facility polarize	Polarizer		360° rotatable stage
Facility polarize	Analyzer		Sliding type
Illumination system	6V 30W Halogen lamp illumination
