BL-182 & BL-182T

BL-182 & BL-182T School and Student Biological Microscope with Infinite Optical System

Professional Laboratory Scientific Research, Binocular / Trinocular

Core Features

Wide-field eyepiece, super high bright illuminator, superior optical system components make crisp and sharp images
Built-in nosepiece and high-quality objectives for easy and convenient operation
Wide and large mechanical stage and double specimen clips
High-precision focusing system and reasonable humanized design for relax operation
Pre-open type convex lens for quicker and easier light bulb change

Configurations

Halogen Bulb

12V/20W, AC85V-230V

WF10X/22mm

Kohler illuminator

Request Quotation Email Phone Back to Products

BL-182 & BL-182T have the characters of high efficiency, flexibility and stability. They are specially developed for various application fields. It is widely used, from daily work to scientific research, in laboratory, university and hospital. These microscopes are the ideal instruments for individuals, hospital and scientific research organization because of its super high cost-efficient and reasonable humanized design. They also become the first choice of individual and organization.

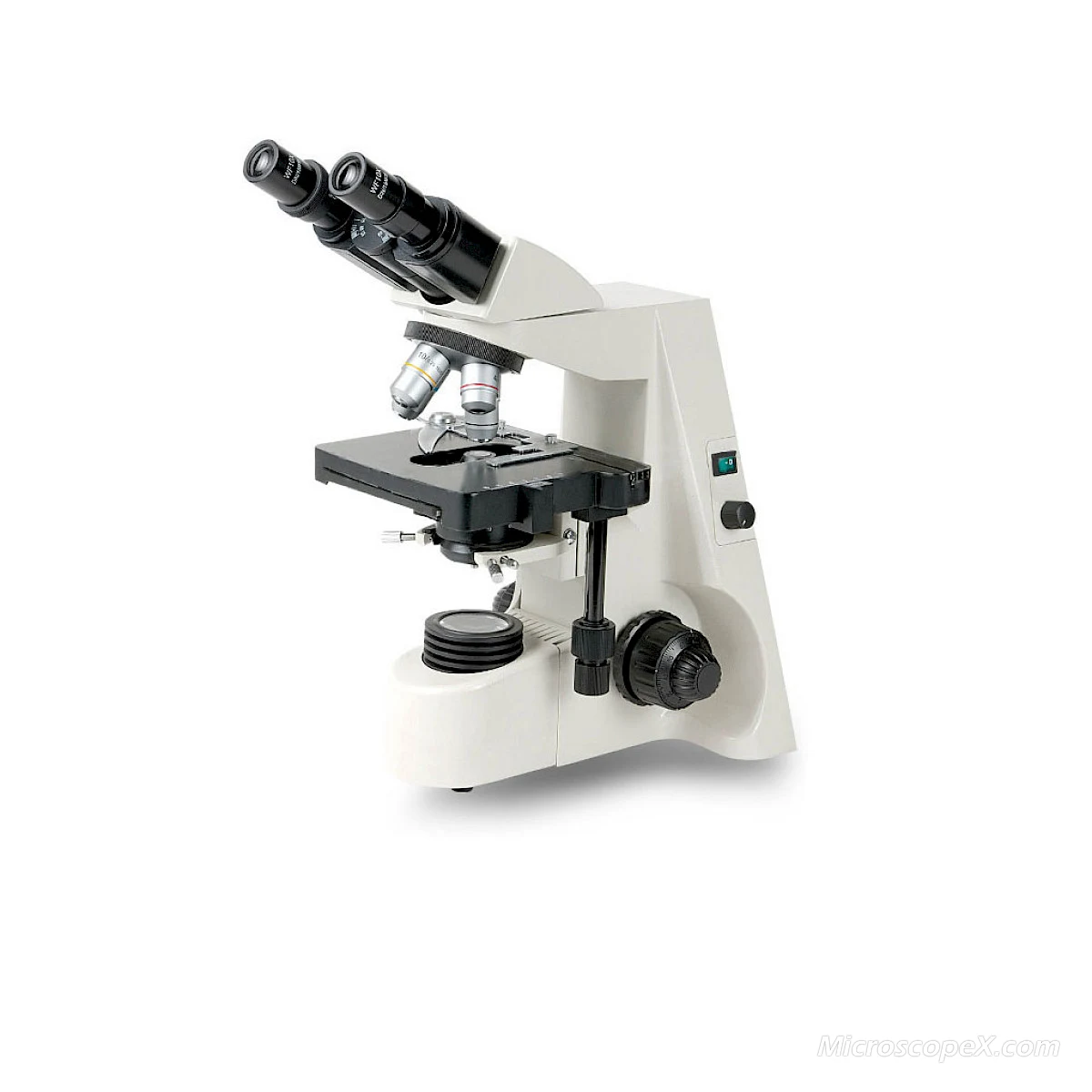

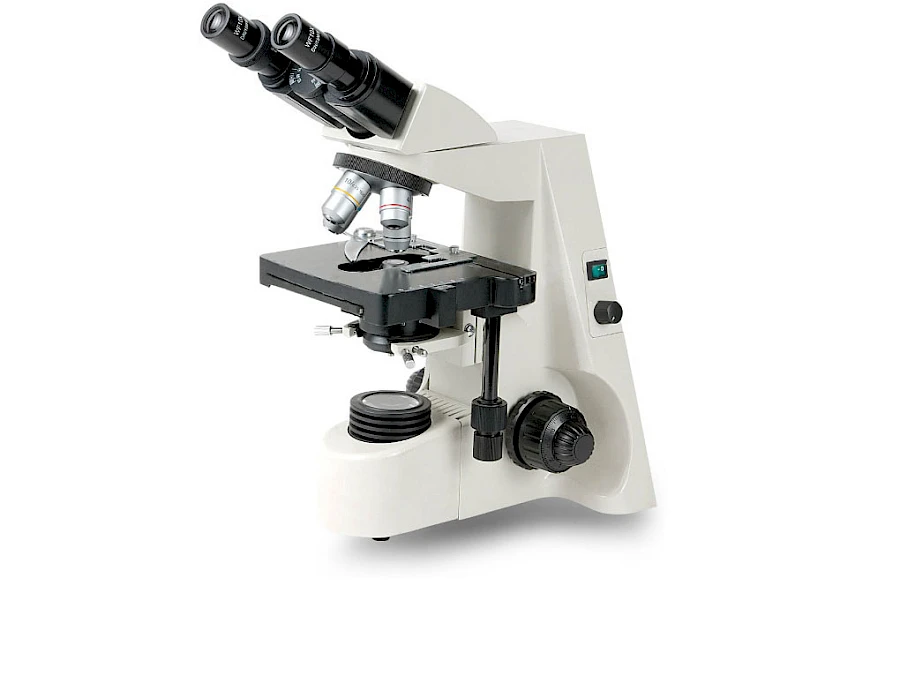

BL-182

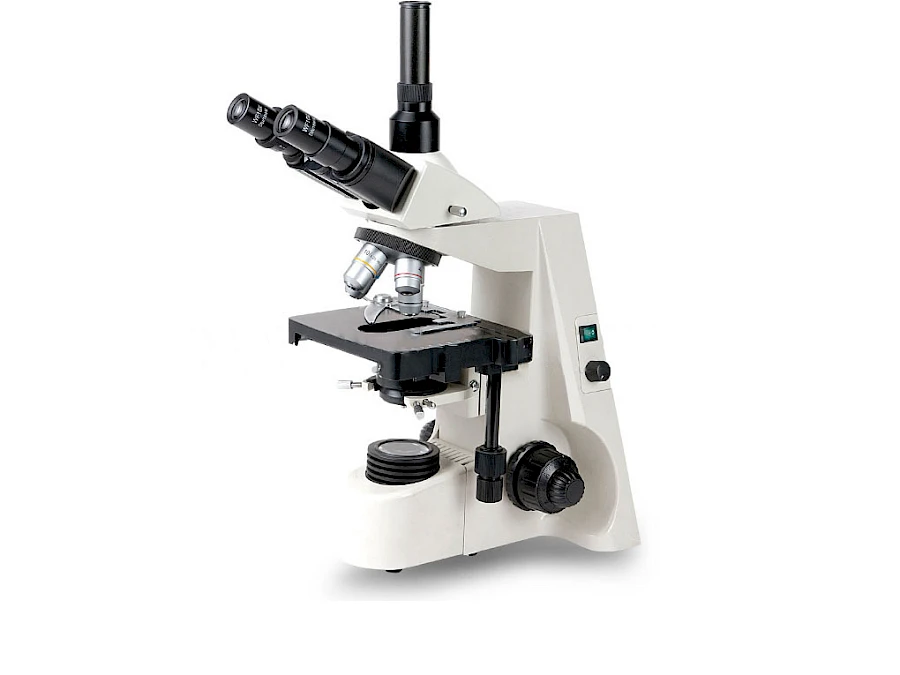

BL-182T

Item	Head
BL-182	Binocular, inclined 30°
BL-182T	Trinocular, inclined 30°

Specification for BL-182 & BL-182T
Interpupillary Distance	55mm-75mm
Eyepiece	WF10X/22mm
Objective	Infinite Objective 4X，10X，40X(s)，100X(s)Oil
Stage	Double Mechanical Layer Stage
	Size: 180mm×150mm
	Moving Range:75mm×50mm
Focusing	Coarse and fine coaxial focusing, fine focusing scale value: 0.002mm
Condensor	N.A.1.25 Abbe Condensor with adjustable iris diaphragm and color filter
Convex Lens	High bright Kohler illuminator
Illuminator	Halogen Bulb 12V/20W, AC85V-230V
Illuminator	Adjustable Brightness

Accessories for BL-182 & BL-182T
Eyepiece	WF16X、WF20X、P16X
Electron Eyepiece	1.3MP, 3MP CMOS
Condensor	N.A.1.25 Swing Abbe Condensor with adjustable iris diaphragm and color filter
Objective	PL Objective 4X、10X 、20X、40X(s)、60X(s)、100X(s)Oil
Objective	Infinite PL Objective 4X、10X 、20X 、40X(s)、60X(s)、100X(s)Oil
Photography & CCD Device
Simple Polarizing Device
