BL-20A

BL-20A 40X~1600X Monocular Biological School Student Microscope with LED Illumination

40X~1600X Mag., 3W LED Lamp with adjustable brightness, Primary & Middle Student

Core Features

40X~1600X Total Magnification
ABBE Condenser with iris diaphragm
3W LED Lamp with adjustable brightness
Double Layer Mechanical Stage (Size: 120mm x 120mm)

Configurations

Eyepiece

WF10X 18mm

Mechanical Stage

120mm x 120mm

Monocular

3W LED lamp

Request Quotation Email Phone Back to Products

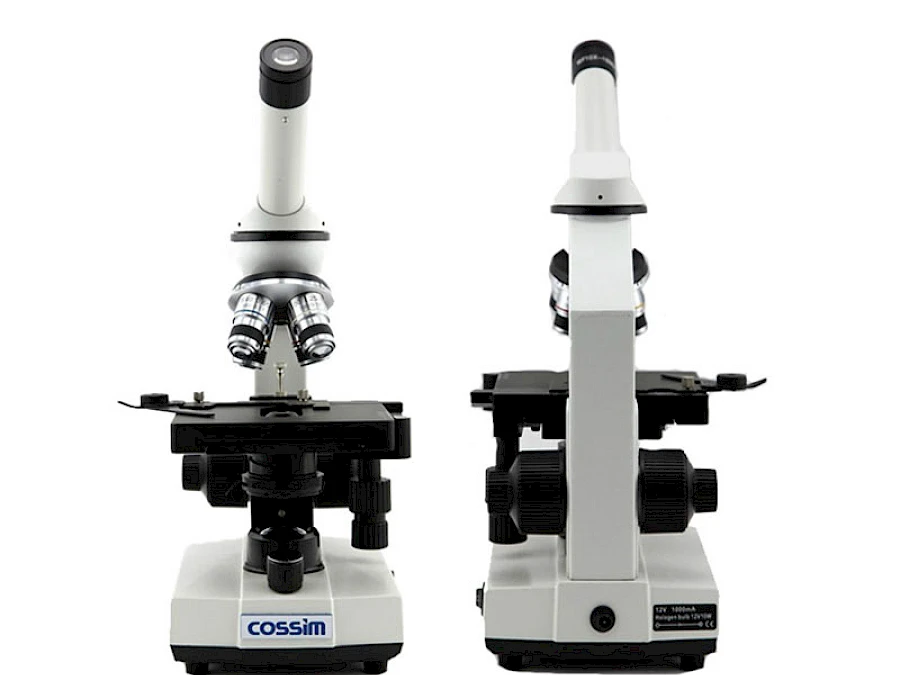

BL-20A Monocular Biological Microscope equips with mechanical moving stage and light source, which suitable for different working environment. The LED Light Source’s brightness is adjustable. Its humanized design is widely used in histology, biology, bacteriology, pathology, biochemistry and lab etc.

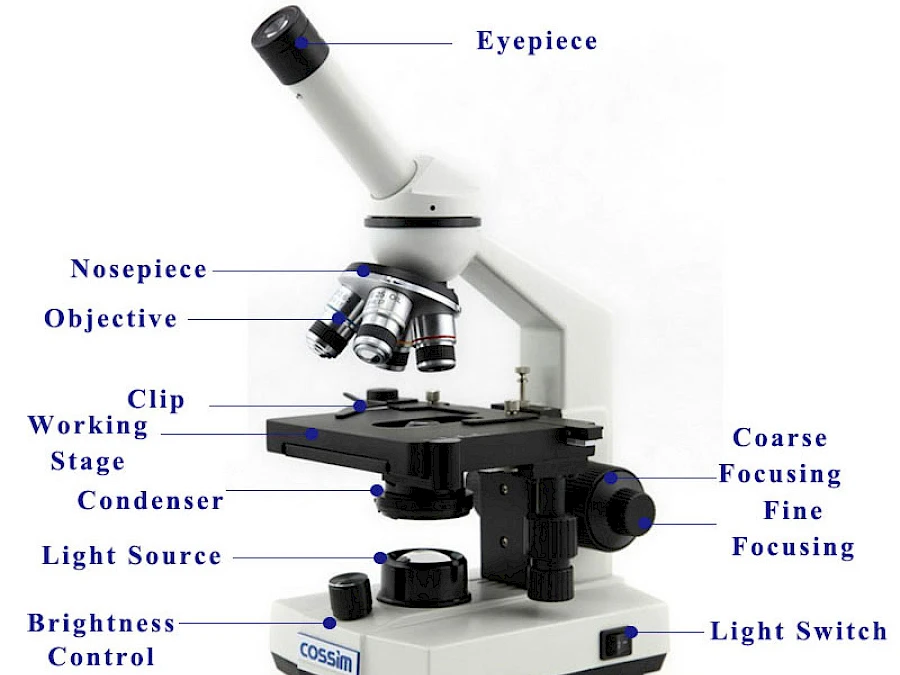

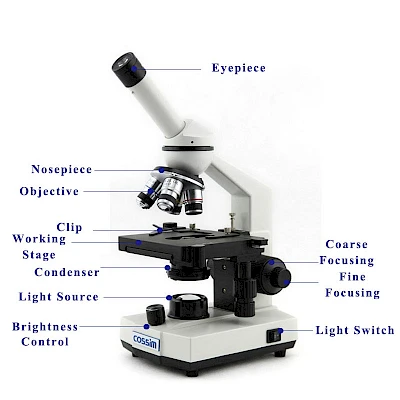

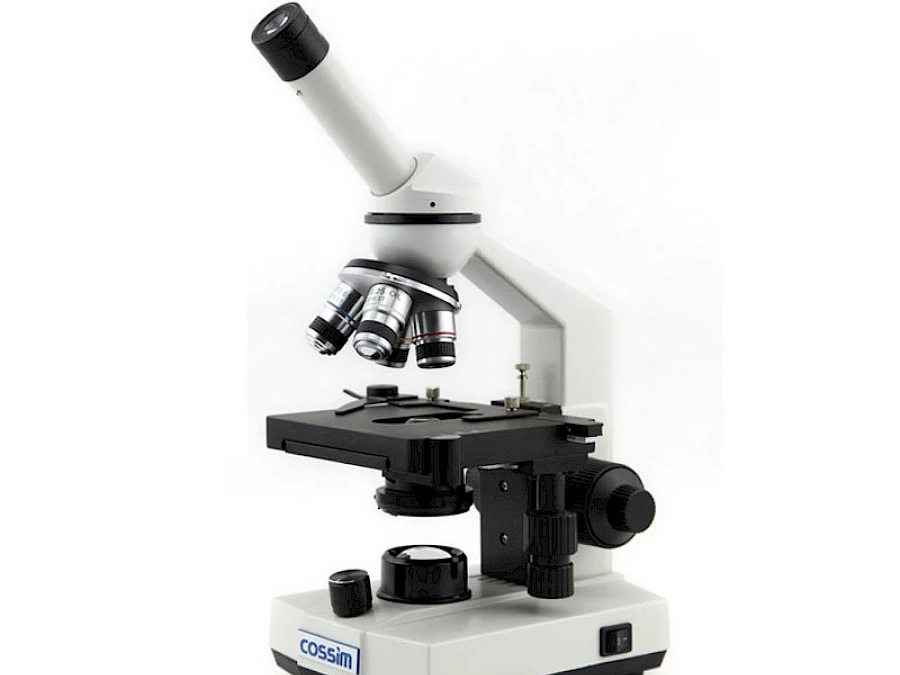

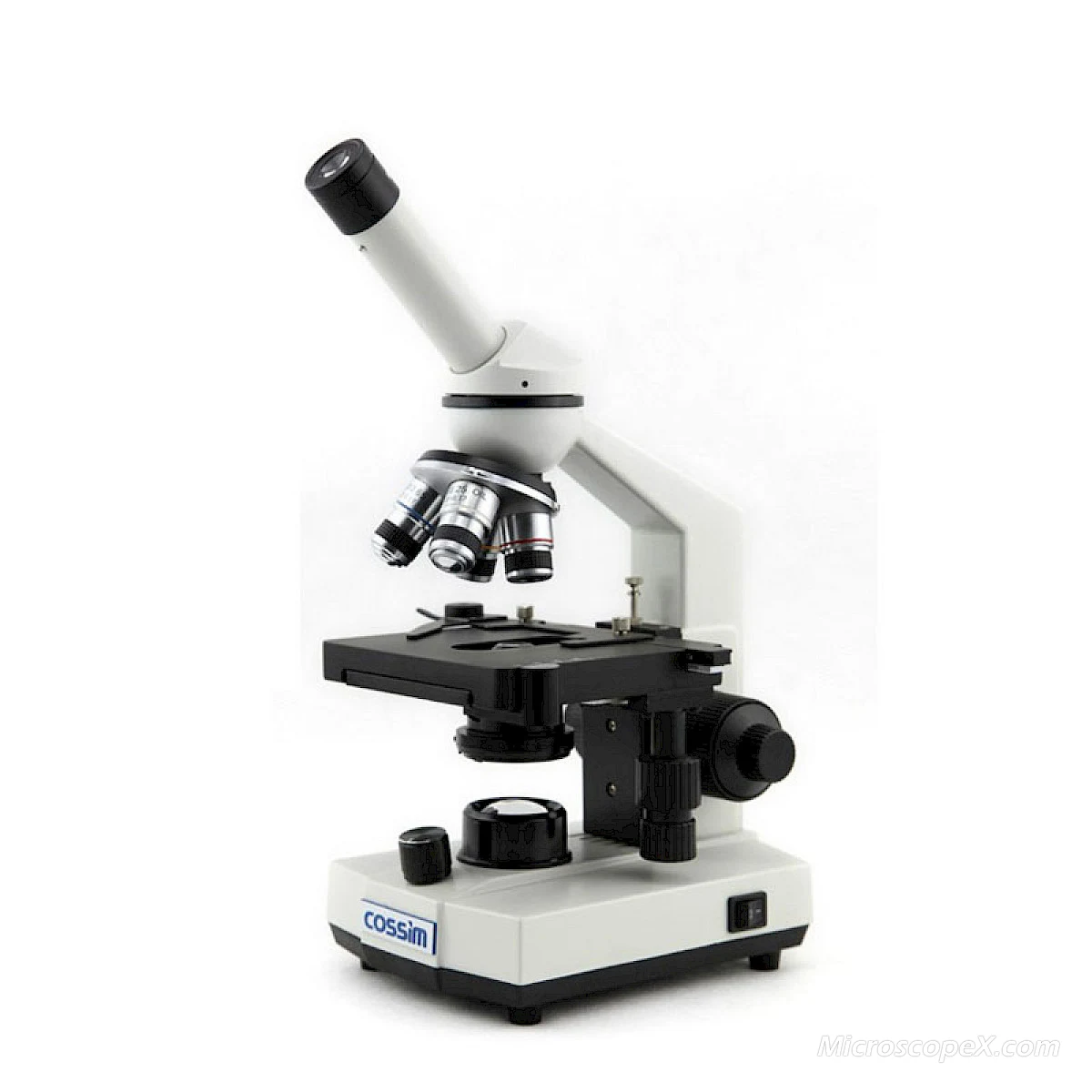

Structure of BL-20A Monocular Biological Microscope

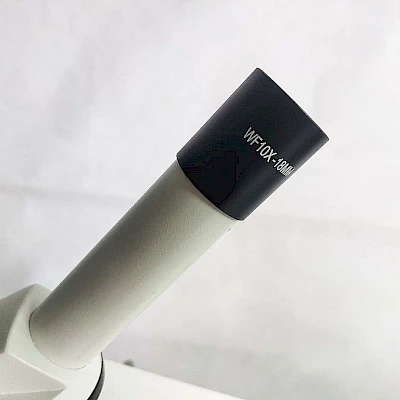

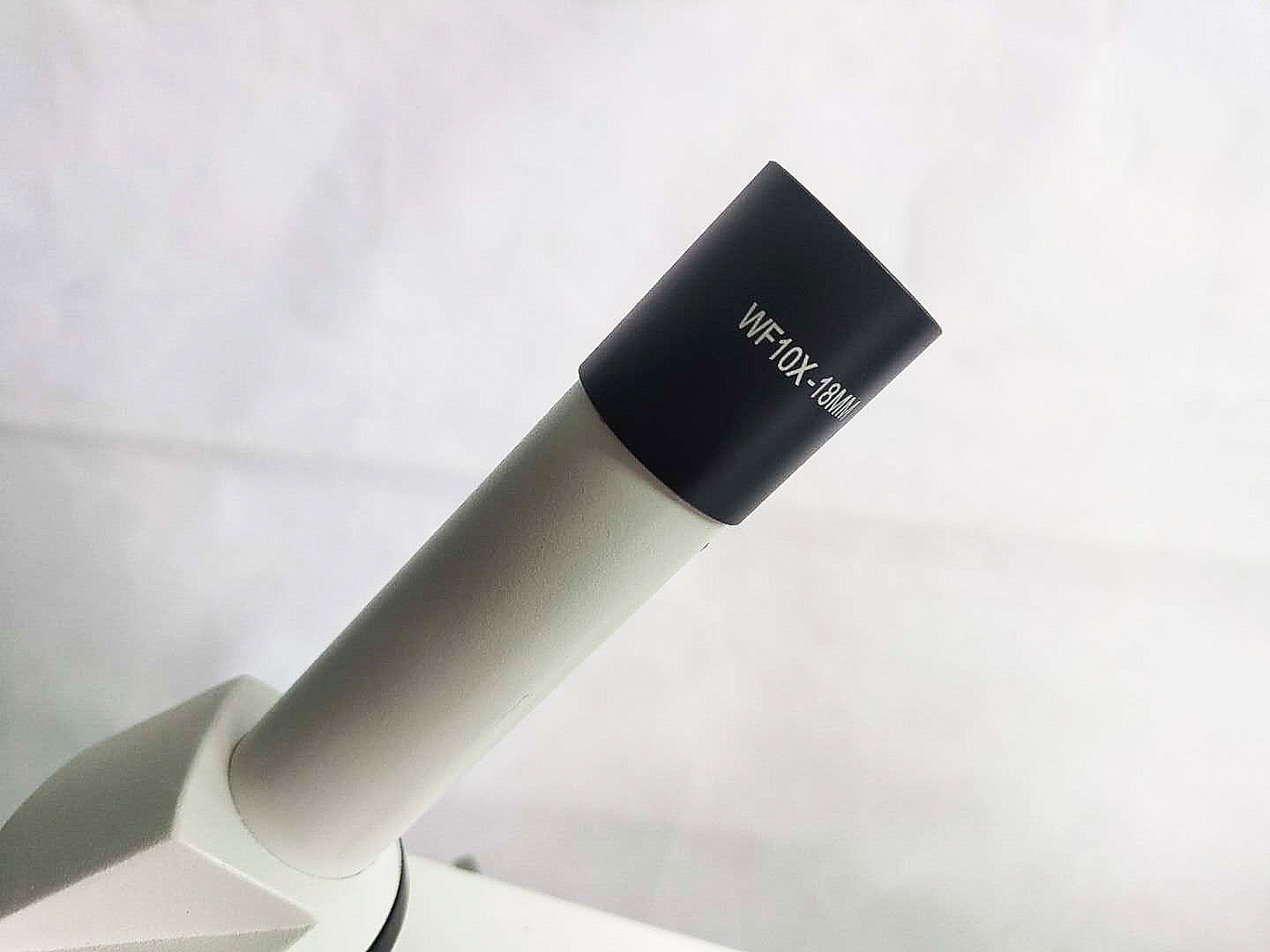

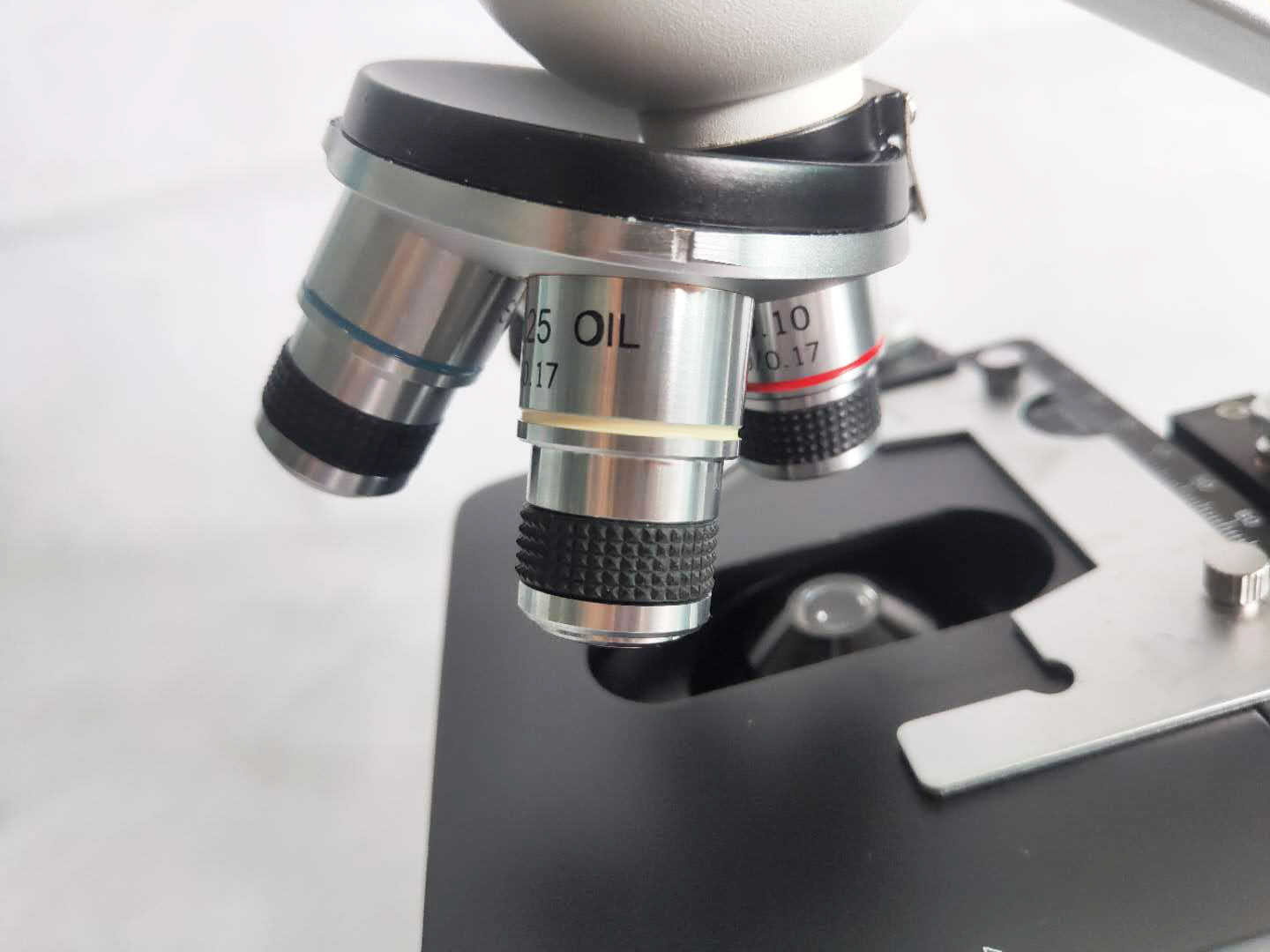

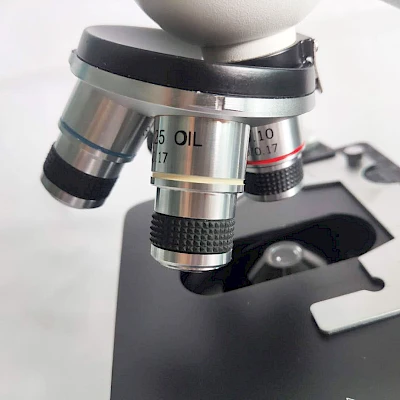

Eyepiece & Nosepiece & Objectives of BL-20A

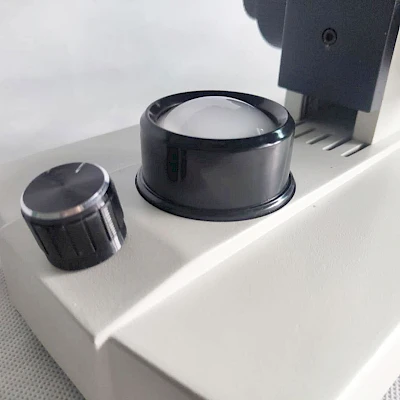

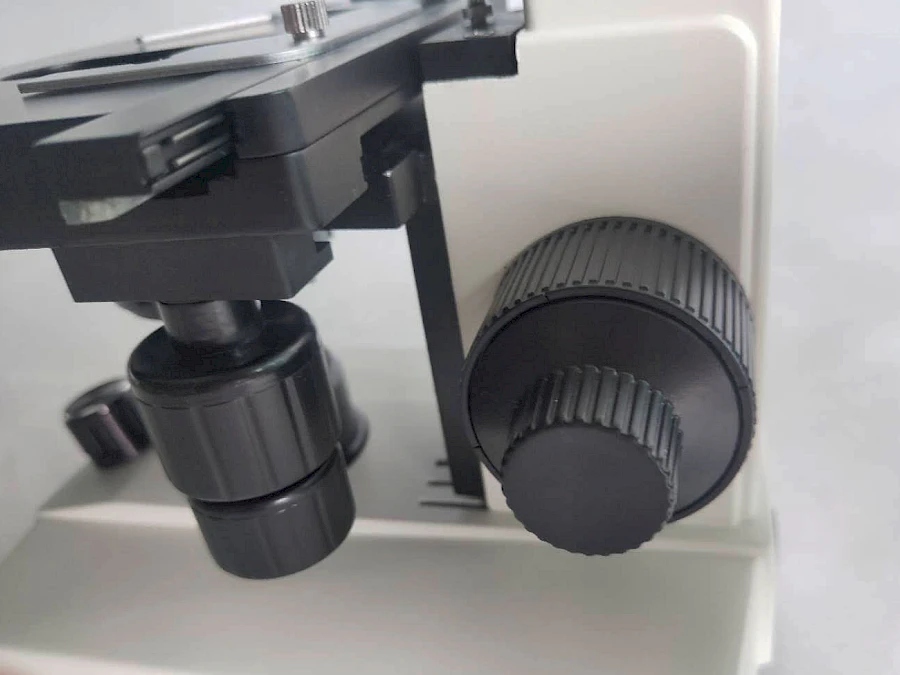

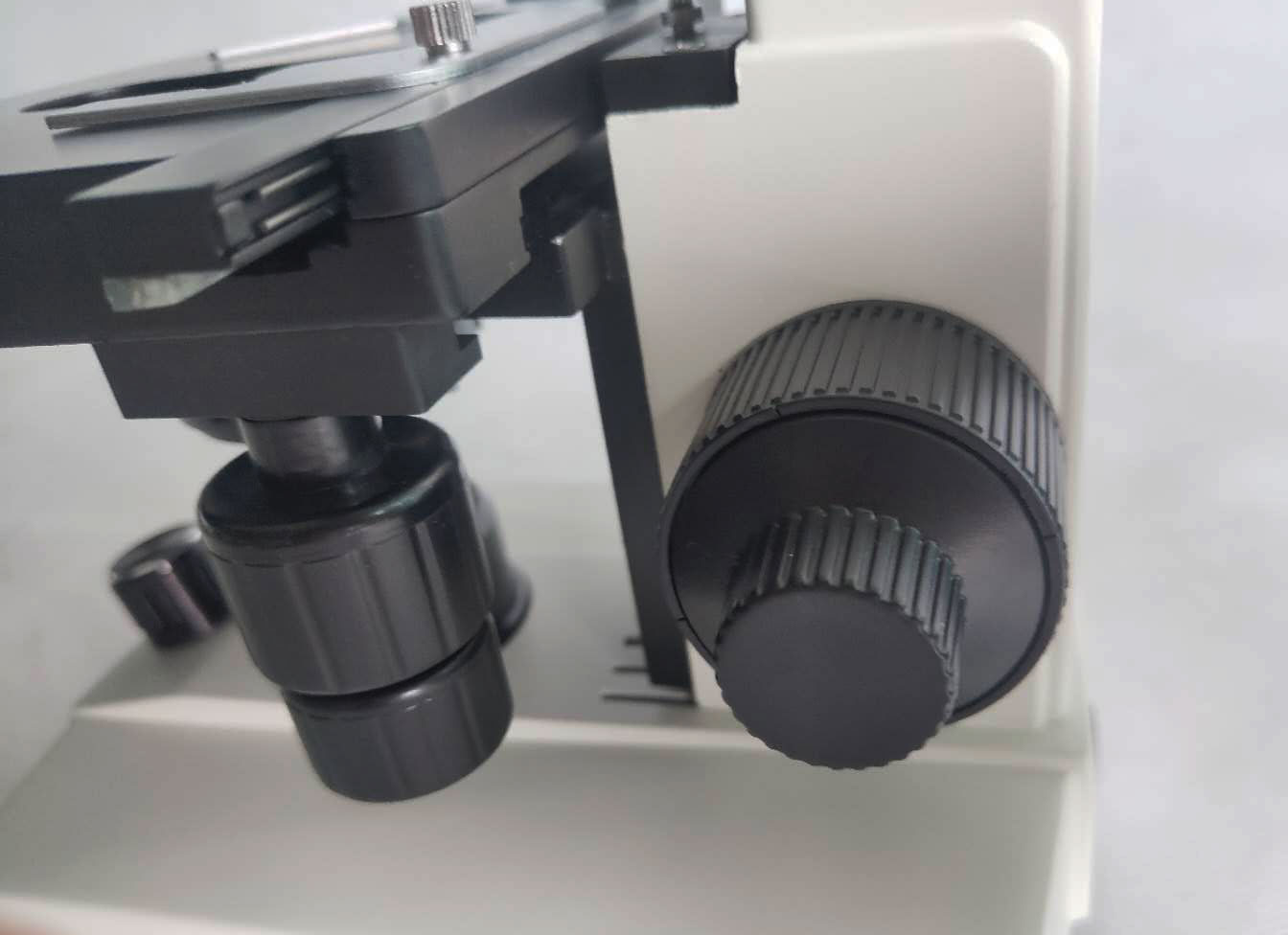

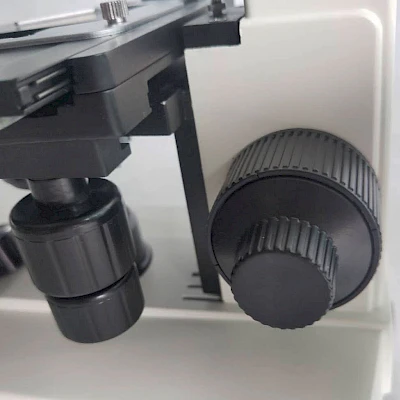

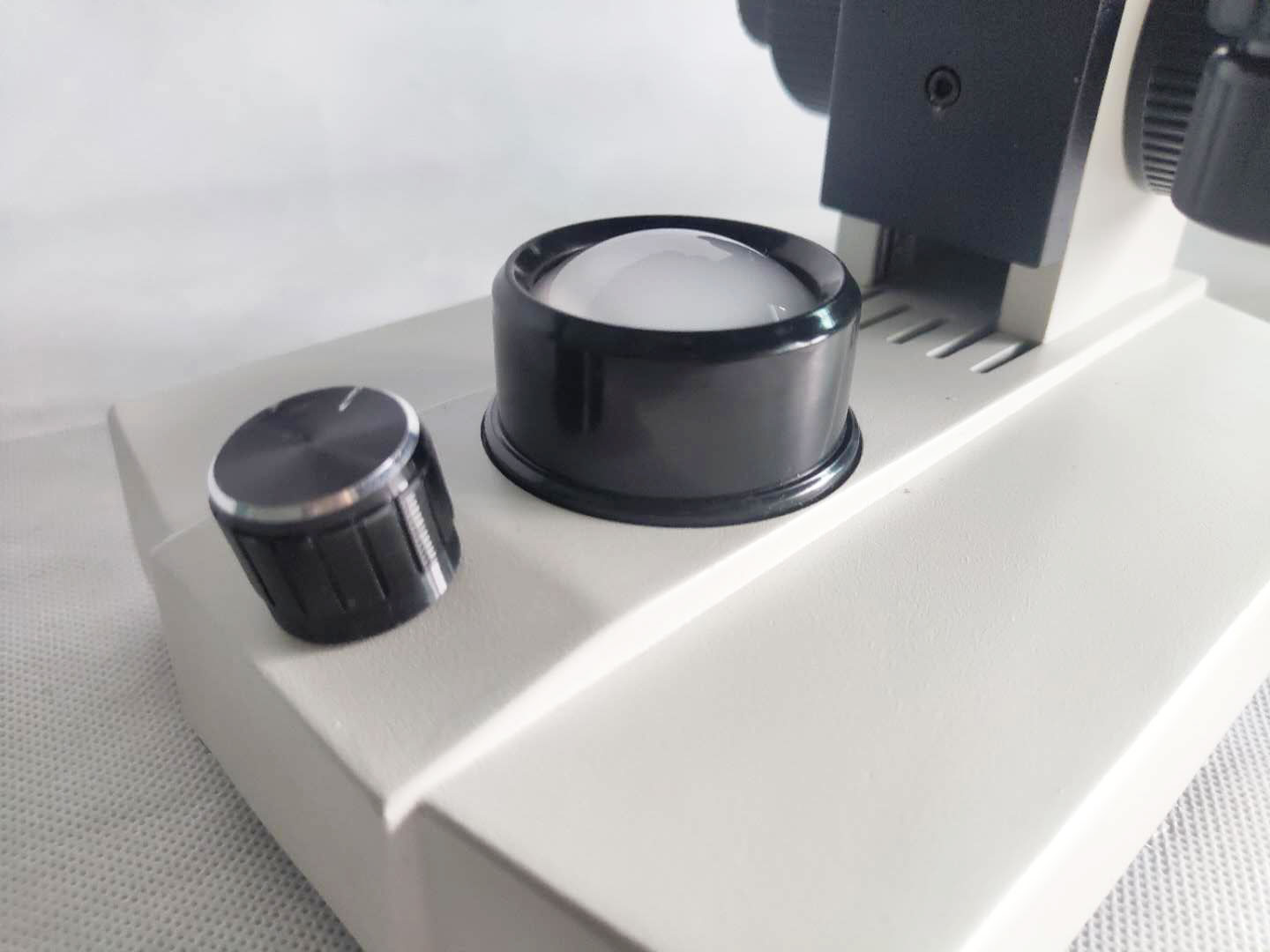

Focus Knob & Light Source of BL-20A

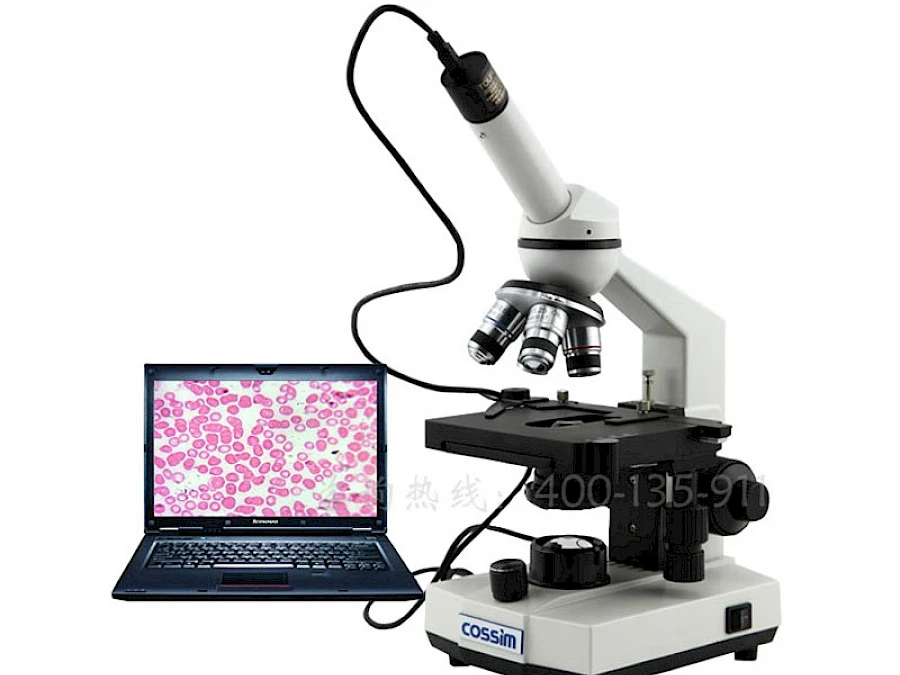

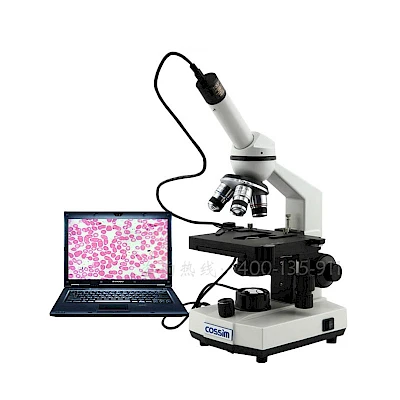

BL-20A with its Connected Laptop

Parameters for BL-20A
Eyepiece	WF10X 18mm
Eyepiece Tube	Monocular, 160mm
Achromatic Objective	4X/0.10; 10X/0.25; 40X/0.65; 100X/1.25(oil)
Total Mag.	40X~1000X
Focus System	Coaxial coarse/fine focusing with up stop
Stage	Double Layer Mechanical Stage (Size: 120mm x 120mm)
Condenser	ABBE Condenser with diaphragm
Light Source	3W LED lamp with brightness control
Camera	3MP or 5MP Digital Microscope Camera
Weight	NET: 2.5kg; Gross: 3kg
Dimension	Instrument: 12 x 17 x 28(cm); Package: 22 x 16x 35(cm)

Standard Packing List for BL-20A
No.	Name	Quantity
A	Microscope Main Body	1
B	Monocular Eyepiece (WF10X)	1
C	Objectives (4X; 10X; 40X; 100X(oil))	1 each
D	Condenser	1
E	Clip	1
