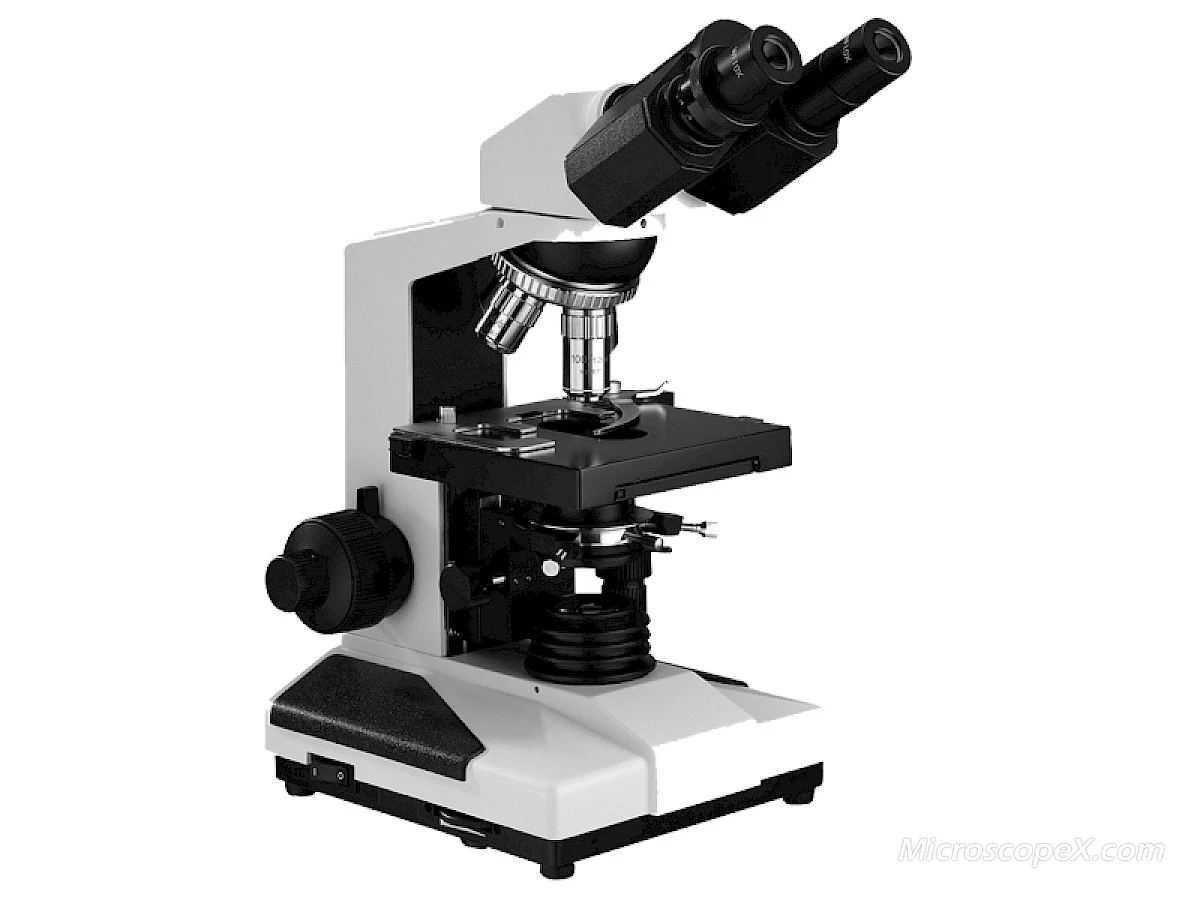

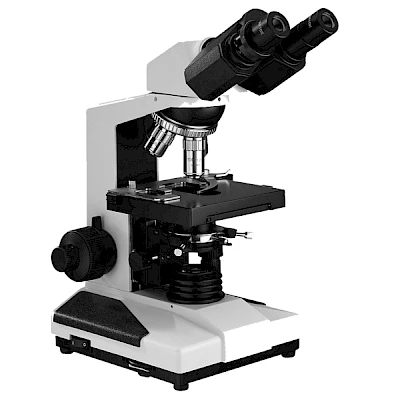

BL-210 Series

BL-210 Series Coaxial Coarse / Fine Focus System Biological Microscope

Monocular / Binocular / Trinocular / Dual Viewing Tube, Research & Demonstration

Core Features

With wide field eyepieces and plan achromatic objectives, the field of view is wide and clear
Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm
6V 20W Halogen lamps with brightness control

Configurations

Stage

135mm x 125mm

WF10X(Φ18mm)

Achromatic 4X/10X/40X/100X

Quadruple / Quintuple

ABBE Condenser

6V 20W Halogen

Request Quotation Email Phone Back to Products

BL-210 Series Biological microscopes are equipped with achromatic objectives and wide field eyepieces. They have clear image, wide field, etc. They can be used for biology, medicine, and agriculture and industry area widely. They are the ideal instruments in medical treatment,teaching demonstration and scientific research.

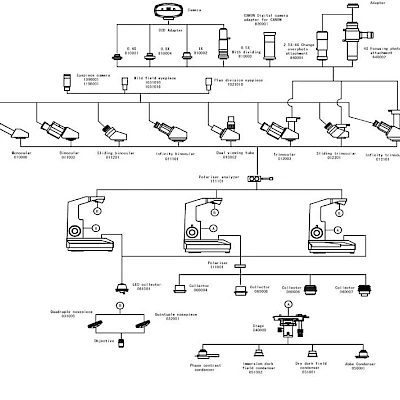

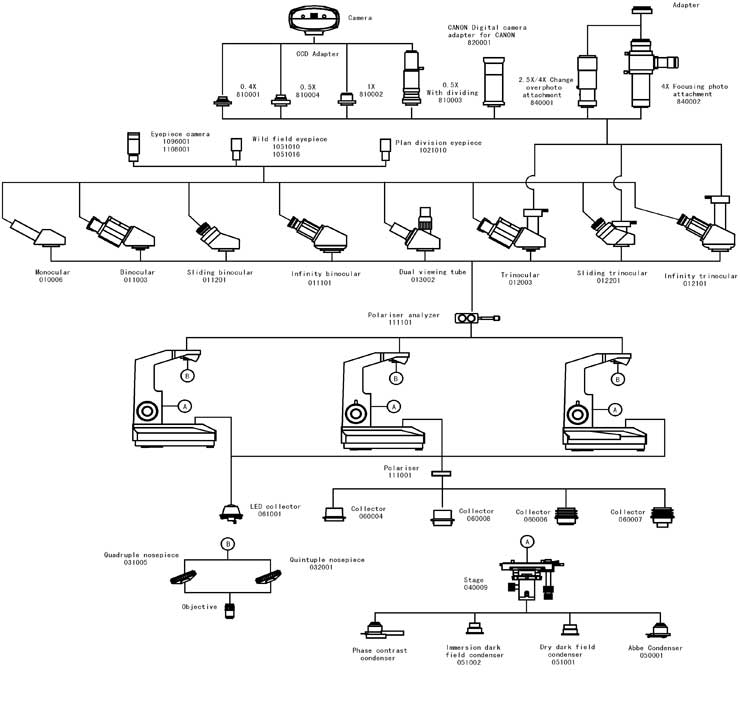

Diagram of BL-210 Series

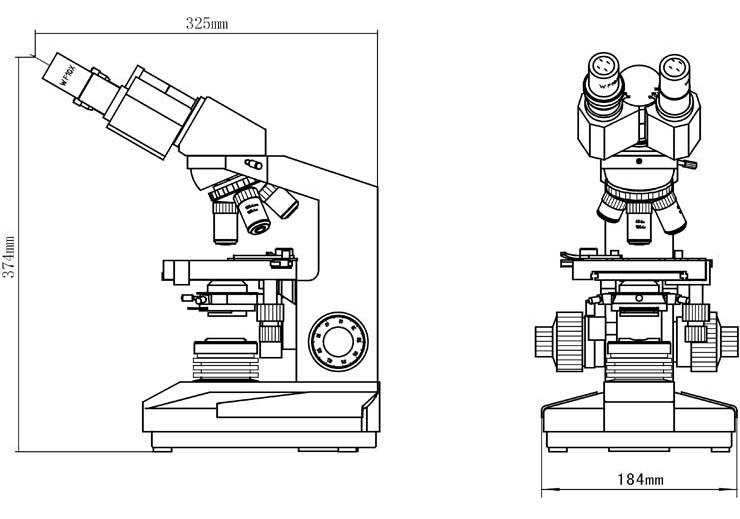

Dimension of BL-210 Series

Item	Focus System
BL-210A	Coaxial coarse/fine focus system. Minimum division of fine focusing: 2μm
BL-210B	Coaxial coarse/fine focus minimum division of fine focusing: 2μm, with tensional adjustable and up stop, base bearing black plastic cap
BL-210C	Coaxial coarse/fine focus with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

Specification for BL-210 Series
Eyepiece	WF10X(Φ18mm)
Objective	Achromatic 4X/0.10
	Achromatic 10X/0.25
	Achromatic 40X/0.65(S)
	Achromatic 100X/1.25(S,Oil)
Eyepiece Tube	Binocular (inclined 30°)
Nosepiece	Quadruple (Backward ball bearing inner locating)
Stage	Double Layer Mechanical Stage (Size: 135mm x 125mm, Move range: 75mm x 35mm)
Condenser	ABBE Condenser N.A. 1.25 Rack & pinion adjustable
Filter	Blue, Frosted
Collector	For Halogen lamp
Light Source	6V 20W Halogen lamp with brightness control

Accessories for BL-210 Series
Eyepiece	WF 16X(Φ11mm)
Eyepiece	Dividing 10X(μ18mm), 0.1mm/Div
Objective	Semi-plan achromatic SP 4X/0.10
	Semi-plan achromatic SP 10X/0.25
	Semi-plan achromatic SP 20X/0.40
	Semi-plan achromatic SP 40X/0.65(Spring)
	Semi-plan achromatic SP 100X/1.25(Spring, oil)
Eyepiece tube	Monocular (Inclined 30˚)
	Binocular (Inclined 45˚)
	Trinocular, Sliding (Inclined 45˚)
	Trinocular (Inclined 30˚)
	Dual viewing tube (Inclined 30˚)
Nosepiece	Quintuple (Backward ball bearing inner locating)
Condenser	Dark Field	Dry type
Condenser	Dark Field	Immersion type
Filter	Green, Yellow
Phase Contrast Unit	Eyepiece	Centering Telescope
	Objective	Phase contrast achromatic 10X/0.25 PHP
		Phase contrast achromatic 20X/0.40 PHP(Spring)
		Phase contrast achromatic 40X/0.65 PHP(Spring)
		Phase contrast achromatic 100X/1.25 PHP(Spring, oil)
	(PH-Ⅰ) Turnplate phase contrast condenser
	(PH-Ⅱ) Turnplate phase contrast condenser
	Flashboard phase contrast condenser
	Pull board phase contrast condenser
Infinity optical system	Eyepiece tube	Binocular(inclined 30°)
	Eyepiece tube	Trinocular(inclined 30°)
	Eyepiece	Centering telescope
	Objectives	Infinity Semi-Plan Achromatic 4X/0.10
		Infinity Semi-Plan Achromatic 10X/0.25
		Infinity Semi-Plan Achromatic 40X/0.65(S)
		Infinity Semi-Plan Achromatic 100X/1.25(S,Oil)
		Infinity Phase contrast plan achromatic 10X/0.25 PHP
		Infinity Phase contrast plan achromatic 20X/0.40 PHP
		Infinity Phase contrast plan achromatic 40X/0.65 PHP(Spring)
		Infinity Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
CCD Adapter	0.4X
	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	DV-1 (with USB & video output)
	DV-2 With USB output
	DV-3 With video output
	Photography	USB Output
	Photography	VIDEO Output
Photograph Unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD adapter
	PK adapter
Digital camera adapter	CANON Digital camera adapter (A610, A620, A630, A640)
Facility polarize	Polarizer	360° rotatable stage
Facility polarize	Analyzer
Adapter(For LED illumination)	Input: 230V¡«50/60HZ Output: 9V 500mA
Adapter(For LED illumination)	Input: 110V¡«50/60HZ Output: 9V 500mA
