BL-3525 & BL-3525T

BL-3525 & BL-3525T 40X-1000X Humanized Design Biological Microscope with LED / Halogen illumination

Streamline Figure & Hand Shank, Demonstration & Research

Core Features

Adopted excellent optical system, equipped with excellent optical performance
The notions of design streamline figure and pastel color makes the microscope has more beautiful appearance
It achieves the notion of design of ergonomics, so it can provide the more comfortable operation and more operational room.
Built-in transmission mechanism can effectively prevent the operator from being hurt by the exposed transmission mechanism
Abbe Condenser N.A. 1.25 with rack & pinion adjustable, optional immersion and dry dark field condenser

Configurations

WF10X(Φ18mm)

4X/10X/40X/100X

ABBE Condenser

1W LED

AC 100~240V

Request Quotation Email Phone Back to Products

BL-3525T Biological Microscope is equipped with excellent optical system. It can provide superior optical performance and upgrade system. The ideal ergonomic design is adopted, the notions of design streamline figure and pastel color makes the microscope has more beautiful appearance, so it can provide the more comfortable operation and more operational room. It can be widely used for biology, medical treatment,, industry, agriculture etc. Obviously, BL-3525T is the ideal instrument for medical treatment, teaching demonstration and scientific research.

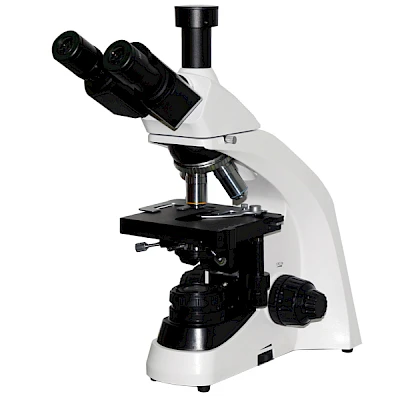

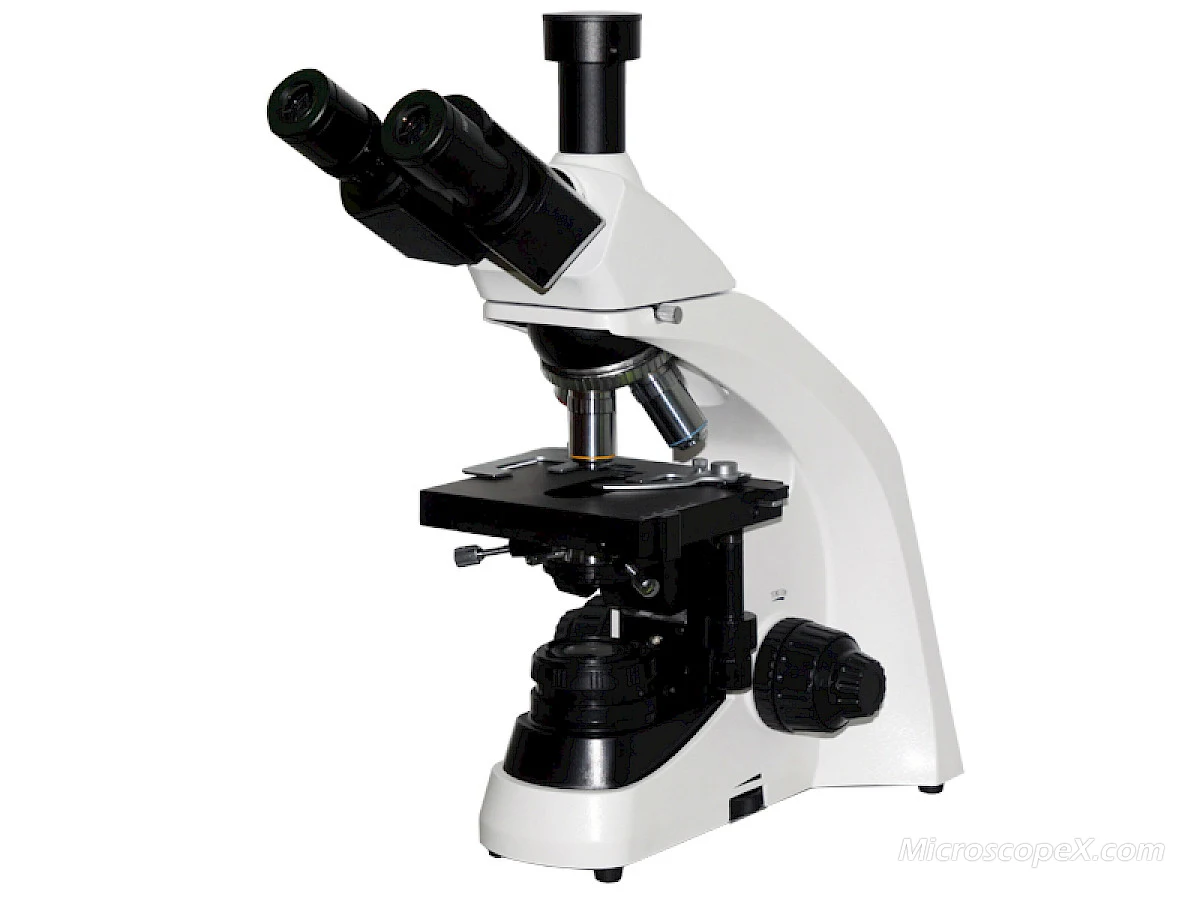

BL-3525T

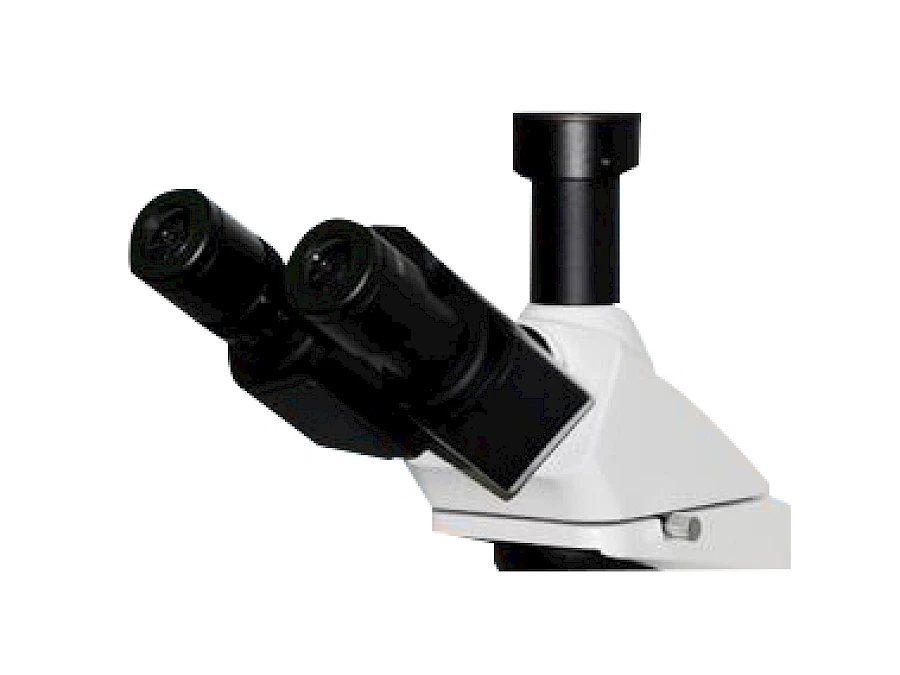

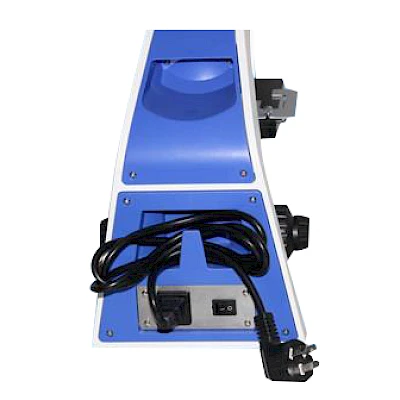

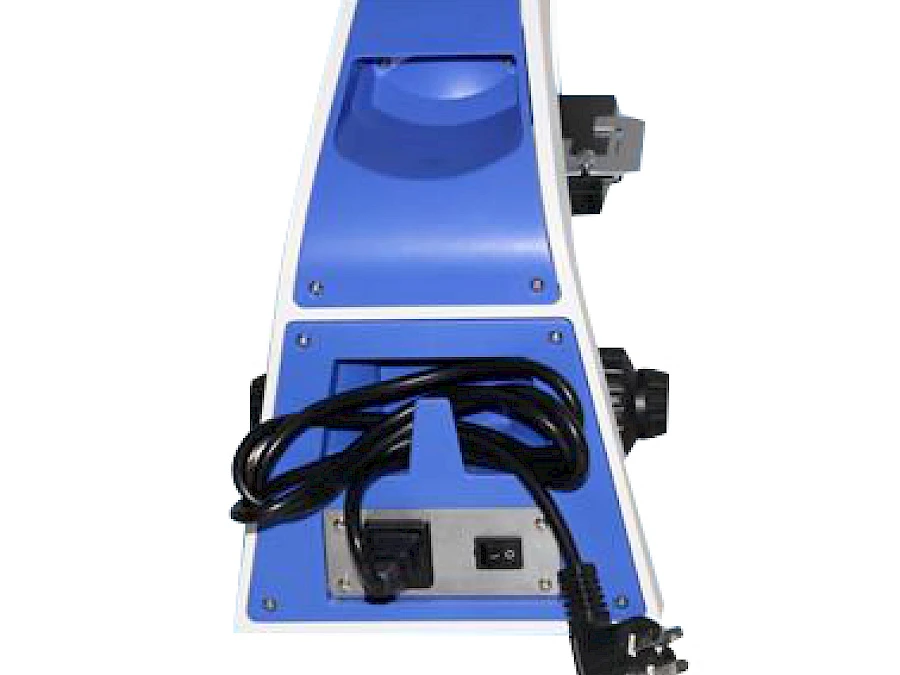

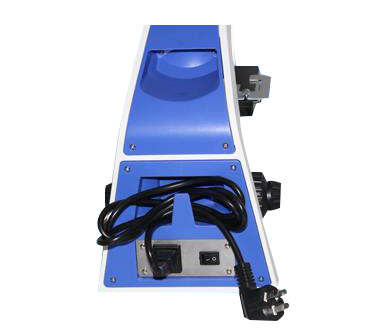

Head & Hand Shank of BL-3525T

Digital Camera Photo

Bright Field

Dark Field

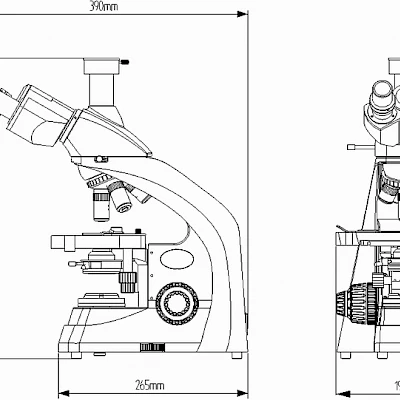

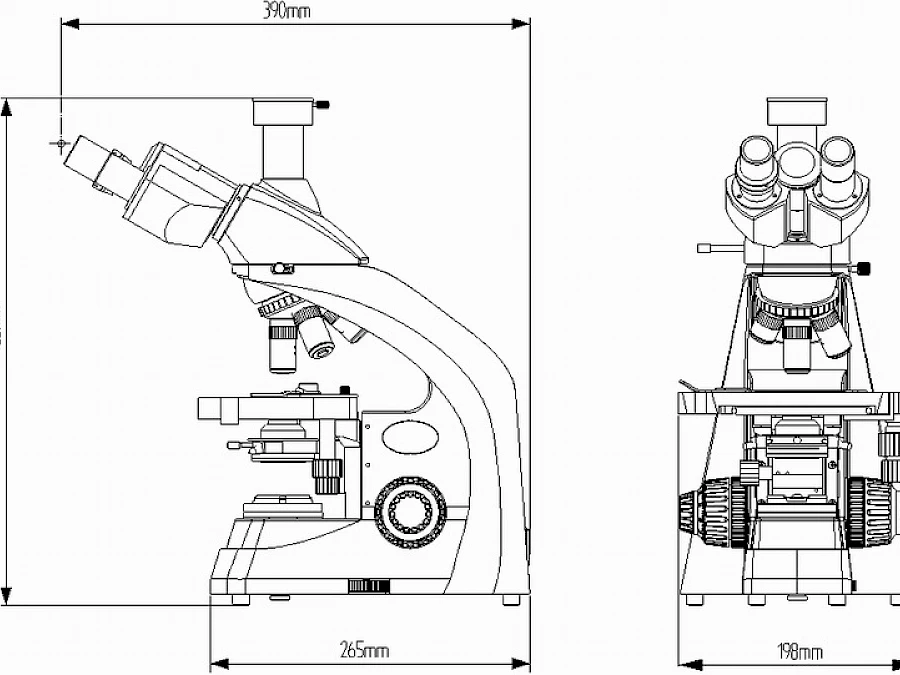

Dimension of BL-3525T

Specification for BL-3525T
Eyepiece	WF10X(Φ18mm)
Objective	achromatic objective, cover-glass thickness: 0.17mm
	4X/0.10(Work distance): 37.38 mm
	10X/0.25(Work distance): 6.61mm
	40X/0.65(Spring)(Work distance): 0.64 mm
	100X/1.25(Oil) (Work distance): 0.194mm
Eyepiece tube	Binocular, inclined 30°, Interpupillary distance: 48~75mm
Focus System	Coaxial coarse/fine focusing, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. Effective travel of stage: 0~20mm
Nosepiece	Quadruple (Inward inner locating)
Stage	Double Layer Mechanical Stage (Size: 125mm x 135mm, Move range: 35mm x 75mm)
Condenser	ABBE Condenser with rack & pinion adjustable, iris disphragm and filter (frosted lens)
Transmitted Light System	High light white 1W LED, brightness adjustable
Power Supply	AC 100~240V wide voltage (suit for LED)

Accessories for BL-3525T
Eyepiece	WF15X(Φ14mm)
Objective (cover-glass thickness: 0.17mm)	Achromatic	20X/0.40(Work distance): 1.85mm
	Achromatic	60X/0.85(Work distance): 0.2mm
	Plan Achromatic	4X/0.10(Work distance):17.9mm
		10X/0.25(Work distance): 8.8mm
		20X/0.40(Work distance): 8.60mm
		40X/0.65(S)(Work distance): 0.56mm
		60X/0.85(S)(Work distance): 0.25mm
		100X/1.25(Oil)(Work distance): 0.33mm
Eyepiece Tube(Infinity)	Binocular, Trinocular (ratio of visual and photographic is 100:0) Interpupillary distance: 48~75mm
Eyepiece Tube	Trinocular (ratio of visual and photographic is 100:0) Interpupillary distance: 48~75mm
Nosepiece	Quintuple (Inward inner locating)
Condenser	Dark Field condenser		Immersion type
	Dark Field condenser		Dry type
	Phase Contrast condenser		Flashboard
	Phase Contrast condenser		Turnplate
Transmitted System	Optional battery and field diaphragm
Polarization Observe	Optional
