BL160A & BL160B

BL-160A & BL-160B Binocular / Trinocular Biological Microscope with Optional Observation Units

40X~1000X, collector with field diaphragm, plan achromatic objectives, biological medicine agriculture & industry

Core Features

With wide field eyepieces and plan achromatic objectives, the field of view is wide and clear
Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm
Using Kohler illumination with 6V 20W halogen lamp with brightness control

Configurations

Quatruple/Quintuple

Binocular/Trinocular

WF10X(Φ20mm)

ABBE Condenser

6V 20W Halogen

Request Quotation Email Phone Back to Products

BL-160A & BL-160B Biological microscope are equipped with plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenient operation. It can be widely used for biology medicine agriculture and industry area. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

The illumination system with 6V 20W Halogen lamp (brightness adjustable) can provide clear and bright image for light field observation, but also for dark field observation and phase contract observation. If you want to upgrade the optics function and increase the system agility, you choose to use the infinity corrected optics system. By adding the appurtenance of phase contract unit, dark field unit, camera observation unit and facility polarizer unit, it can spread to manifold modes for observation that satisfy the need to different research work.

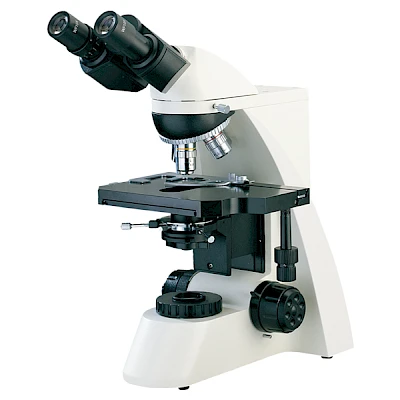

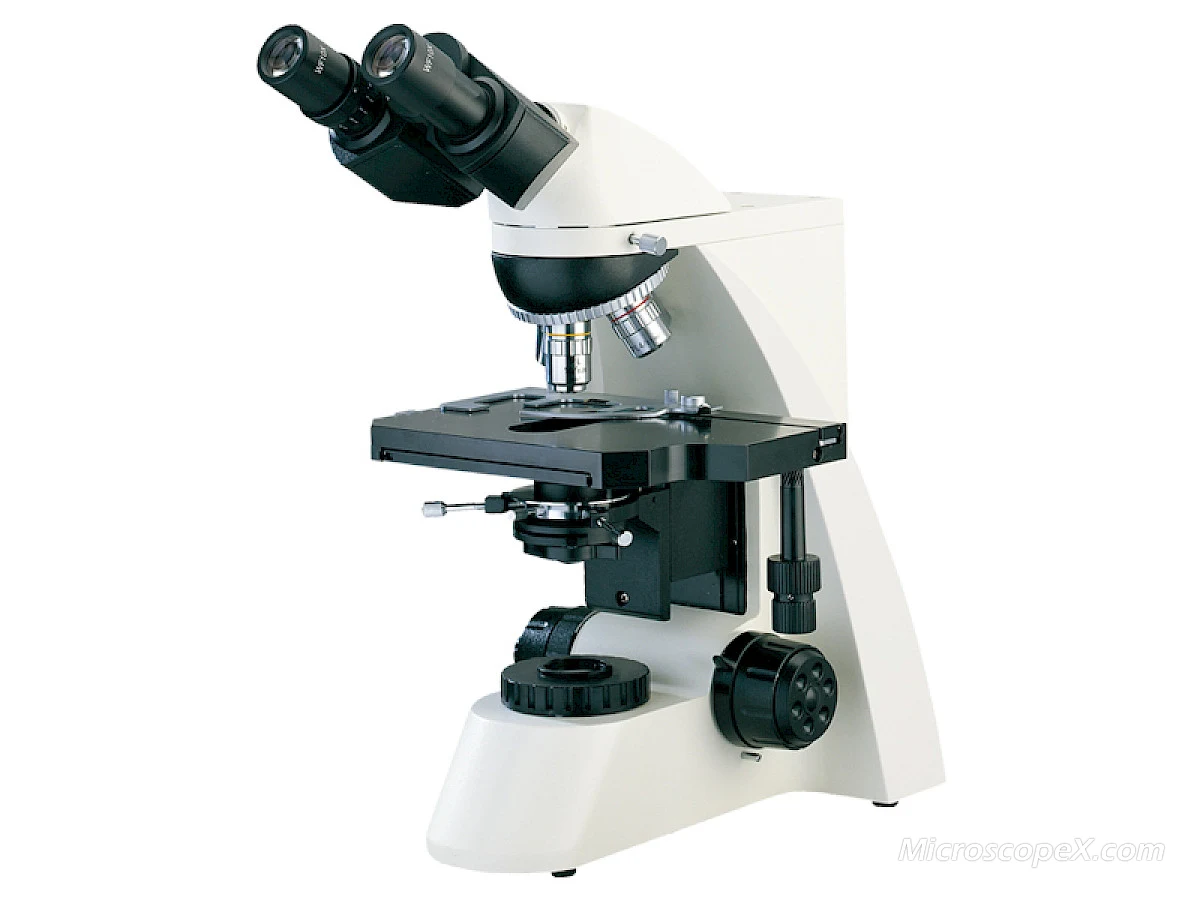

BL-160A & BL-160B

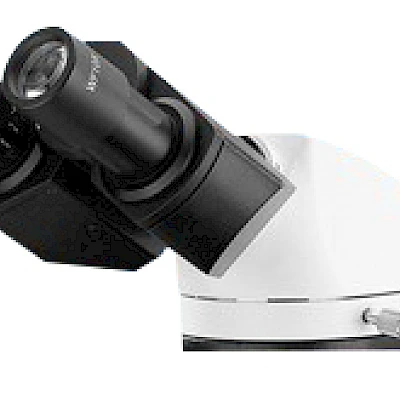

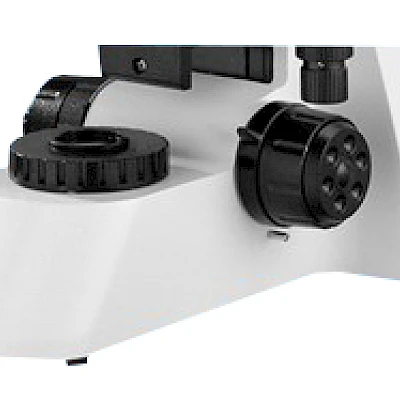

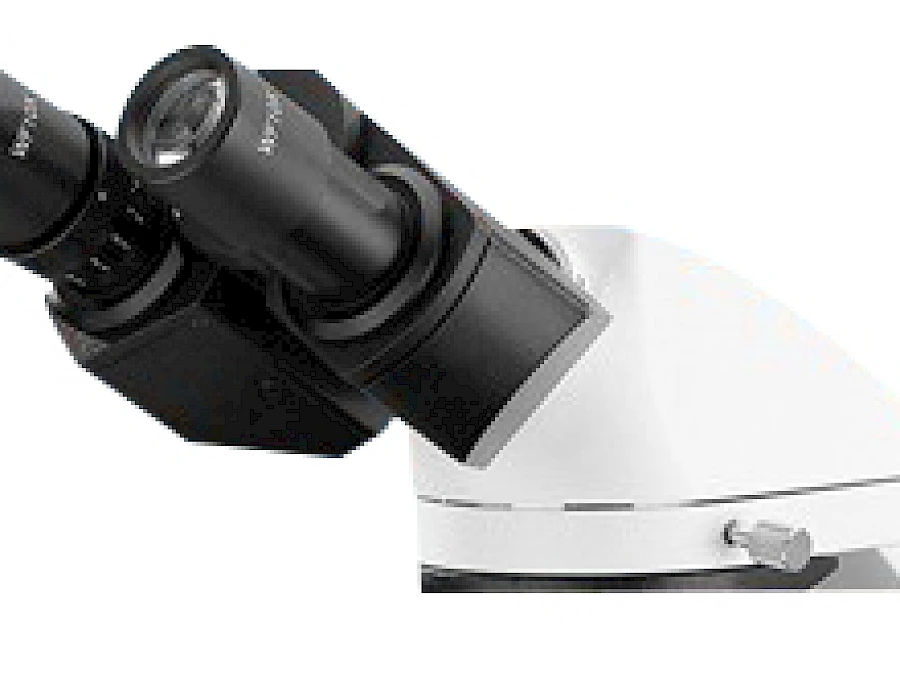

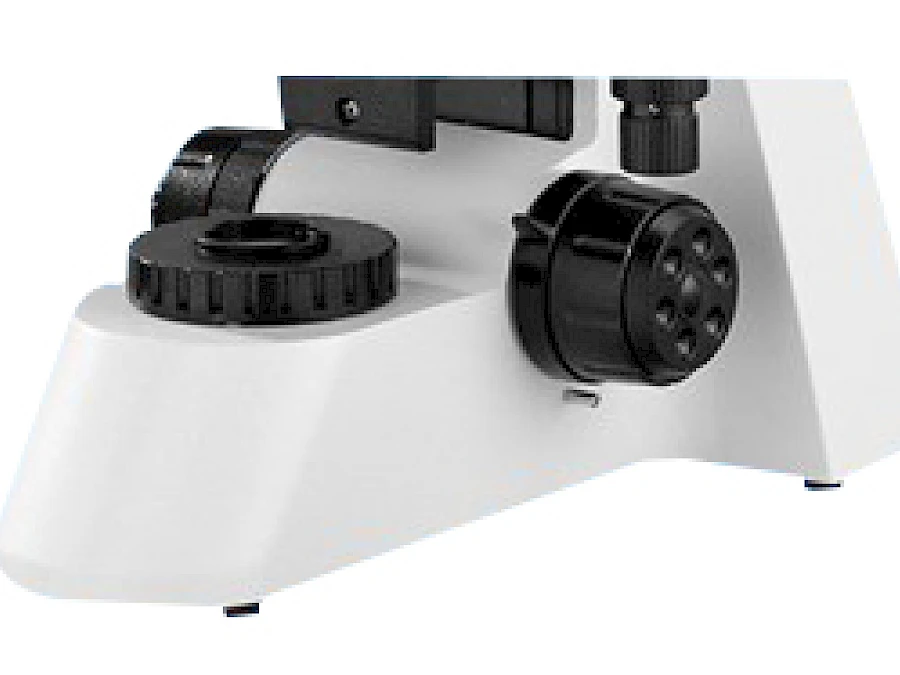

Base and Head of BL-160A & BL-160B

Digital Camera Photo

Polarized Observe

Bright Type Observe

Phase Observe

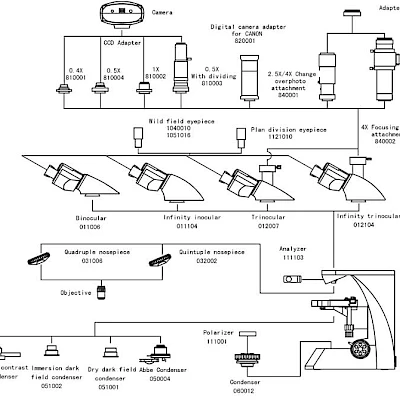

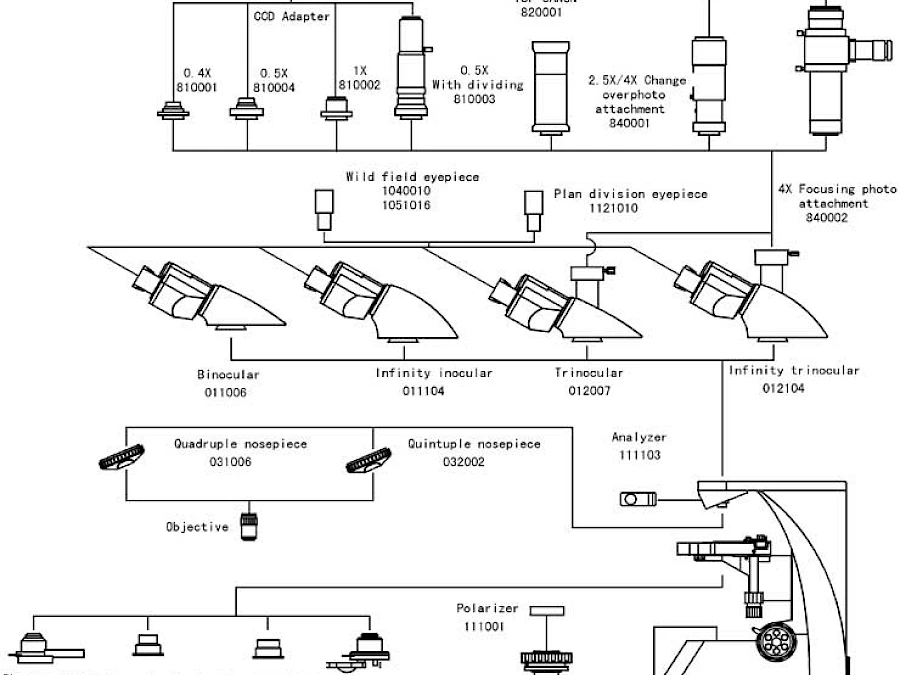

Diagram of BL-160A & BL-160B

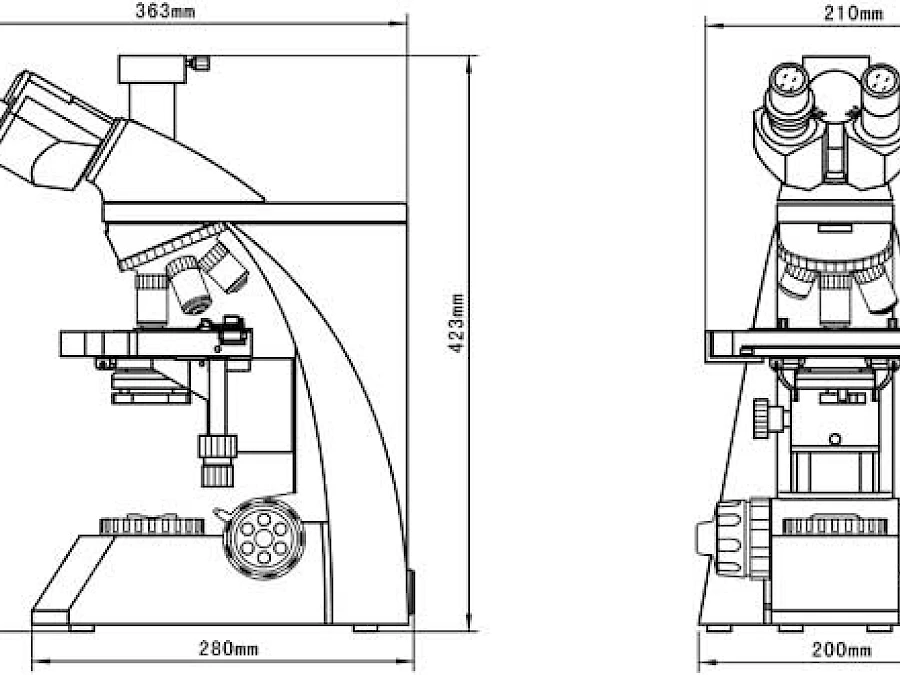

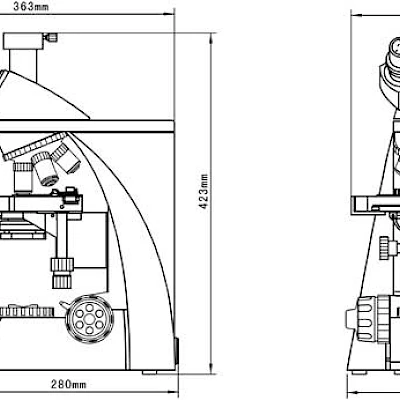

Dimension of BL-160A & BL-160B

Item	Objective	Nosepiece
BL-160A	Plan Achromatic PL4X/0.10 Plan Achromatic PL10X/0.25 Plan Achromatic PL40X/0.65(S) Plan Achromatic PL100X/1.25(s,oil)	Quatruple (Backward ball bearing inner locating)
BL-160B	Plan Achromatic PL4X/0.10 Plan Achromatic PL10X/0.25 Plan Achromatic PL20X/0.40 Plan Achromatic PL40X/0.65(S) Plan Achromatic PL100X/1.25(s,oil)	Quintuple (Backward ball bearing inner locating)

Item

Objective

Nosepiece

BL-160A

Plan Achromatic PL4X/0.10

Plan Achromatic PL10X/0.25

Plan Achromatic PL40X/0.65(S)

Plan Achromatic PL100X/1.25(s,oil)

Quatruple (Backward ball bearing inner locating)

BL-160B

Plan Achromatic PL4X/0.10

Plan Achromatic PL10X/0.25

Plan Achromatic PL20X/0.40

Plan Achromatic PL40X/0.65(S)

Plan Achromatic PL100X/1.25(s,oil)

Quintuple (Backward ball bearing inner locating)

Specification for BL-160A & BL-160B
Eyepiece	WF10X(Φ20mm)
Eyepiece Tube	Binocular (inclined 30°)
Focus System	Coaxial coarse/fine focusing, with tension adjustable and up stop, minimum division of fine focusing: 2μm
Stage	Double Layer Mechanical Stage (Size: 210mm x 140mm, Move range: 75mm x 50mm)
Condenser	ABBE Condenser N.A. 1.25 Rack & pinion adjustable
Filter	Blue, Frosted
Collector	For Halogen lamp
Light Source	6V 20W Halogen lamp with brightness control

Accessories for BL-160A & BL-160B
Eyepiece	WF 16X(Φ11mm) Dividing 10X(μ20mm), 0.1mm/Div
Eyepiece tube	Trinocular (inclined 30°)
Condenser	Dark Field	Dry type
Condenser	Dark Field	Immersion type
Filter	Green, Yellow
Phase Contrast Unit	Eyepiece	Centering Telescope
	Objective	Phase contrast plan achromatic 10X/0.25 PHP
		Phase contrast plan achromatic 20X/0.40 PHP(Spring)
		Phase contrast plan achromatic 40X/0.65 PHP(Spring)
		Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
	(PH-Ⅰ) Turnplate phase contrast condenser
	(PH-Ⅱ) Turnplate phase contrast condenser
	Flashboard phase contrast condenser
	Pull board phase contrast condenser
Infinity optical system	Eyepiece tube	Binocular(inclined 30°)
	Eyepiece tube	Trinocular(inclined 30°)
	Eyepiece	Centering telescope
	Objectives	Infinity Plan Achromatic 4X/0.10
		Infinity Plan Achromatic 10X/0.25
		Infinity Plan Achromatic 20X/0.40
		Infinity Plan Achromatic 40X/0.65(S)
		Infinity Plan Achromatic 100X/1.25(S,Oil)
		Infinity Phase contrast plan achromatic 10X/0.25 PHP
		Infinity Phase contrast plan achromatic 20X/0.40 PHP
		Infinity Phase contrast plan achromatic 40X/0.65 PHP(Spring)
		Infinity Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
CCD Adapter	0.4X
	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	DV-1 (with USB & video output)
	DV-2 With USB output
	DV-3 With video output
Photo Unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD adapter
	PK adapter
Digital camera adapter	Digital camera adapter (A610, A620, A630, A640)
Facility polarize	Polarizer	360° rotatable stage
Facility polarize	Analyzer
