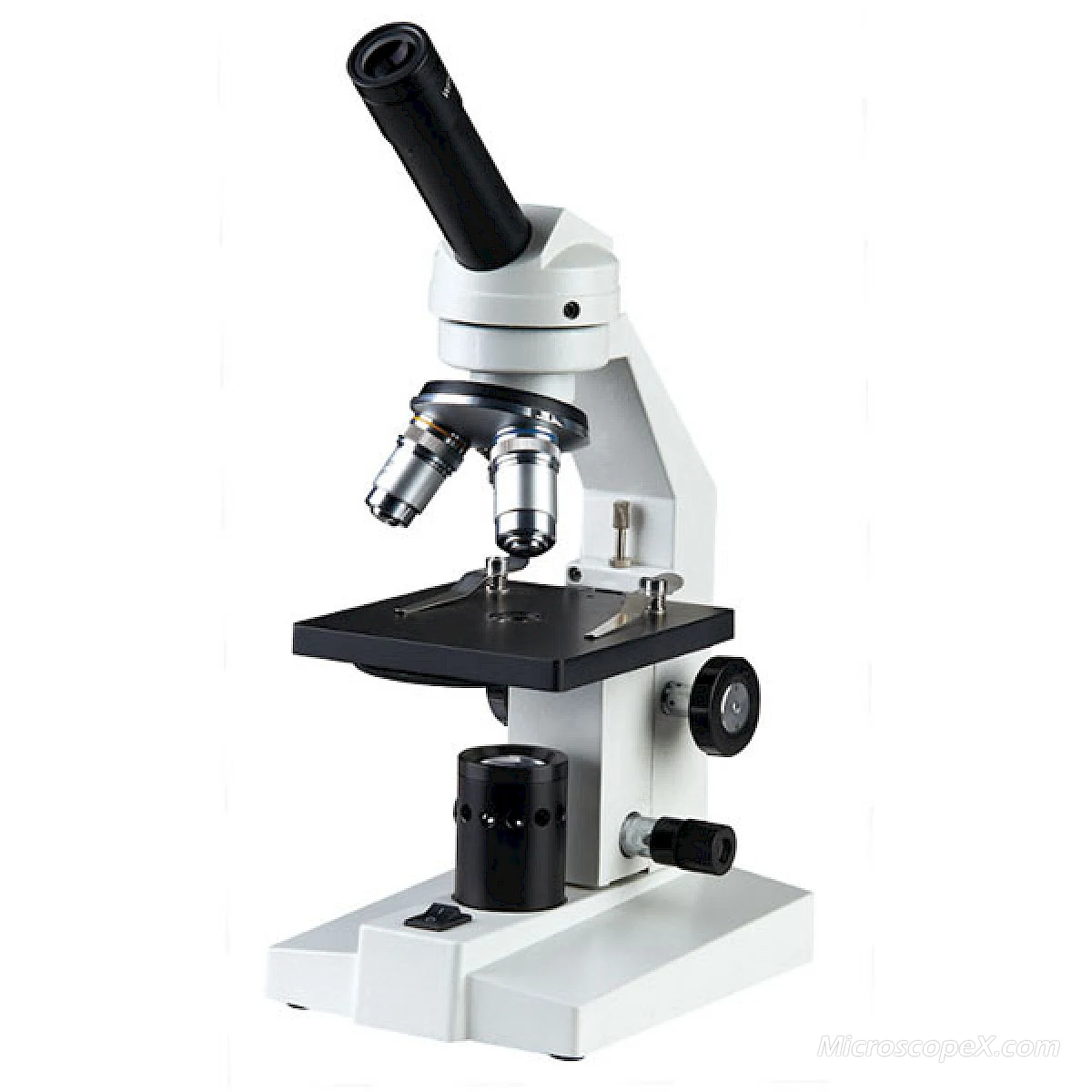

BLD-10 Monocular Science Student Research Biological Microscope with 20W tungsten illumination

BLD-10

40X-1000X, 120mmx110mm metal stage, measurement

Core Features

Excellent optical system
Durable and reliable operation
Clear sharp images
Superior performance and high stability
Suited for many applications in the laboratory, teaching and production

Configurations

metal stage

120mmx110mm

45° inclined

360 ° rotating

precise working

BLD-10 Monocular Biological Microscope is ideally suited for many applications in the laboratory, teaching and production. It has 45 degree inclined viewing and 360 degree rotating optical head. The sturdy metal tripod ensures high stability and the option to choose between coarse and fine adjustment facilitates precise working.

BLD-10

Specification for BLD-10
Eyepiece	Objective
	4X	10X	40X	100X(optional)
	Magnification	Magnification	Magnification	Magnification
WF10X/18mm	40X	100X	400X	1000X
Eyepiece	WF10X/18mm, WF16X/14mm, WF20X/10mm; Reticle and pointer available
Monocular Body	45° inclined, 360 ° rotating optical head with 160mm length eyepiece tube
Objective Nosepisce	Triple or Quadruple
Objective Lens	Achromatic 4X, 10X, 40X and 100X (optional)
Focusing Mount	Separating coarse fine adjustment
Mechanical Stage	120mmx110mm metal stage with paired clips; Attachable measuring stage available
Condenser	N.A.0.65 fixed condenser and disc diaphragm
Condenser	N.A.1.25 focusable ABBE condenser and iris diaphragm
Power Supply	230V(115V optional)
Illumination	20W tungsten illumination, LED illumination; Φ42mm plano-concave double faced reflector available
