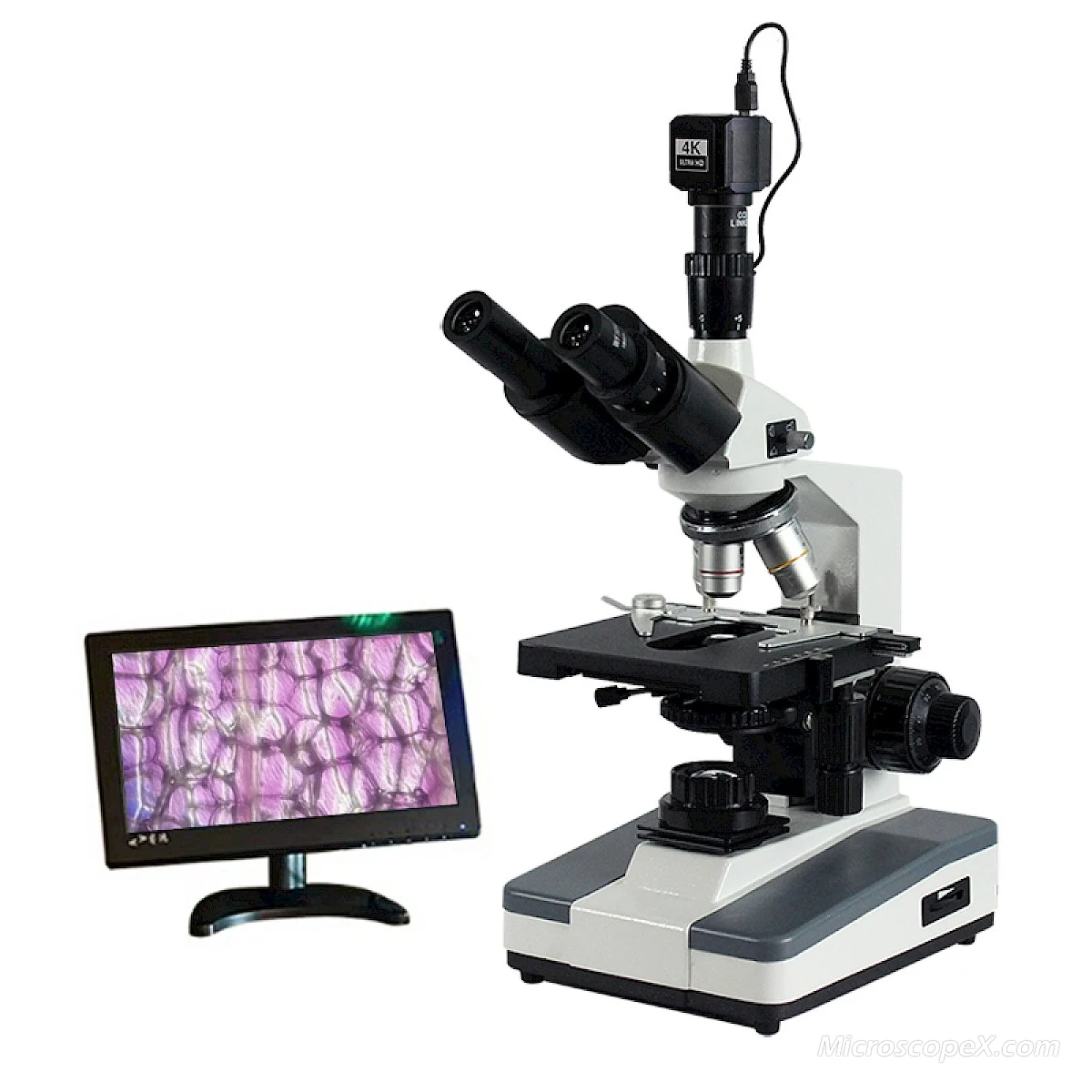

BLD-10A 40X~1000X Digital Trinocular Biological Microscope

BLD-10A

Total Mag. 40X~1000X; Kohler Illumination LED; ABBE Condenser N.A. 1.25

Core Features

40X~1000X Total Magnification
Wide field plan eyepiece, with high eye point
N.A. 1.25 Abbe Condenser, with iris diaphragm, filter
Kohler Illumination, diaphragm adjustable

BLD-10A Biological Microscope is equipped with achromatic objectives, wide field eyepieces. It has clear image, wide field, beautiful sculpt, convenient operation etc. It can be used for medicine, and assay area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

Specification for Microscope:
Eyepiece	WF10X(Φ18mm)
Eyepiece Tube	Trinocular
Total Mag.	40X~1000X
Achromatic Objective	4X/0.1, 10X/0.25, 40X/0.65, 100X/1.25
Focus System	Coaxial coarse/fine focusing, minimum division of fine focusing: 2μm
Nosepiece	Quadruple
Stage	Double Layer Mechanical Stage (Size: 130mm x 140mm, Move range: 70mm x 50mm)
Condenser	ABBE Condenser N.A. 1.25 with diaphragm, Rack & pinion adjustable
Light Source	LED lamp, with brightness control

Specification for 4K Camera:
Pixel size	2.0µm × 2.0µm
Sensor Size	1/1.8”
sensor	SONY IMX CMOS
Output Resolution	HDMI Mode: 19201080@60FPS & 38402160 (4K) @30FPS
Output Resolution	USB Mode: 19201080/ 38402160
Lens mount	C-Mount
Image resolution	3840*2160
Video resolution	1920×1080/ 3840*2160 @ 30FPS
Save Function	U-Disk / Windows PC
Exposure	Auto/Manual/Brightness/Exposure Time Adjustable
White balance	Auto/Manual/ One-key, support RGB adjustable
Other Functions	Support Contrast/ Saturability/ Clarity/ Noise Reduction Etc.
Menu Panel	ICON Design
Windows Systems	Claymore Microscope Software, Available Win7/ 8/ 10/ 11
Input voltage	DC 12V
Working Tem.	0~60℃
Storage Tem.	-20~85℃
Net Weight	0.2KG
Product Size	585368m

Resolution	1280*800
Brightness	250/400
Contrast Ratio	600:1 / 800:1
Interface	HDMI
Operate Tem.	0~40℃
Product Size	27018035mm
Product Weight	1KG
