BLM-24 & BLM-24L

BLM-24 & BLM-24L 2-Binocular Multi-Viewing Biological Microscope for Educational School

1000X, LED cursor indicator for teaching demonstration

Core Features

Larger space for observation
Sharp and clarity images
LED cursor indicator
Infinite optical system
N.A.1.25 Abbe Condenser

Configurations

Halogen Bulb

220V/110V, 6V20W

WF10X/ 22mm

N.A.1.25 Abbe Condenser

Request Quotation Email Phone Back to Products

In order to promote the communication between teachers and students, BLM-24 & BLM-24L are equipped with LED cursor indicator which can show the image with an arrow pointer in a microscope. The brightness can be asjudted and the arrow can be moves arbitrarily. The space between the observers is more larger.

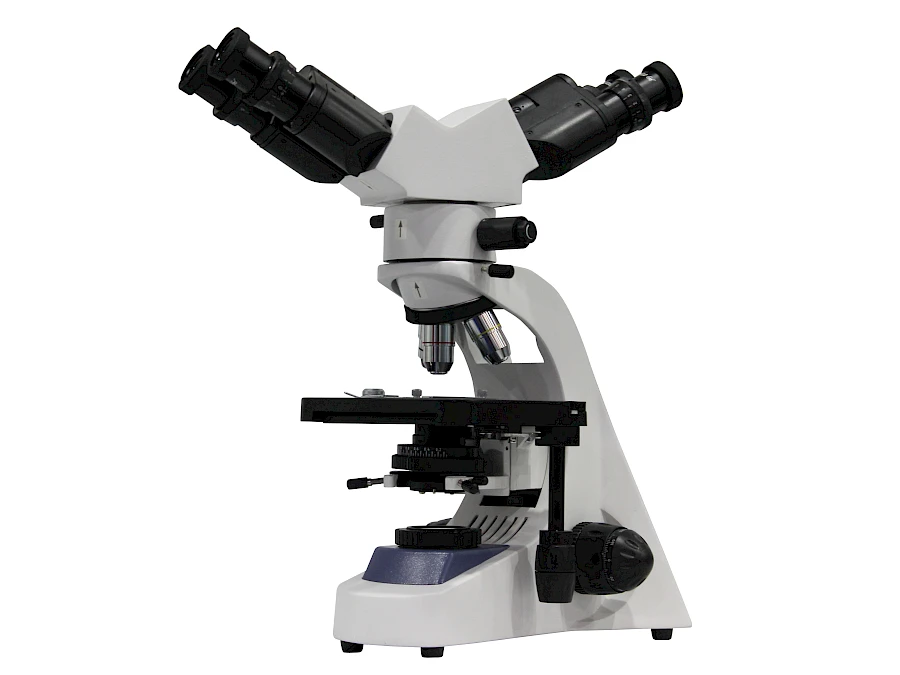

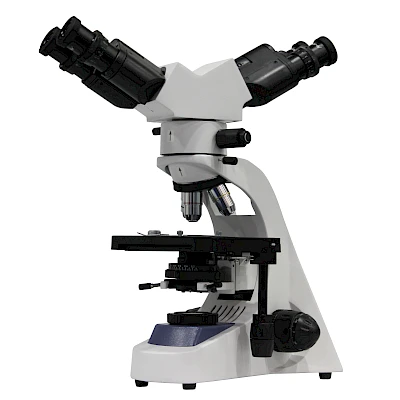

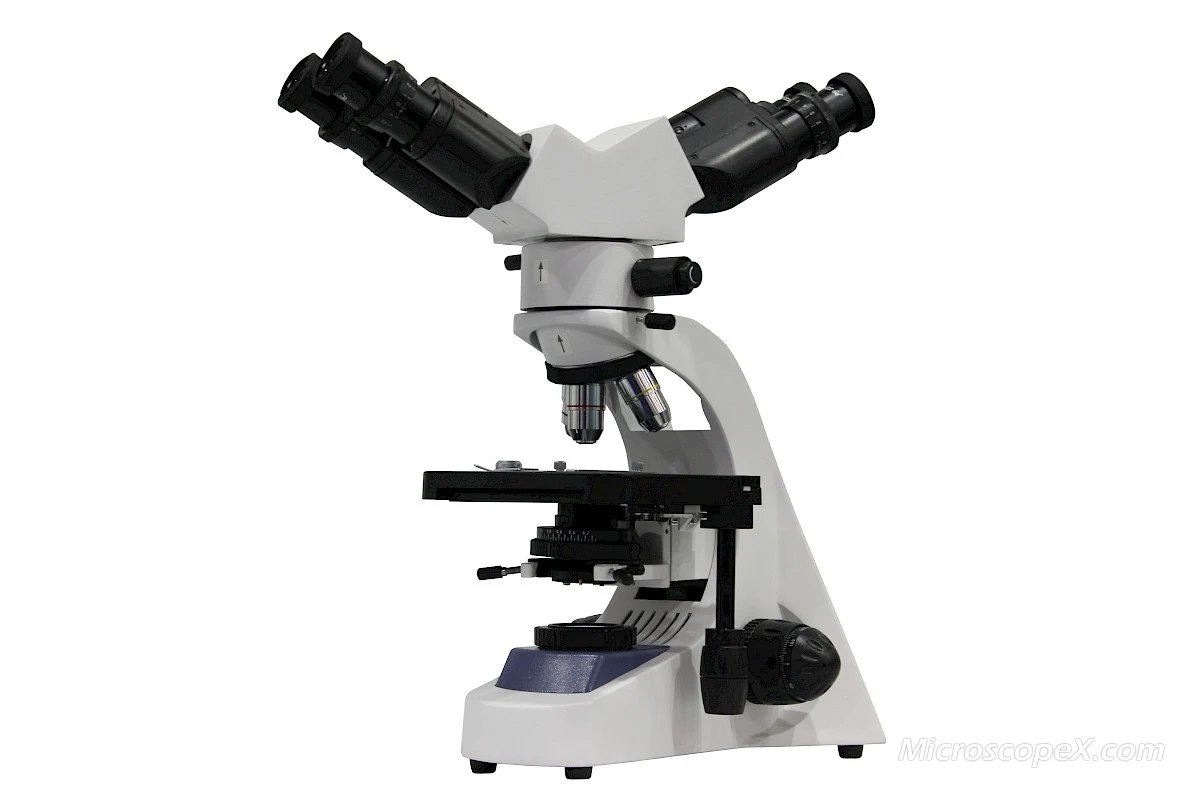

BLM-24 & BLM-24L

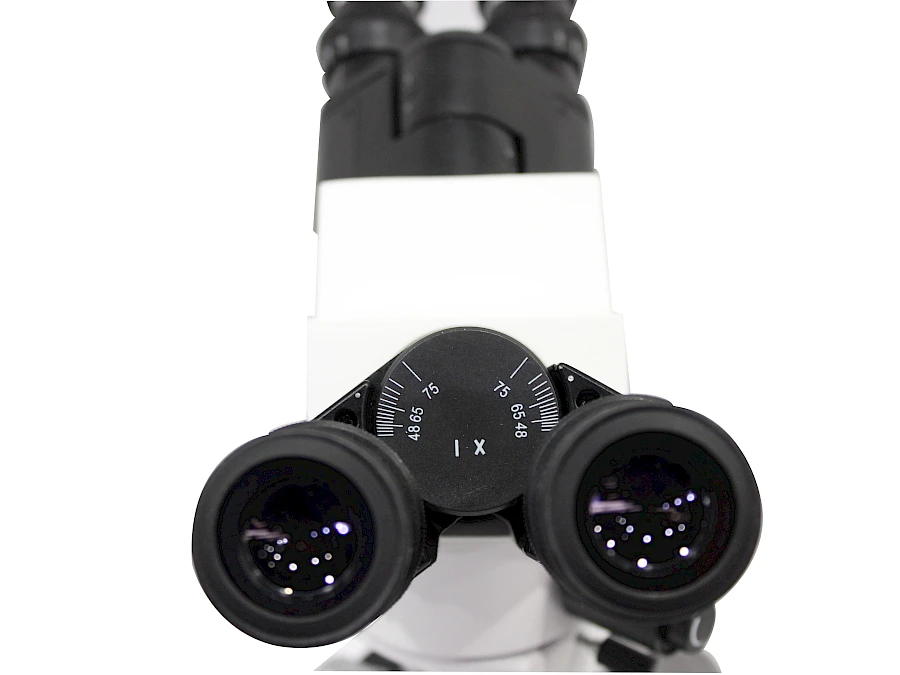

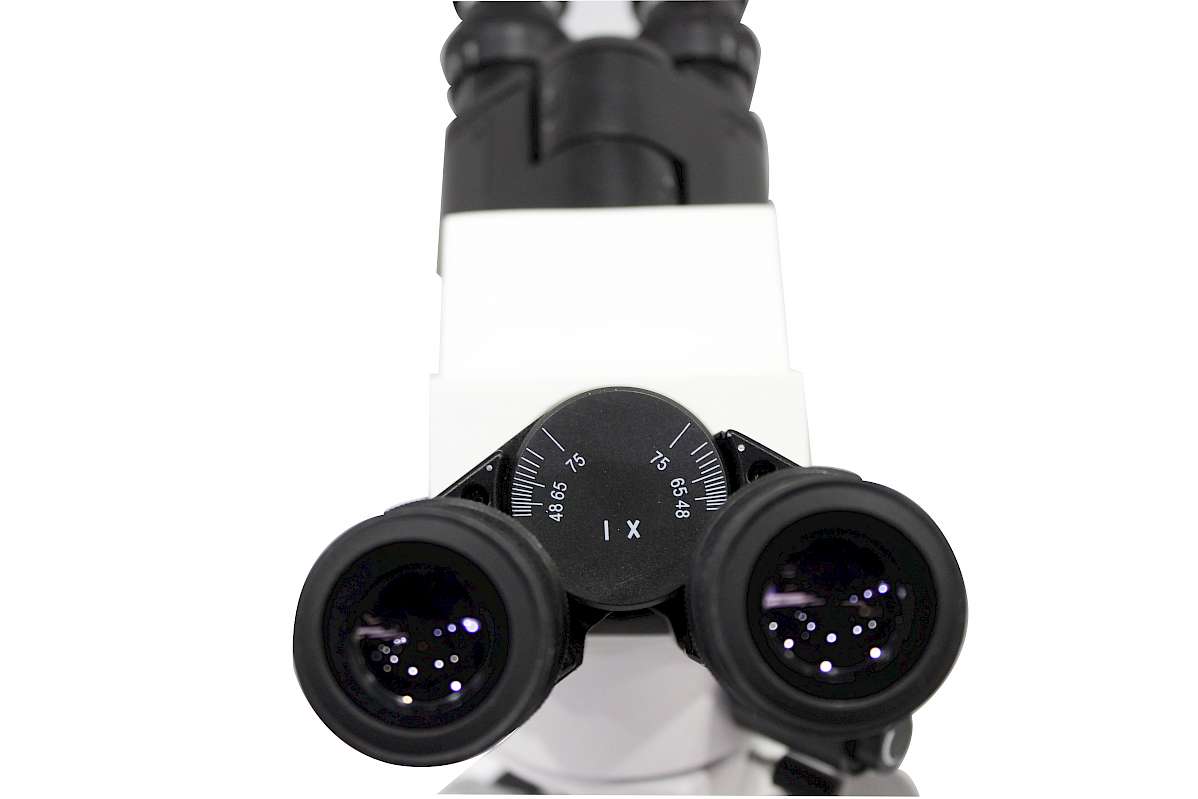

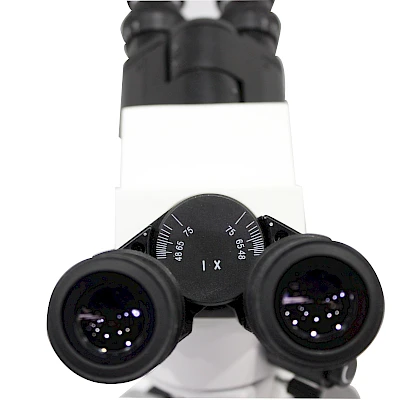

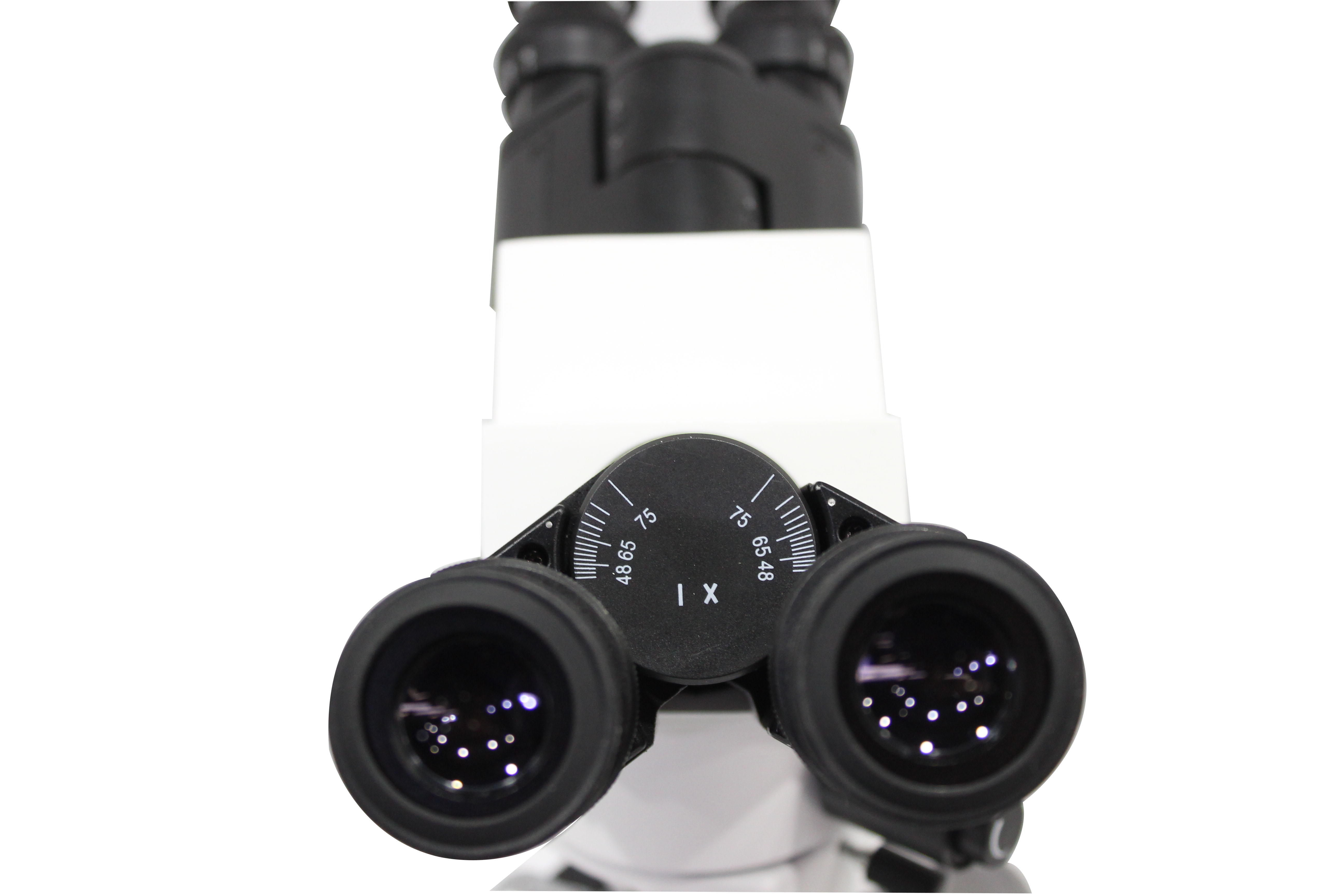

The Binocular of BLM-24 & BLM-24L

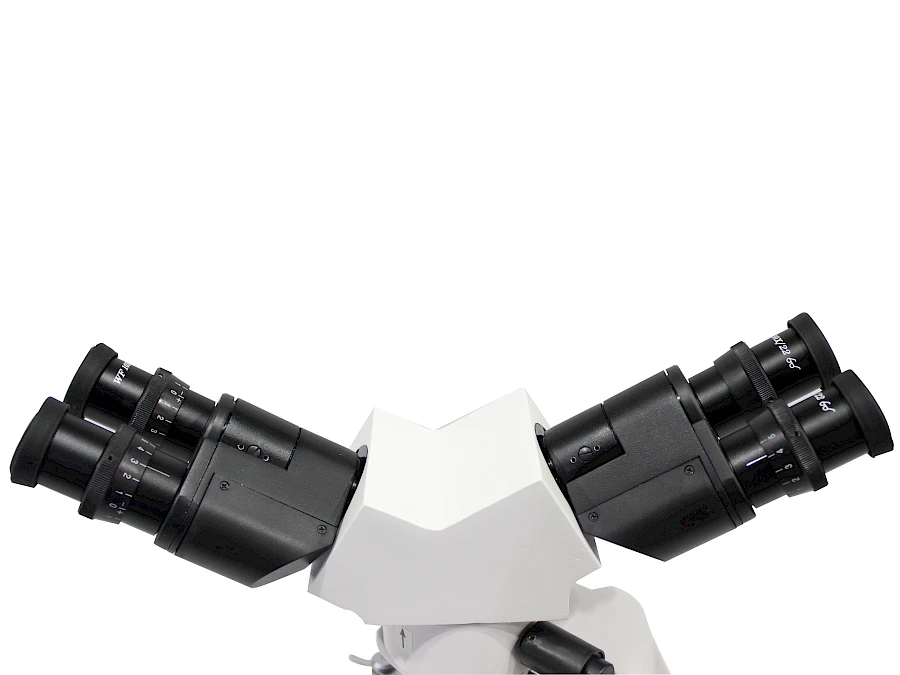

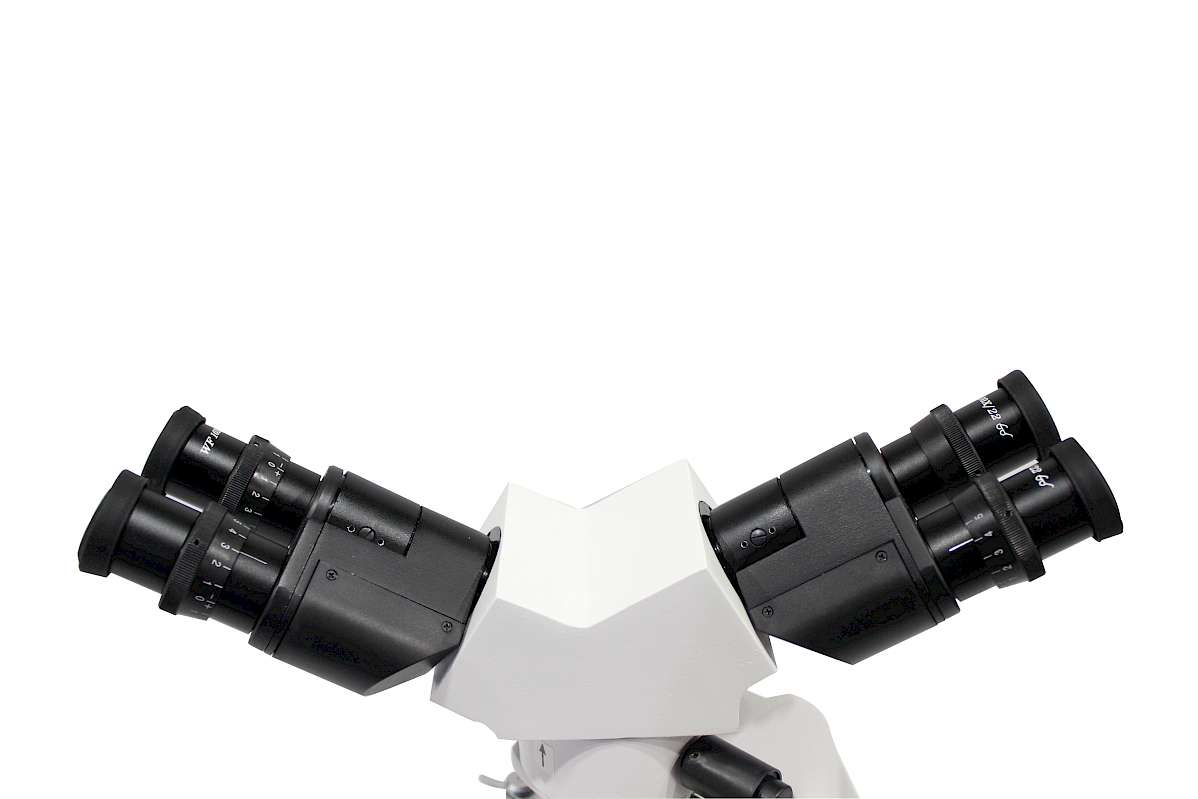

The Head of BLM-24 & BLM-24L

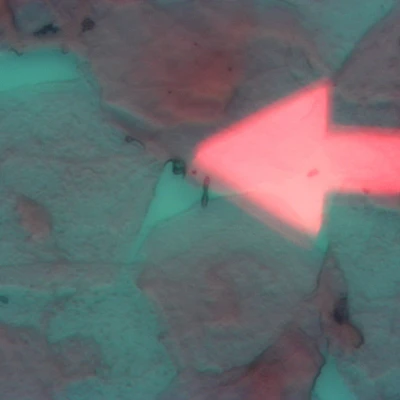

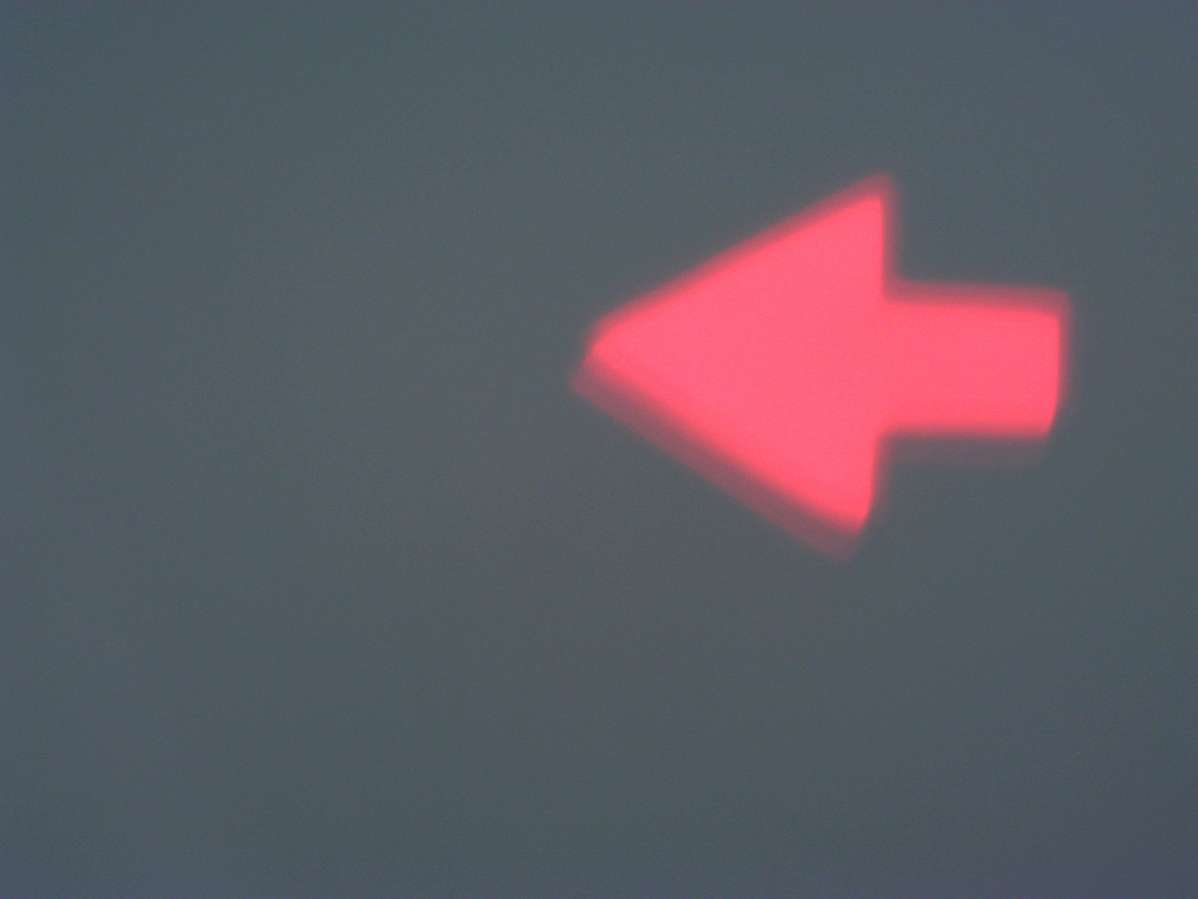

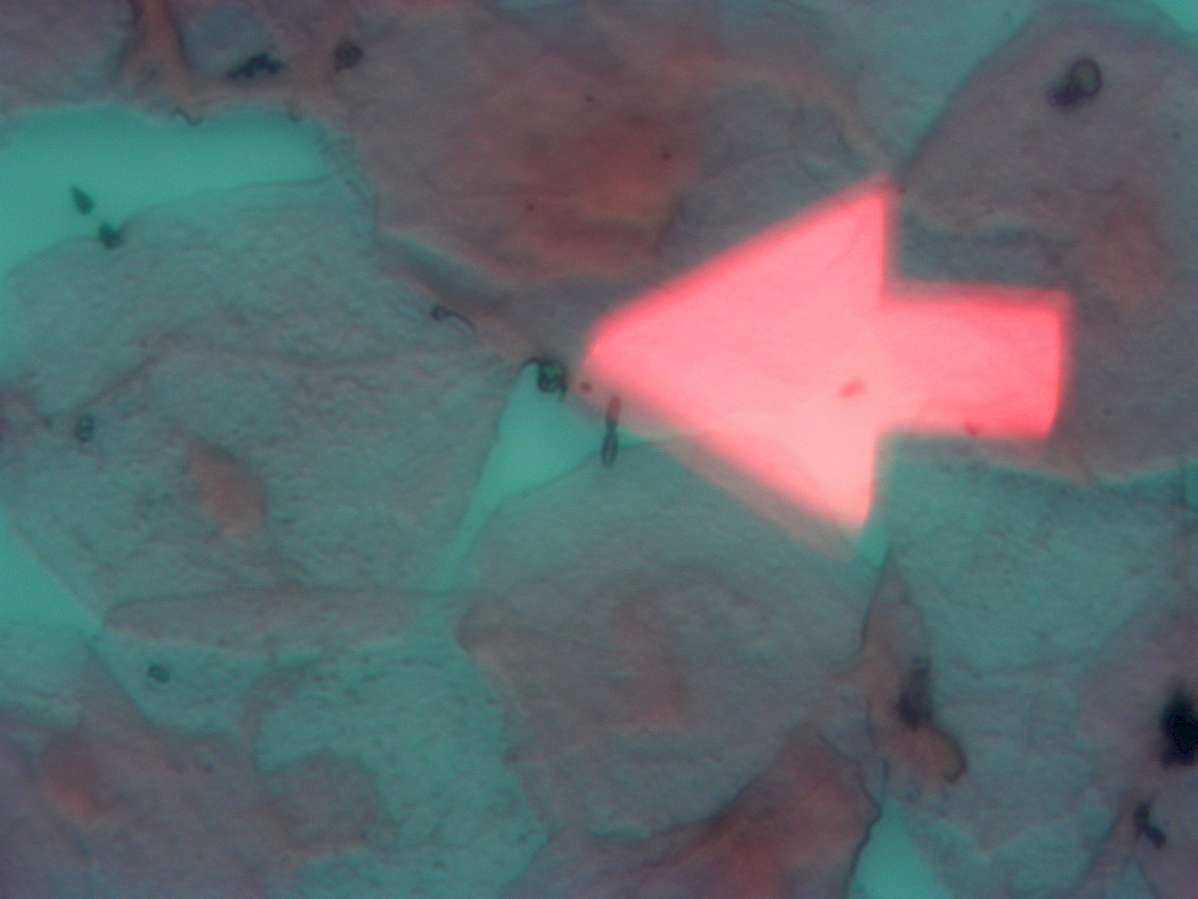

LED cursor indicator

Item	LED cursor Indicator
BLM-24	No
BLM-24L	LED Cursor Indicator

Specification for BLM-24 & BLM-24L
Head	Demonstration Binocular
Interpupillary Distance	55mm-75mm
Eyepiece	WF10X/ 22mm
Objective	Infinite Achromatic Objective 4X、10X、40X(s)、100X(s)Oil
Stage	Double Mechanical Layer Stage
	Size: 180mm×150mm
	Moving Range: 75mm×50mm
Condenser	N.A.1.25 Abbe Condenser with adjustable iris diaphragm and color filter
Focusing	Coarse and fine coaxial focusing, fine focusing scale value: 0.002mm
Illuminator	Halogen Bulb 220V/110V, 6V20W, illuminator adjustable, with Kohler illuminator

Accessories for BLM-24 & BLM-24L
Eyepiece	WF16X, WF20X,P16X
Objective	PL infinite objective: 4X、10X、20X、40X(s)、60X(s)、100X(s)oil
Objective	Semi-plan infinite objective: 4X、 10X、20X、40X(s)、60X(s)、100X(s)oil
Photography Device & CCD Interface	0.5X、0.57X、0.75X
Head	Articulated Binocular (48mm-75mm)
