POL1100 Series

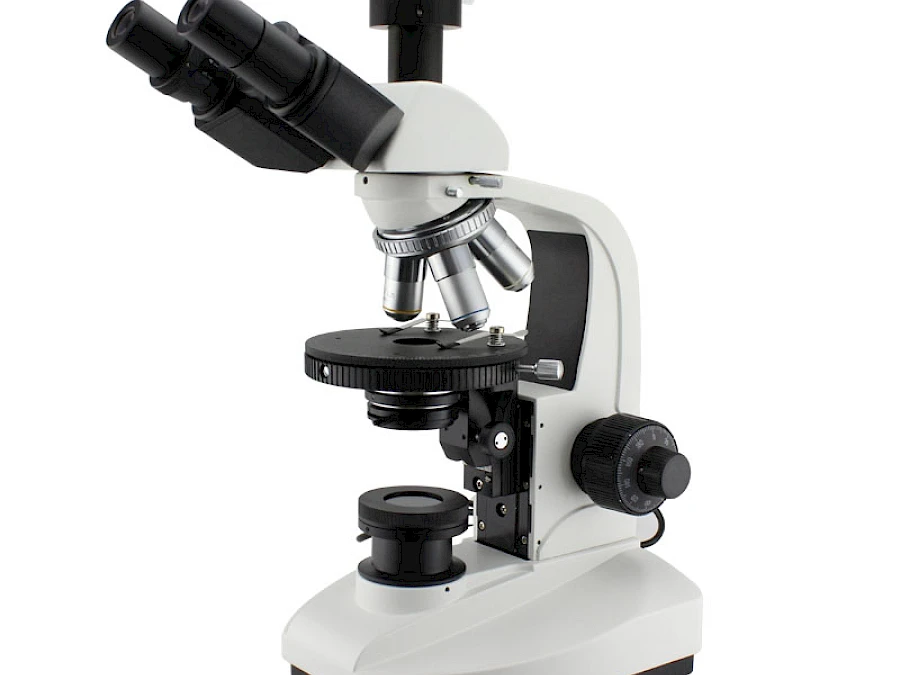

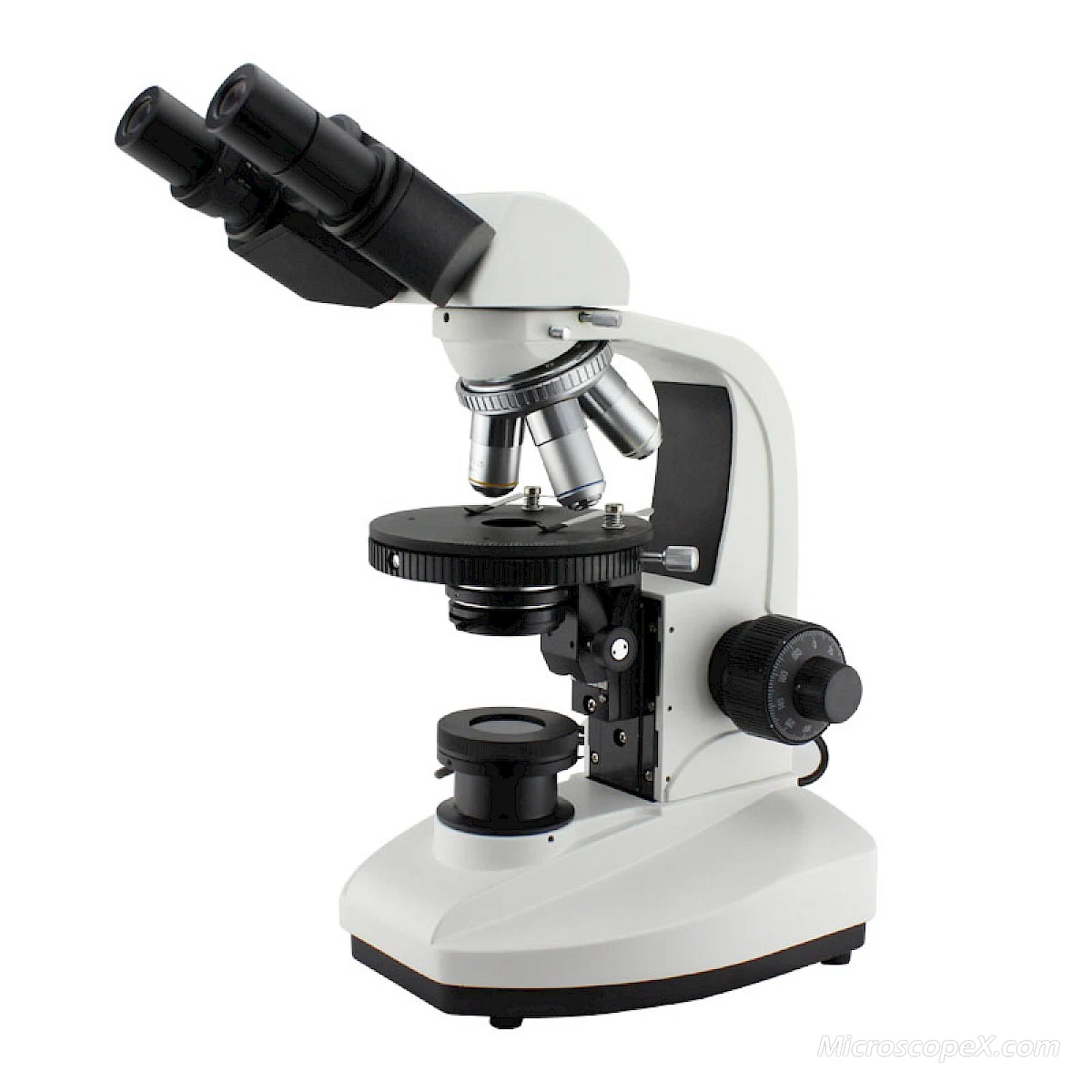

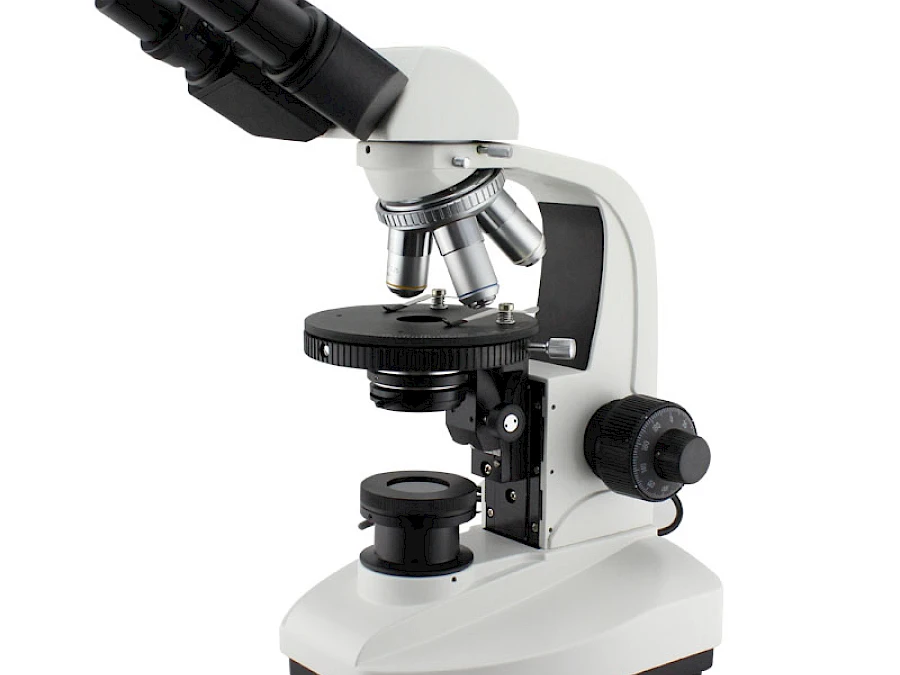

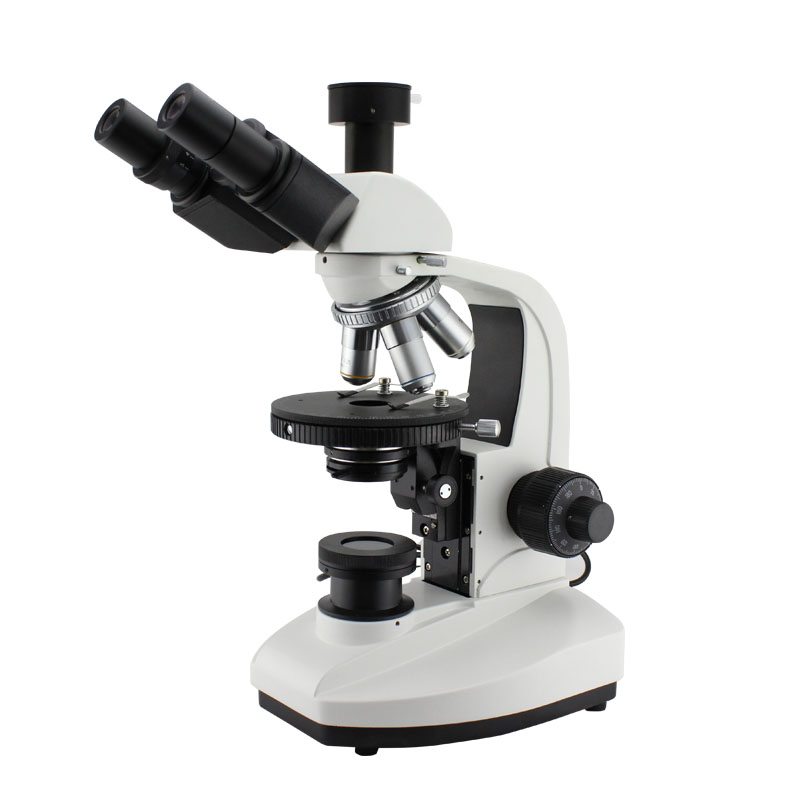

POL1100 Series Polarizing Microscope with Transmitted Halogen Lamp & Abbe Condenser

40X~1000X, Observe the fine frame of the biochemistry salt crystal

Core Features

Equipped with achromatic objectives and wide field eyepiece
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Rotatable stage, diameter 120mm/ Duoble layer mechanical stage, size: 135mm x 125mm
Abbe Condenser N.A. 1.25, Rack & Pinion adjustable

Configurations

WF 10X (Φ18mm)

Binocular/ Trinocular

Quadruple/Quintuple

Request Quotation Email Phone Back to Products

POL1100 Series polarization microscopes are utilized polarize light to observe and research the polarize characteristic of the matter which have the double refraction .They can be used to medical inspection, such as the frame detail of the nerve fibre, the animal muscle, the plant fibre and the crystal of the tooth, bone, hair and alive cell etc. It can be observe the fine frame of the biochemistry salt crystal that the fine frame can't be observe for nature light.

10X wide field plan eyepiece, field Φ18 mm, can provide expanse and smooth observation space.

POL1100 Series

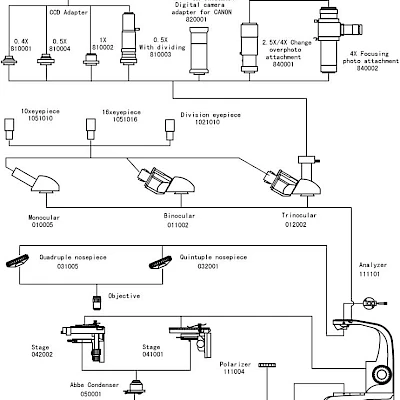

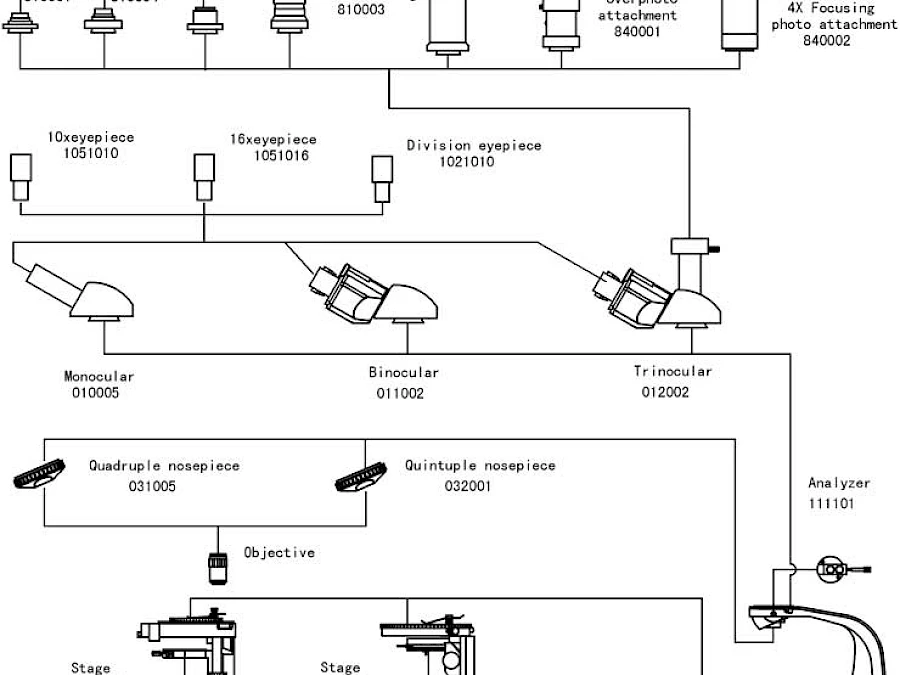

Diagram of POL1100

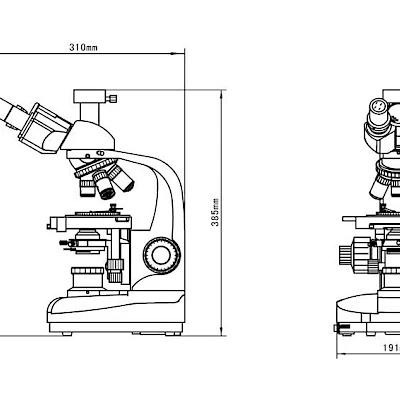

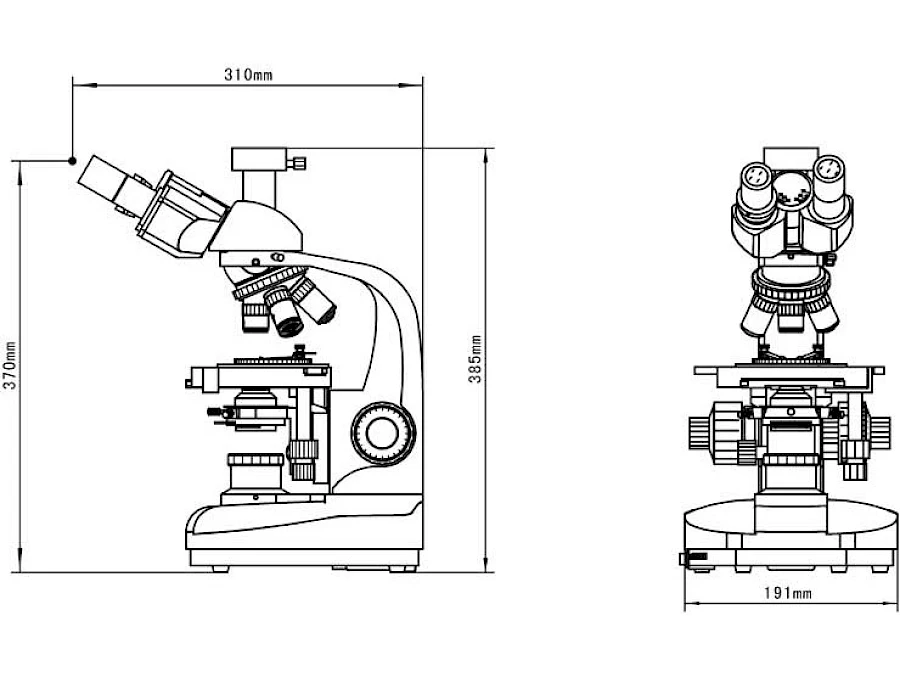

Dimension of POL1100

Specification for POL1100 Series
Model	POL1100		POL1100A
Eyepiece	WF 10X (Φ18mm)
Eyepiece Tube	Binocular, inclined 30˚	Trinocular, inclined 30˚
Objective	Achromatic objectives 4X/0.10
	Achromatic objectives 10X/0.25
	Achromatic objectives 40X/0.65 (Spring)
	Achromatic objectives 100X/1.25(Spring, oil)
Nosepiece	Quadruple (Backward ball bearing inner locating)
Polarization Analyzer	Sliding
Stage	Rotatable stage(Diameter: 120mm)		Double layer mechanical stage with (100mm) rotatable stage (Size：135mmX125mm Moving range：75mmX35mm)
Focus System	Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm
Abbe Condenser	NA.1.25 Rack & pinion adjustable
Filter	Blue
Filter	Frosted
Polarizer	360° rotatable stage
Collector	For illumination with halogen lamp With field diaphragm
Illumination Unit	With polarizer,6V 20w, halogen lamp, adjustable brightness

Accessory for POL1100
Eyepiece	WF 16X (Φ11mm)
Eyepiece	Dividing 10X(Φ18mm) 0.1mm/Div
Eyepiece Tube	Monocular , 360˚rotatable, inclination of 30˚
Eyepiece Tube	Trinocular, ,inclination of 30˚,observe and photograph at the same time
Nosepiece	Quintuple(Backward ball bearing inner locating)
Filter	Green filter
Filter	Yellow filter
CCD Adapter	0.4X
	0.5X
	1X
	0.5X with dividing 0.1mm/Div
Camera	DV-1 With USB & video output
	DV-2 With USB output
	DV-3 With video output
Photo Unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD Adapter
	PK Adapter
Digital Camera adapter	CANON(A610, A620, A630, A640)
