POL1520 Reflected & Transmitted Polarization microscope is utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. It is applied in geology, chemicals, physic and leechdom fields. It is also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is the ideal instruments for scientific research and universities teaching demo.

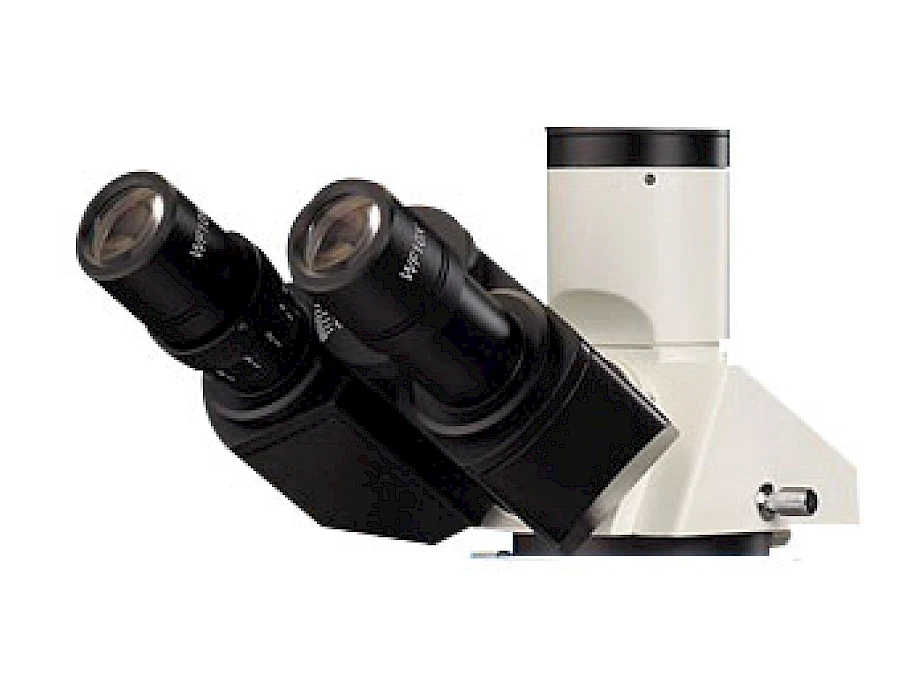

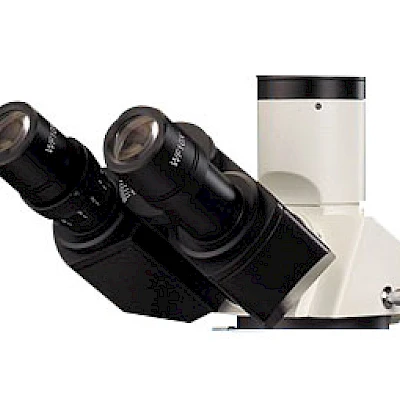

Trinocular, single diopter adjustment, inclined 30°, can send 100% of the image light to top photography port and also can be connected to the camera. 10X wide field plan eyepiece, field Φ18 mm, can provide expanse and smooth observation space.

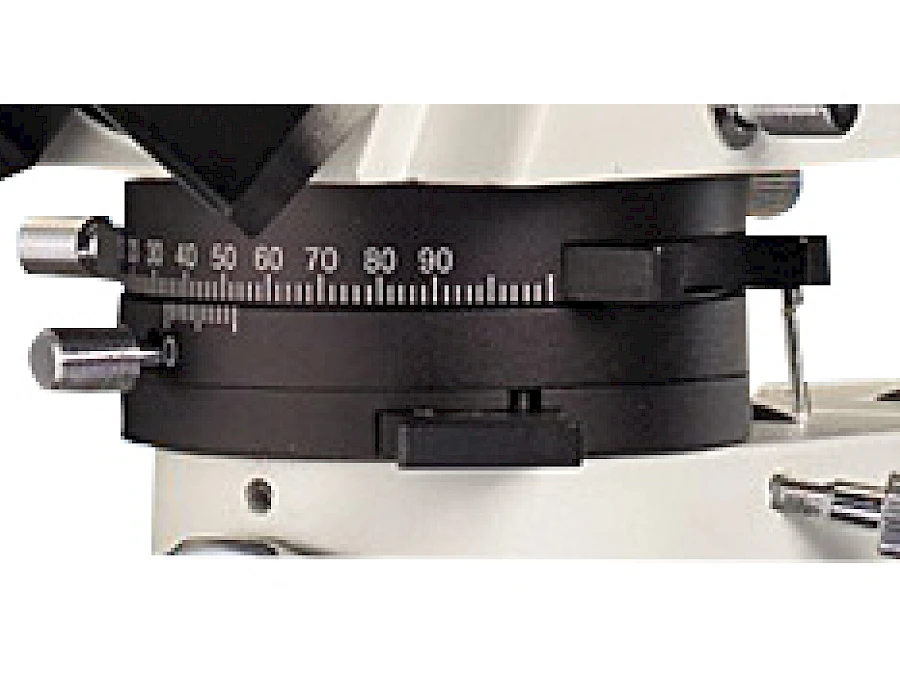

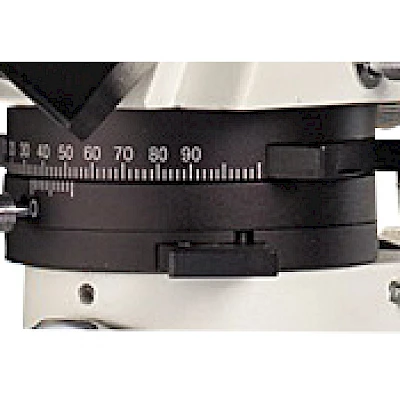

The intermediate attachment includes the impellent style of analyer (360° rotatable with scale and fine nonius) which can be taken off from the light path and the impellent style of bertrand lens (center adjustable). It can be added λ compensator, λ/4 compensator or quarts wedge compensator.

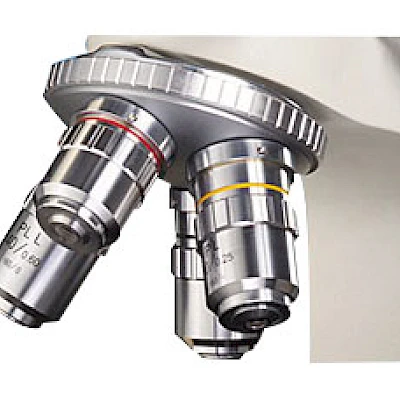

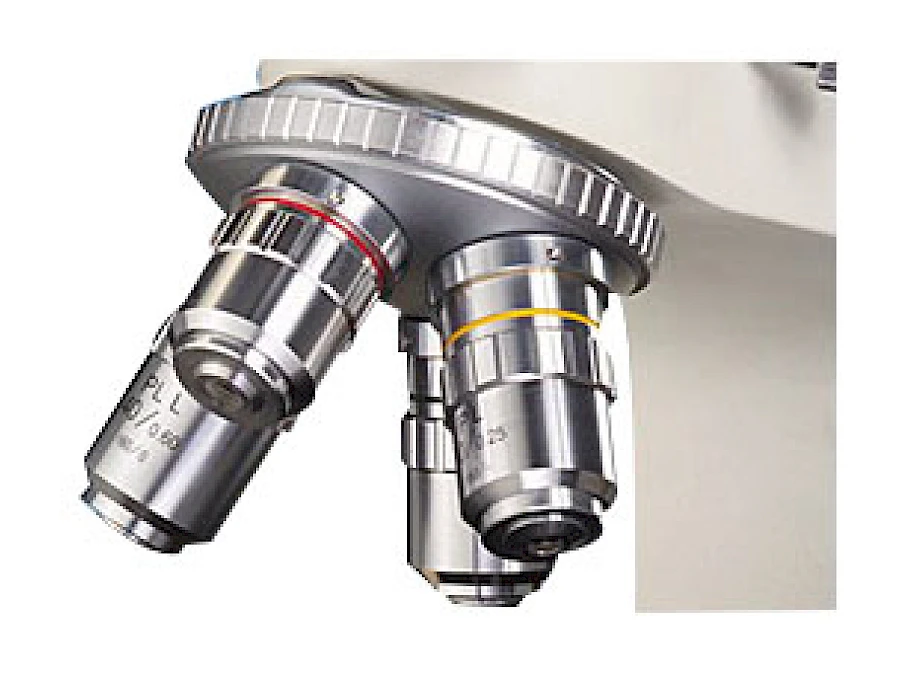

Objective, strain-free plan achromatic objective (with or without cover glass), center adjustable, can ensure the centre of objective and the rotatable stage completeness superposition.

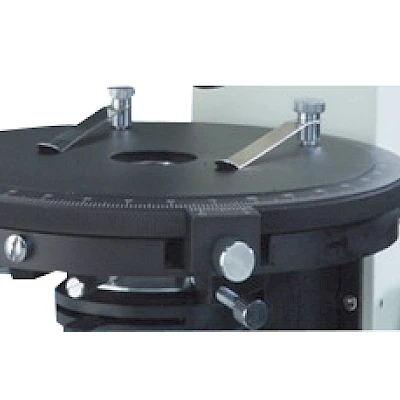

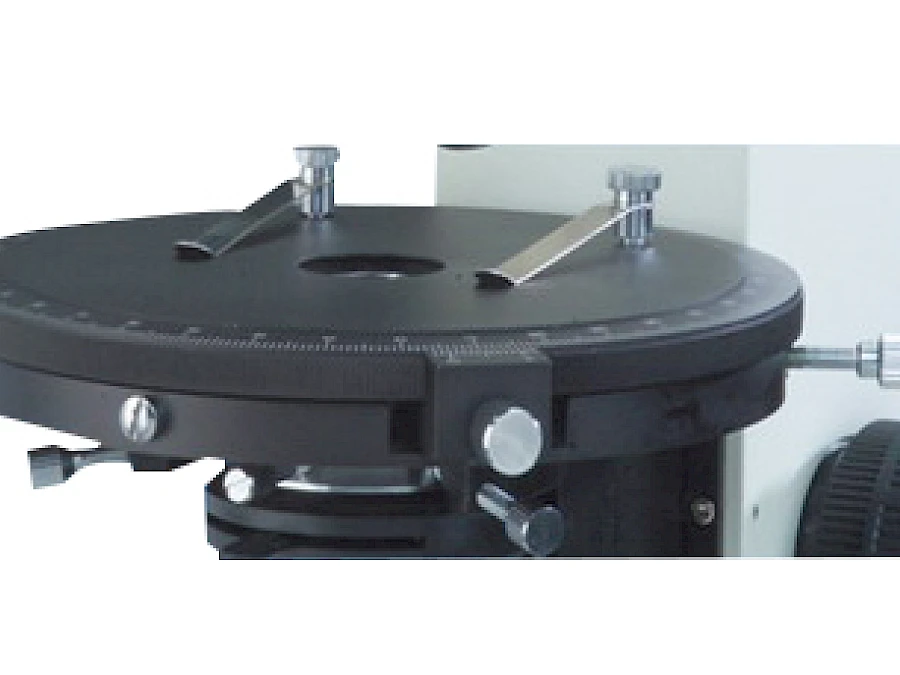

Rotund rotatable stage, Φ150mm diameter, 360° graduated (in 1° increments), miniunm, retardation resolution 6’, center adjustable and with tightener.
Polarizer, 360° rotatable, having 0, 90 180, 270 four scale, is set under the aperture disphragm

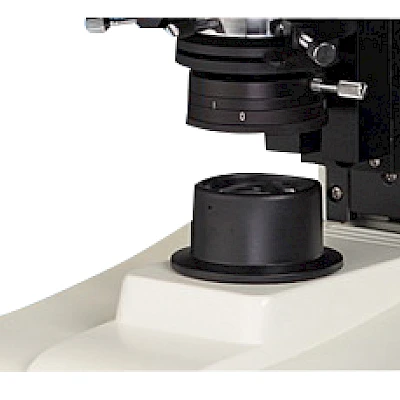

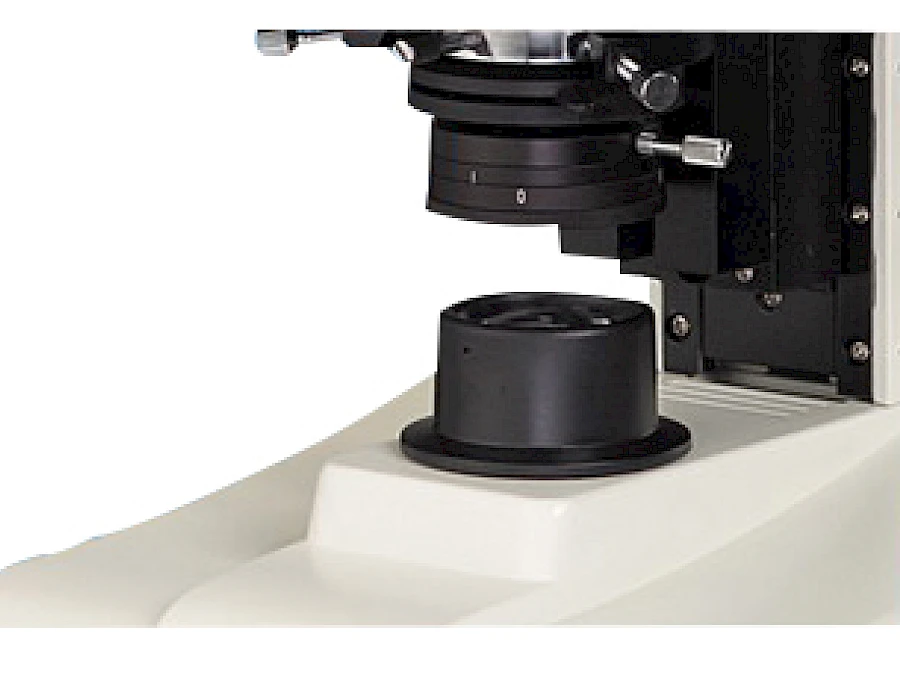

The illumination system with 6V 20W halogen lamp (brightness adjustable) can provide clear and bright image. The system also includes the collector with field disphragm.
The impellent style of polarizer can circumrotate 90°, The illumination system with 6V 20W halogen lamp (brightness adjustable) can provide clear and bright imgae. The system also includes the collector with collector with field diaphragm.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.

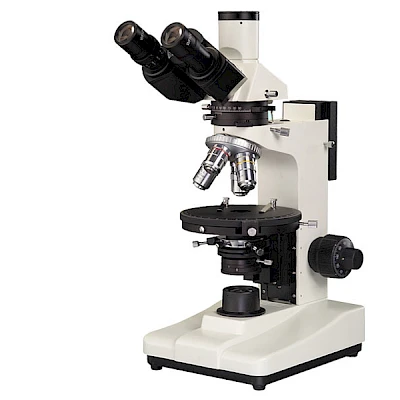

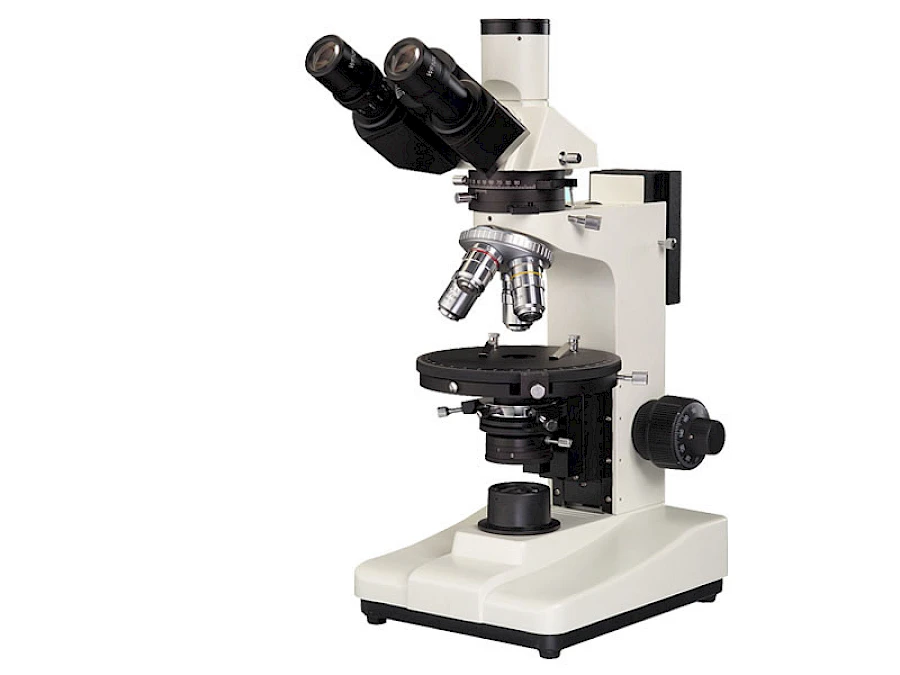

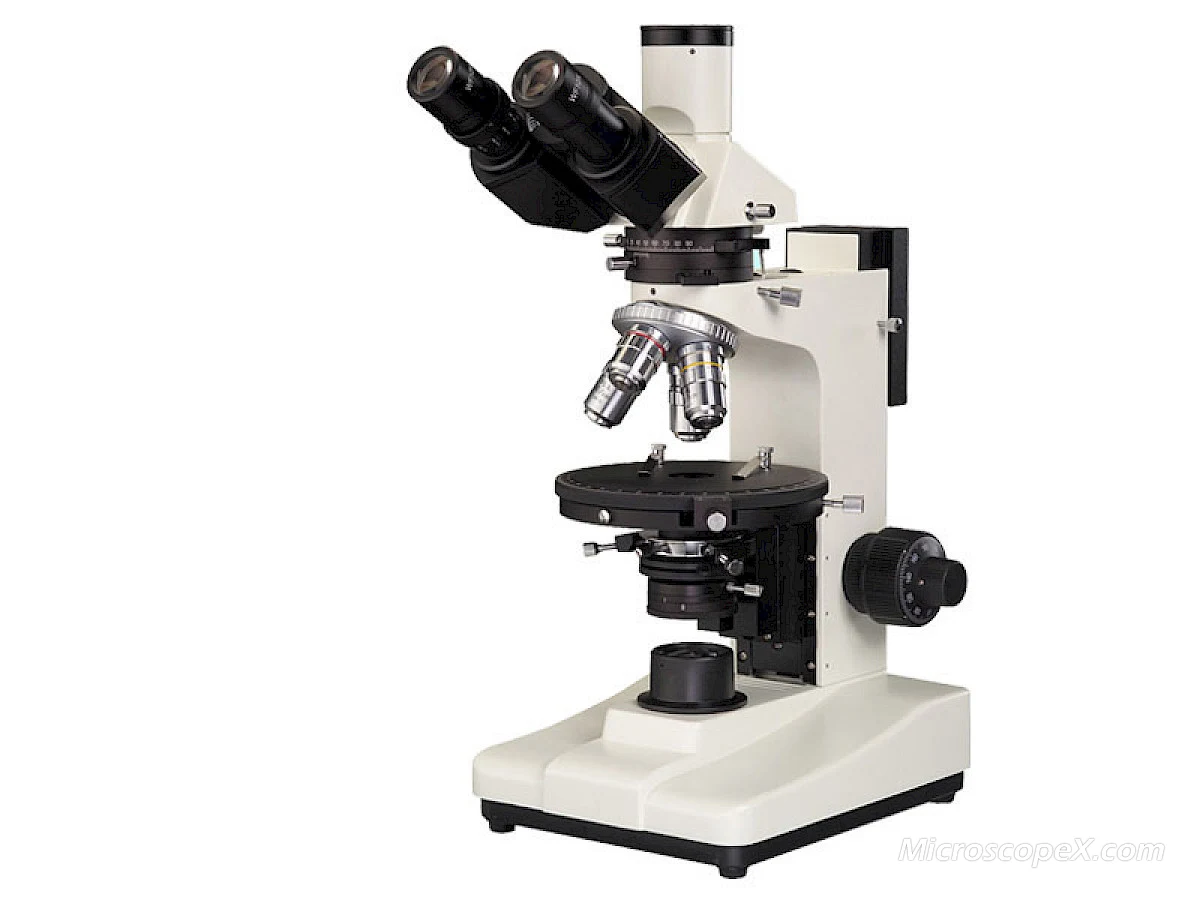

POL1520
Head & Stage of POL1510
Intermediate Attachment & Nosepiece of POL1510

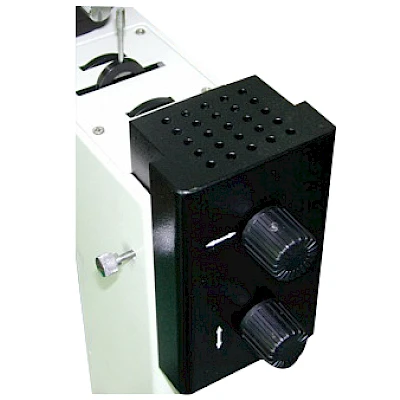

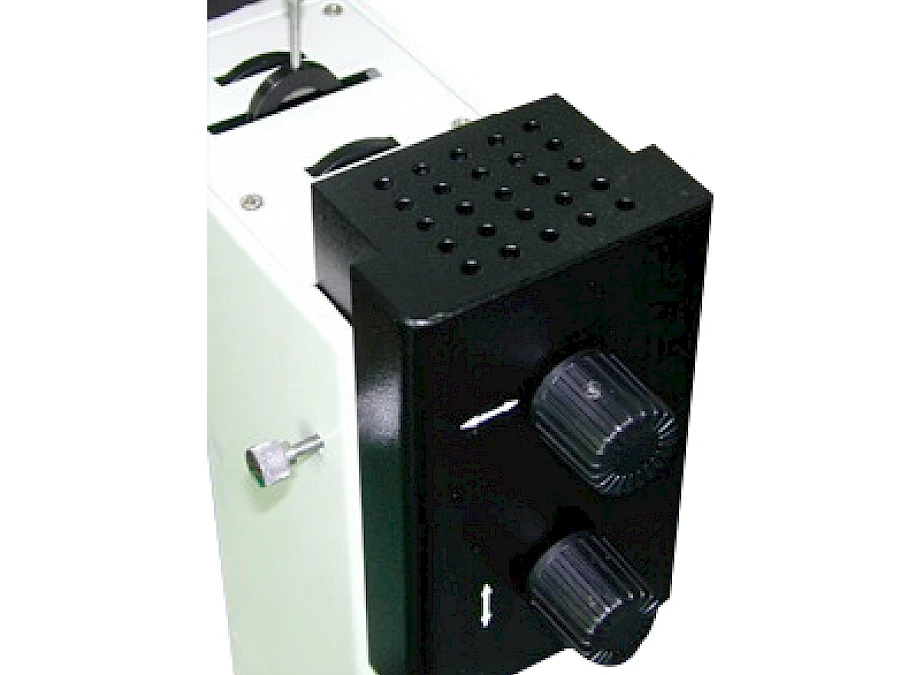

Transmitted Illumination & Reflected Illumination of POL1510

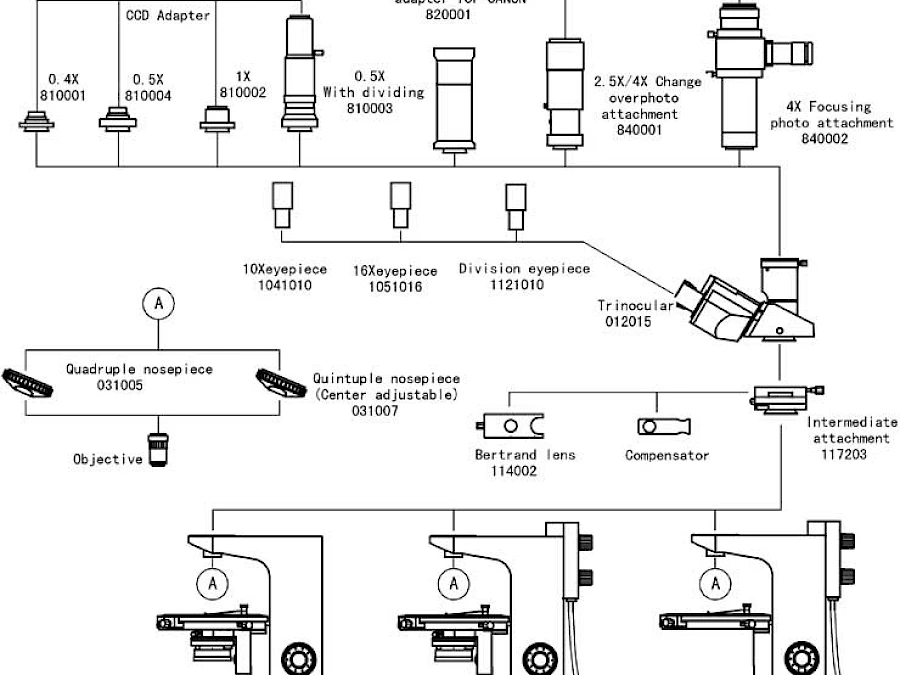

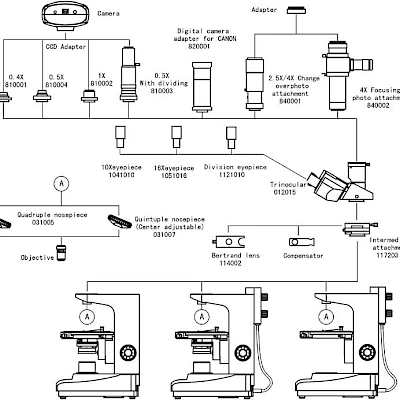

Diagram of POL1520

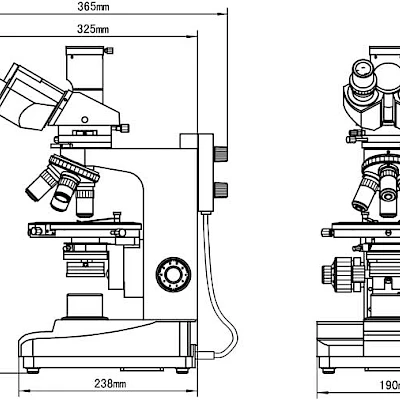

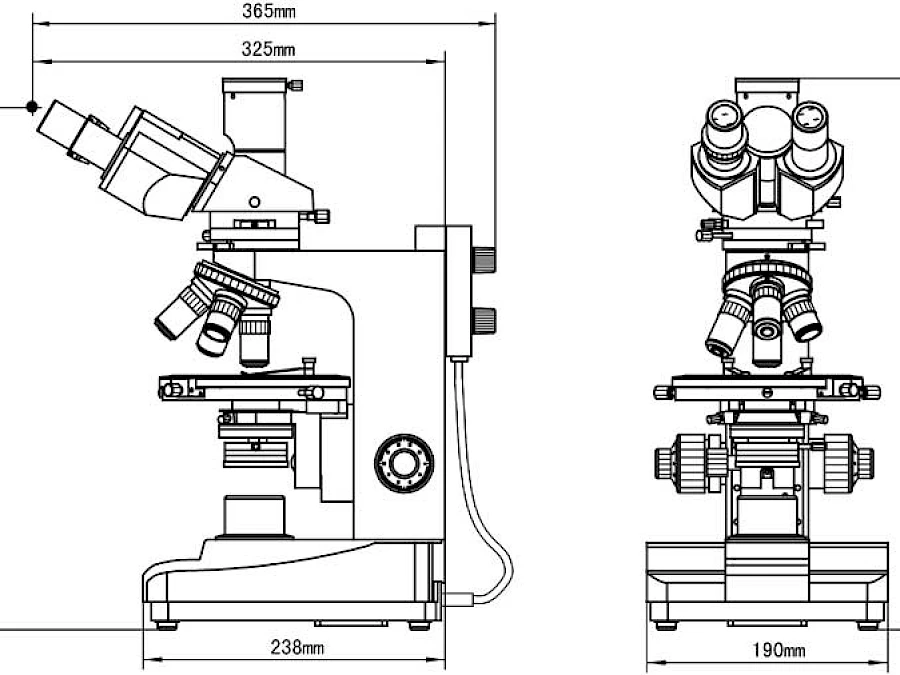

Dimension of POL1520
Digital Camera Photo
