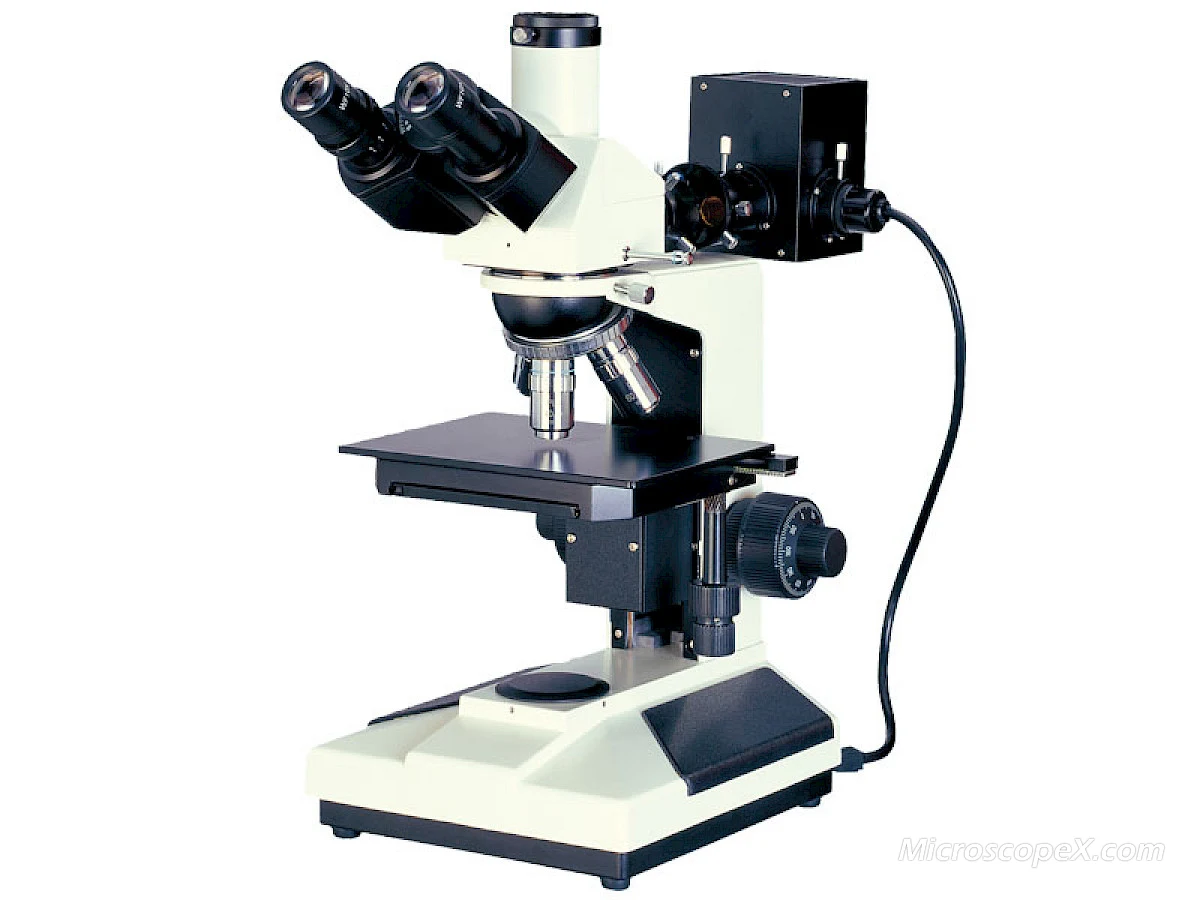

VM2200M Series Upright Industrial School Research Metallurgical Microscope with Epi-illumination

VM2200M Series

50X-600X, Trinocular, 185mm x 140mm stage

Core Features

With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
6V 20W halogen lamp, brightness control.
Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port

Configurations

WF 10X (Φ18mm)

Inclined 30°

Quadruple / Quintuple

6V 20W Halogen

VM2200M Series Reflected Metallurgical Microscopes are suitable to observe the surfaces of non-transparent object. They are equipped with vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular. They provide clear and high-contrast picture, convenient operation etc. They are the ideal instruments for research work in metallography, mineralogy, precision engineering, electronics etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.

Trinocular, single diopter adjustment, inclined 30° and integrated analyzer, it can be connected to the camera.

Integrated field, aperture diaphragm and (Y, B, G, Ground glass) switching device. Puller polarizer can be circumrotated for 90°

By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. They can achieve high clear observation mode of camera and vidicon

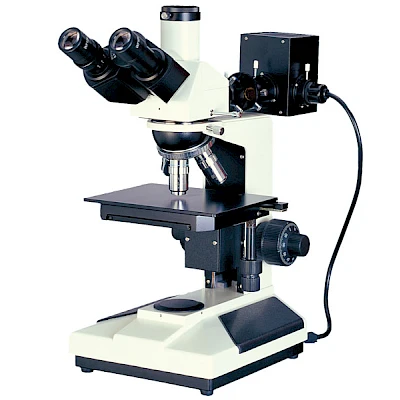

VM2200M Series

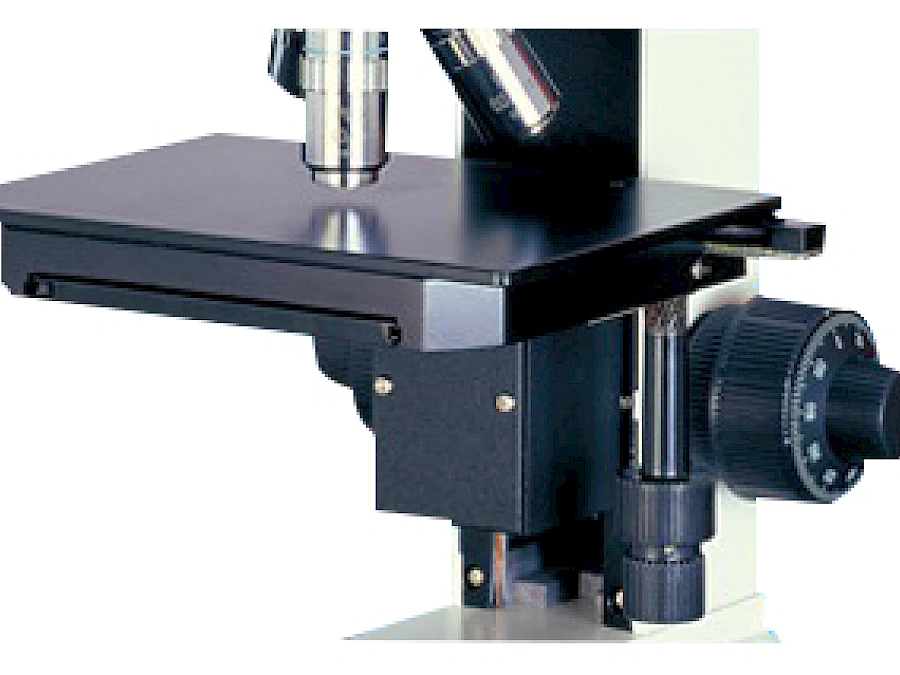

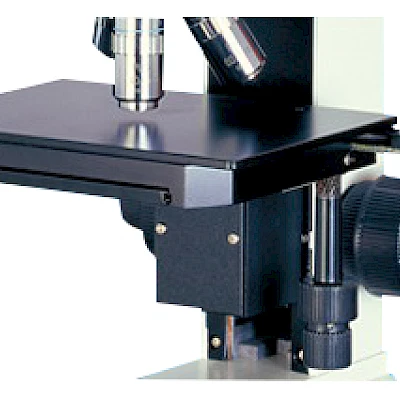

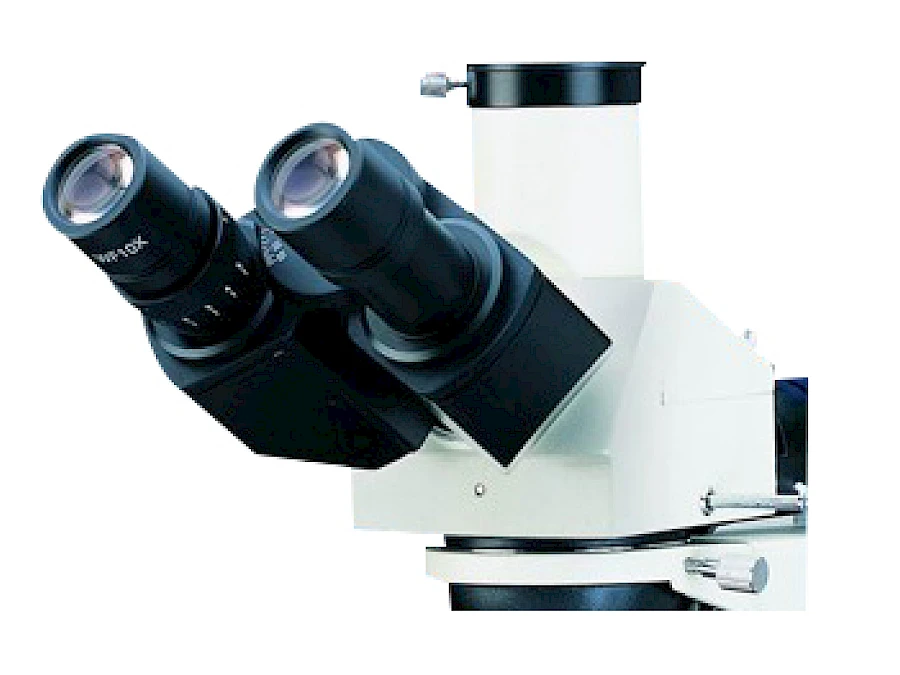

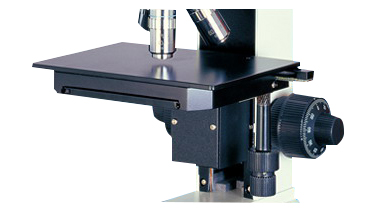

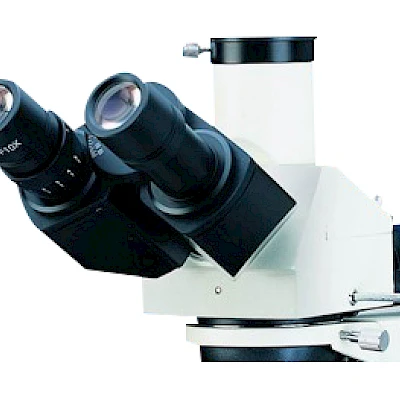

Head & Mechanical Stage of VM2200M Series

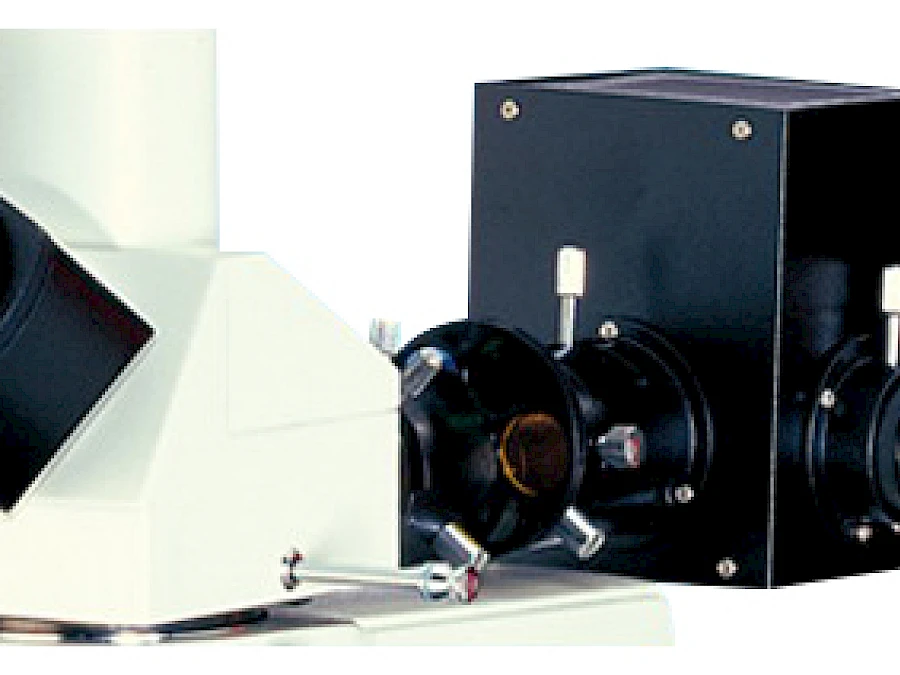

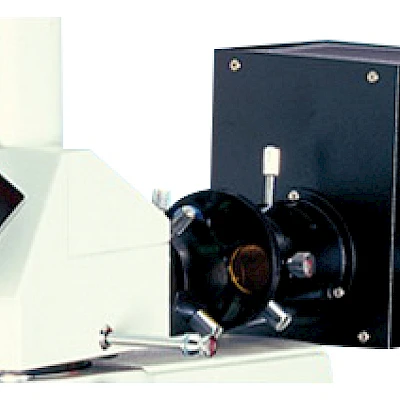

Epi-illumination System of VM2200M Series

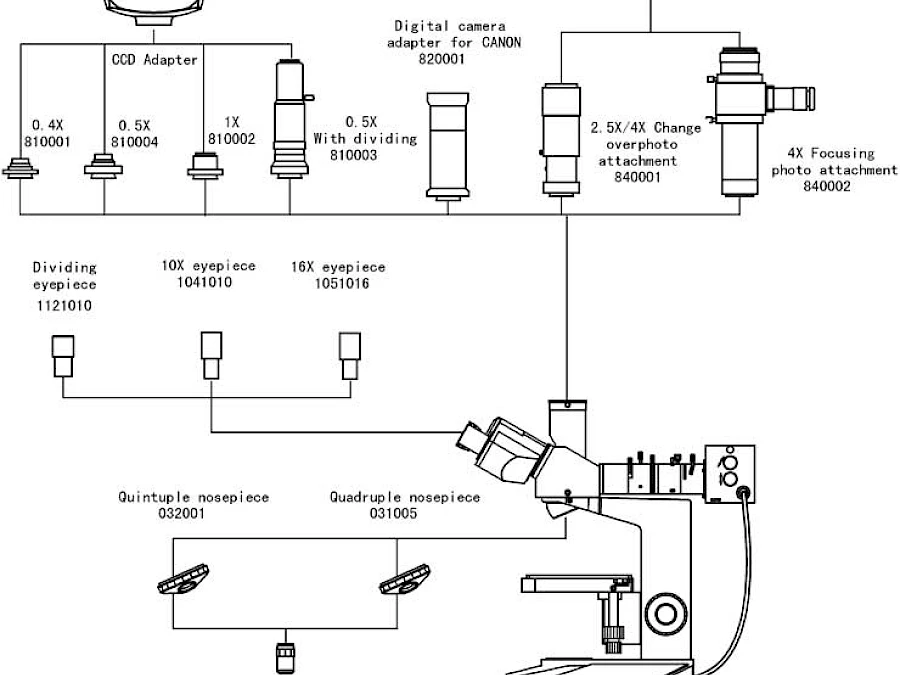

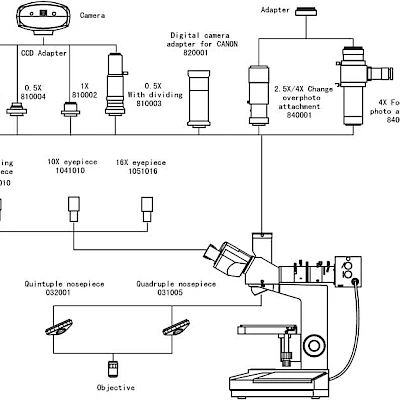

Diagram of VM2200M Series

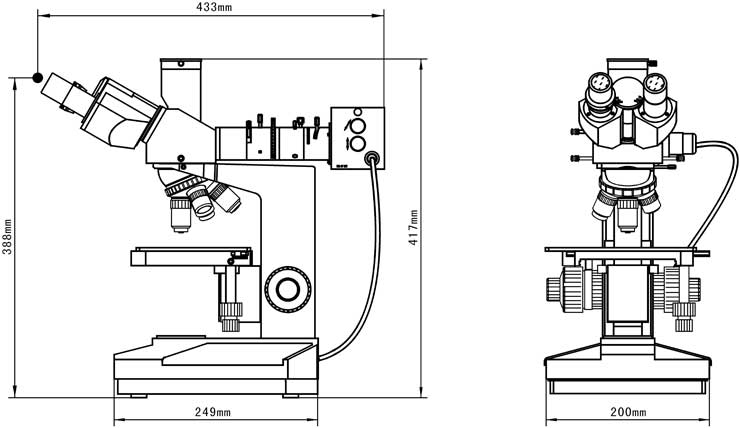

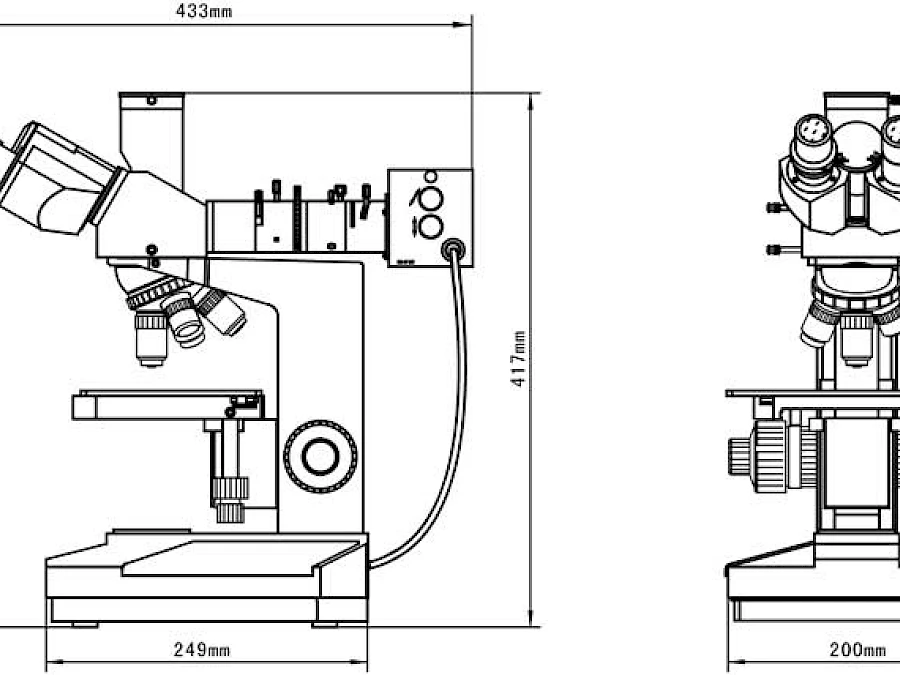

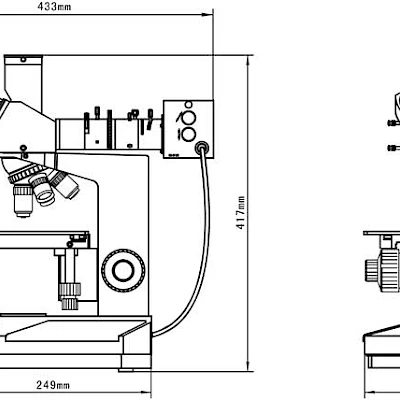

Dimension of VM2200M Series

Specification for VM2200M Sereis
Eyepiece	WF 10X (Φ18mm)
Eyepiece Tube	Trinocular, inclined 30°, Analyzer with field diaphragm to switch
Objective	VM2200MA	VM2200MB
	Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12	Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
	Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25	Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
	Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60	Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
	Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75 (Spring)	Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60
		Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75(Spring )
Focus System	Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm
Nosepiece	Quadruple (Backward Ball bearing inner locating)
Nosepiece	Quintuple (Backward Ball bearing inner locating)
Working Stage	Double layer mechanical (Size:185mmX140mm,moving range:75mmX50mm)
Vertical Illumination Unit	6V 20W Halogen Lamp, adjustable control
Vertical Illumination Unit	Vertical illumination With field diaphragm ,aperture diaphragm and polarizer, (Y, B, G) filter and frosted filter

Accessories for VM2200M Series
Eyepiece	WF 16X(Φ11mm)
Eyepiece	Dividing 10X(Φ18mm) 0.1mm/Div
Objective	Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70
	Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80
	Plan achromatic objectives with long working distance (no cover glass) PL L100X/0.85 (Spring)
	Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, Oil)
CCD Adapter	0.4X
	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	DV-1 (with USB & Video Output)
	DV-2 (with USB Output)
	DV-3 (with Video Output)
Photo Unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD Adapter
	PK Adapter
Digital camera adapter	CANON (A610, A620, A630, A640)
