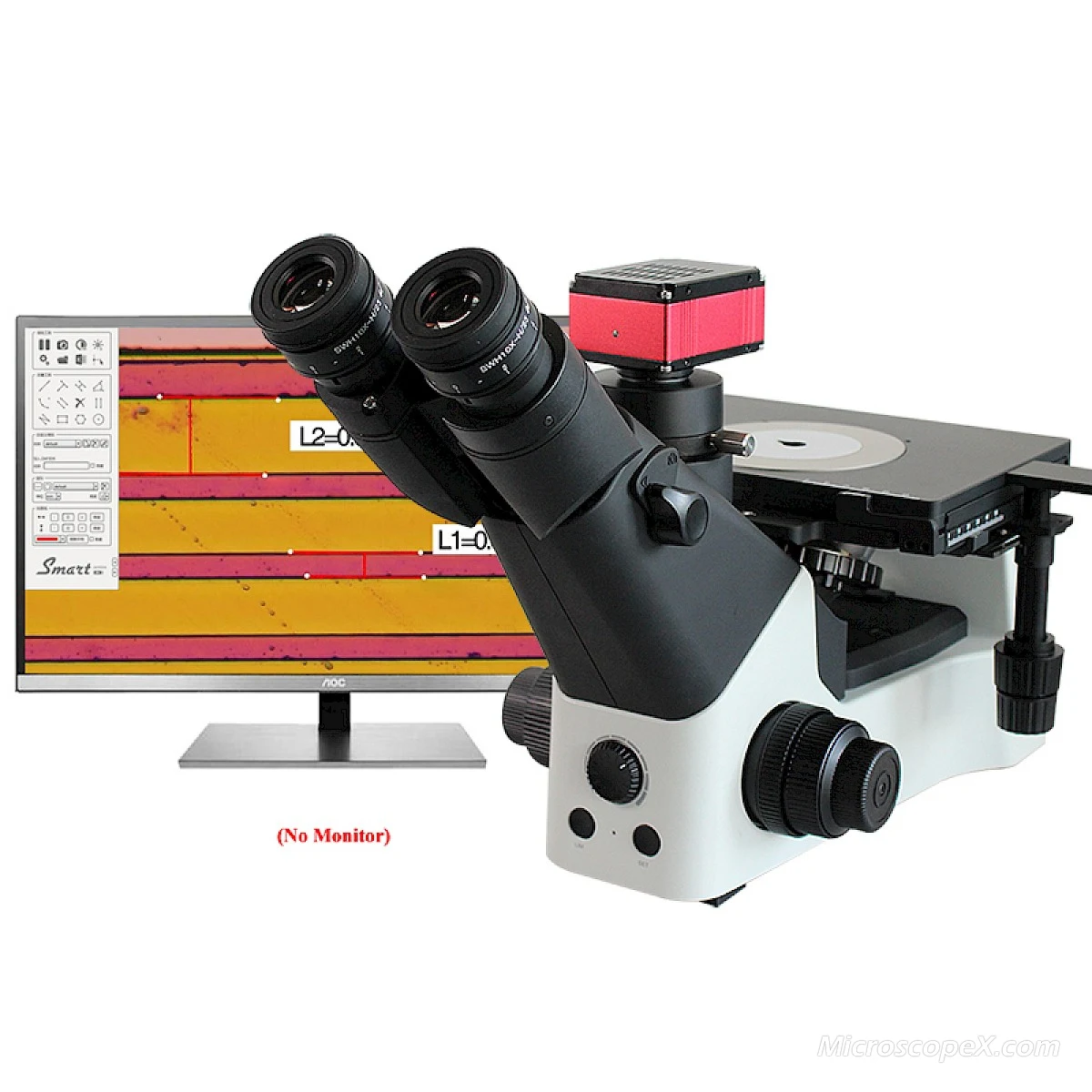

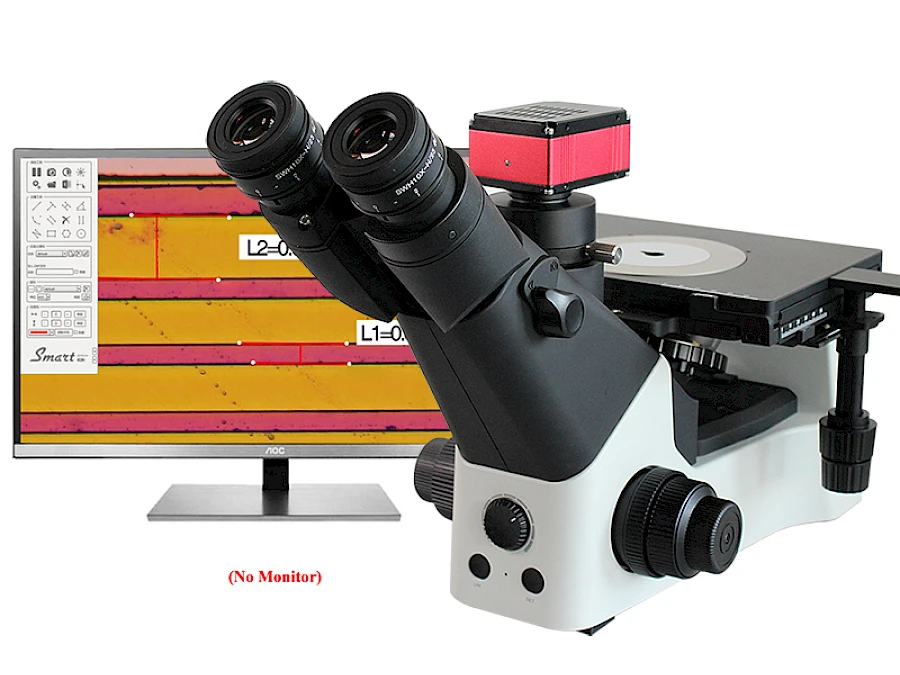

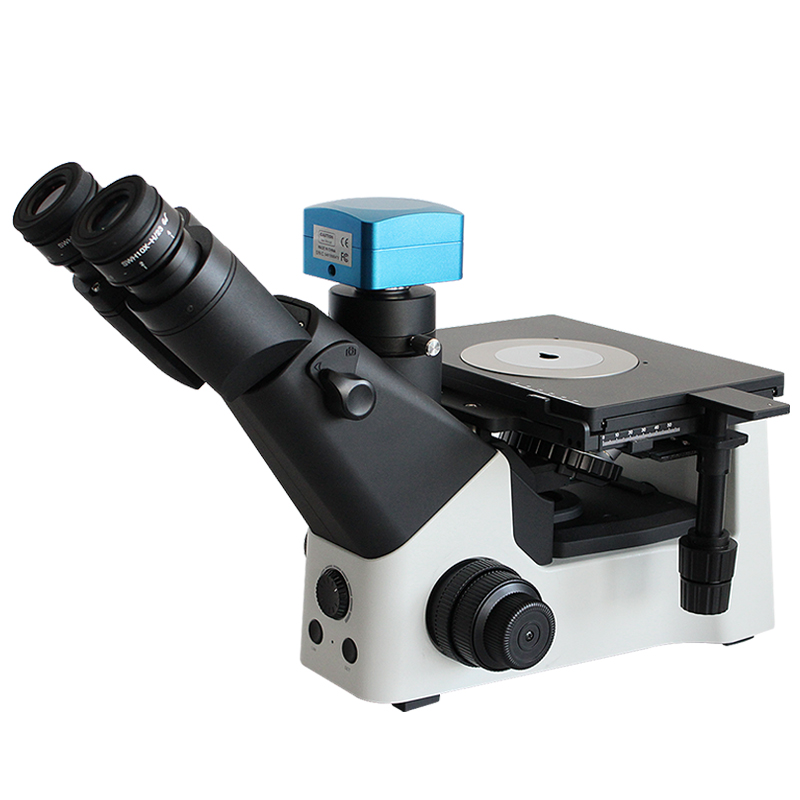

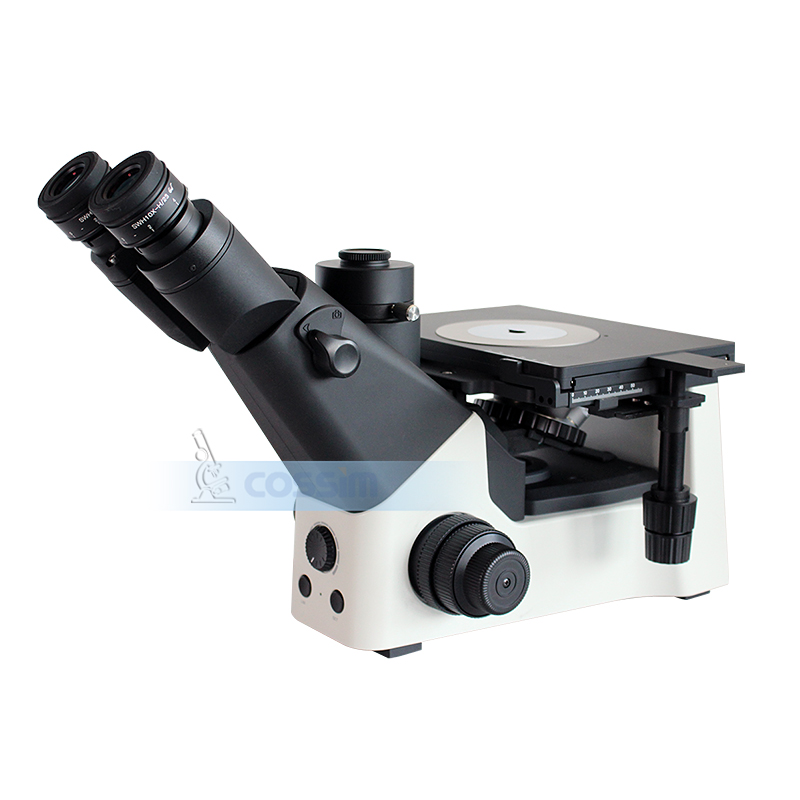

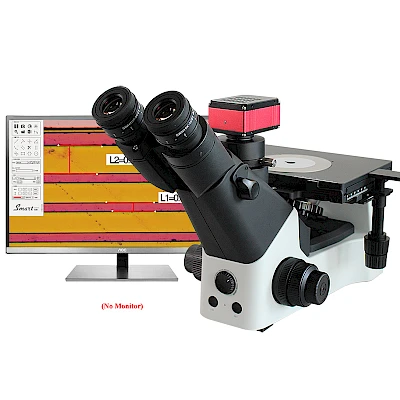

VM2400I Trinocular Coded Inverted Metallurgical Microscope equips with the long working distance bright field plan achromatic objective lens and wide field eyepiece. Observing irregular samples which weighs less than 5 KGs or large volume height.
It also has 5V/10W LED bulb illumination, with brightness memory function, which can remember the lighting brightness when using each objective, automatically adjust the light intensity when different objectives are converted to each other, reduce visual fatigue, and improve work efficiency.
It is mainly used for identification and analysis of the internal structures and organizations in different metals and alloys, or for observing certain characteristics of material surfaces, such as scratches, cracks, and uniformity of spraying.
It is the important and ideal instrument for researching metallography in metal physics. The instruments can select special photography device to take euploid pictures of atlas metallograph. The instruments are suitable for scientific research, colleges and factories.

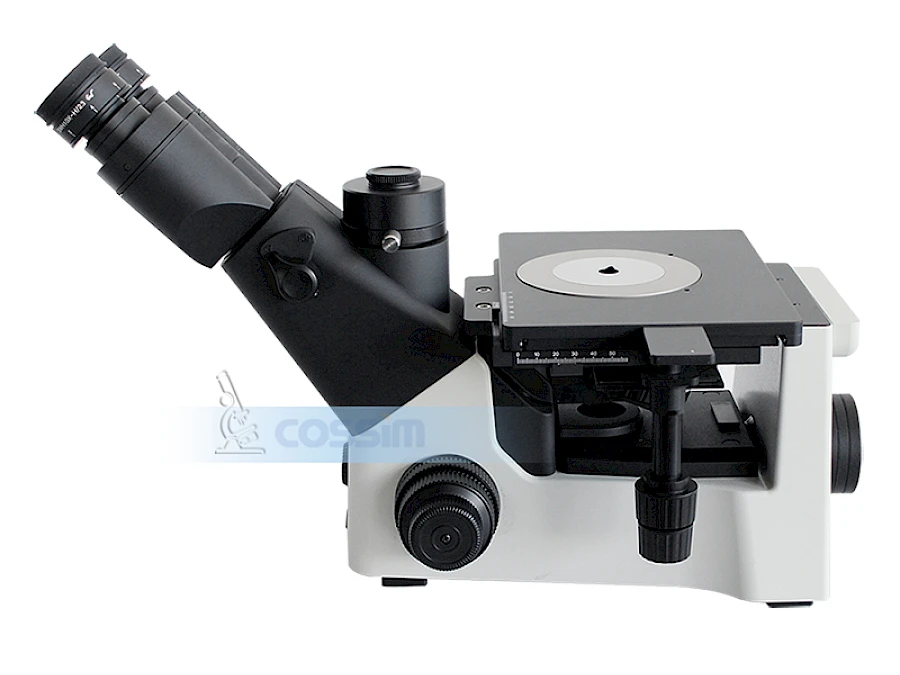

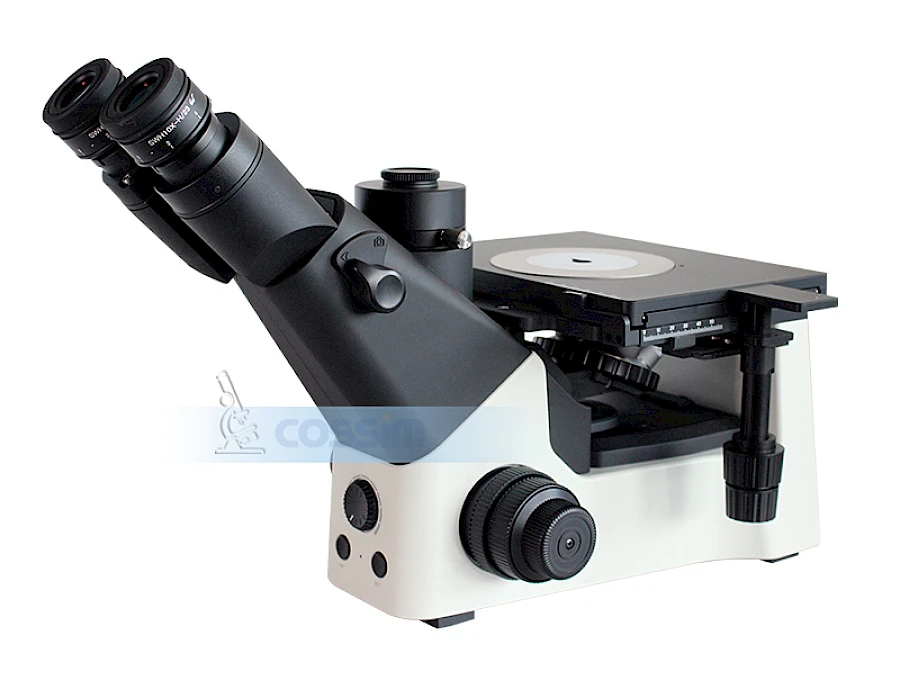

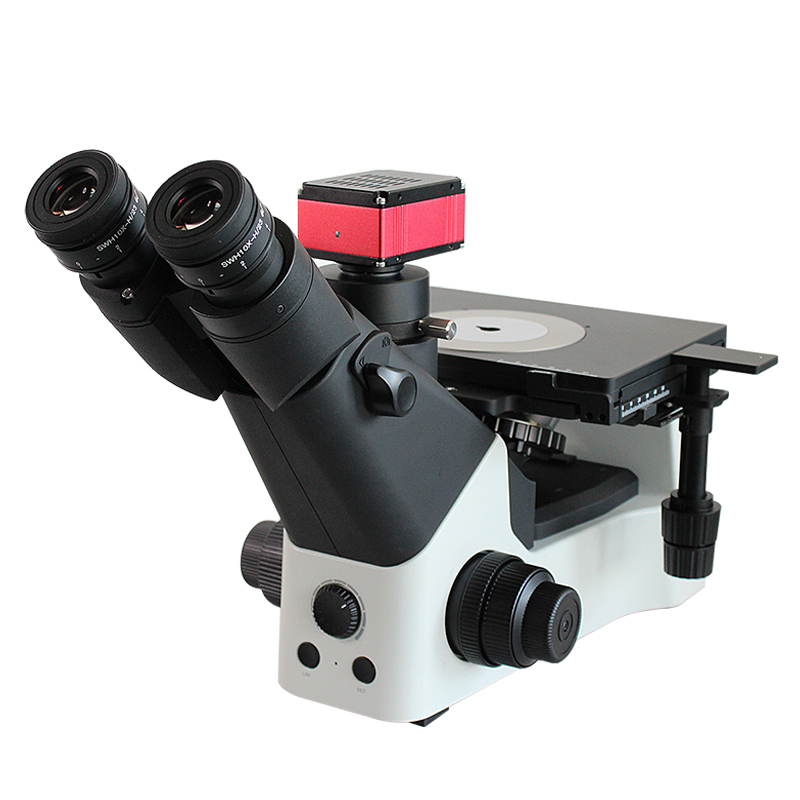

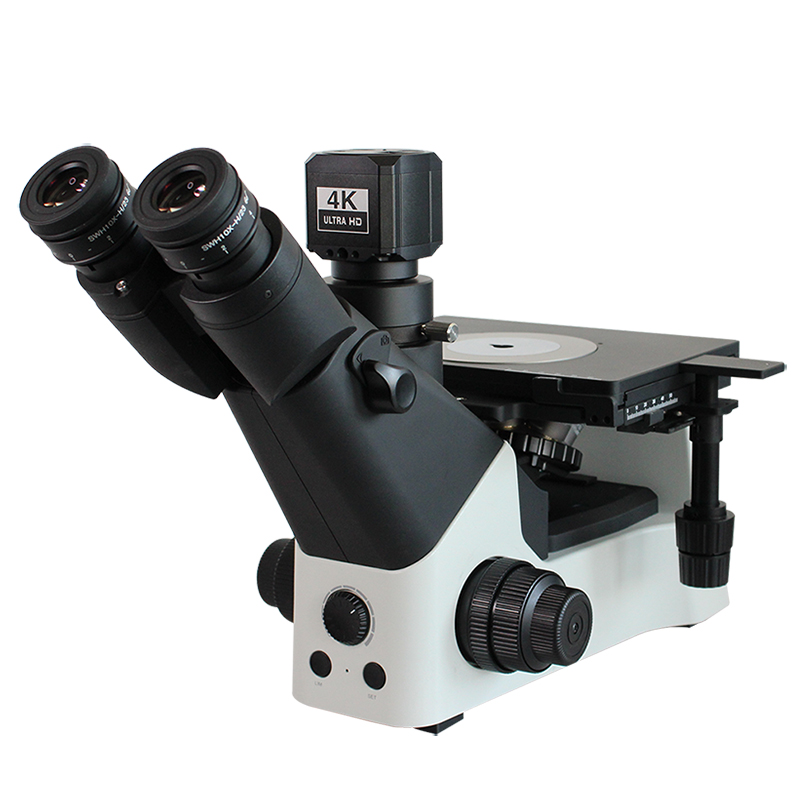

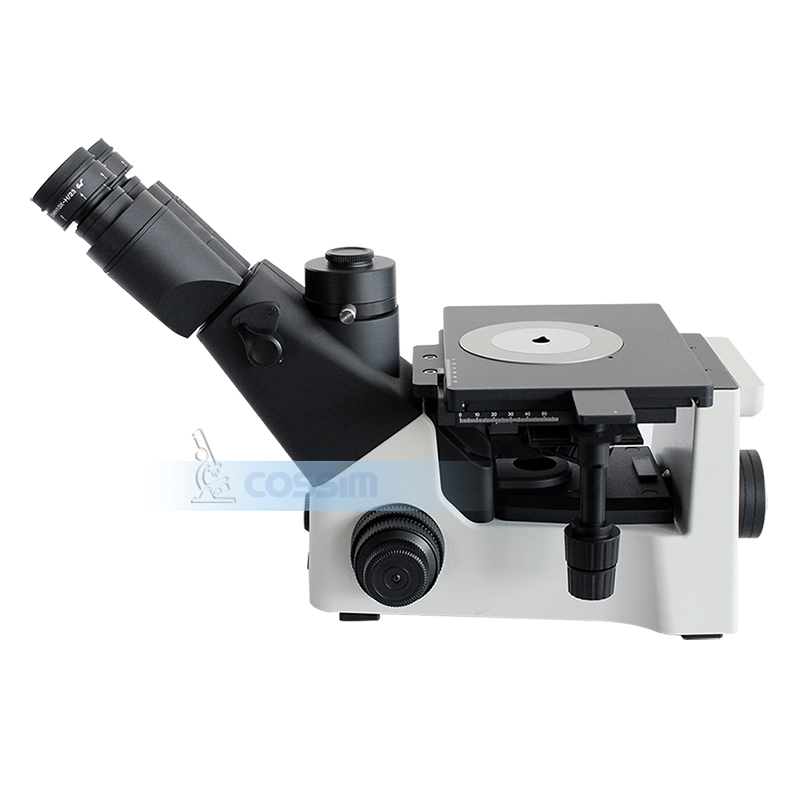

Different Views of VM2400I

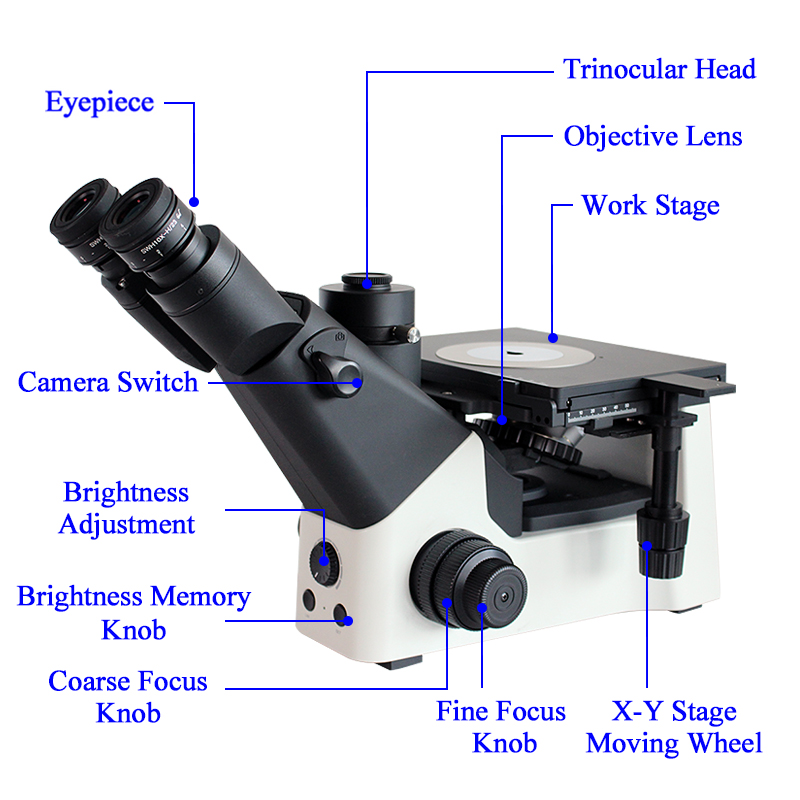

Structure of VM2400I

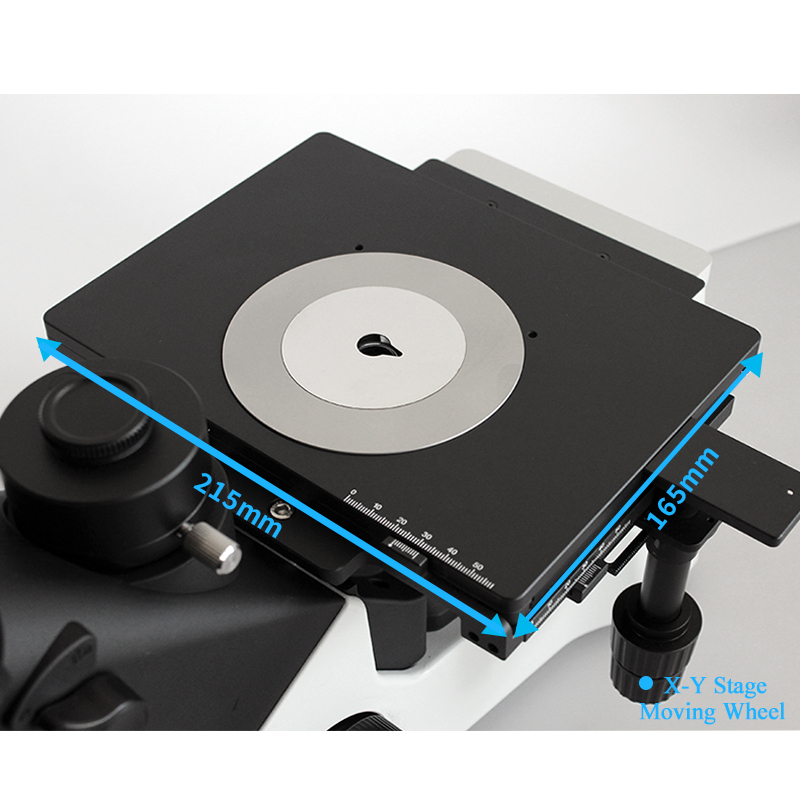

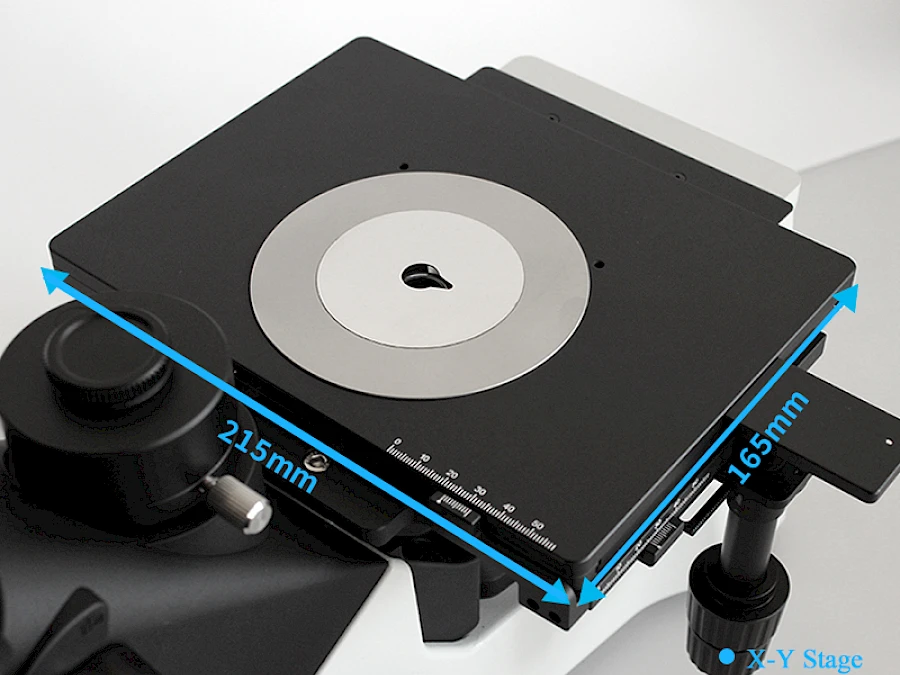

Working Stage of VM2400I

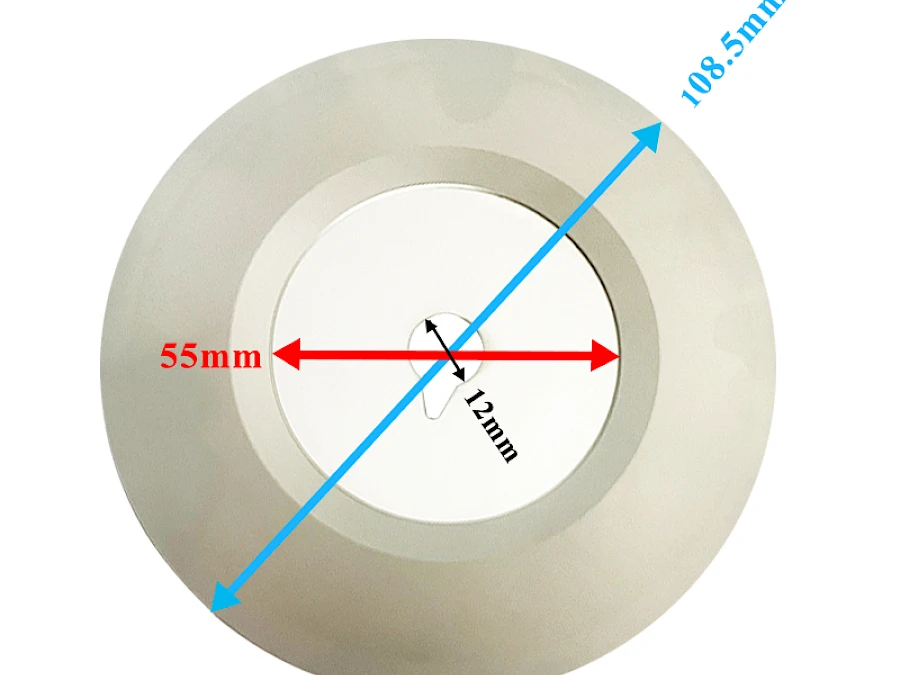

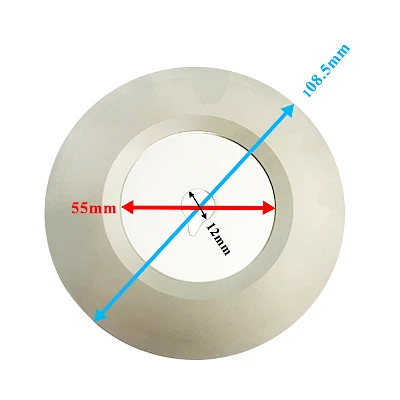

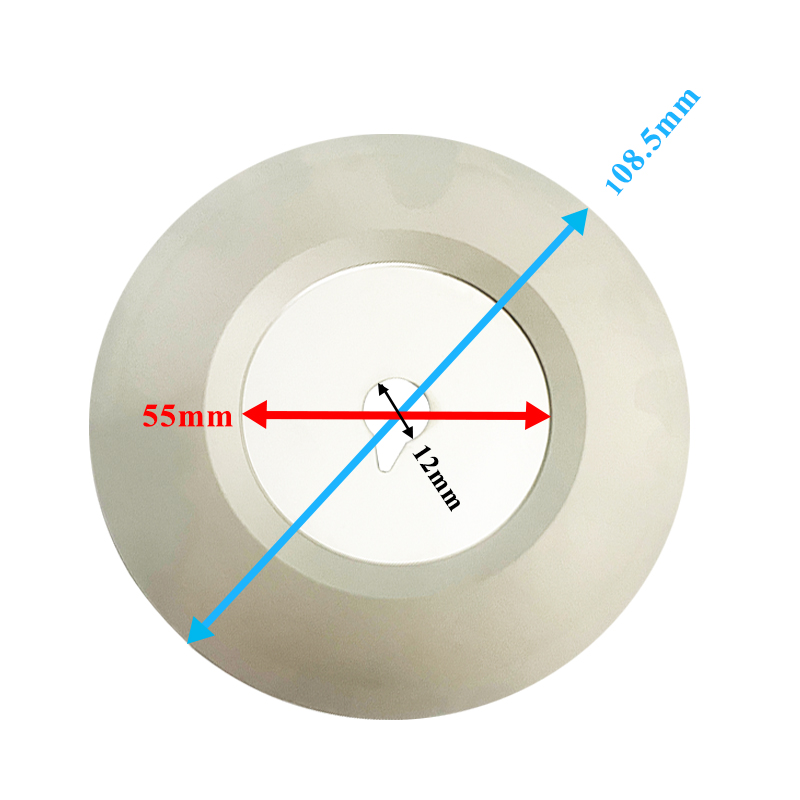

Hole Size of Stage

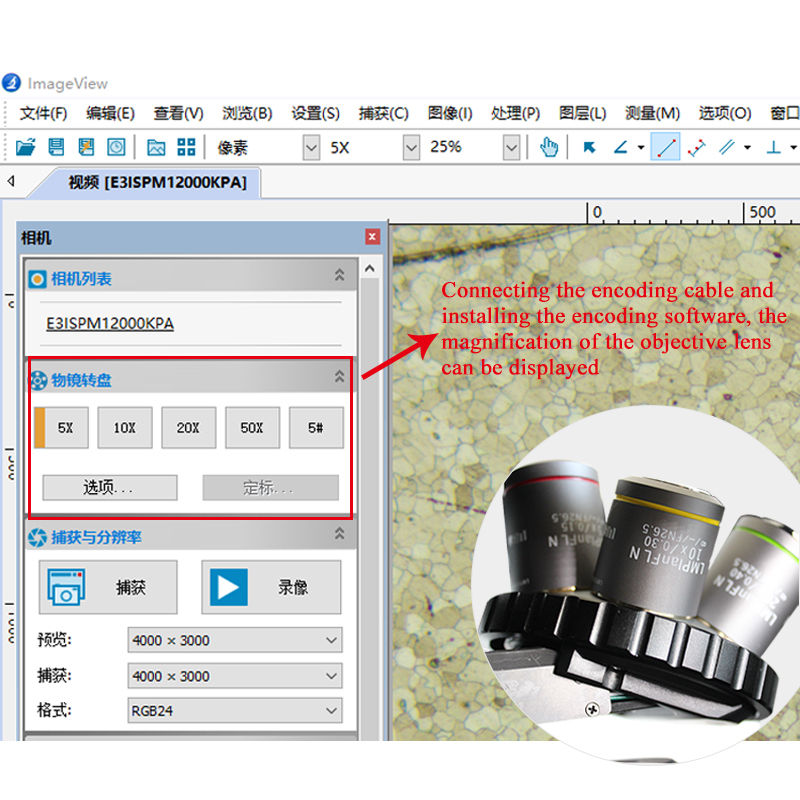

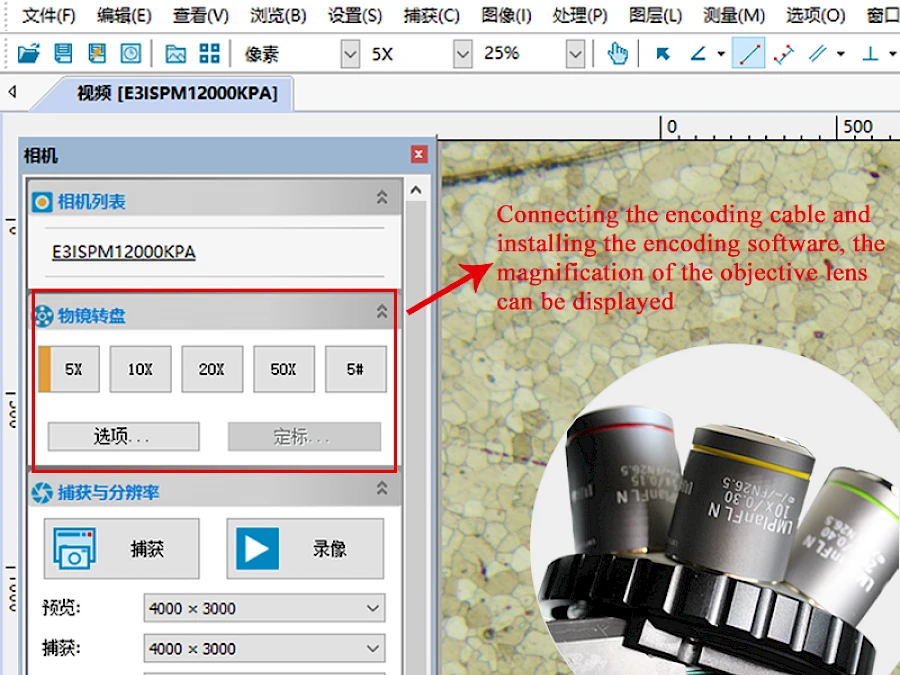

Coded quintuple nosepiece, automatically adjusts the calibration values recorded in the software when switching lens magnification with Image analysis software, Which is easy to operate and reducing measurement errors

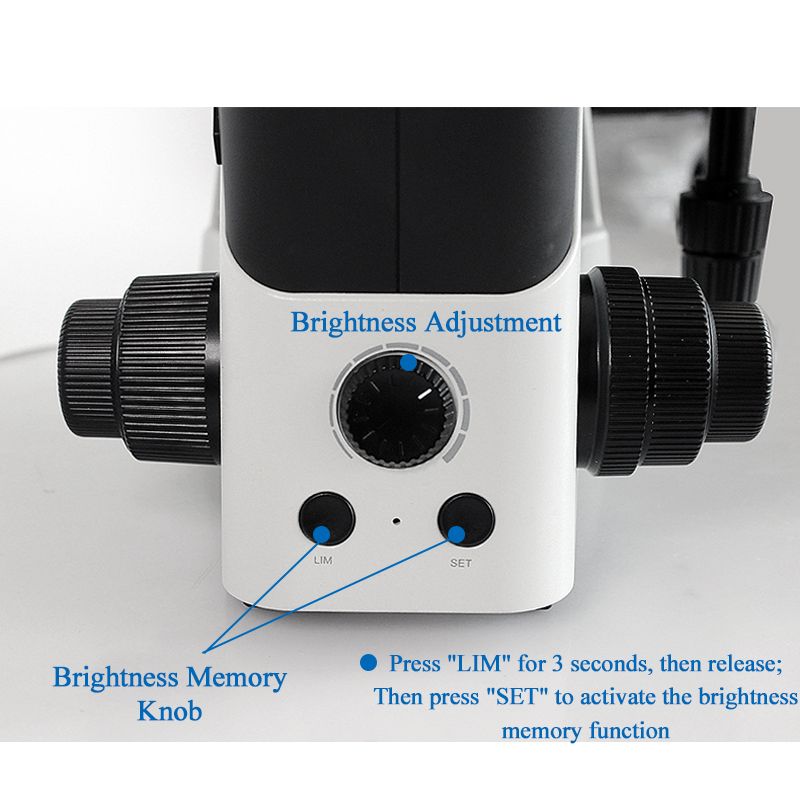

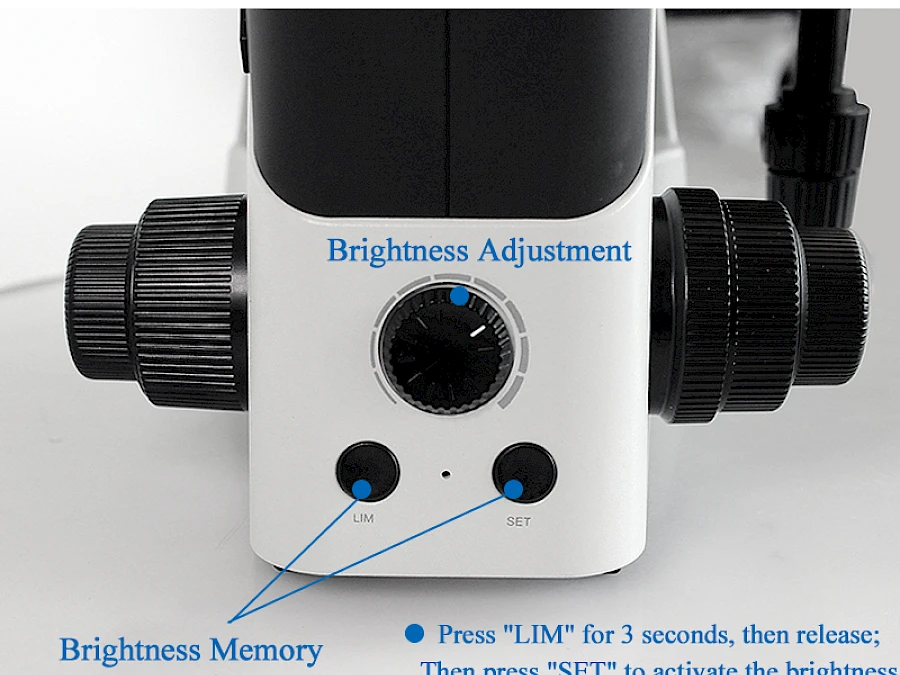

5V/10W LED illumination, with brightness memory function, which can remember the lighting brightness when using each objective, automatically adjust the light intensity when different objectives are converted to each other, reduce visual fatigue, and improve work efficiency

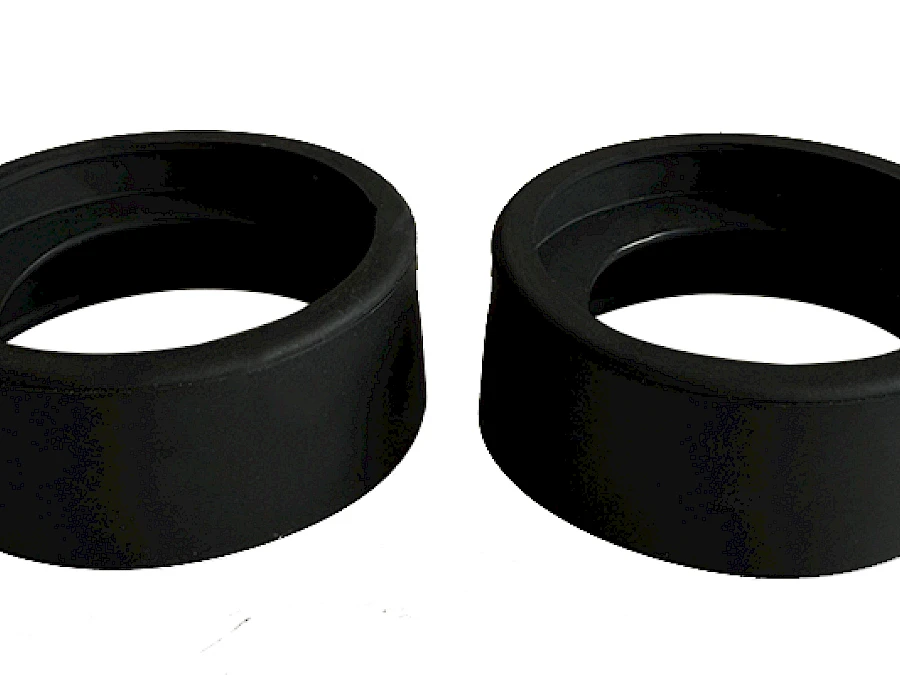

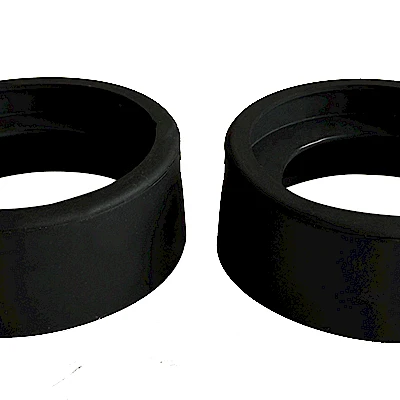

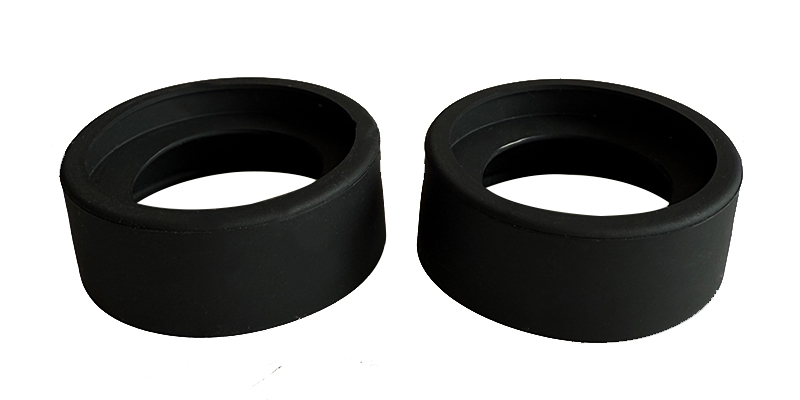

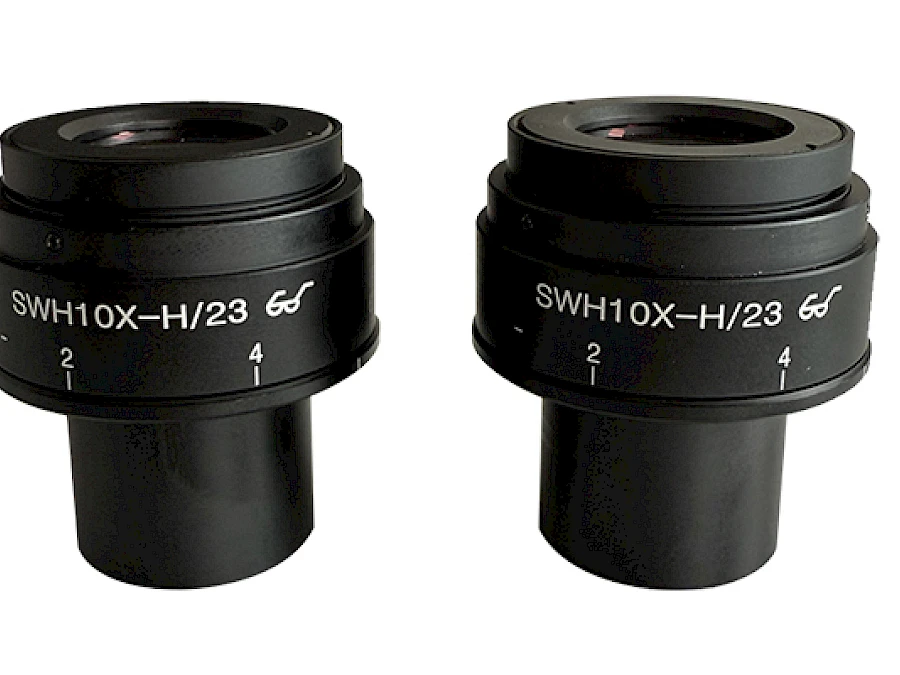

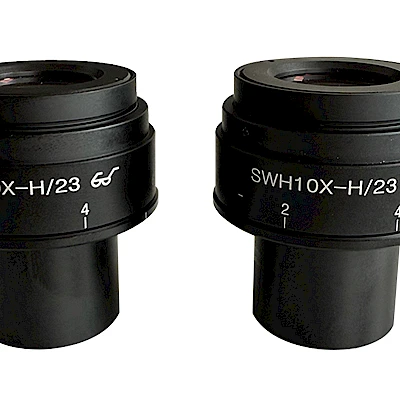

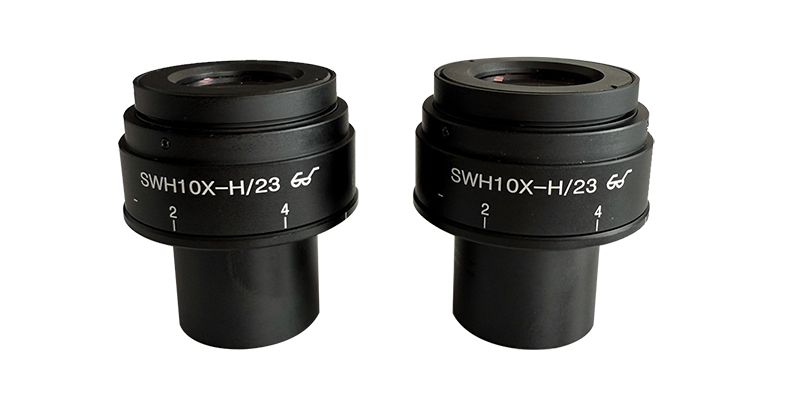

Eyepiece & Eyeguard of VM2400I

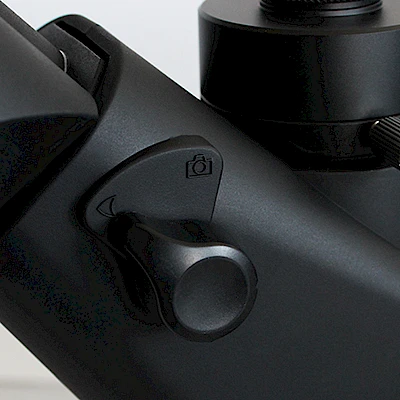

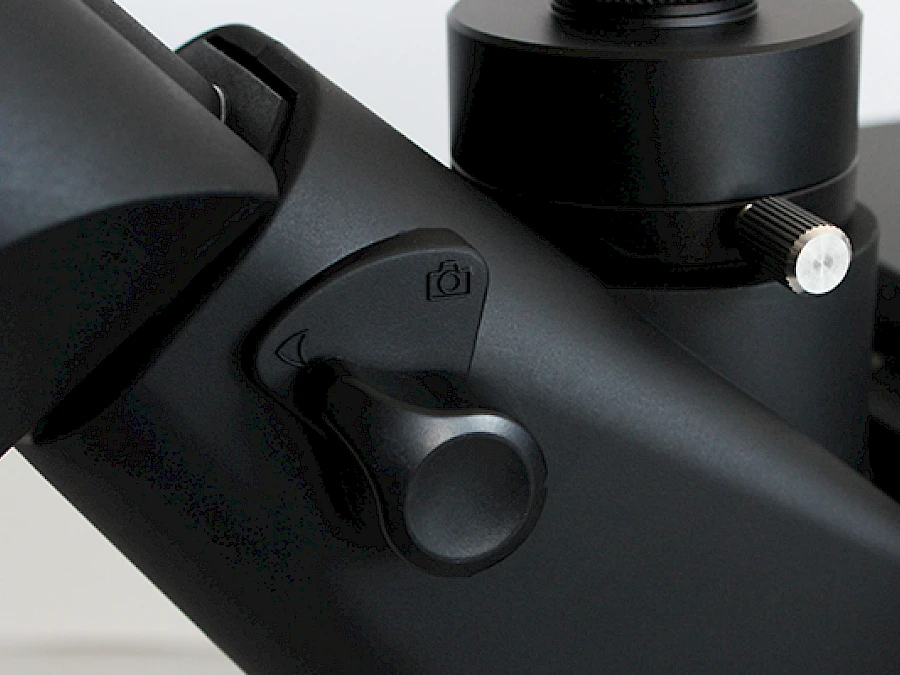

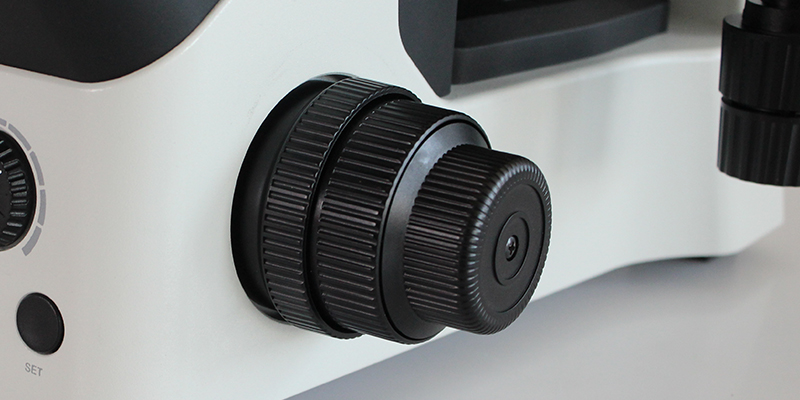

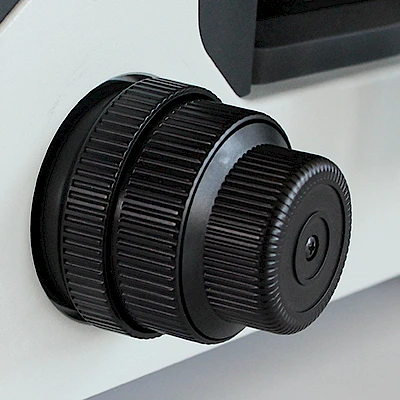

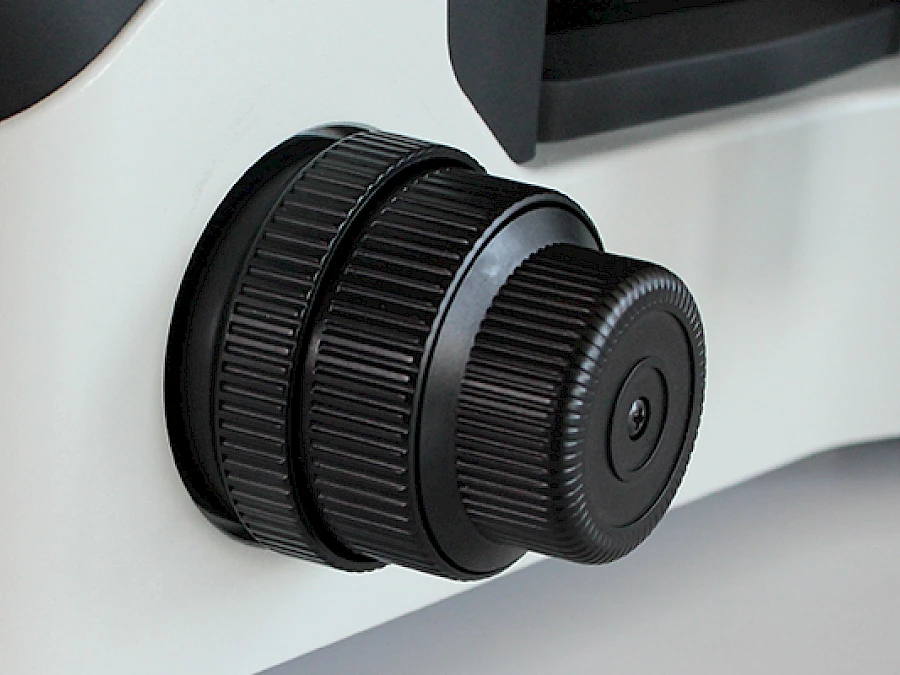

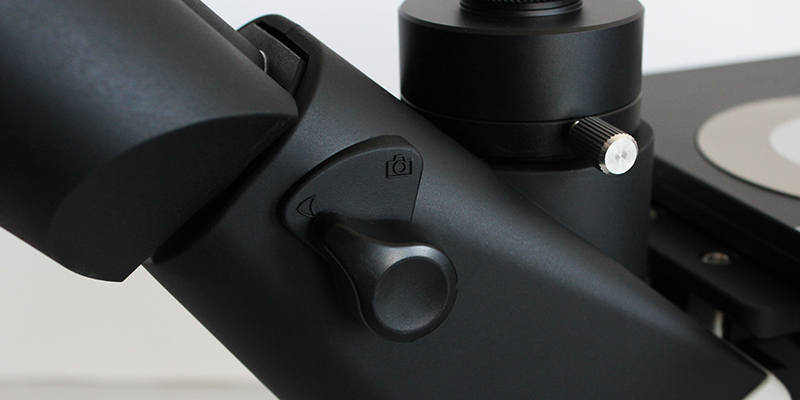

Observation Switch & Focus Knob of VM2400I

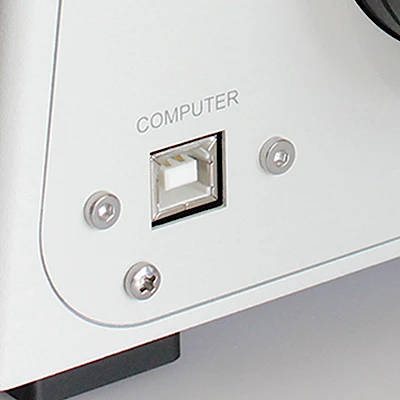

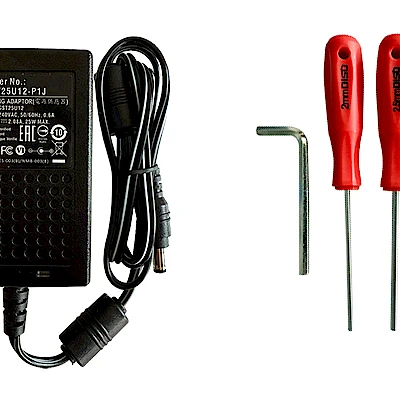

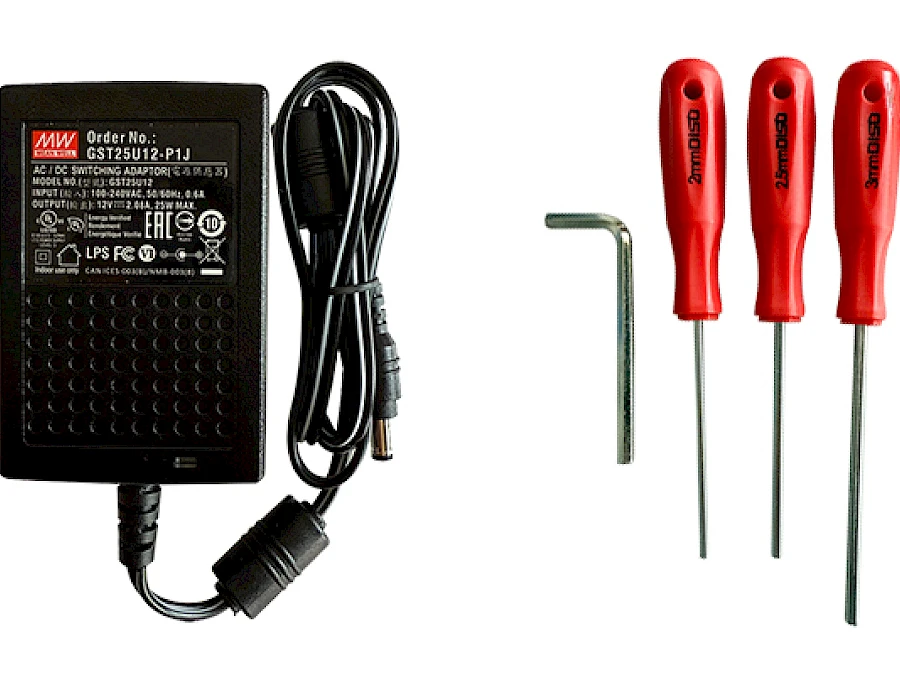

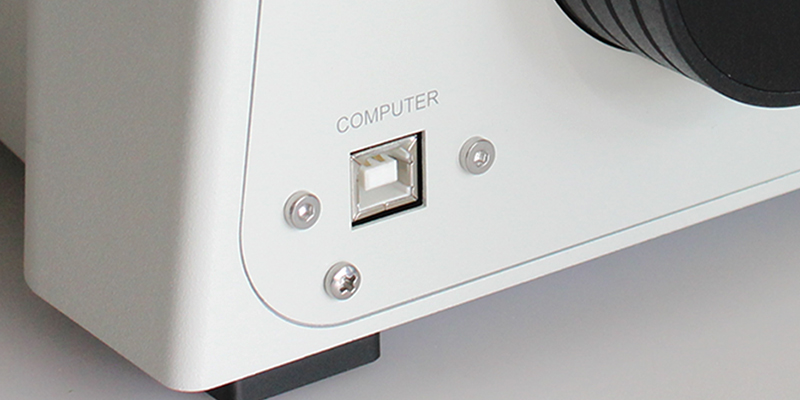

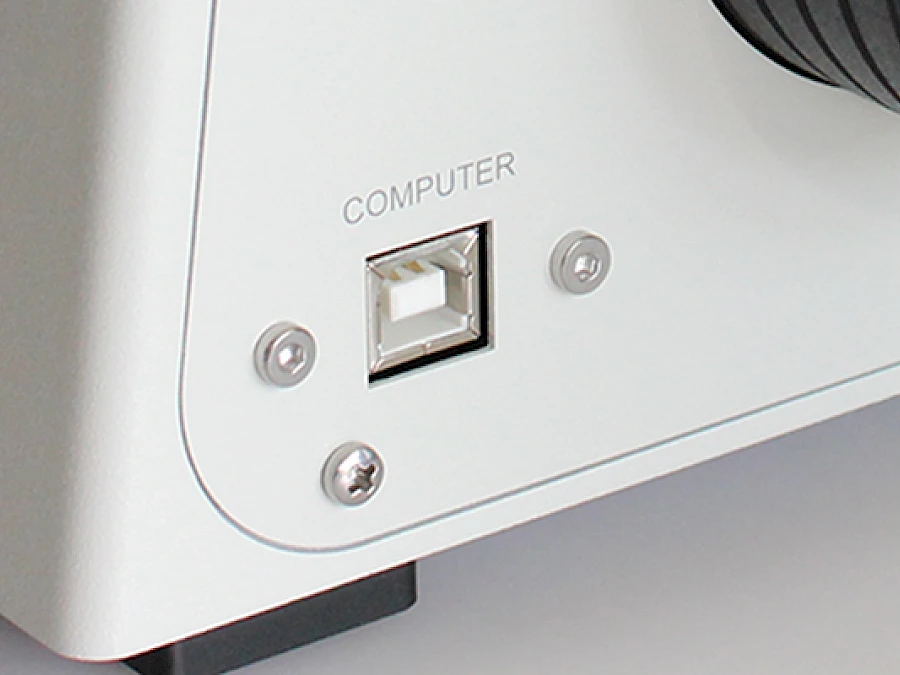

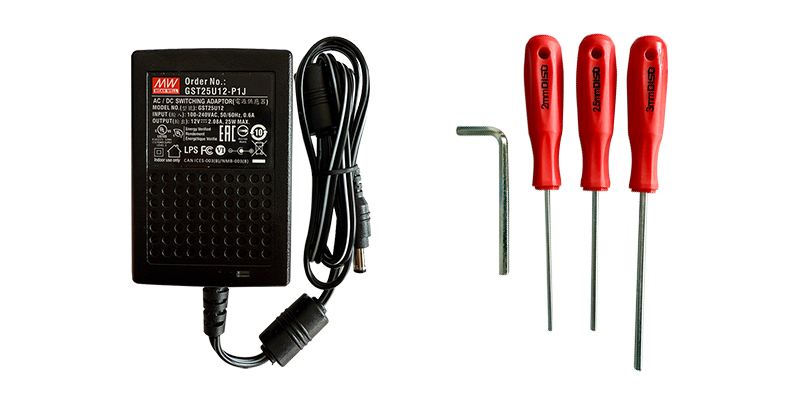

Encode-interface & Power Supply & Tools of VM2400I

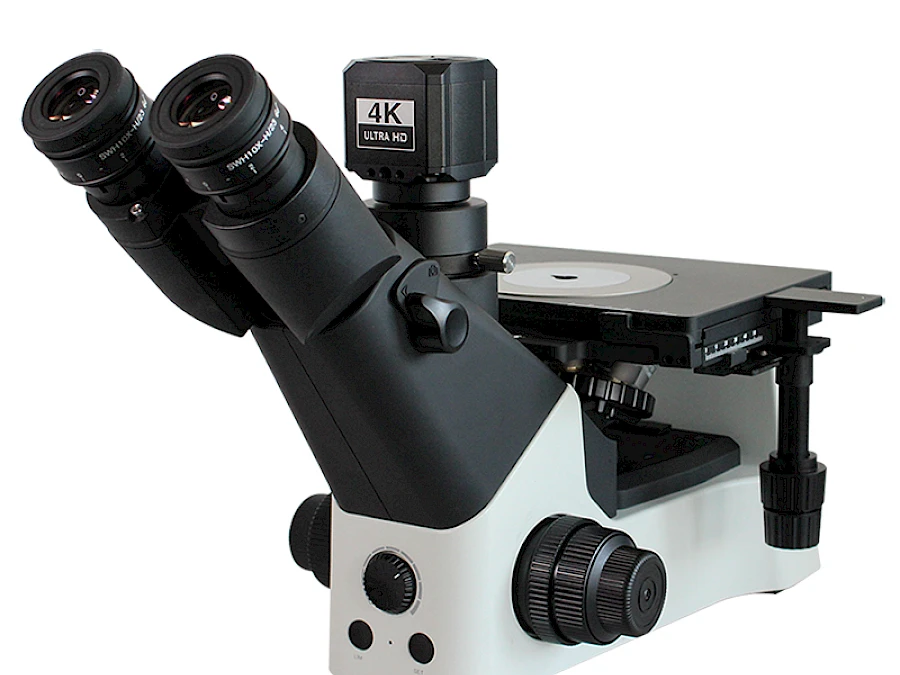

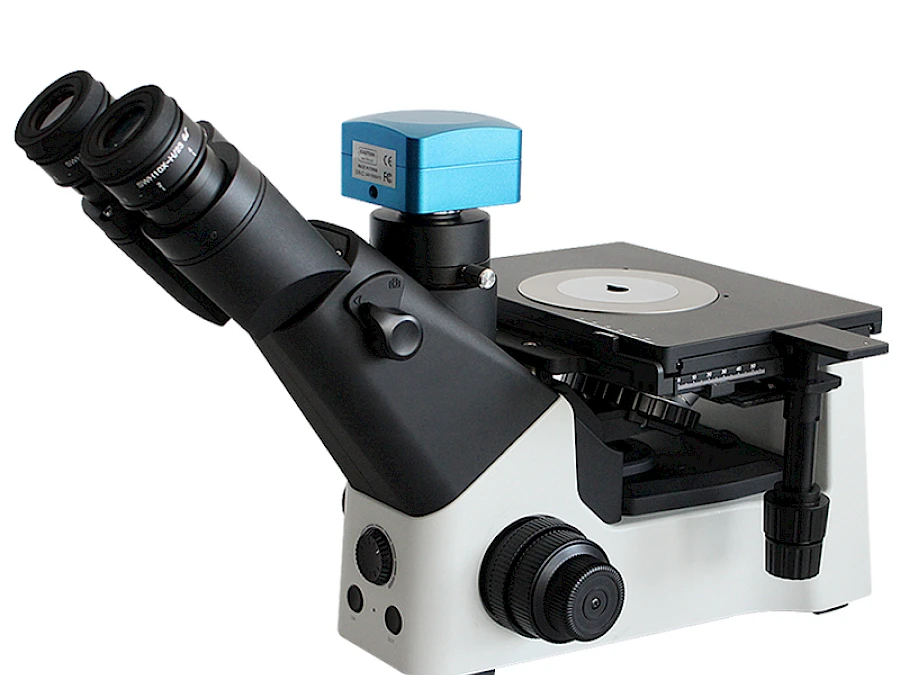

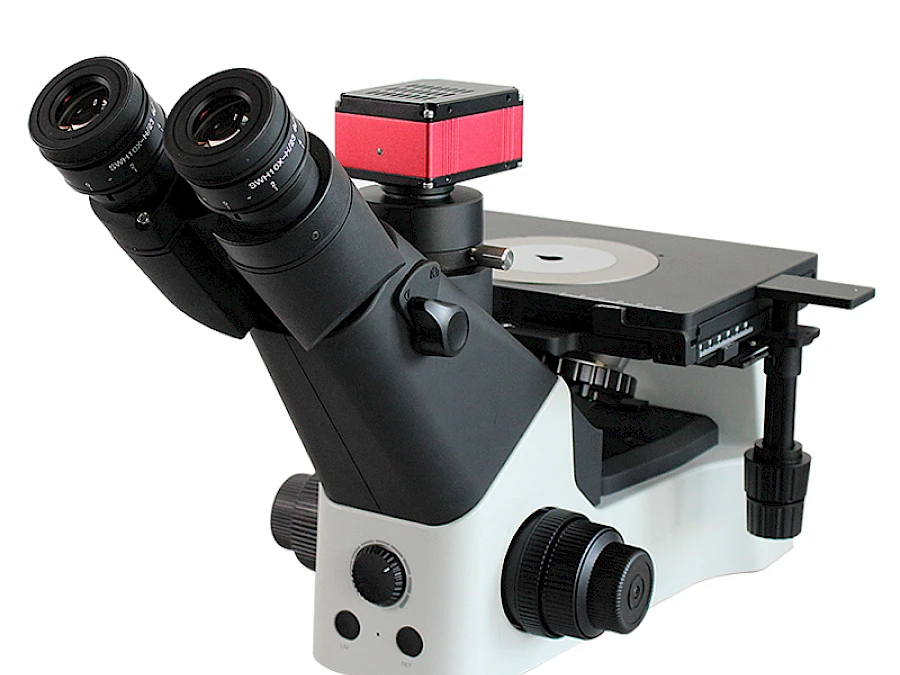

4K IMX 1/1.8” CMOS Sensor HDMI-compatible & USB2.0 Interface, 3840 30FPS / 1080P 60FPS image output, offering measurements & record
HDMI-compatible USB 4K Industrial CCD Microscope Camera for Measuring.
5MP~45MP High Resolution USB2.0/ USB3.0 Interface, Can be connected with PC, Laotop. Providing Measurements, Auto Exposure Etc. Functions.
