VM4800 Upright Metallurgical Microscope with 280 x 270mm Large Mobile Mechanical Stage

VM4800 Series

Infinity optical system, upgrade easily

Core Features

With long working distance plan achromatic objectives (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field
With large move range mechanical stages, moving range : 8” x 8” (204mm x 204mm)
Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 0.7μm
6V30W Halogen lamp, adjustable brightness
Trinocular, can switch to normally / polarize observation, bright field / dark field observation, can send 100% light to the binocular eyepieces or to the top port

Configurations

Halogen

6V30W/12V50W

Stage

280 x 270mm

WF10X(Φ22mm)

Inclined 30°

Quintuple

VM4800 & VM4800BD upright metallurgical microscope is suitable to observe surfaces of opaque object. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.

The gemel mode trinocular is inclined 30°. The operator cervix and shoulder are released from tired in period of time keeping bow or head-up. The eyepiece field of view number is Φ22mm and eyepiece can be added. Adopted Epi-illumination system, integrated field diaphragm, aperture diaphragm and (Y,B,G, Ground glass) switching device. Push-pull analyzer and polarizer.

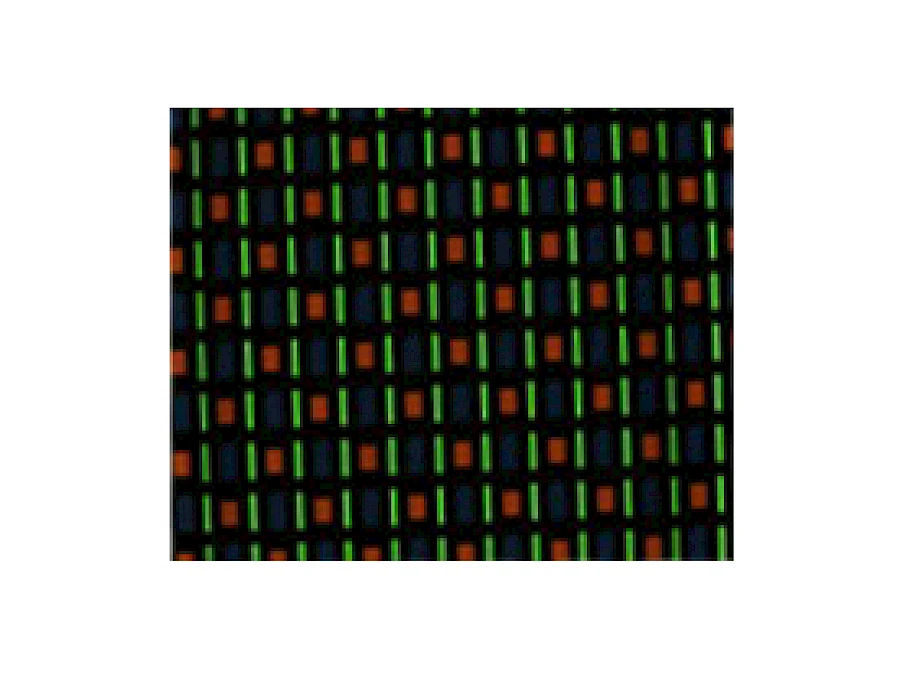

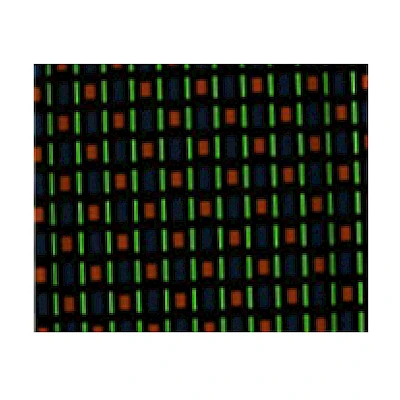

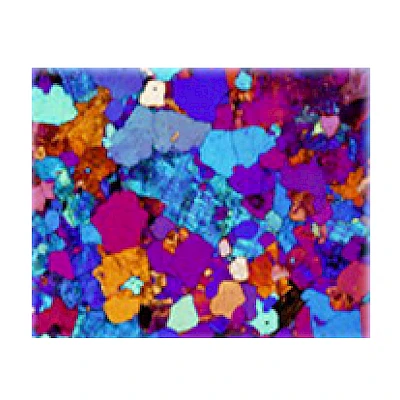

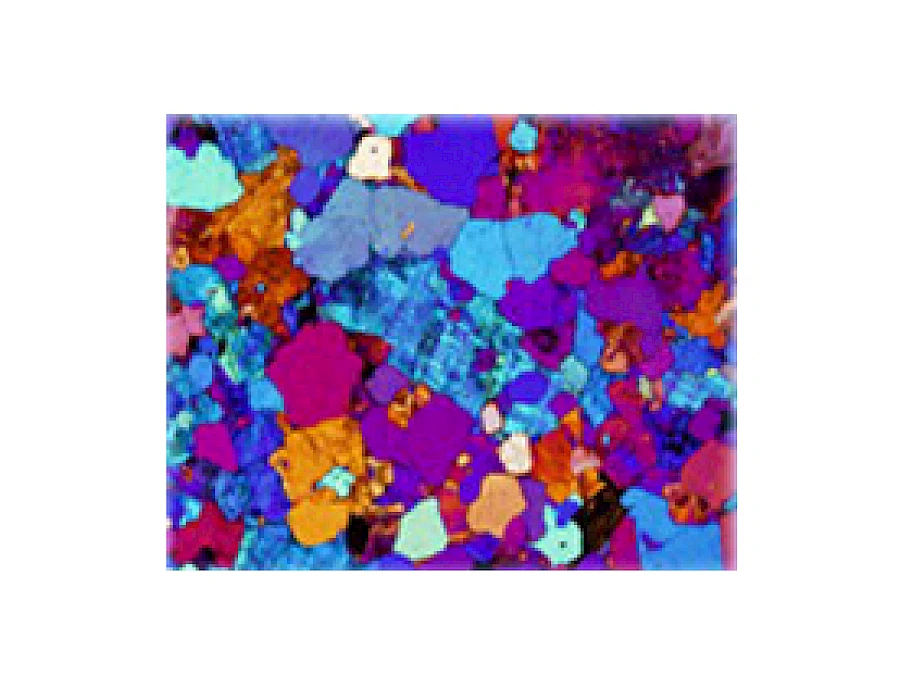

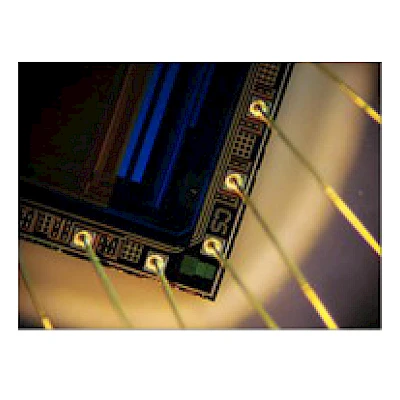

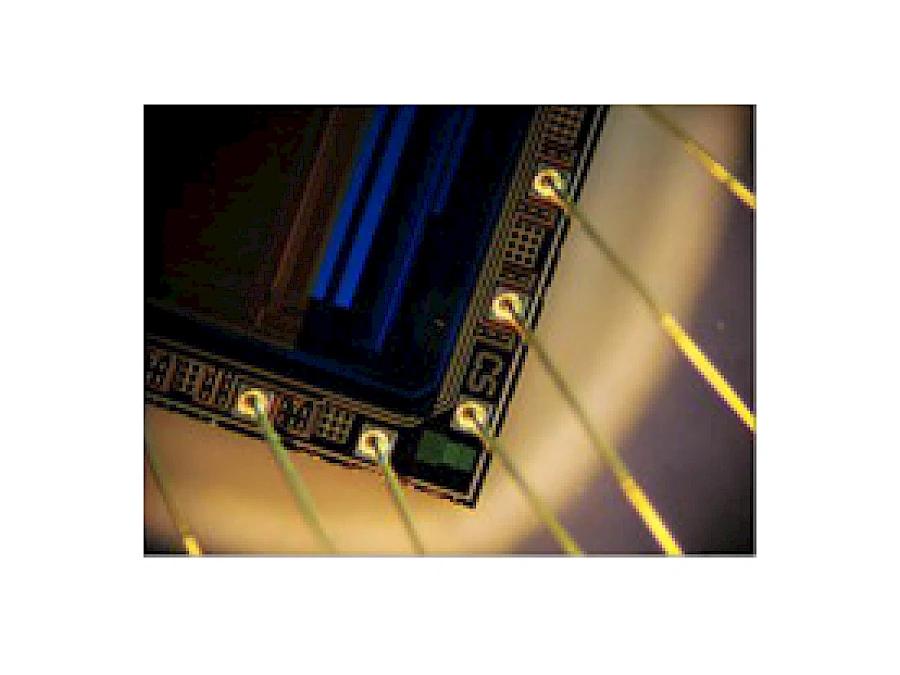

Equip high quality bright and dark field objectives and dark field illumination device. Avoid the stray light of illumination system and improve the image quality in the dark field.

By adding the appurtenance shch as CCD adapter digital camera adapter and single-reverse digital camera adapter and etc. It can achieve high clear observation mode of camera and vidicon.

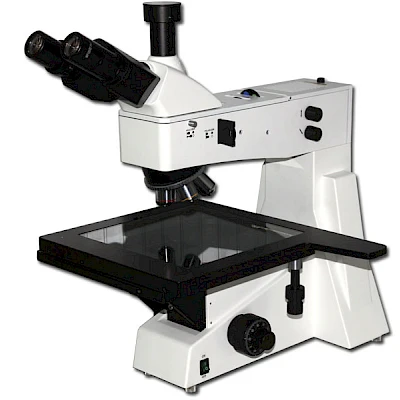

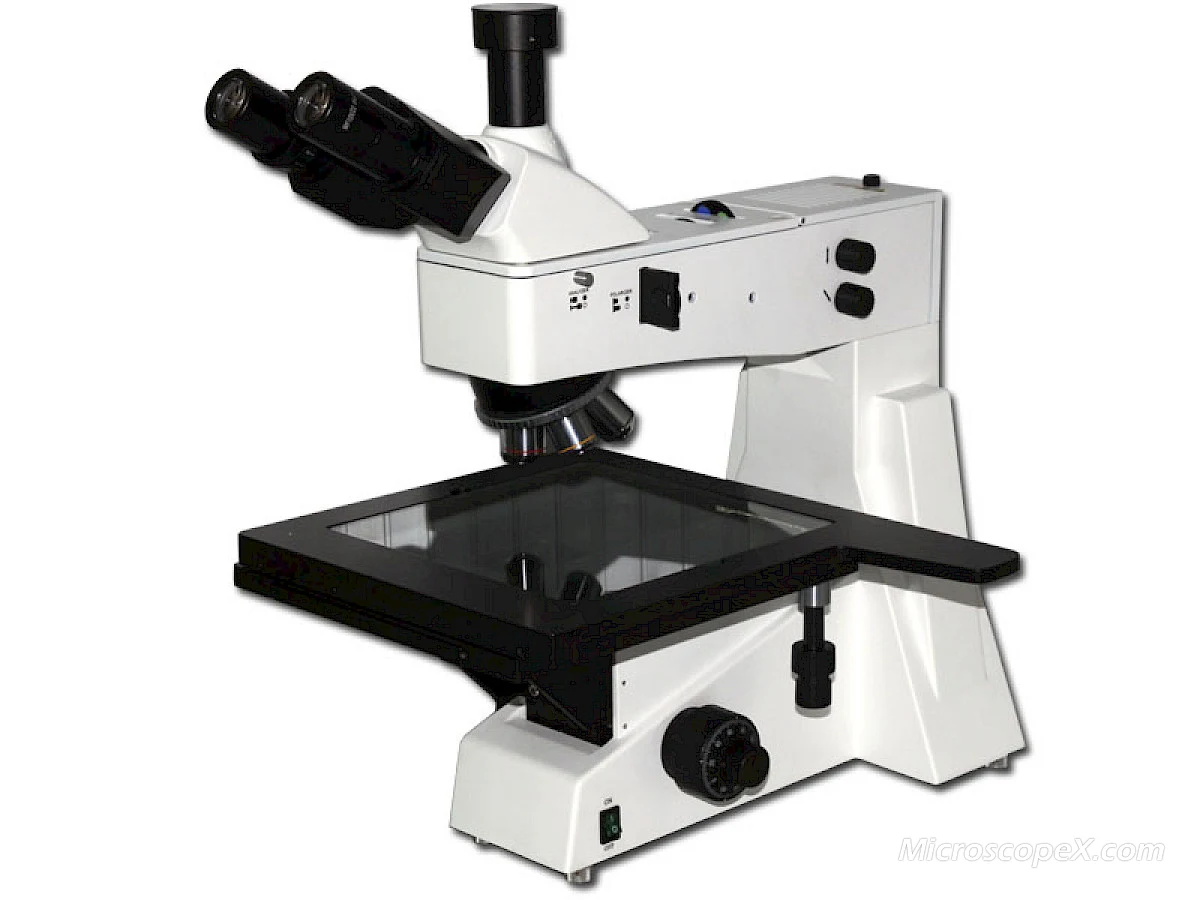

VM4800 & VM4800BD

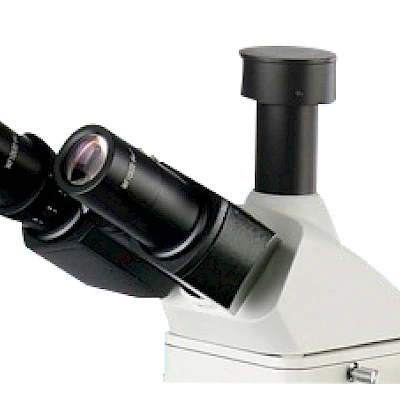

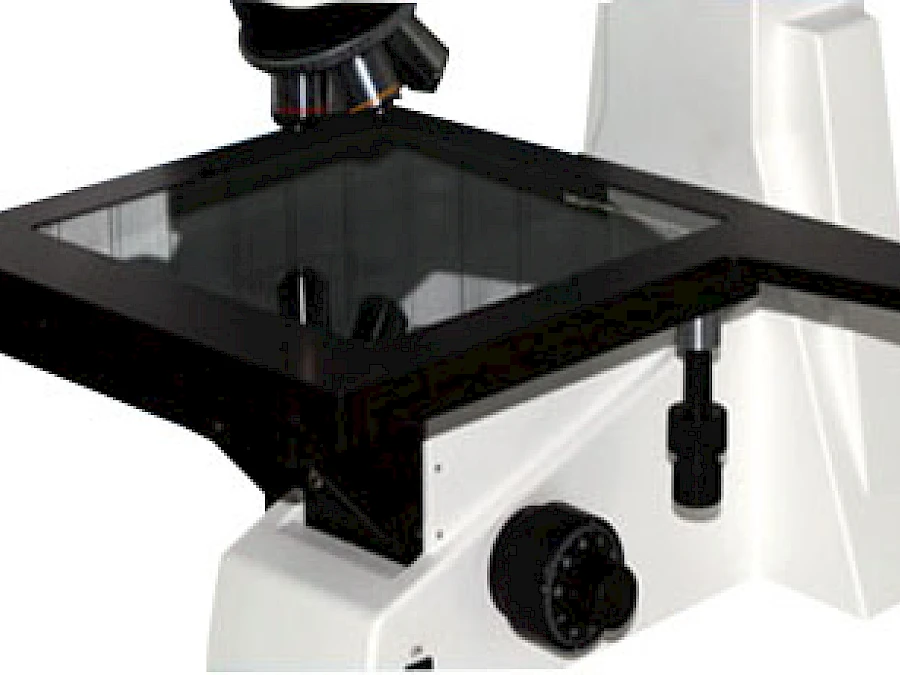

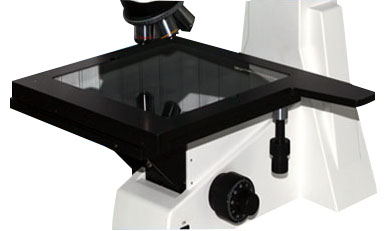

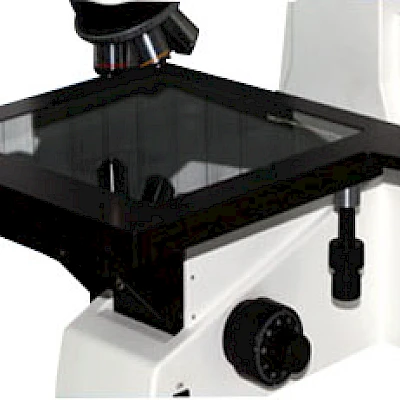

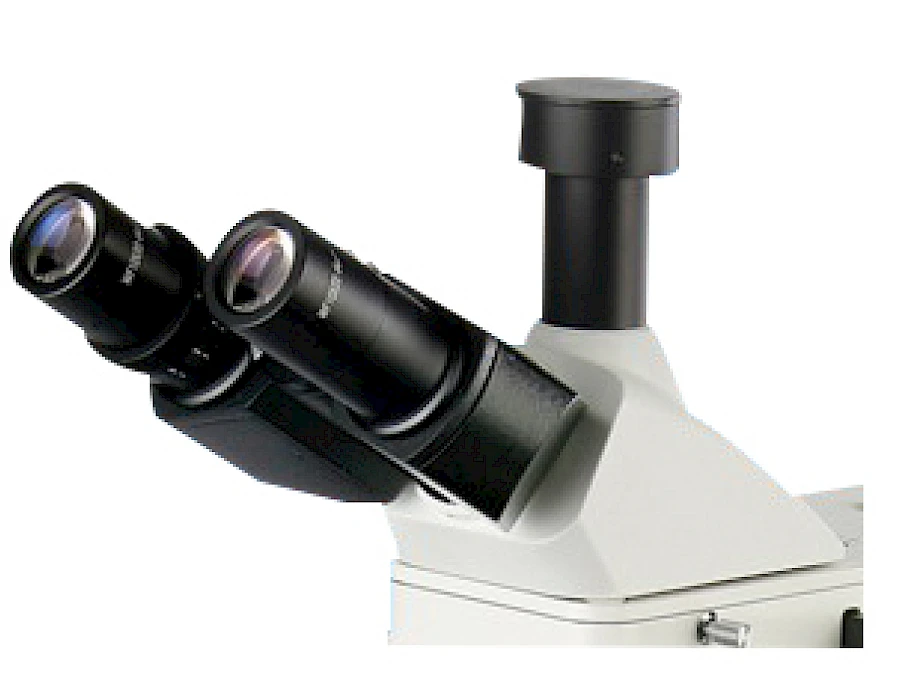

Head & Mechanical Stage of VM4800 & VM4800BD

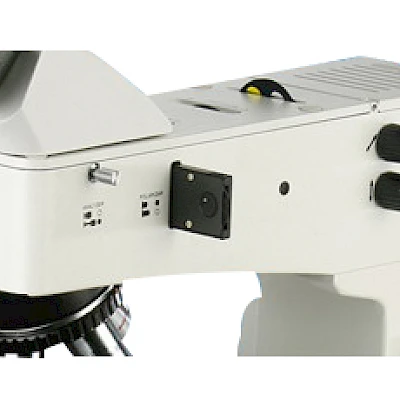

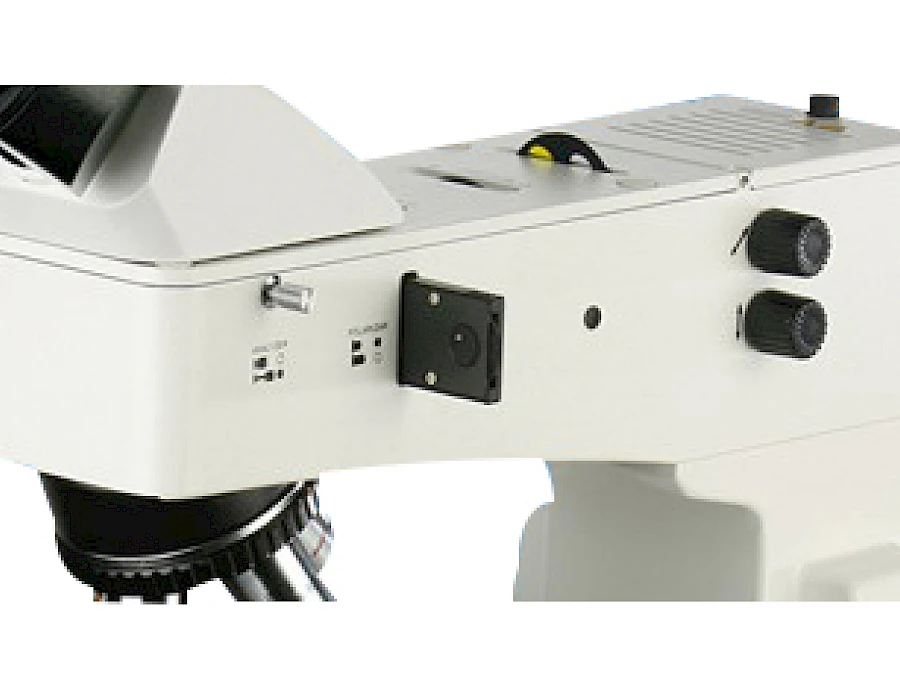

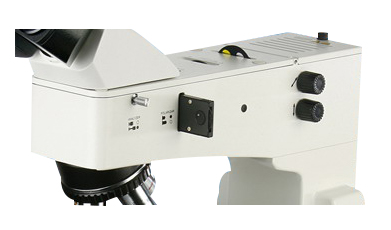

Epi-illumination System of VM4800 & VM4800BD

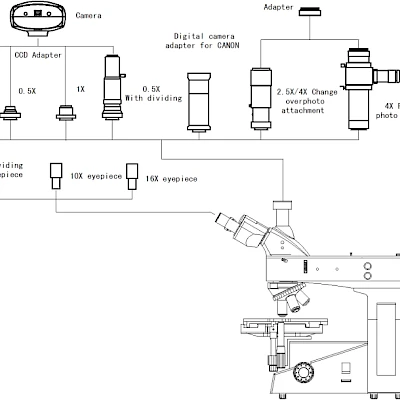

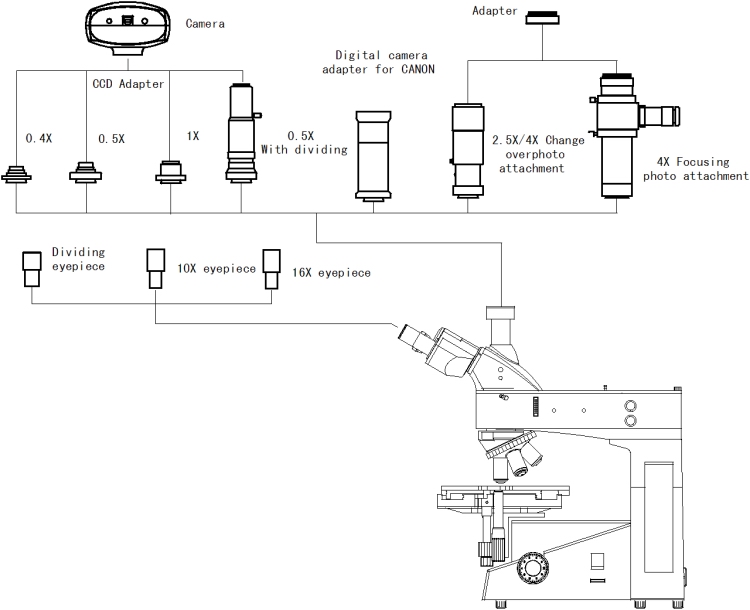

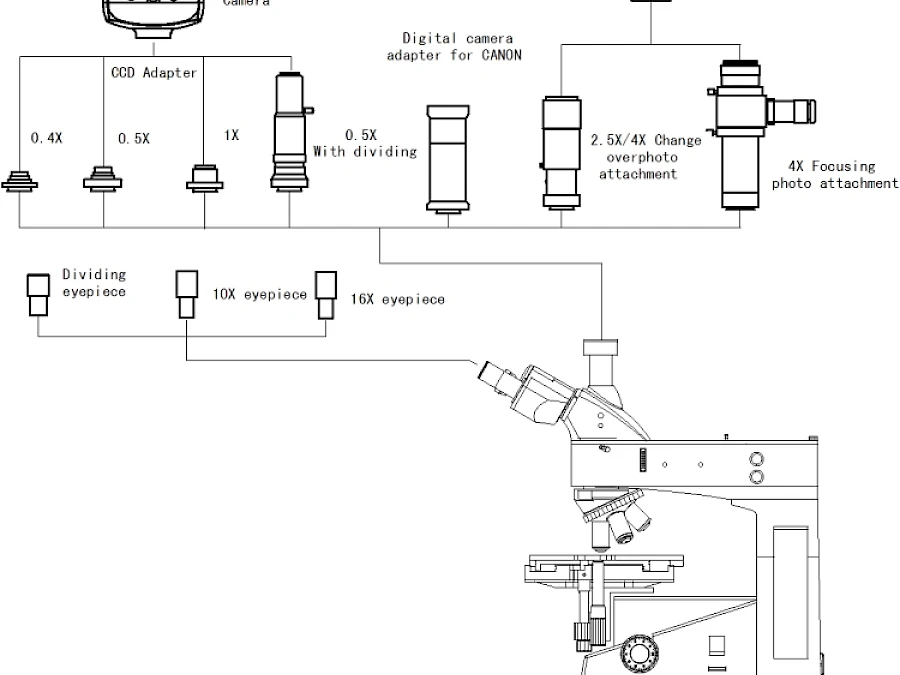

Diagram of VM4800 & VM4800BD

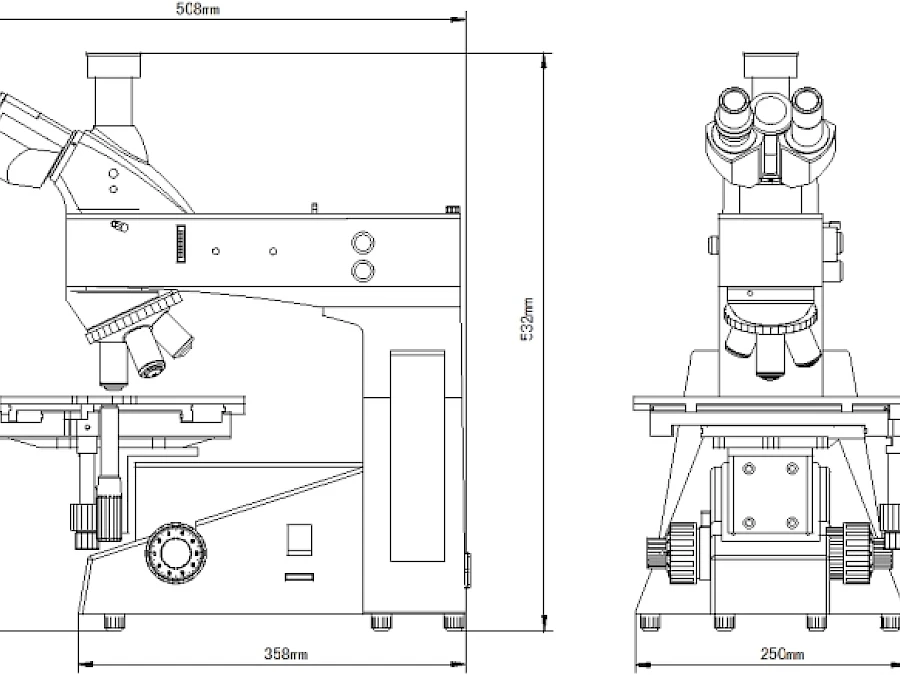

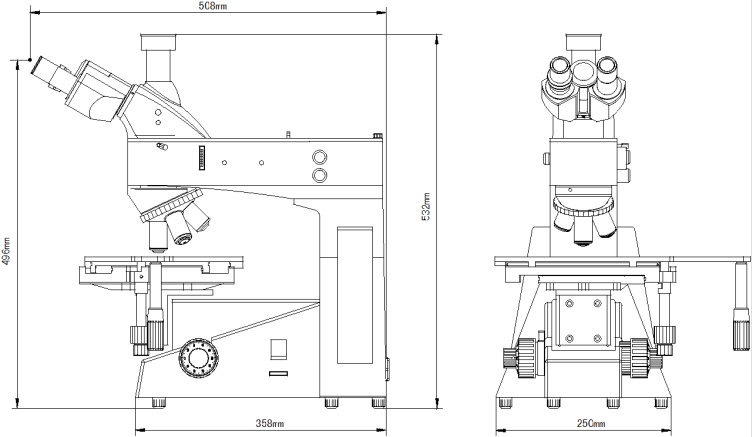

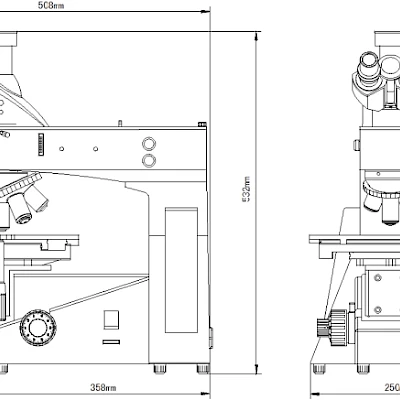

Dimension of VM4800 & VM4800BD

Specification for VM4800 Series
Eyepiece	WF10X(Φ22mm)
Eyepiece Tube	Trinocular, inclined 30°, can be shot in 100% light flux
Infinity plan achromatic objective	VM4800(equipped with bright field objectives)	PL L5X/0.12 (Work distance)：26.1 mm
		PL L10X/0.25 (Work distance)：20.2 mm
		PL L20X/0.40 (Work distance)：8.80 mm
		PL L50X/0.70 (Work distance)：3.68 mm
		PL L80X/0.80 (Work distance)：1.25 mm
	VM4800BD(equipped with bright & dark field objectives)	PL L5X/0.12 BD (Work distance)：8.05 mm
		PL L10X/0.25 BD (Work distance)：7.86mm
		PL L20X/0.40 BD (Work distance)：7.23mm
		PL L50X/0.70 BD (Work distance)：1.75mm
		PL L80X/0.80 BD (Work distance)：1.25mm
Epi-illumination system	VM4800	6V30W halogen and brightness enable control
	VM4800BD	12V50W halogen and brightness enable control
	Integrated field diaphragm, aperture diaphragm and (Y, B, G, ground glass) switching device. Push-pull type analyzer and polarizer.
Focus System	Coaxial coarse/fine focus system, with tension adjustable and llimit stopper， minimum division of fine focusing is 0.7μm
Nosepiece	Quintuple (Backward ball bearing inner locating)
Working Stage	Mechanical stage size: 280 x 270mm, moving stage: 204 x 204mm

Accessories for VM4800 Series
Eyepiece	Dividing eyepiece 10X (Φ22mm) 0.10mm/Div
Objective	PL L40X/0.60 (Work distance)：3.98 mm
	PL L60X/0.70 (Work distance)：2.08mm
	PL L100X/0.85 (Work distance)：0.40 mm
	PL L40X/0.60 BD (Work distance)：3.00 mm
	PL L60X/0.7 BD (Work distance)：1.65mm
	PL L100X/0.85 BD (Work distance)：0.4 mm
Stage	Mechanical stage size: 250 x 230mm, move range: 154 x 154mm
CCD Adapter	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	DV-1 Video output 380/520 TV line, USB output 0.42 M pixel
	DV-2 with USB output 1.3M/ 3.0M/5.0M/10.0M pixel
	DV-3 with video output 380/520 TV line
Digital camera adapter	CANON (A570, A610, A620, A630, A640, A650, EF) NIKON(F)
