VMF32A Epi-fluorescent microscope is used for fluorescence microscope and transmitted bright field observation. It is equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear and high contrast picture in your wide view field. The main body design meets with the ergonomics needs and makes you feel comfortable and relaxed in process of operation. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities,medical treatment, epidemic prevention etc.
Trinocular can be connected to the camera. 10X wide field plan eyepiece, field Φ20mm, can provide an expanse and smooth space for observation.
Turnplate reflected fluorescence observation set provides four fluorescence filter system as UV, V, B and G. This kind of frame can make it switch fleetly between each fluorescence system. 100W mercury lamp can provide ample illumiantion for fluorescence observation. Built-in field diaphragm, center adjustable, is good for the control of field range.
The illumination system with 6V 30W halogen lamp (brightness adjustable) can provide clear and bright image for light field observation, but also for phase contrast observation. The system also includes the collector with field diaphragm.
By adding the appurtenance of phase contrast unit and camera unit, it can spread to mainfold modes for observation that satisfy the need to different research work.

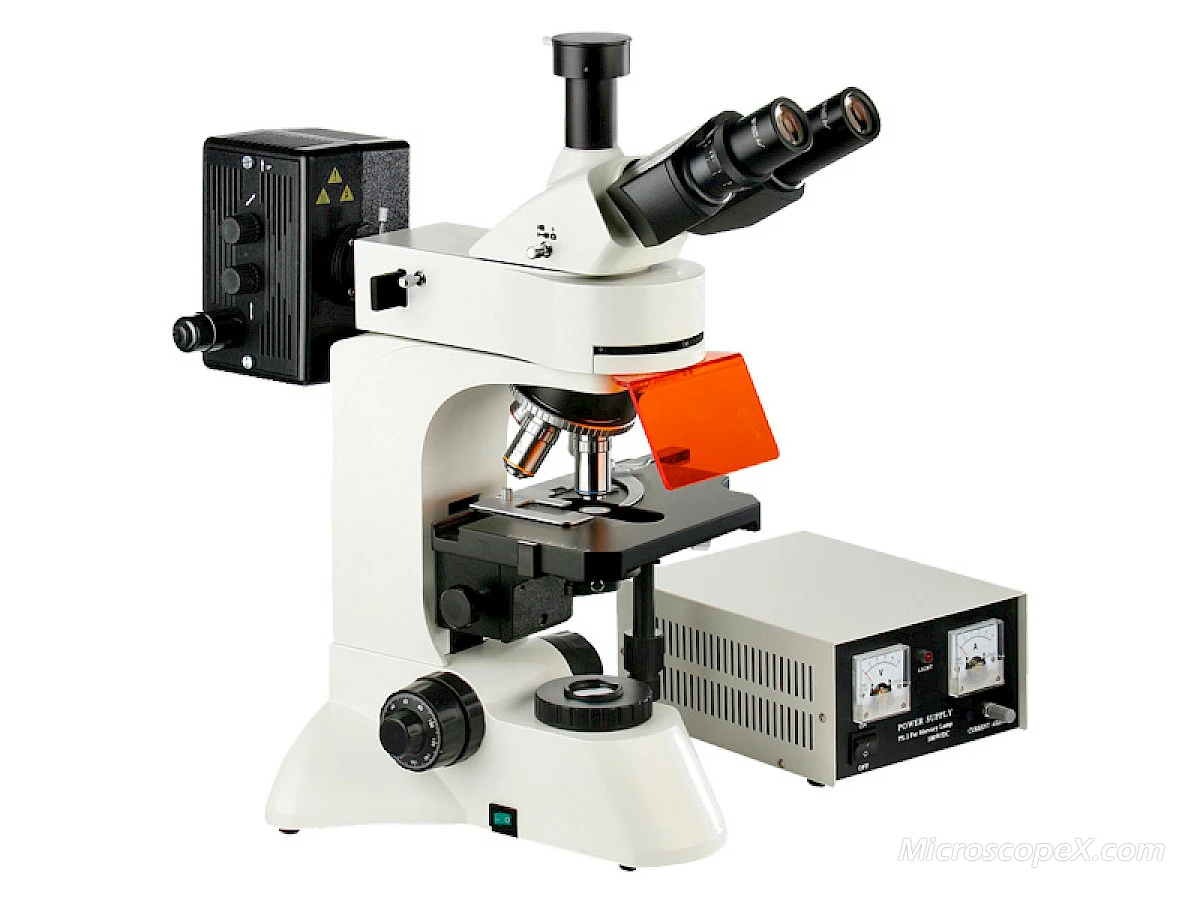

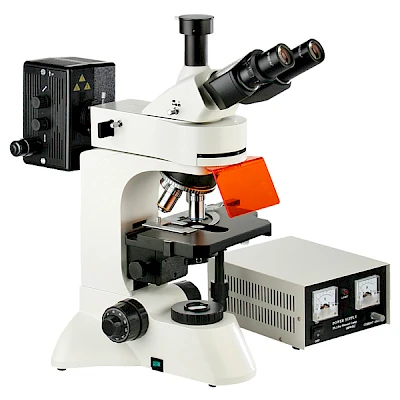

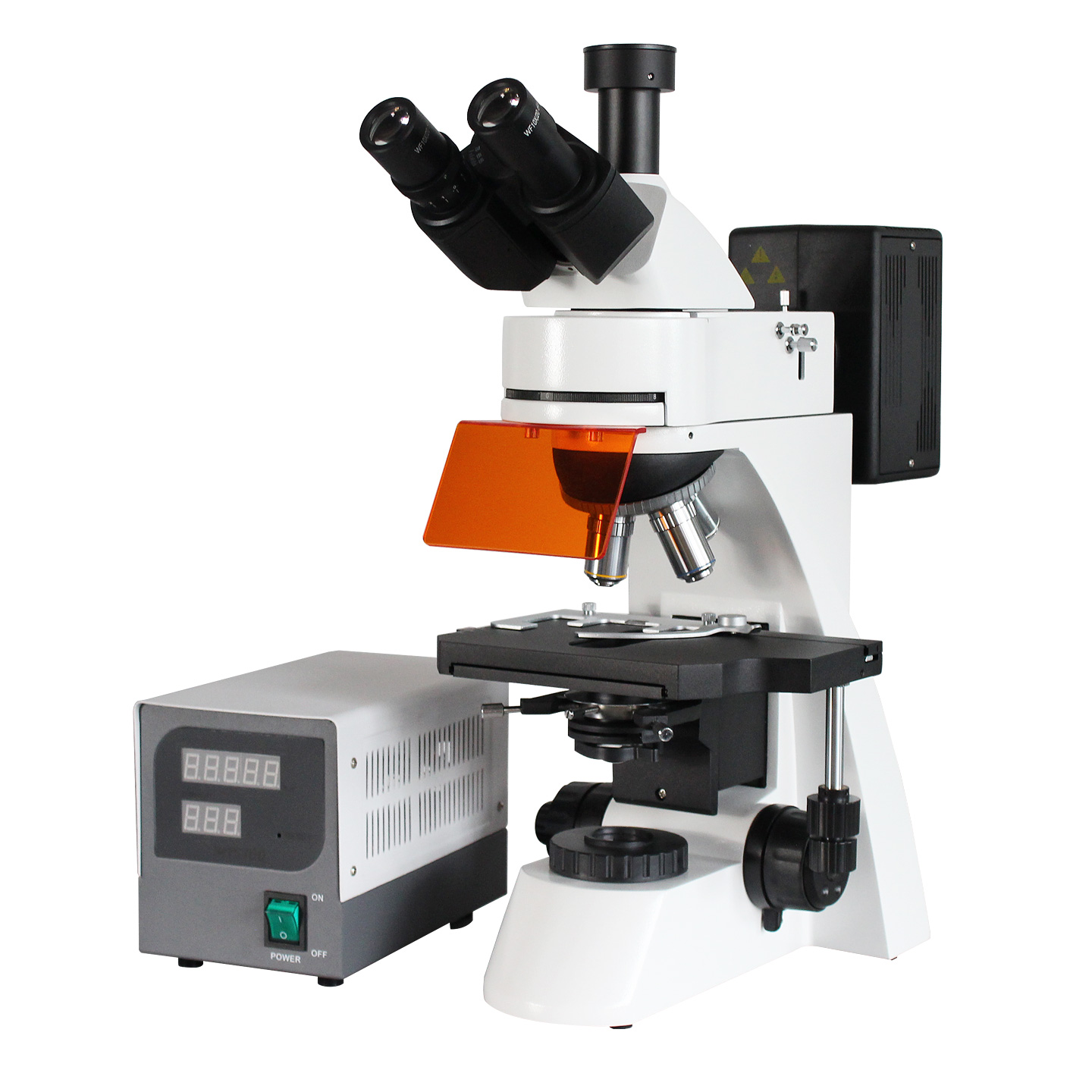

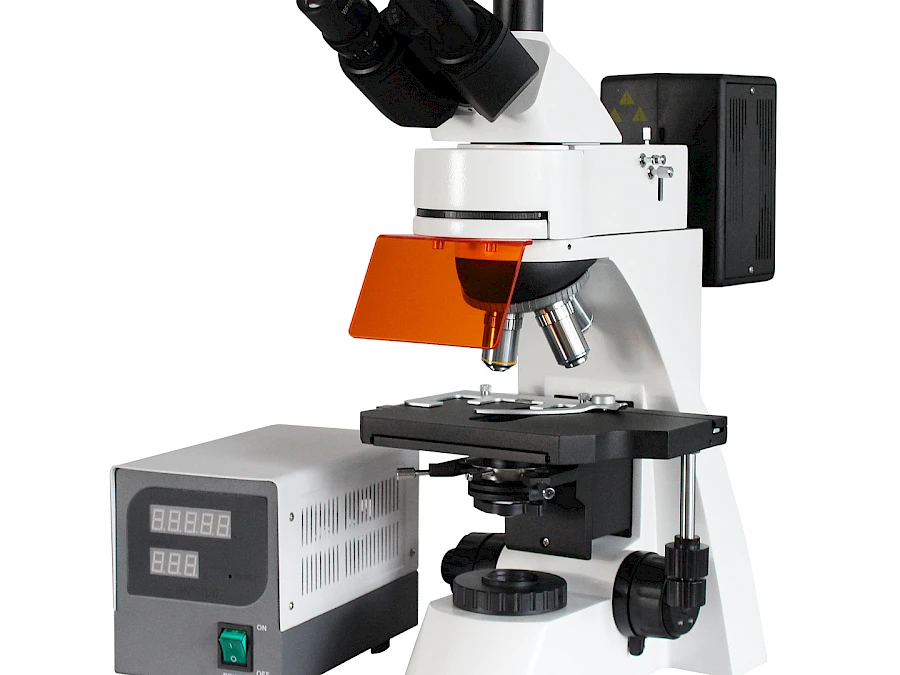

VMF32A

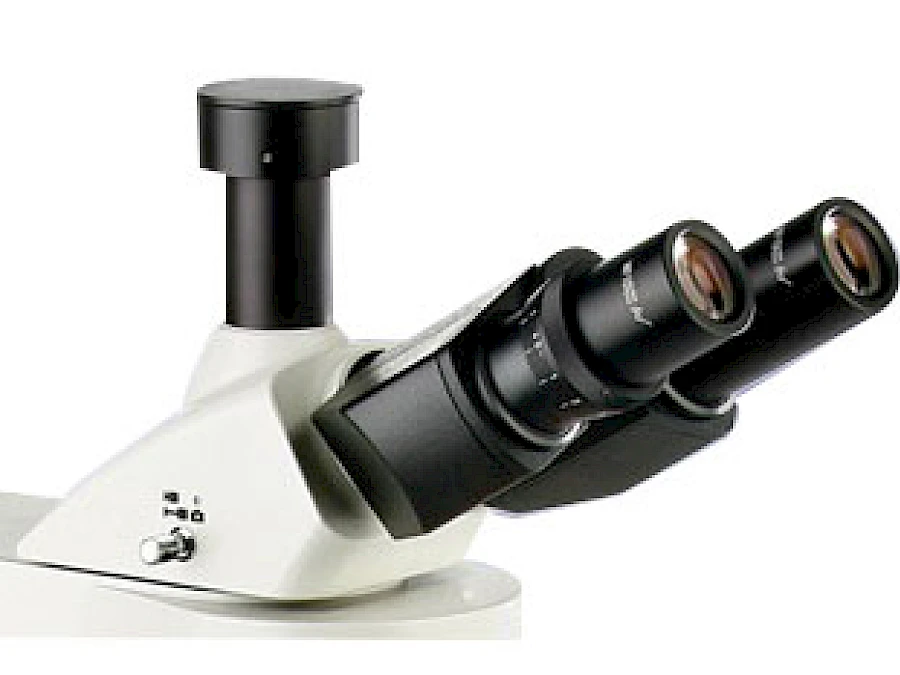

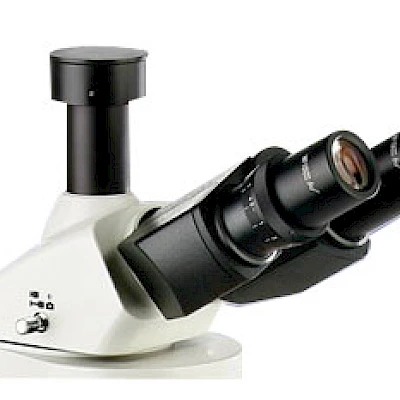

Head of VMF32A

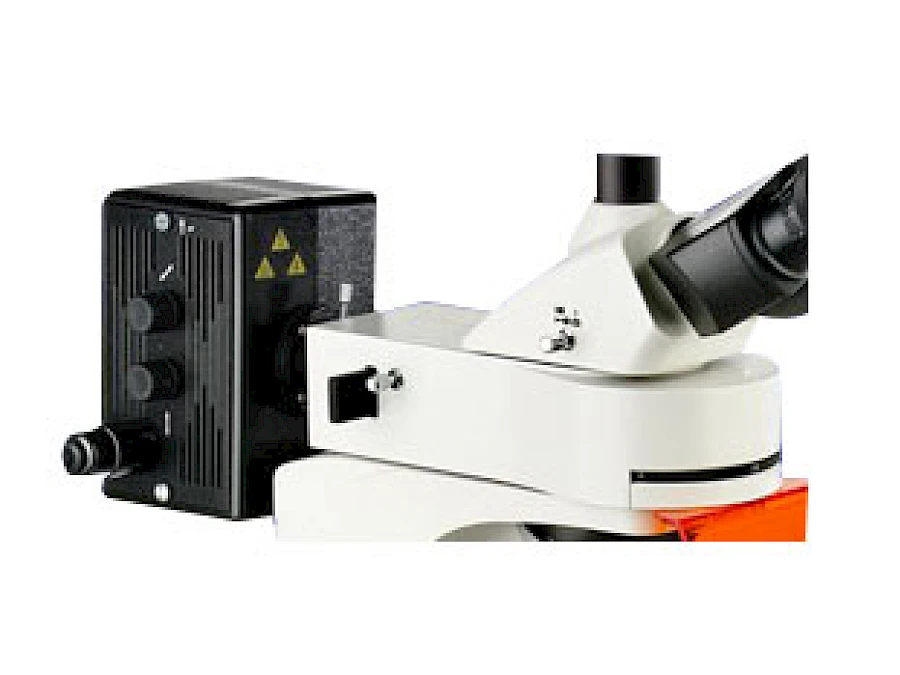

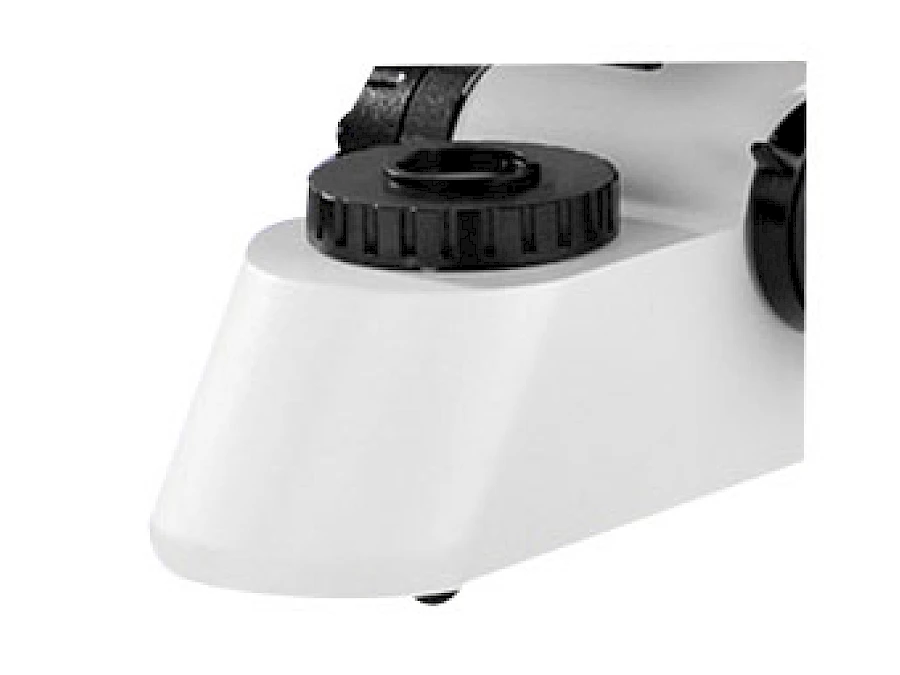

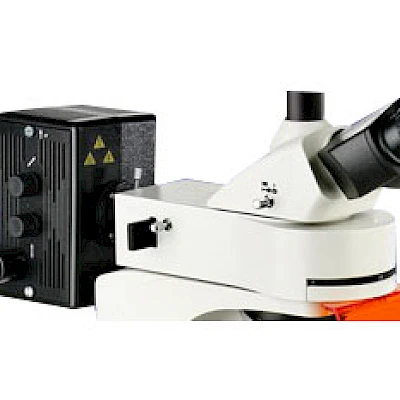

Reflected Fluorescent Illumination System & Transmitted Illumination System of VMF32A
Digital Camera Photo
Fluorescent Observe
Phase Photo

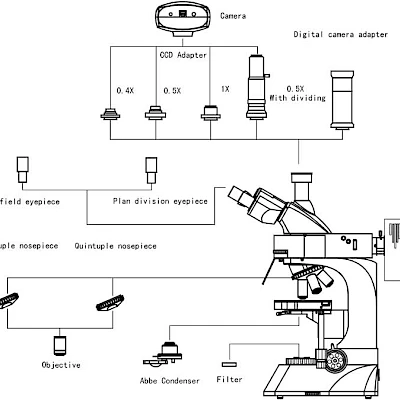

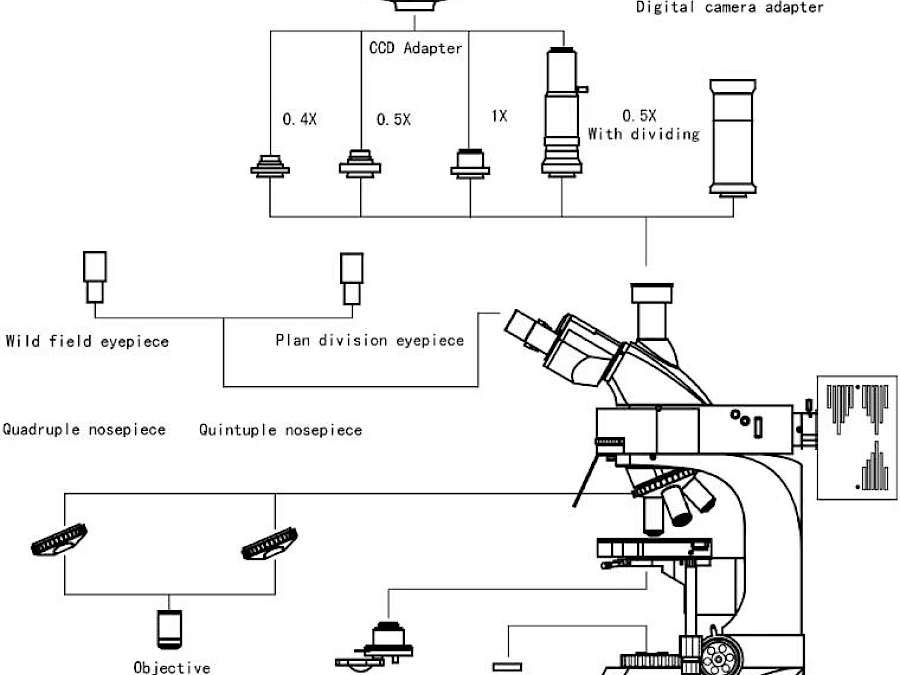

Diagram of VMF32A

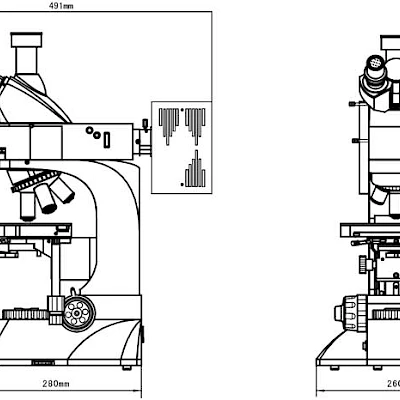

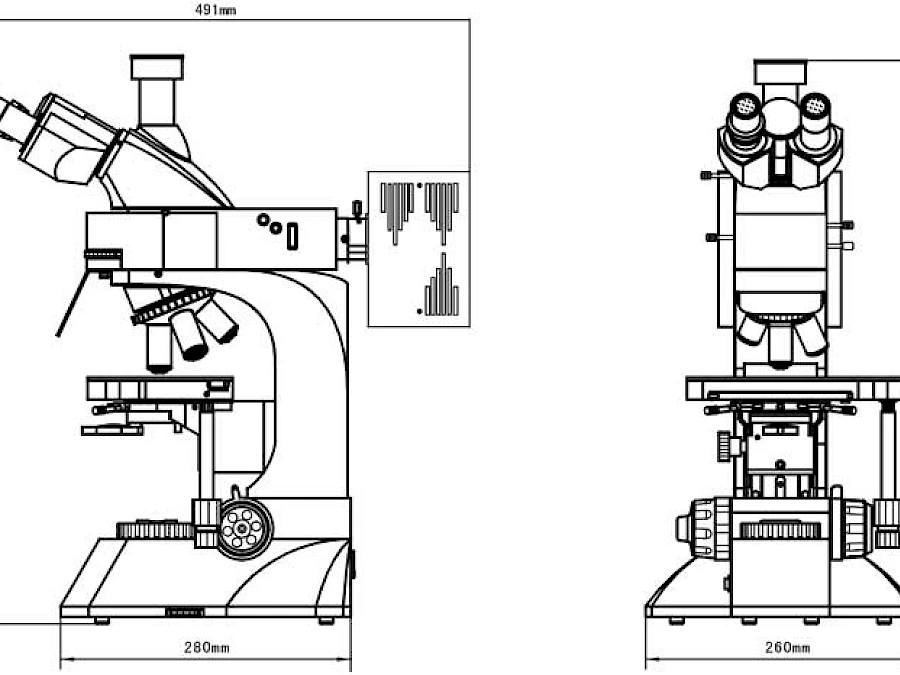

Dimension of VMF32A
