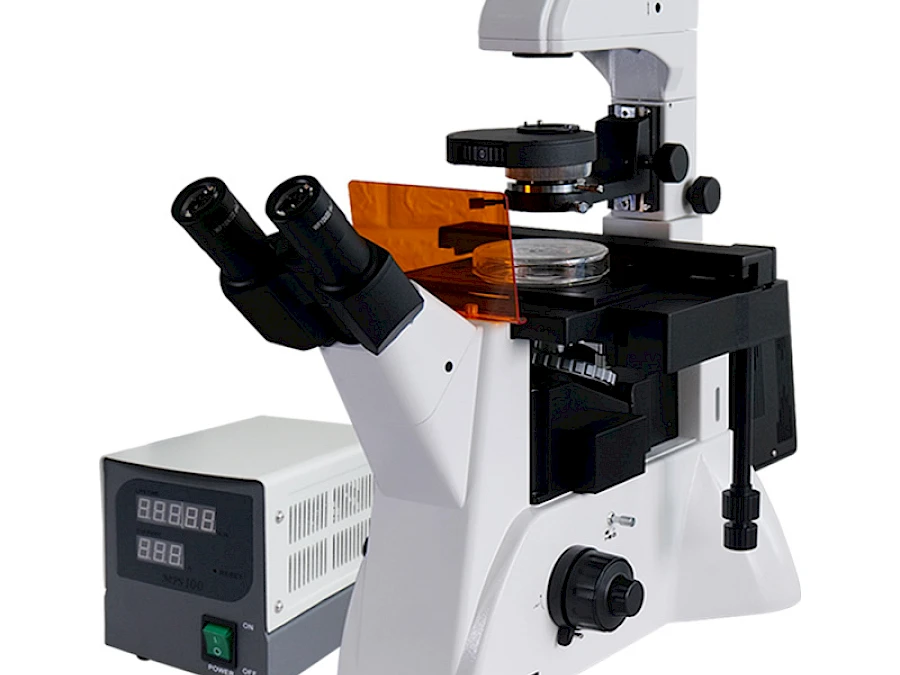

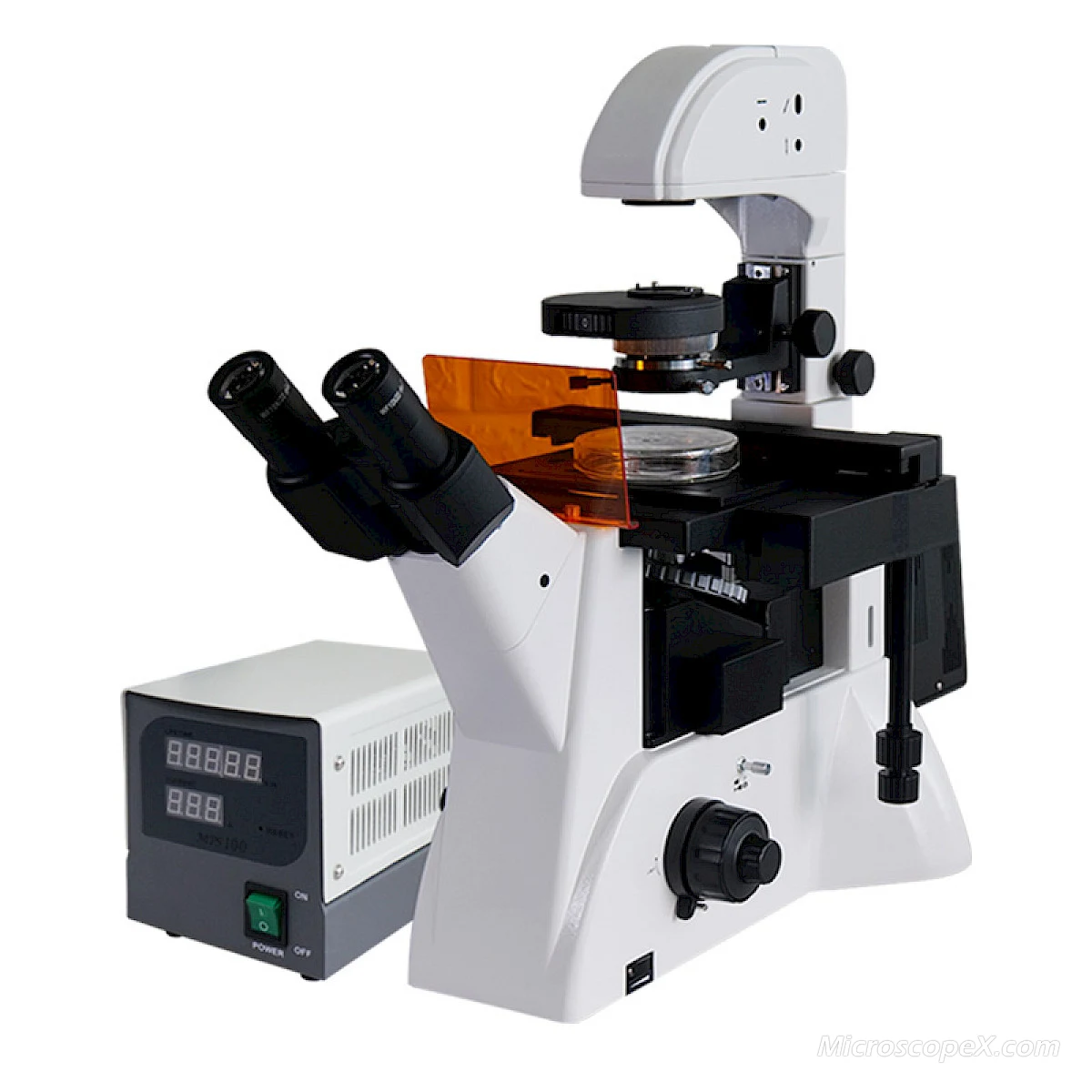

VMF400I Inverted Fluorescent Microscope is composed with Epi-fluorescent microscope and inverted microscope, equipped excellent UIS optical system and adopted long working distance plan achromatic objectives and wide field eyepieces. Compact and steady main frame body is embodiment for the shock resistance. The enable turning out or into condenser system is suited for observation in a high culture dish. The Epi-fluorescence microscope system is adopted modularization function design idea, so that adjust the fluorescence illuminating system and switching-over fluorescence filters safely and quickly. This is a sort of ideal optical instrument for micro observation in cell tissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue, can be applied in the fluorescence microscopy, such as biological pharmacy, medicine checking and measure, disease prevent and etc.
The gemel mode binocular is inclined 45°. The operator cervix and shoulder are released from tired in period of time keeping bow or head-up.
The mechanical stage driver is adopted coaxial high-strength steel wire. This is a ideal design for stable mobile. The automatic protection in the limited position is effective on the accurary of stage. There are three mode culture dish holder for selection.
Integrated illumination can make up the difference of halogen by adjusting the spacial position. Fully taken into account the cooling effect of illumination system so that the surface temperature of lamp house is lower, the operation is safer.
Pushed fluorescence filter provides four fluorescence filter system, such as UV, V, B and G. This kind of frame can make it switch fleetly between each fluorescence system. 100W mercury lamp can provide ample illumination for fluorescence observation. Equip power supply unit.

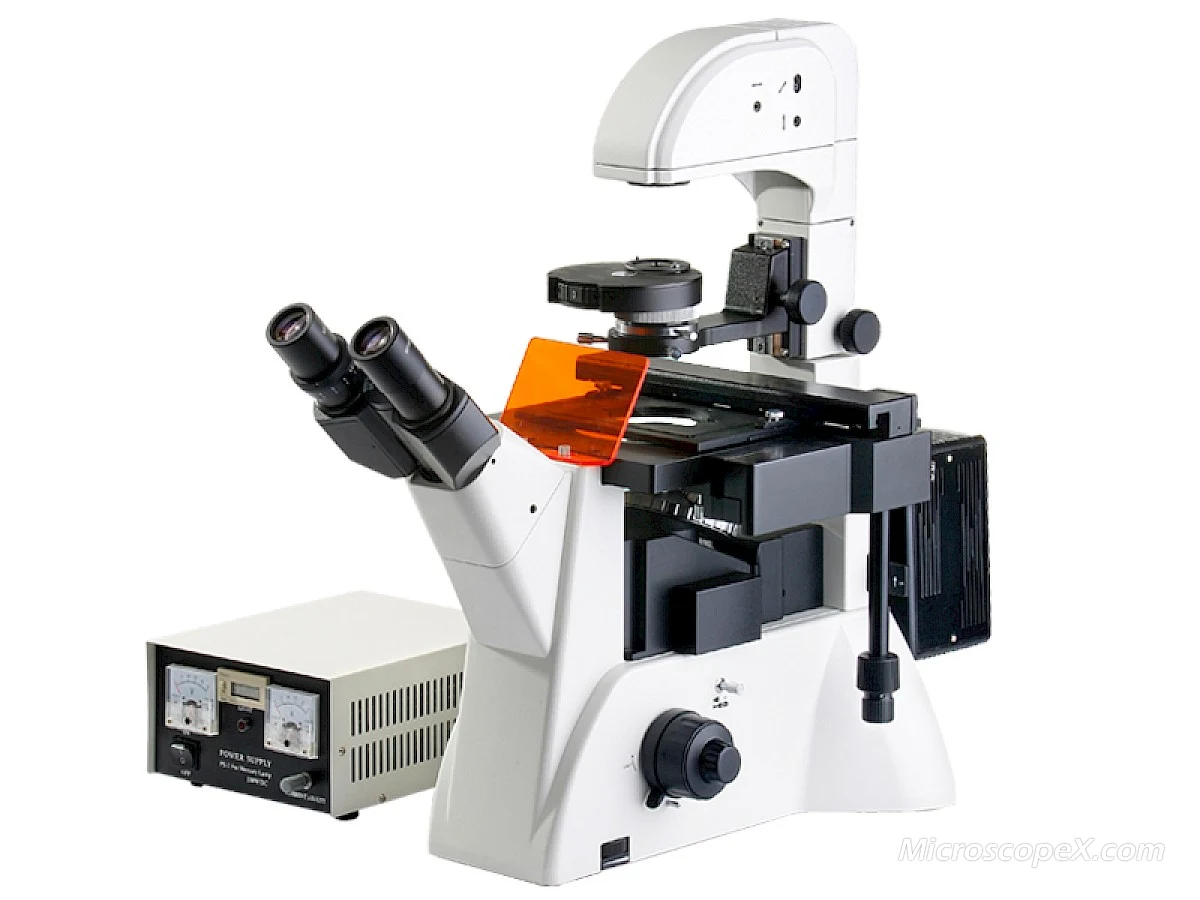

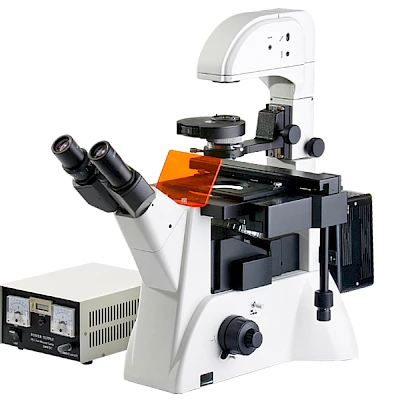

VMF400I

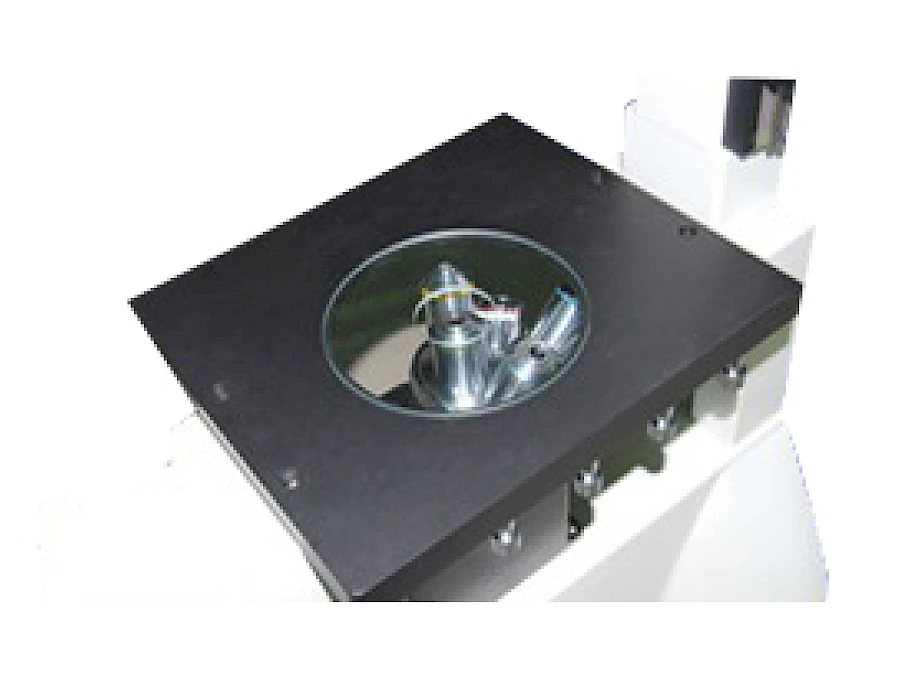

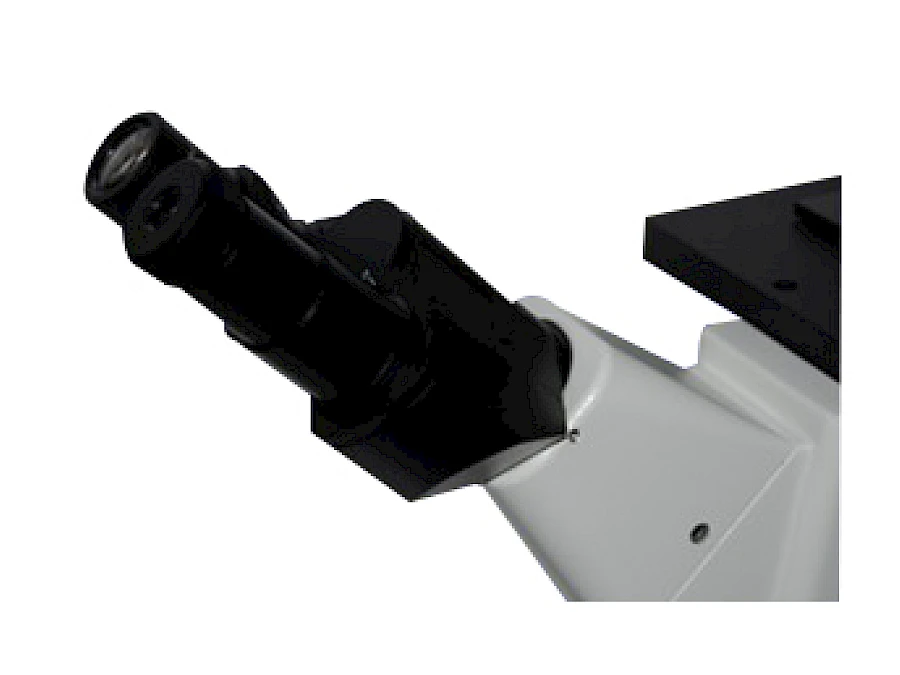

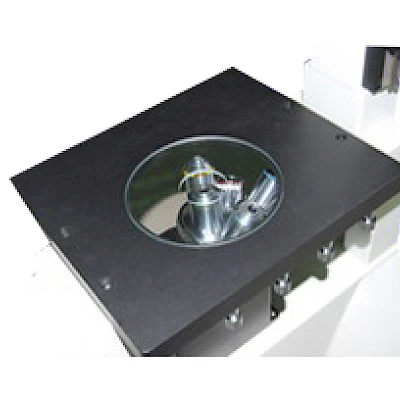

Head & Transmitted Glass Stage Plate of VMF400I

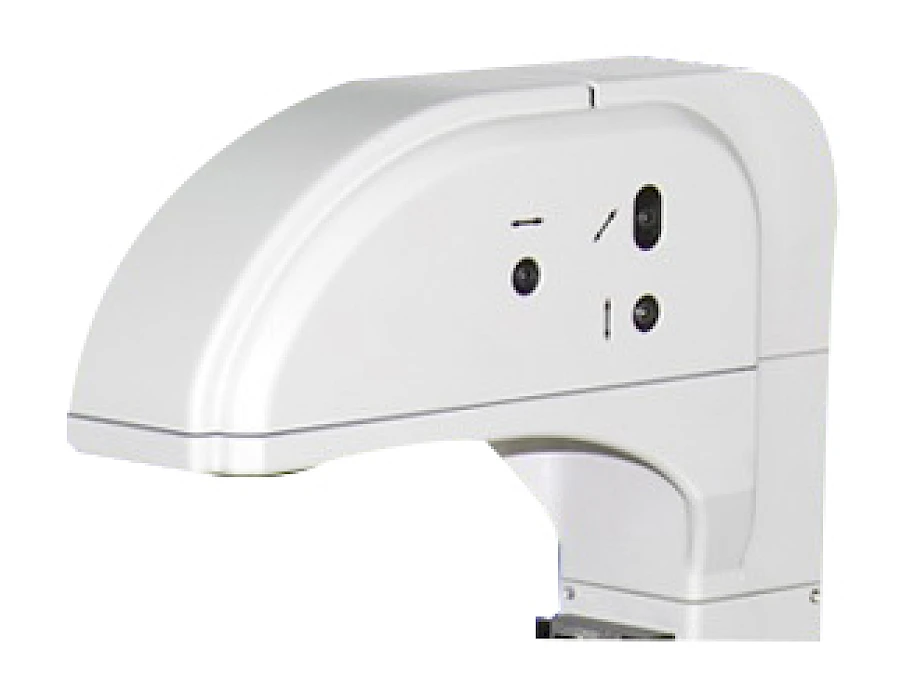

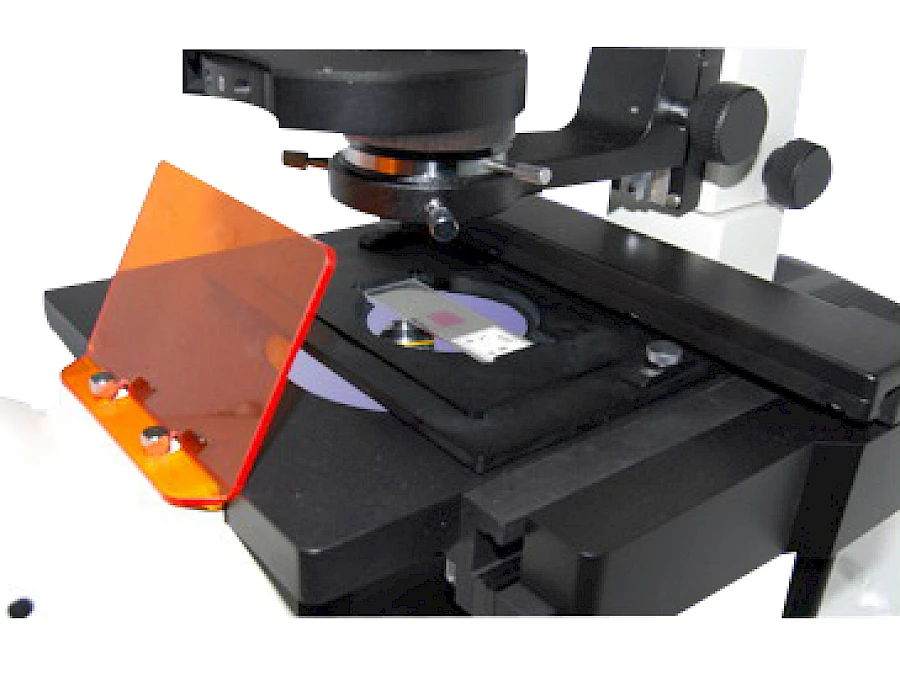

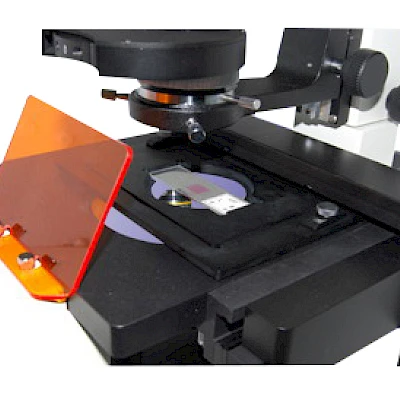

Illumination System & Reflected Fluorescence Illumination System of VMF400I

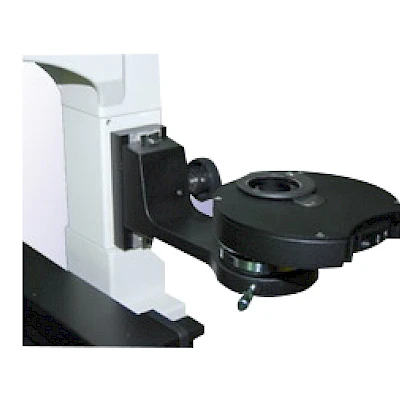

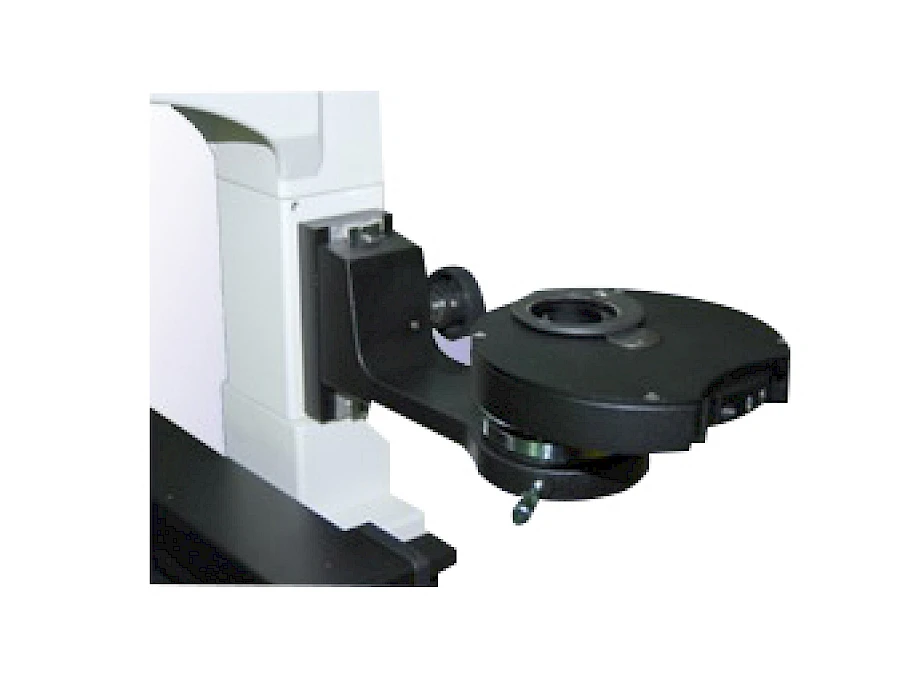

Condenser of VMF400I

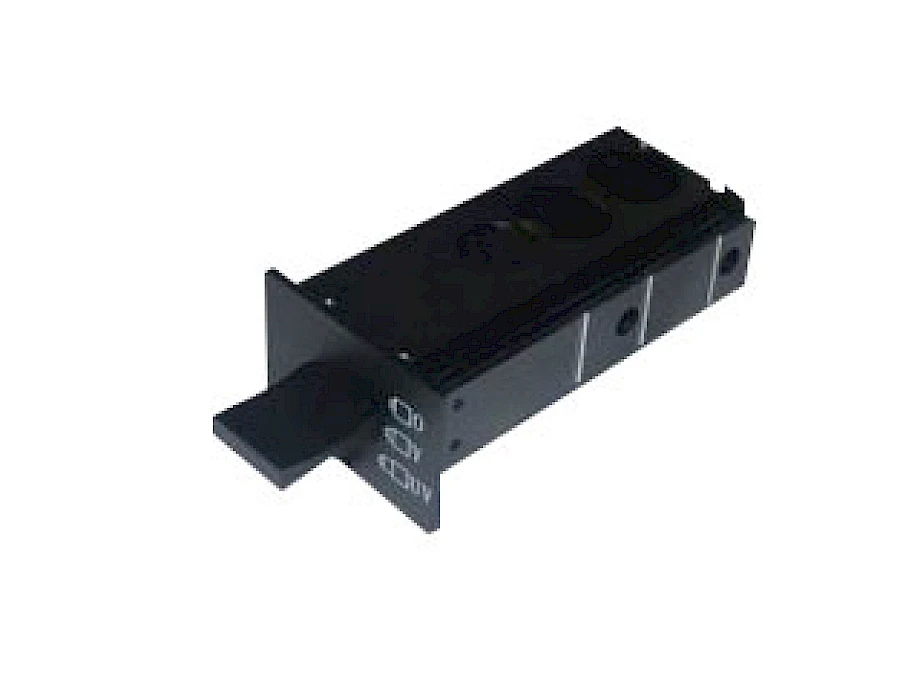

Excitation Set of VMF400I
Epi-fluorescent illumination | Type | Wave band | Emission wave length | |
UV | 320-380nm | 435nm | Standard | |
V | 380-415nm | 475nm | Standard | |
B | 450-490nm | 515nm | Standard | |
G | 495-555nm | 595nm | Standard |

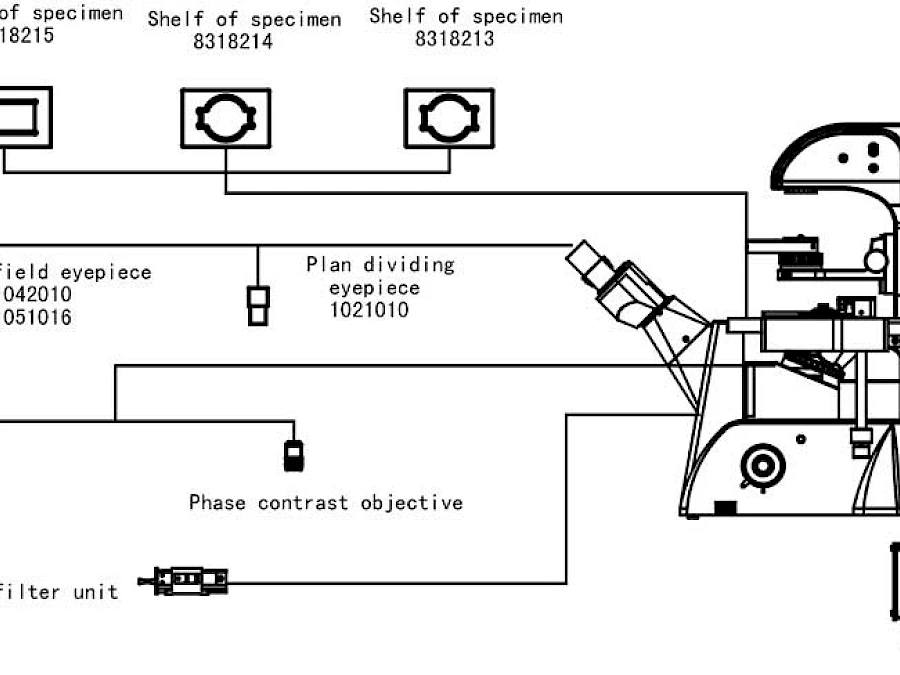

Diagram of VMF400I

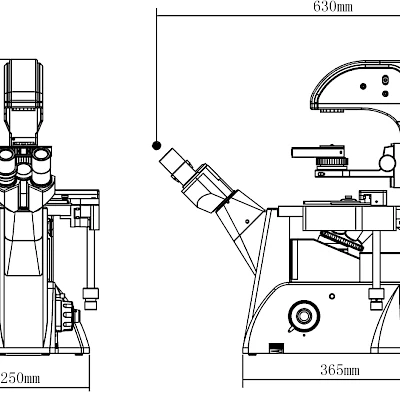

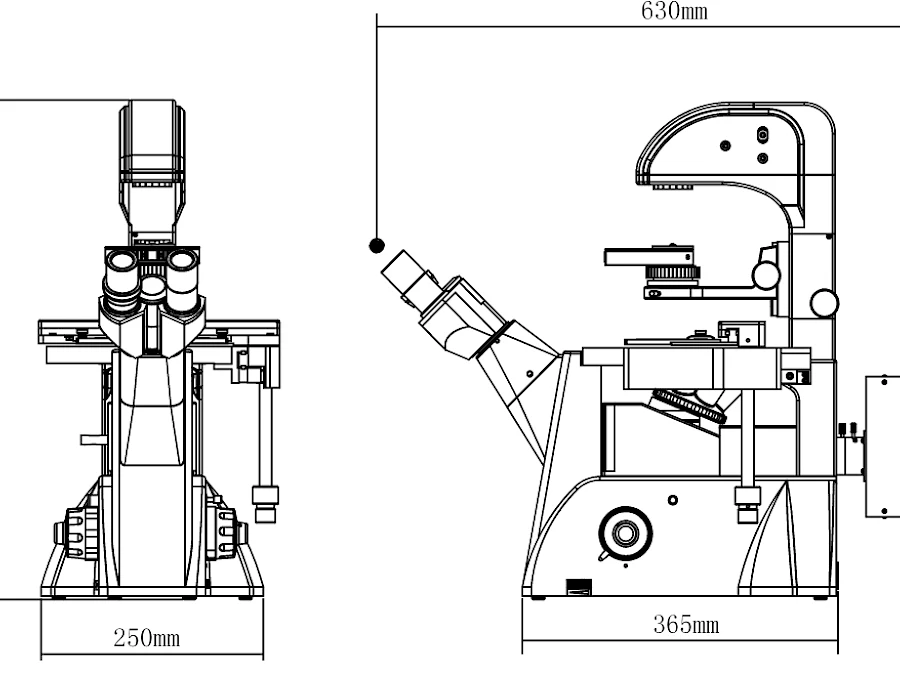

Dimension of VMF400I
