DM210 HDMI Digital Eyepiece Camera (Stereo Microscope)

DM210(Stereo Microscope)

match for stereo microscope, HDMI 1080P

Core Features

Configurations

HDMI 1080P

4X digital zoom

aluminum alloy housing

SONY CMOS

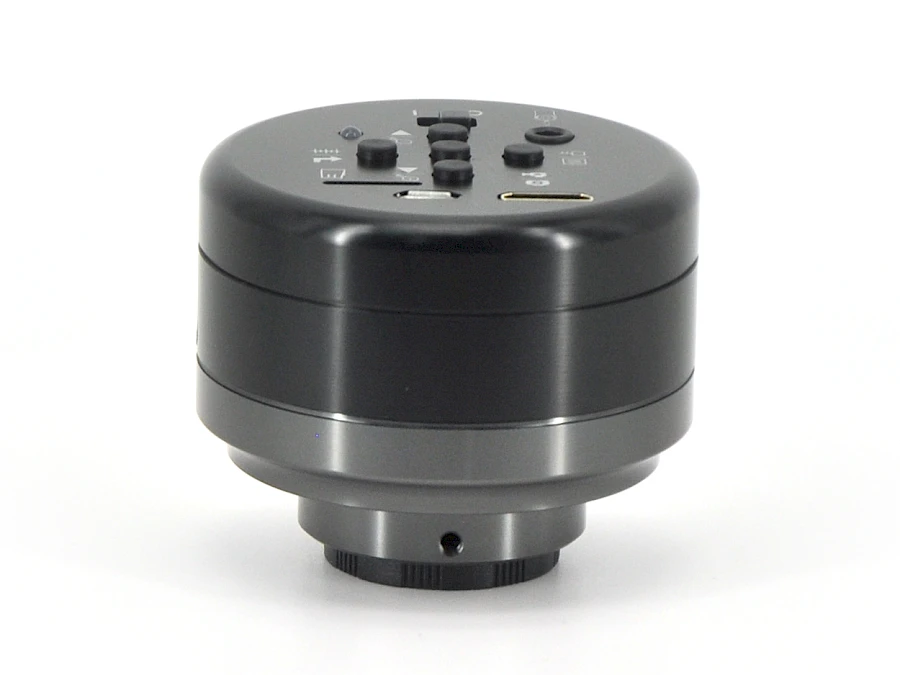

DM210 DM210's Back Panel

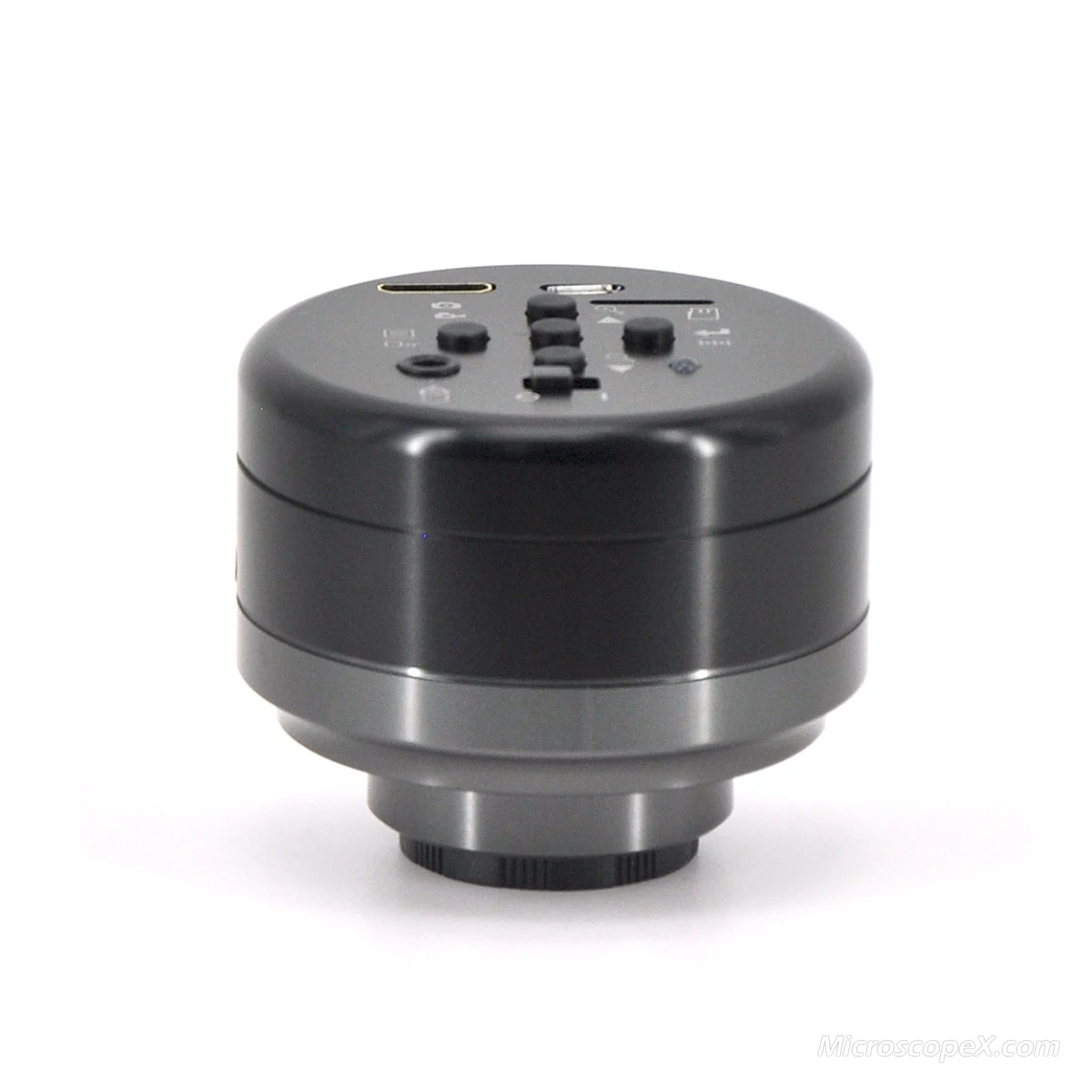

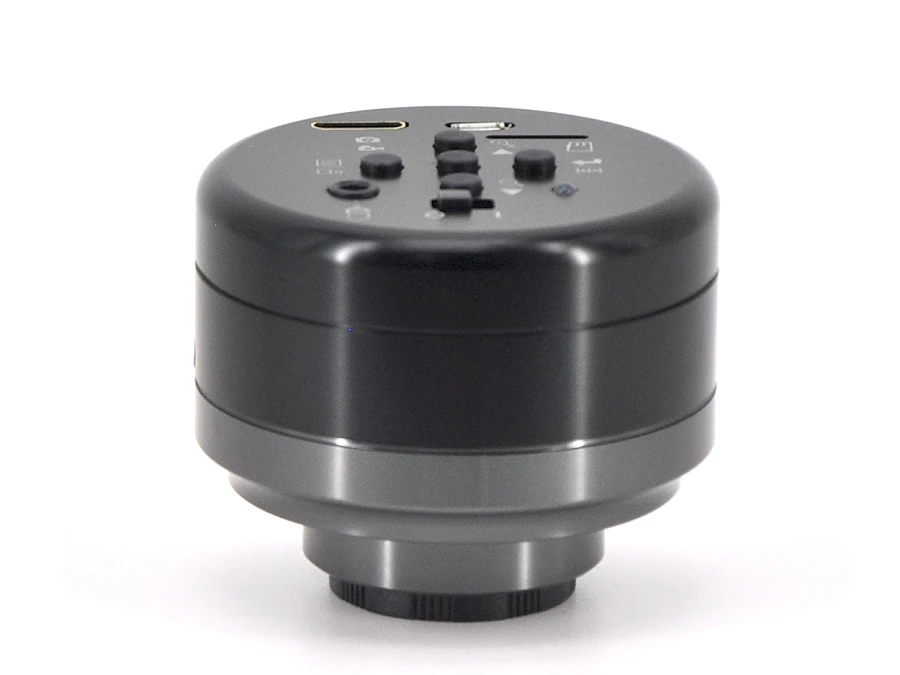

DM210 and its Back Panel

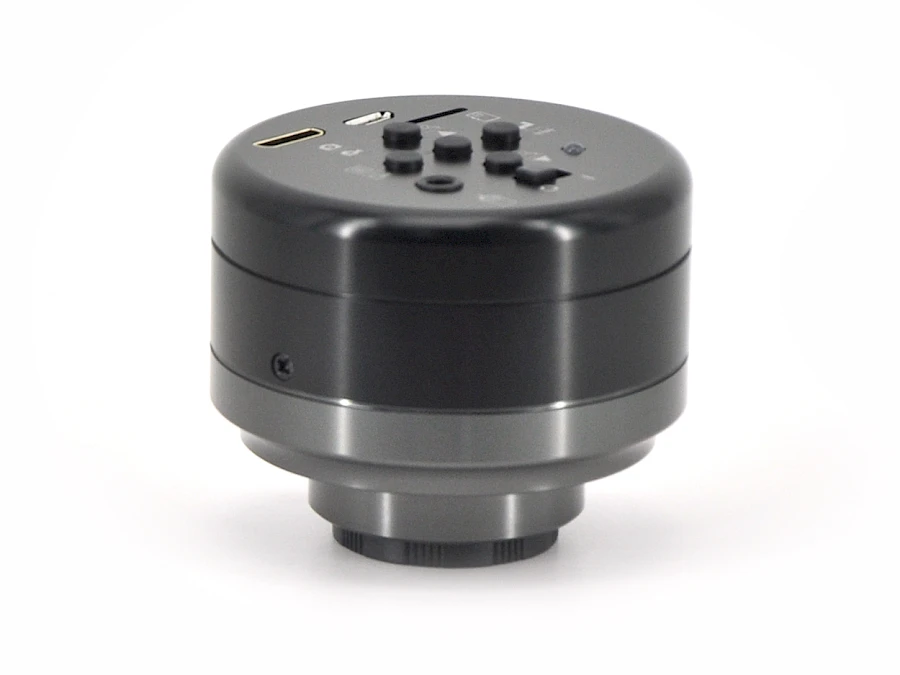

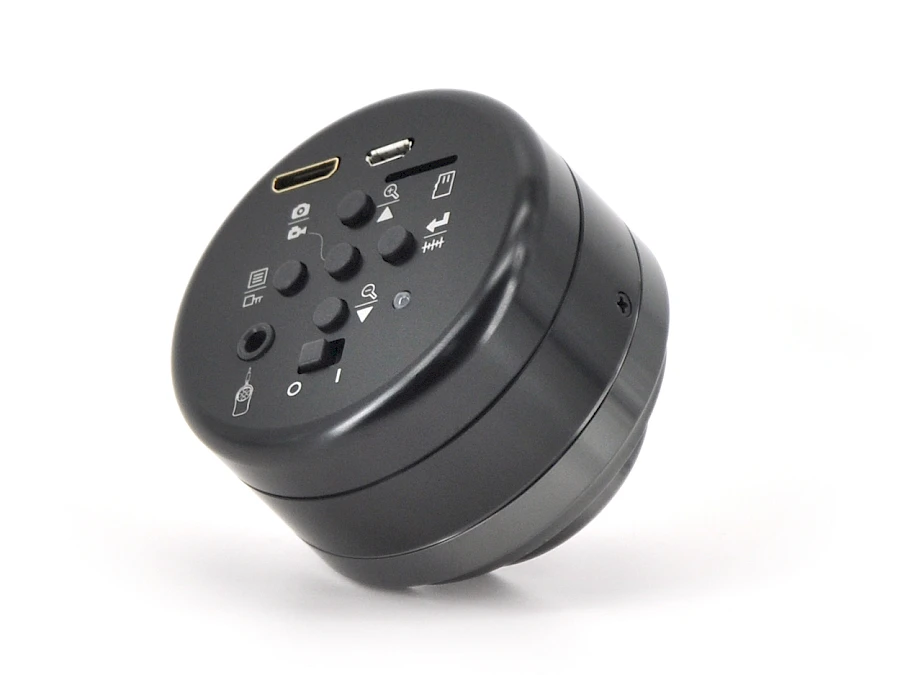

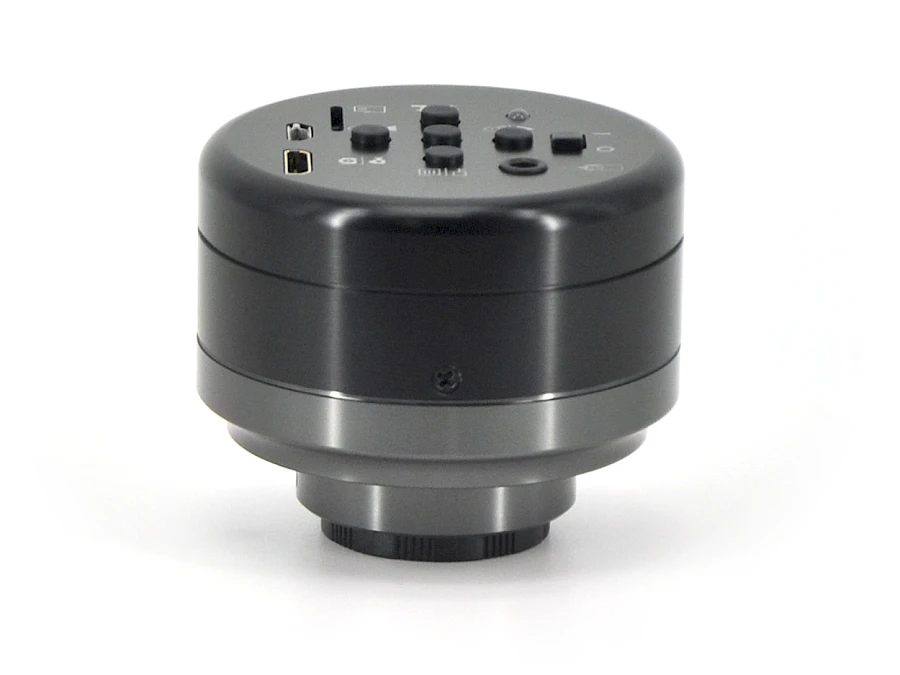

Different View of DM210

Different Views of DM210

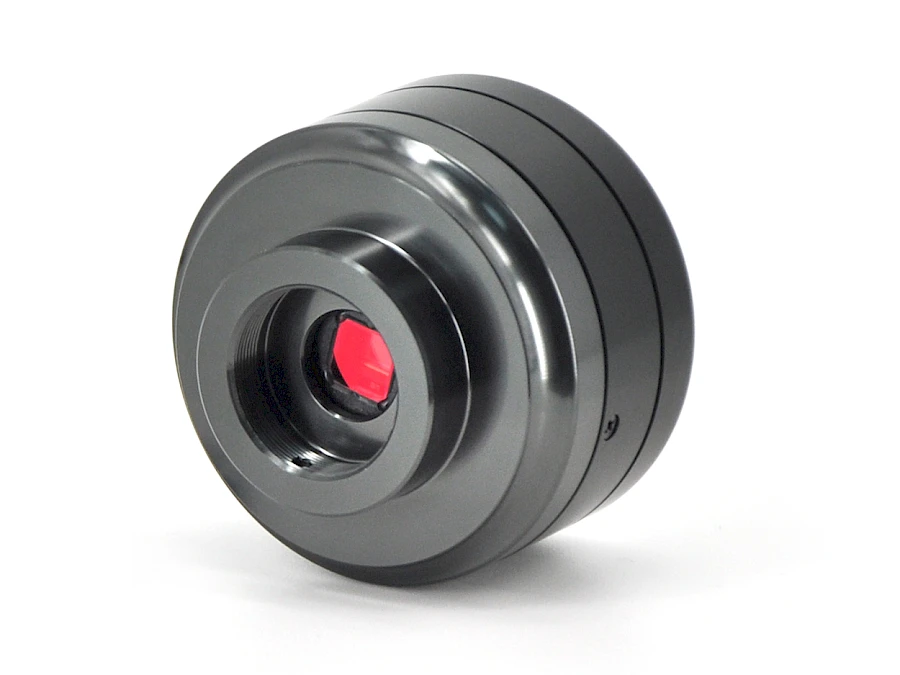

Different View of DM210

Different Views of DM210

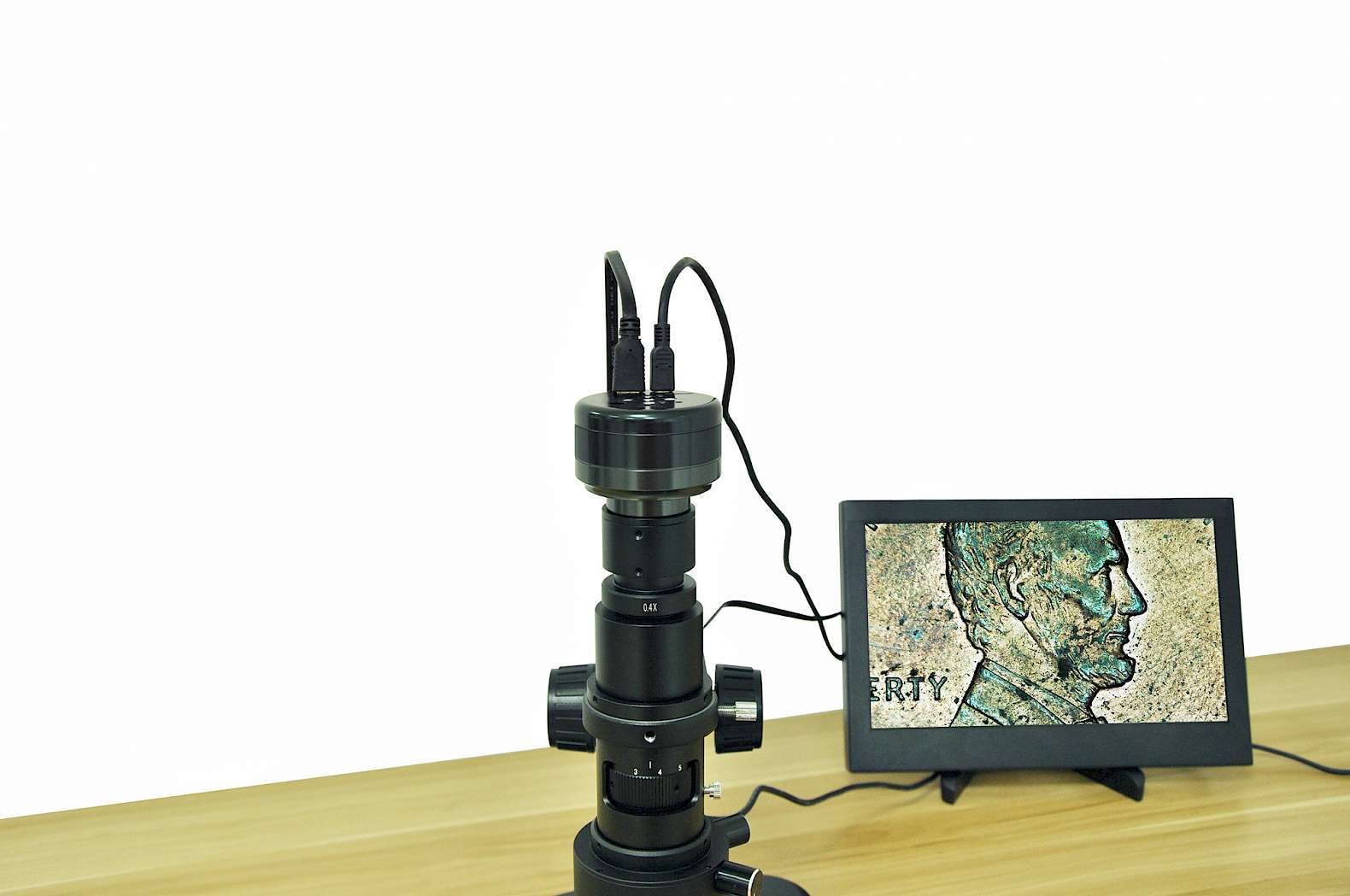

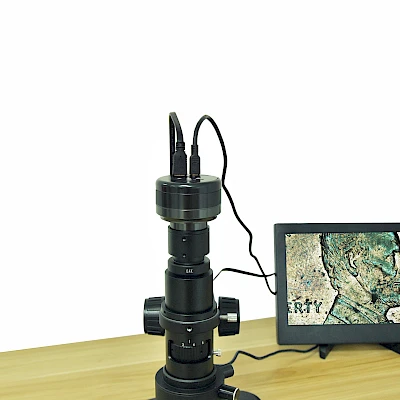

DM210 and its Stereo Microscope + Display

Hardware Configuration
Image Sensor	SONY CMOS IMX291 CMOS Sensor
Scan Mode	Scan line by line
Maximum Resolution	1920 x 1080(2,073,600 pixels)
Sensor Optical Format	1/2.8'' (6.058mm(H) x 4.415mm(V))
Pixel Size	2.9μm x 2.9μm
Dynamic Range	128dB
SNRmax	30dB
Spectral Charactristics	380-650nm
HDMI Output Resolution	Maximum 1920X1080P60 (Auto adjust according to displayer)
Exposure Capability	Real-time auto, Single auto, Manual adjustment
White Balance	Real-time auto, Single auto, Manual adjust R G B seperately
Capture Modes	Picture Resolution：1920x1080 Format：JPG Video Resolution：1920X1080P60，1920X1080P30,1280x720P120,1280x720P60 Format：MOV
Record Route	The local and TF card(Maximum support 128G,support hot plug)
Interface Parameter
Camera Interface	C mount thread（1＂×1/32）
Wired picture interface	HDMI TYPE C Mini HDMI
Charger interface	Micro USB，DC5.0V (Maximum current 1A)
Software Environment
HDMI mode	Displayer: Recommend 16:9 , at least 1080P HD displayer
Operating Environment
Operating Temperature	0℃~ 40℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~60%RH
Storage Humidity	10~80%RH
