E3ISPM Series

E3ISPM Series C-mount USB3.0 CMOS Camera with Hardware ISP and Video Pipeline

BEST SELLERS

Core Features
  • SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface
  • Real-time 8/12bit depth switch(depending on sensor)
  • Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 15 frames for 20M Resolution)
  • Super high sensitivity up to 1120mV(IMX264)
  • Ultra low noise and low power dissipation by using column-parallel A/D conversion
  • With hardware resolution among 3.1M to 20M
Configurations
SONY CMOS sensor
USB3.0
C-Mount
3.1M to 20M

E3ISPM integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipeline(Ultra-fineTM HISP VP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISP VP and greatly accelerating the processing speed.

Request Quotation Email Phone Back to Products

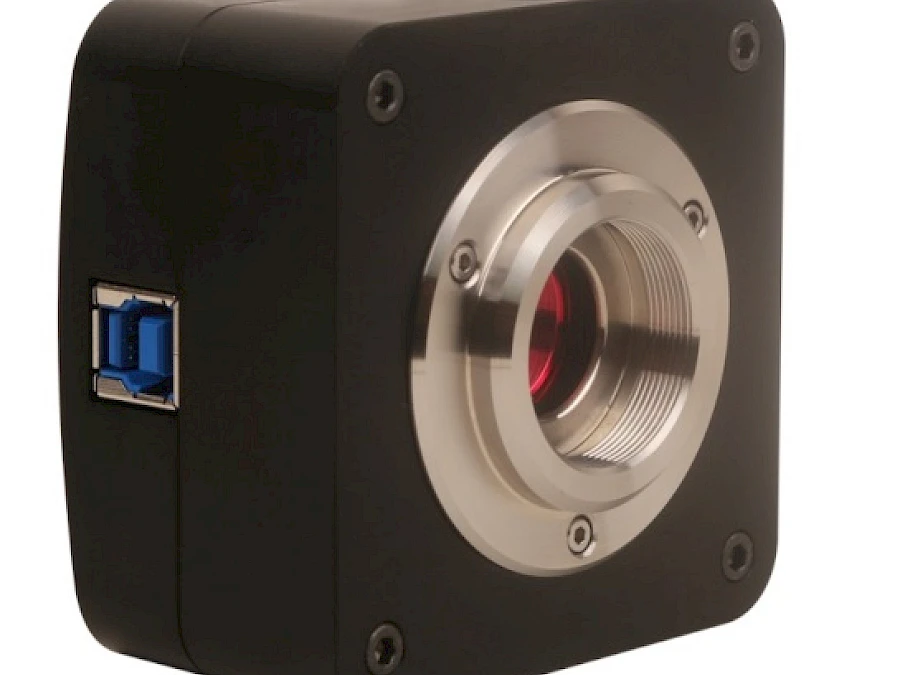

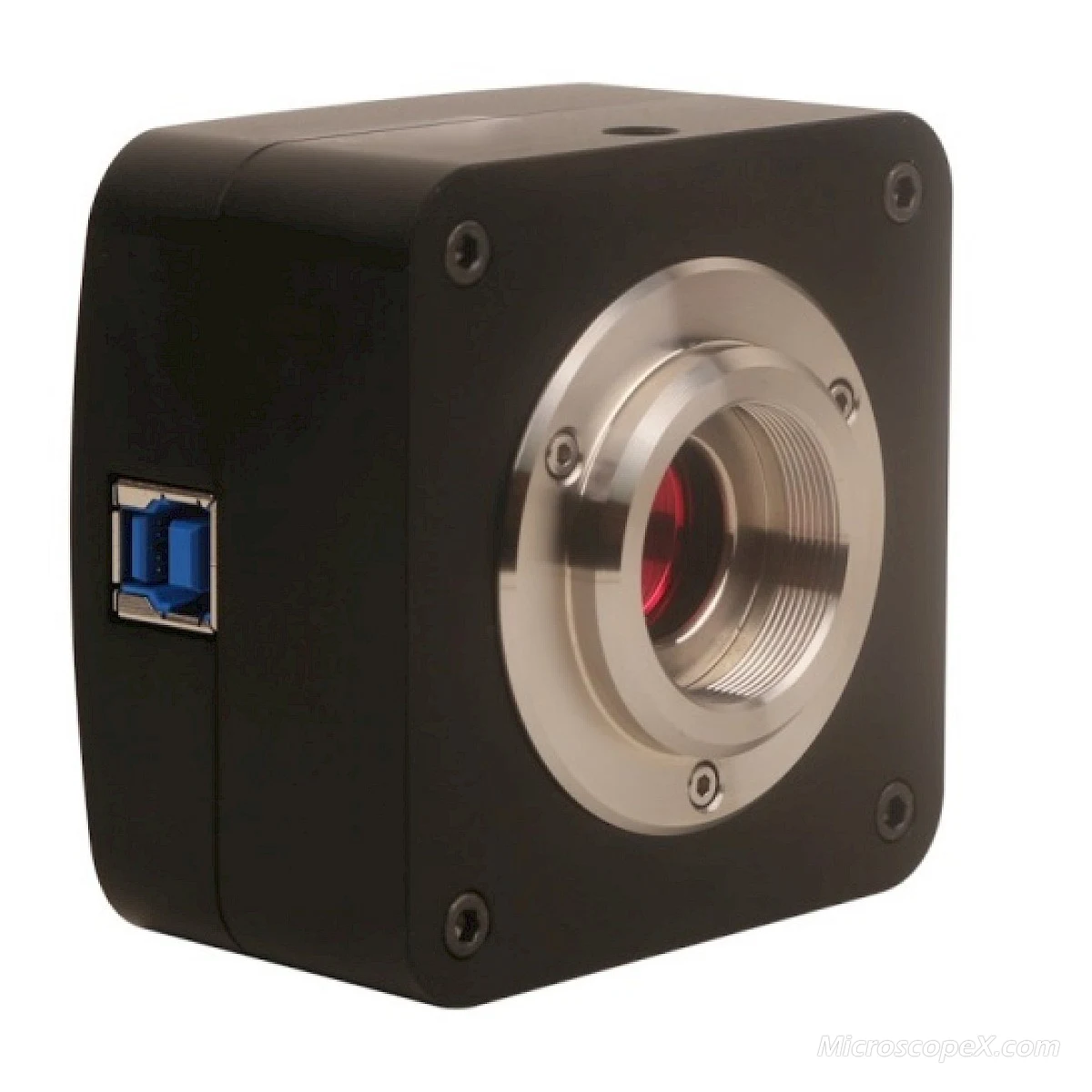

E3ISPM Series

E3ISPM adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.

E3ISPM hardware resolutions range from 3.1M to 20M and come with the integrated CNC aluminum alloy compact housing.

E3ISPM integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipeline(Ultra-fineTM HISP VP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISP VP and greatly accelerating the processing speed.

E3ISPM comes with advanced video & image processing application; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The E3ISPM can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

E3ISPM Series

E3ISPM Series

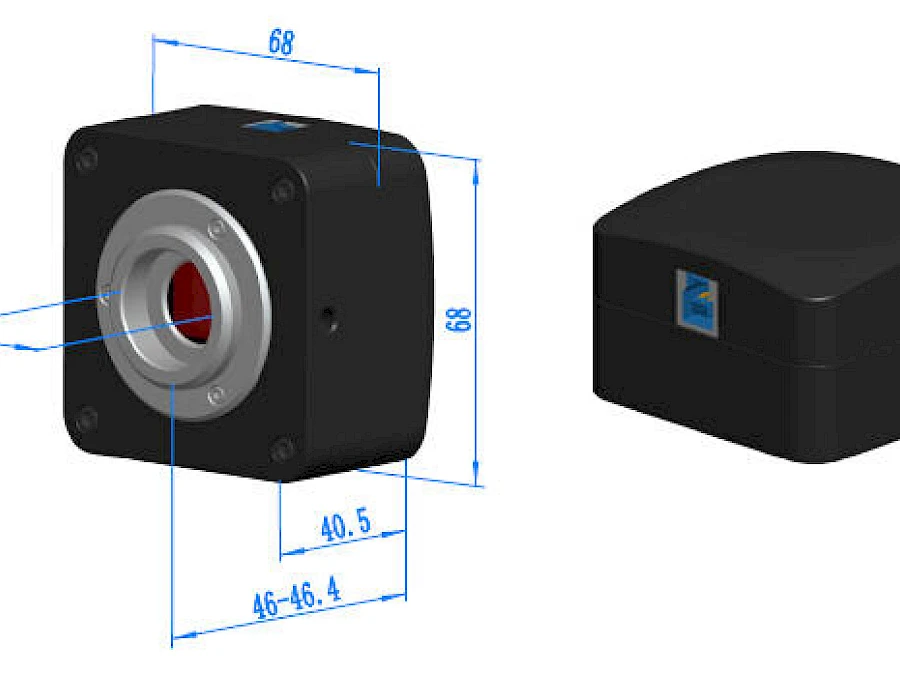

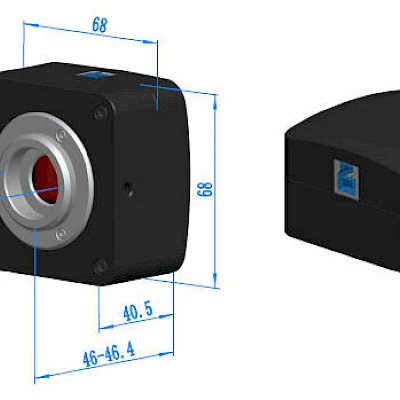

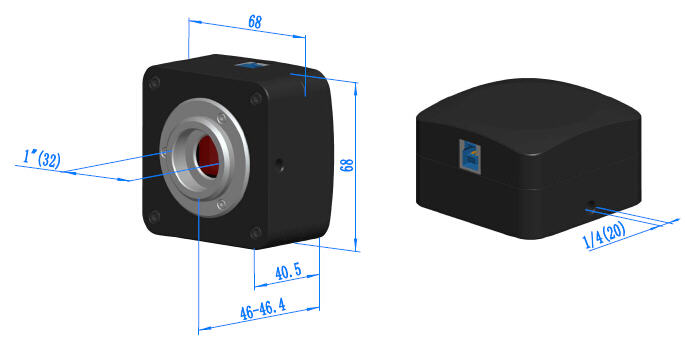

Dimension of E3ISPM

The E3ISPM body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Dimension of E3ISPM Series

Dimension of E3ISPM

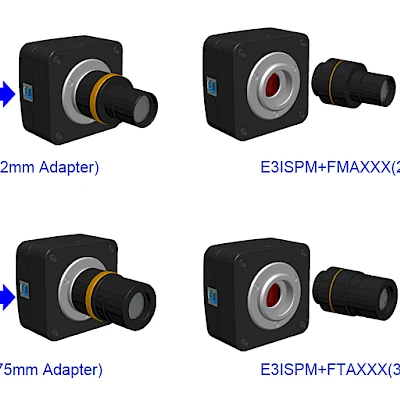

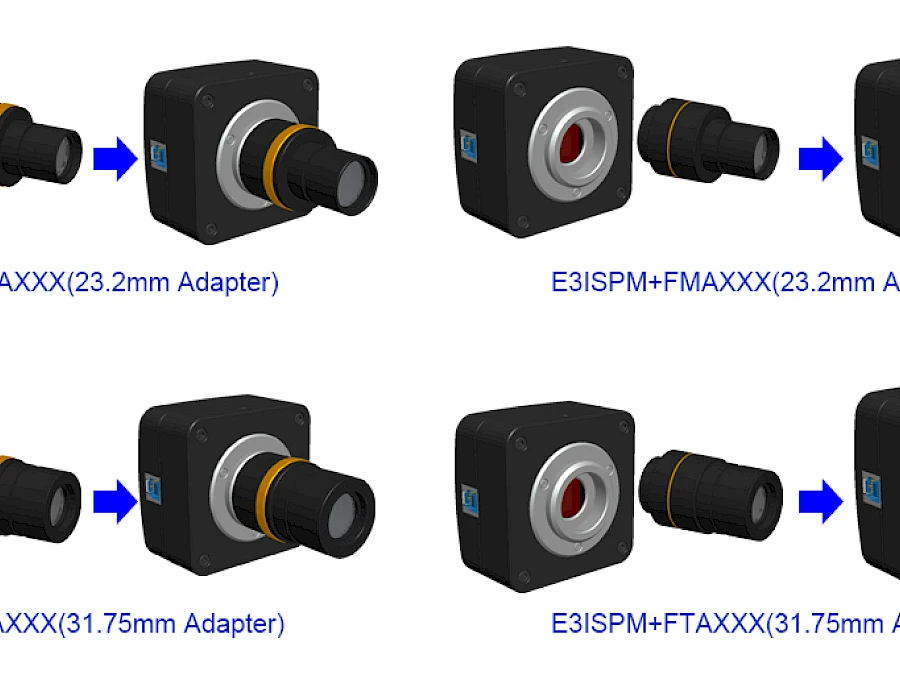

Extension of E3ISPM with Microscope or Telescope Adapter

Extension


C-mount Camera

E3ISPM Series

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

Extension of E3ISPM Series with Microscope or Telescope Adapter

Telescope Camera
